1dn5
SOLVATION OF THE LEFT-HANDED HEXAMER D(5BRC-G-5BRC-G-5BRC-G) IN CRYSTALS GROWN AT TWO TEMPERATURES

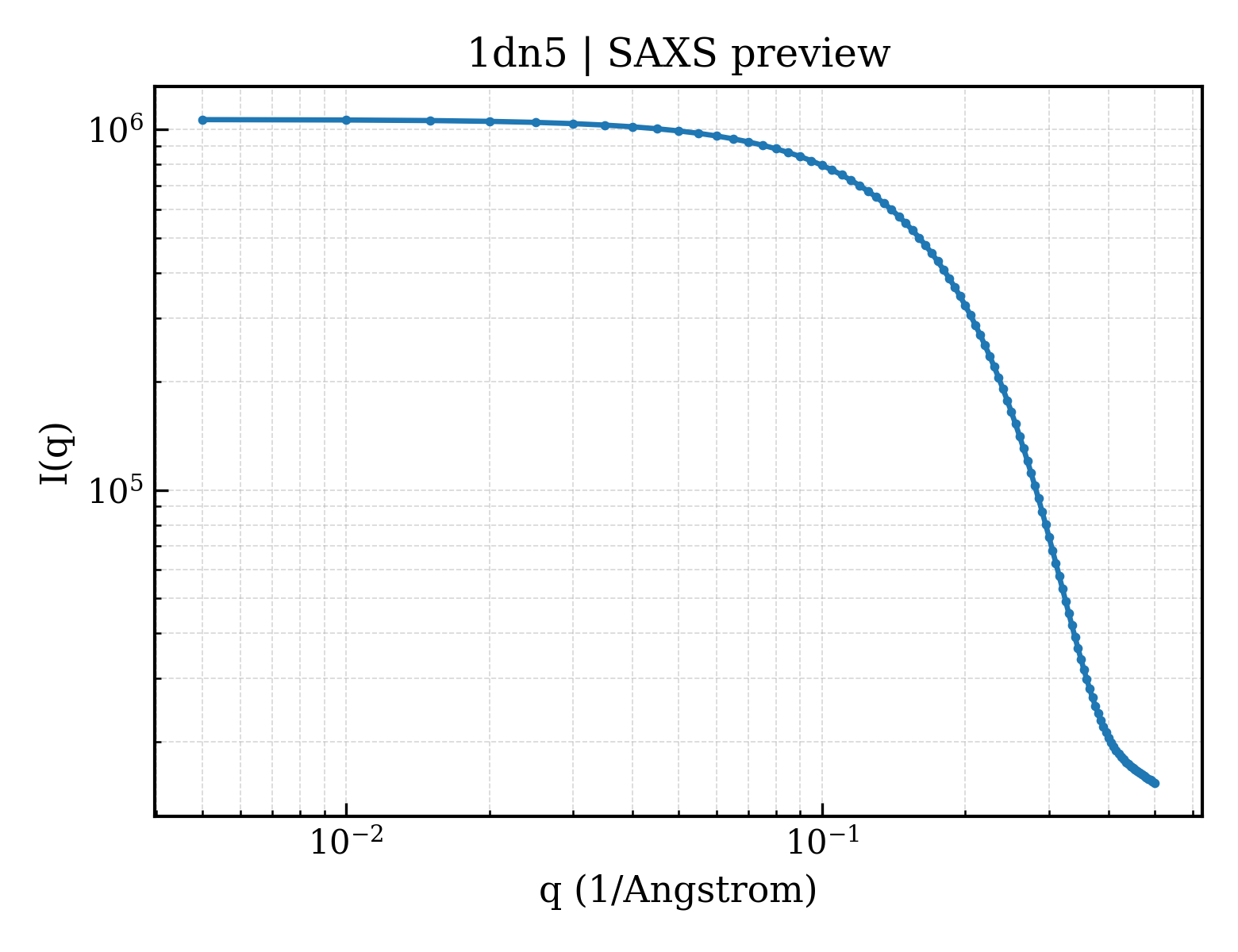

SAXS Profile

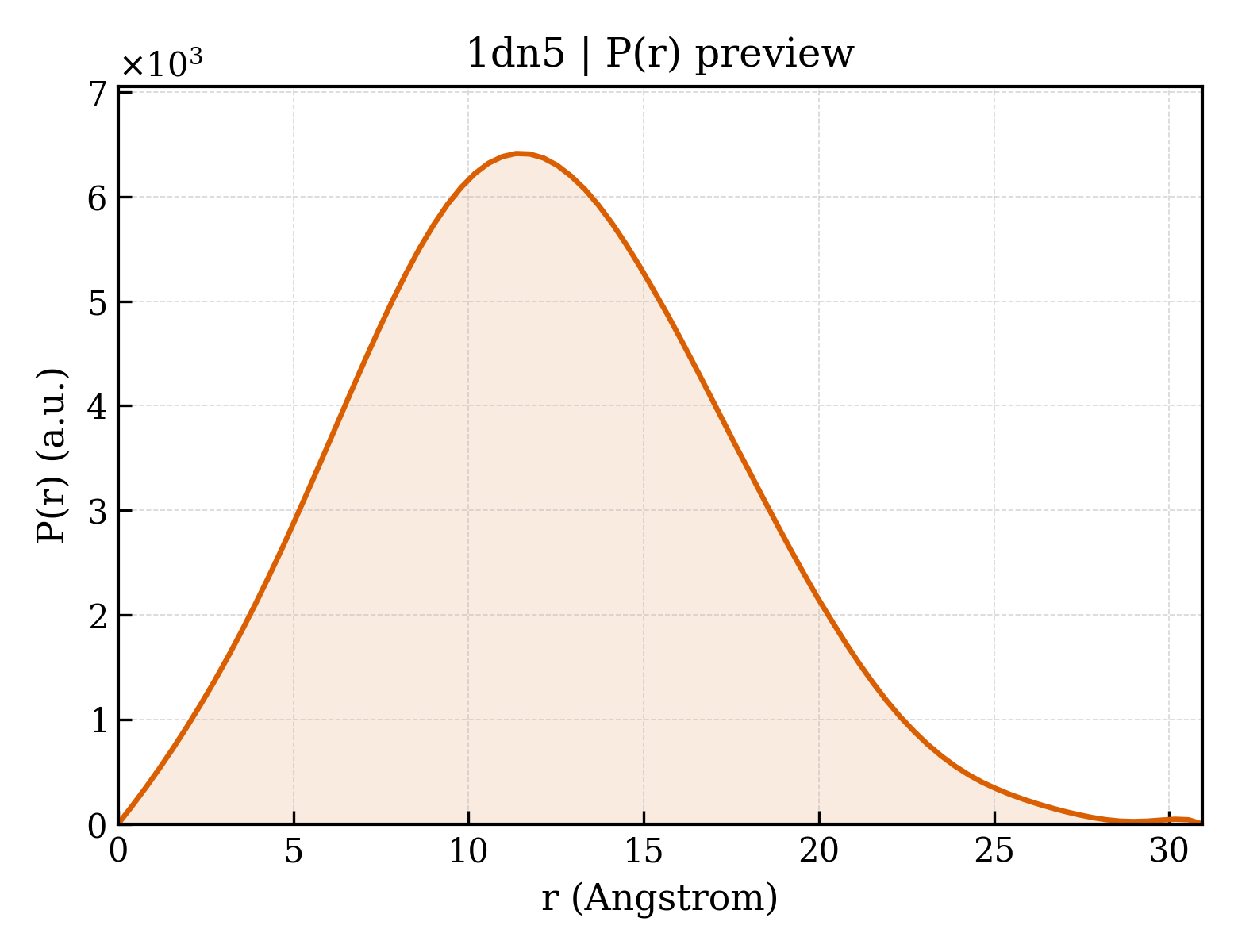

P(r) Distribution
1. Structure Basics
| entry_id | 1dn5 |
| deposition_date | 1986-12-01 |
| title | SOLVATION OF THE LEFT-HANDED HEXAMER D(5BRC-G-5BRC-G-5BRC-G) IN CRYSTALS GROWN AT TWO TEMPERATURES |
| keywords | Z-DNA, DOUBLE HELIX, MODIFIED, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.37 Å |
| rg_electron | 8.69 Å |
| i0 | 1066710.00 |
| molecular_weight | 4068.0 kDa |
| excluded_volume | 3596 ų |
| envelope_volume | 4329 ų |
| shell_volume | 4800 ų |
| envelope_diameter | 28.3 Å |
| shell_rg | 13.02 Å |
| envelope_rg | 8.87 Å |
| shape_rg | 8.64 Å |
| total_rg | 9.56 Å |
| total_atoms | 246 |
| n_residues | 6 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 30.9 Å |
| rg_real | 9.33 Å |
| rg_real_error | 0.26 Å |
| i0_real | 1.0670e+06 |
| i0_real_error | 1.0740e+04 |
| rg_reciprocal | 9.34 Å |
| i0_reciprocal | 1067000.0000 |
| total_estimate | 0.8901 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.4 Å |
| skewness | 0.233 |
| kurtosis | -0.278 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 49370.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.861; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.988 |
