1dn6
THE CRYSTAL STRUCTURE OF D(GGATGGGAG). AN ESSENTIAL PART OF THE BINDING SITE FOR TRANSCRIPTION FACTOR IIIA
SAXS Profile

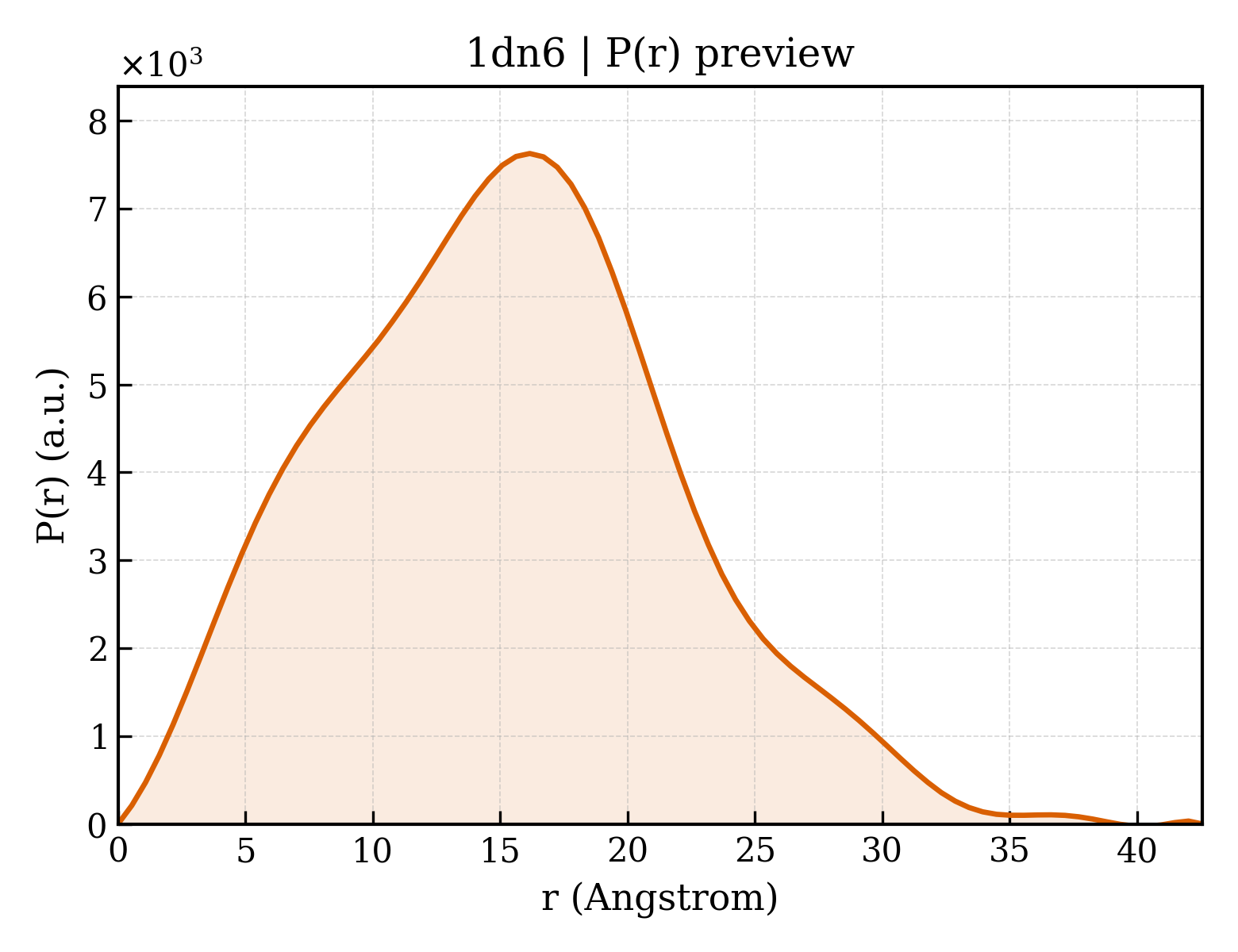

P(r) Distribution
1. Structure Basics
| entry_id | 1dn6 |
| deposition_date | 1987-05-11 |
| title | THE CRYSTAL STRUCTURE OF D(GGATGGGAG). AN ESSENTIAL PART OF THE BINDING SITE FOR TRANSCRIPTION FACTOR IIIA |
| keywords | A-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.77 Å |
| rg_electron | 11.19 Å |
| i0 | 1587010.00 |
| molecular_weight | 5453.0 kDa |
| excluded_volume | 5288 ų |
| envelope_volume | 6838 ų |
| shell_volume | 5819 ų |
| envelope_diameter | 39.7 Å |
| shell_rg | 15.48 Å |
| envelope_rg | 11.22 Å |
| shape_rg | 11.07 Å |
| total_rg | 12.10 Å |
| total_atoms | 363 |
| n_residues | 18 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.6 Å |
| rg_real | 11.76 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.5870e+06 |
| i0_real_error | 1.8520e+04 |
| rg_reciprocal | 11.76 Å |
| i0_reciprocal | 1587000.0000 |
| total_estimate | 0.7528 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 16.2 Å |
| skewness | 0.256 |
| kurtosis | -0.220 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 39550.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.628; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.899; Smooth: 0.000 |
