1dou
MONOVALENT CATIONS SEQUESTER WITHIN THE A-TRACT MINOR GROOVE OF [D(CGCGAATTCGCG)]2
SAXS Profile

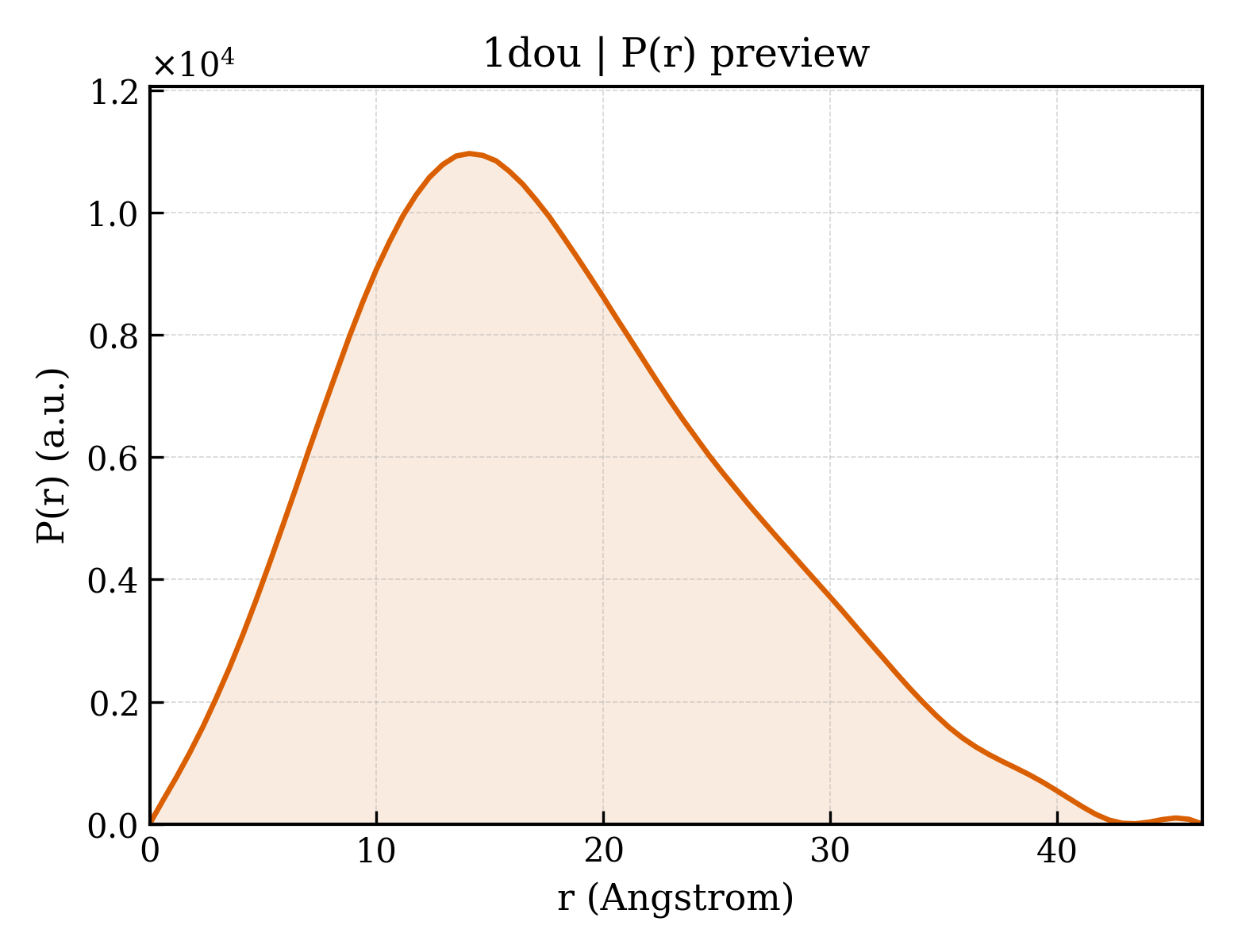

P(r) Distribution
1. Structure Basics
| entry_id | 1dou |
| deposition_date | 1999-12-21 |
| title | MONOVALENT CATIONS SEQUESTER WITHIN THE A-TRACT MINOR GROOVE OF [D(CGCGAATTCGCG)]2 |
| keywords | DODECAMER, CATION BINDING, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.65 Å |
| rg_electron | 13.19 Å |
| i0 | 2800600.00 |
| molecular_weight | 7337.0 kDa |
| excluded_volume | 7092 ų |
| envelope_volume | 9689 ų |
| shell_volume | 7098 ų |
| envelope_diameter | 45.5 Å |
| shell_rg | 16.95 Å |
| envelope_rg | 13.35 Å |
| shape_rg | 13.08 Å |
| total_rg | 13.92 Å |
| total_atoms | 487 |
| n_residues | 24 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.4 Å |
| rg_real | 13.73 Å |
| rg_real_error | 0.42 Å |
| i0_real | 2.8010e+06 |
| i0_real_error | 3.2560e+04 |
| rg_reciprocal | 13.72 Å |
| i0_reciprocal | 2801000.0000 |
| total_estimate | 0.8671 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.1 Å |
| skewness | 0.447 |
| kurtosis | -0.308 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 195200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.837; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.823; Smooth: 0.936 |
