CRYSTAL STRUCTURE OF ANTI-LYSOZYME ANTIBODY

entry_id	1dqm
deposition_date	2000-01-04
title	CRYSTAL STRUCTURE OF ANTI-LYSOZYME ANTIBODY
keywords	antibody, hen egg white lysozyme, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

rg_guinier	25.42 Å
rg_electron	24.33 Å
i0	37014200.00
molecular_weight	45958.0 kDa
excluded_volume	56982 ų
envelope_volume	70488 ų
shell_volume	24381 ų
envelope_diameter	81.5 Å
shell_rg	31.23 Å
envelope_rg	23.91 Å
shape_rg	24.31 Å
total_rg	25.18 Å
total_atoms	3234
n_residues	423
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	78.8 Å
rg_real	25.38 Å
rg_real_error	0.49 Å
i0_real	3.7010e+07
i0_real_error	5.1630e+05
rg_reciprocal	25.40 Å
i0_reciprocal	37010000.0000
total_estimate	0.9145
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	29.2 Å
skewness	0.226
kurtosis	-0.579
angular_range	— – 0.3100 Å−1
current_alpha	0.0000
highest_alpha	5593000.0000
n_real_points	63
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.971; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.975

Unit Cell

length_a	162.360 Å
length_b	39.740 Å
length_c	70.290 Å
angle_alpha	90.00 °
angle_beta	98.10 °
angle_gamma	90.00 °
z_pdb	4

Symmetry

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

Refinement

resolution	2.100 Å
resolution_low	100.000 Å
r_factor	0.2250
r_work	0.2250
r_free	0.2680

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/dq/1dqm/pr_distribution.json
• pr_output /app/data/pr_computation/dq/1dqm/1dqm.pr.out

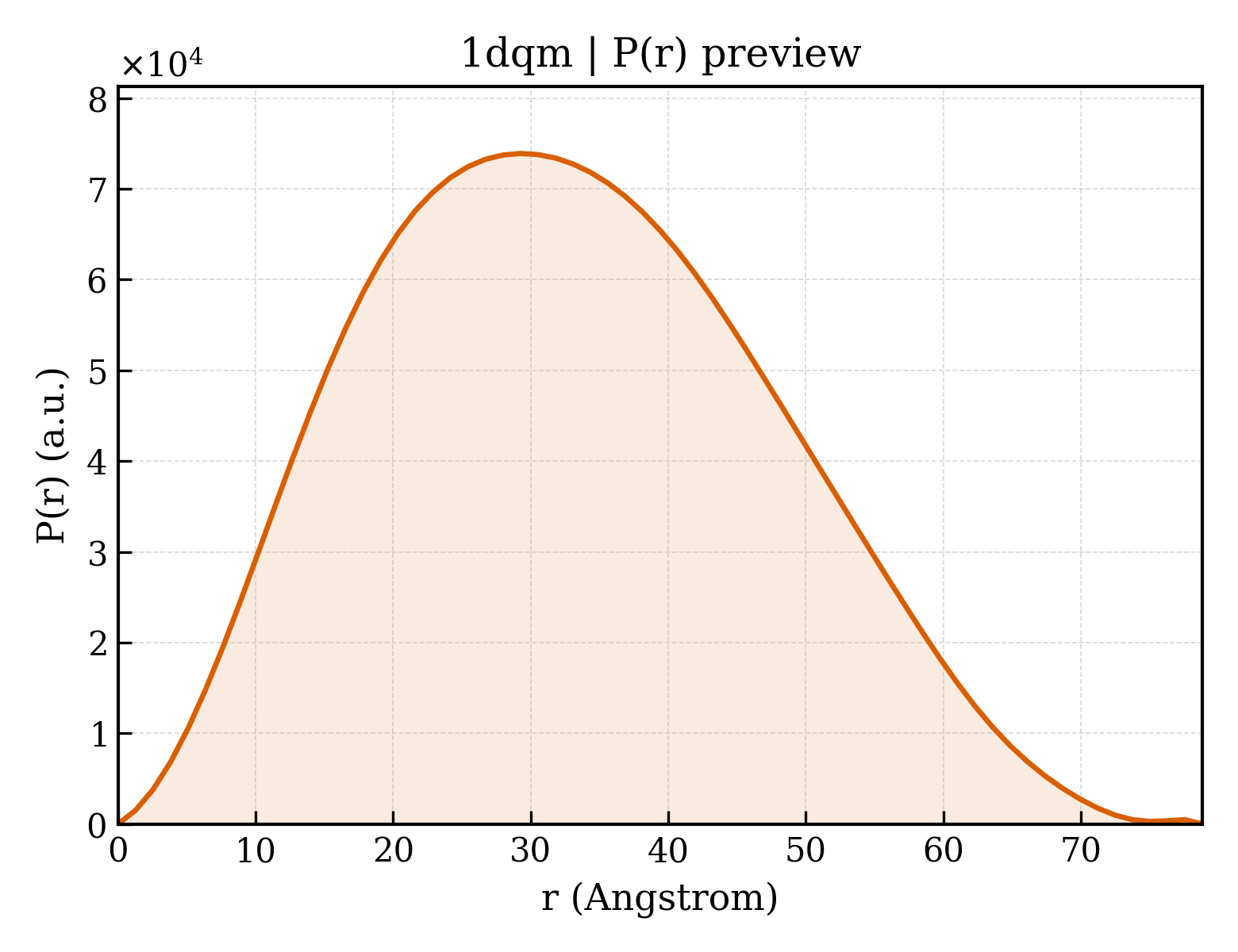

• pr_plot /app/data/visualization/pr_computation/dq/1dqm/1dqm_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/dq/1dqm/1dqm.dat
• saxs_fit /app/data/saxs_computation/dq/1dqm/1dqm.fit
• saxs_log /app/data/saxs_computation/dq/1dqm/1dqm.log
• saxs_plot /app/data/visualization/saxs_computation/dq/1dqm/1dqm_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/dq/1dqm/1dqm.fit
pddf	/app/data/pr_computation/dq/1dqm/1dqm.pr.out
profile	/app/data/saxs_computation/dq/1dqm/1dqm.dat
