CRYSTAL STRUCTURE OF ANTI-LYSOZYME ANTIBODY HYHEL-63

entry_id	1dqq
deposition_date	2000-01-04
title	CRYSTAL STRUCTURE OF ANTI-LYSOZYME ANTIBODY HYHEL-63
keywords	anti-lysozyme antibody, HyHEL-63, hen egg white lysozyme, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

rg_guinier	37.15 Å
rg_electron	36.97 Å
i0	138579000.00
molecular_weight	92198.0 kDa
excluded_volume	114290 ų
envelope_volume	154820 ų
shell_volume	37449 ų
envelope_diameter	125.2 Å
shell_rg	39.76 Å
envelope_rg	36.03 Å
shape_rg	37.01 Å
total_rg	37.05 Å
total_atoms	6488
n_residues	848
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	127.8 Å
rg_real	37.40 Å
rg_real_error	1.60 Å
i0_real	1.3860e+08
i0_real_error	2.6820e+06
rg_reciprocal	37.25 Å
i0_reciprocal	138600000.0000
total_estimate	0.7905
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	41.6 Å
skewness	0.454
kurtosis	-0.380
angular_range	— – 0.2150 Å−1
current_alpha	0.0000
highest_alpha	11220000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.822; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.806; Smooth: 0.000

Unit Cell

length_a	39.940 Å
length_b	67.340 Å
length_c	84.390 Å
angle_alpha	81.52 °
angle_beta	77.04 °
angle_gamma	87.60 °
z_pdb	2

Symmetry

space_group	P 1
int_tables_number	1
crystal_system	—

Refinement

resolution	1.800 Å
resolution_low	100.000 Å
r_factor	0.2100
r_work	0.2100
r_free	0.2550

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/dq/1dqq/pr_distribution.json
• pr_output /app/data/pr_computation/dq/1dqq/1dqq.pr.out

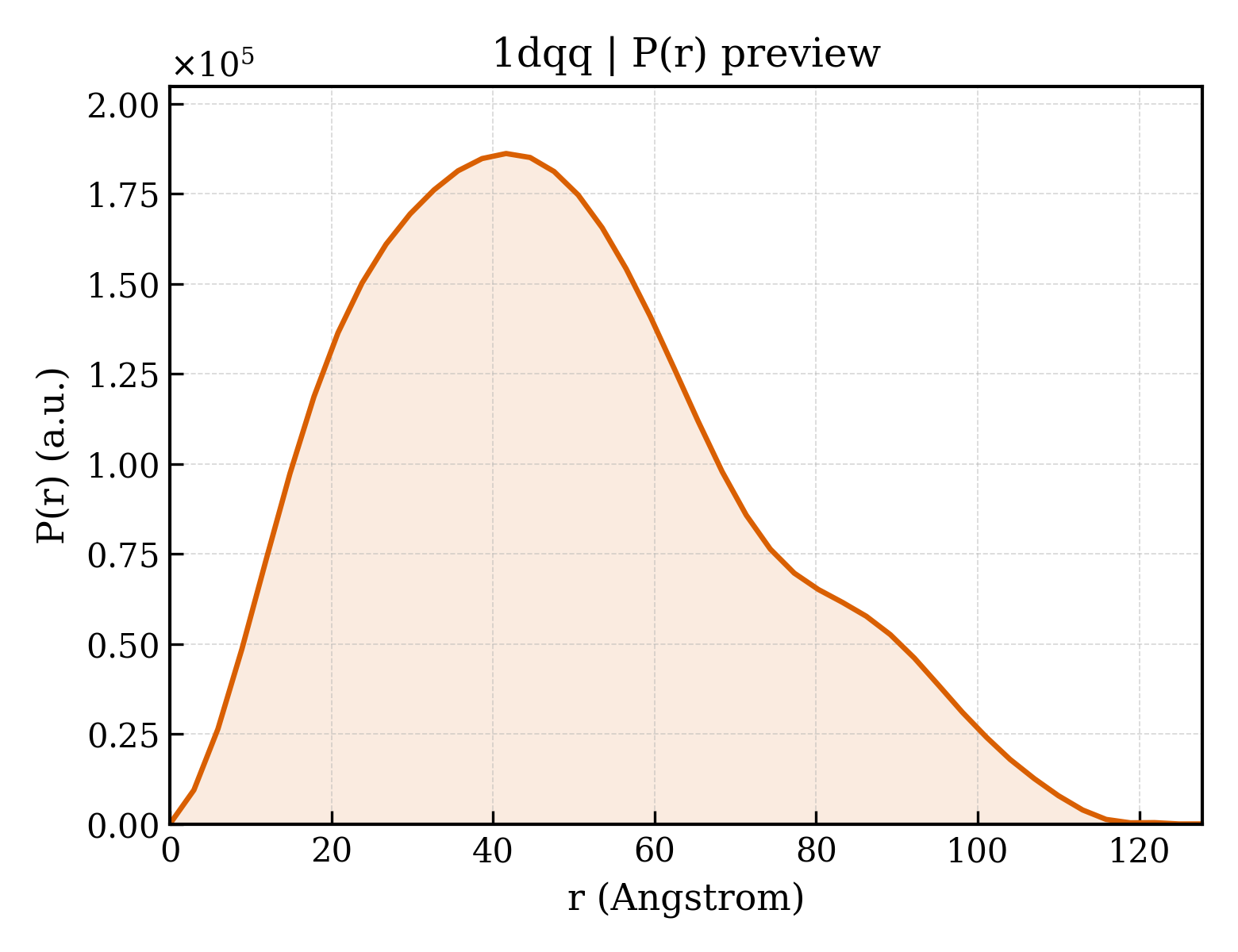

• pr_plot /app/data/visualization/pr_computation/dq/1dqq/1dqq_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/dq/1dqq/1dqq.dat
• saxs_fit /app/data/saxs_computation/dq/1dqq/1dqq.fit
• saxs_log /app/data/saxs_computation/dq/1dqq/1dqq.log
• saxs_plot /app/data/visualization/saxs_computation/dq/1dqq/1dqq_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/dq/1dqq/1dqq.fit
pddf	/app/data/pr_computation/dq/1dqq/1dqq.pr.out
profile	/app/data/saxs_computation/dq/1dqq/1dqq.dat
