1duf
THE NMR STRUCTURE OF DNA DODECAMER DETERMINED IN AQUEOUS DILUTE LIQUID CRYSTALLINE PHASE

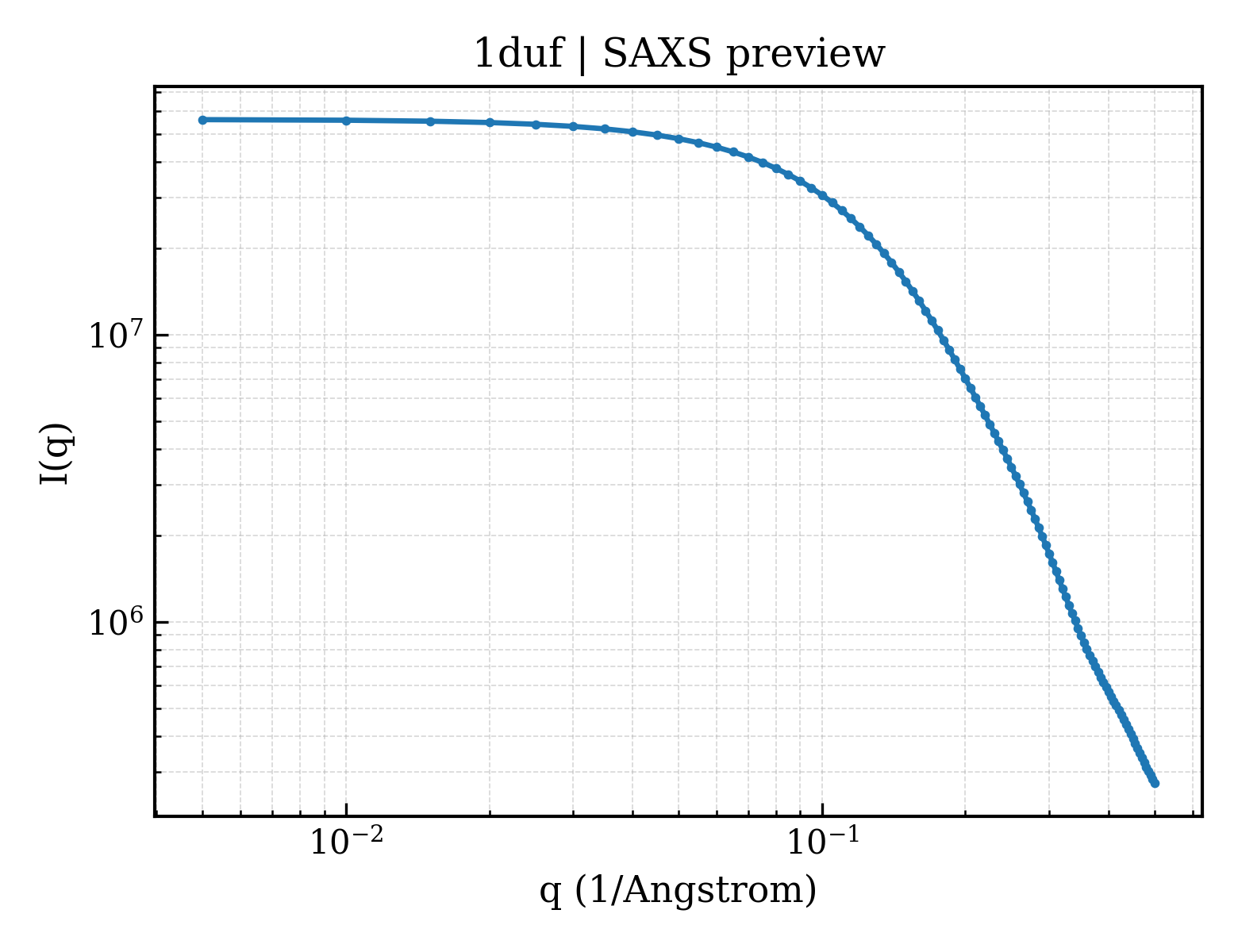

SAXS Profile

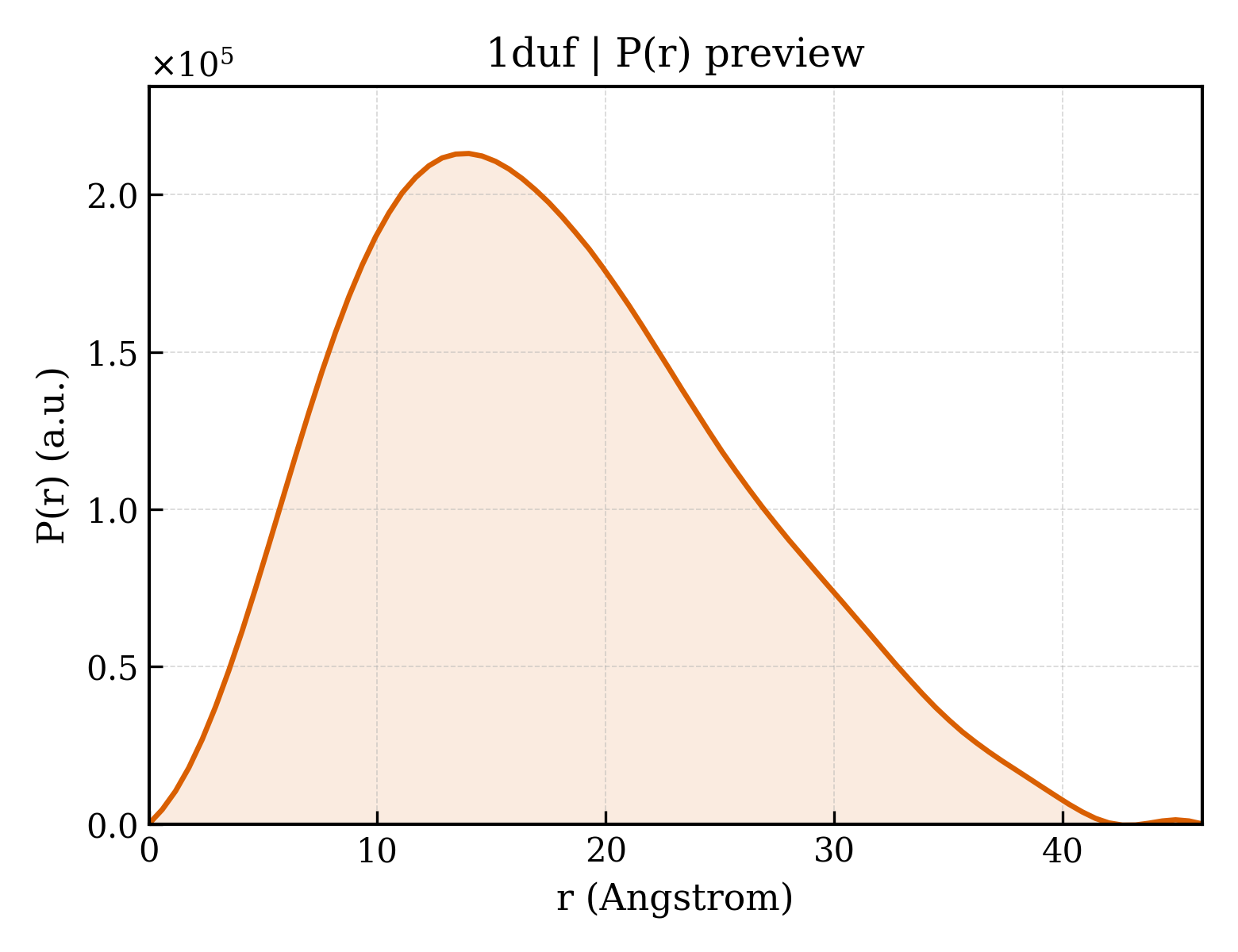

P(r) Distribution
1. Structure Basics
| entry_id | 1duf |
| deposition_date | 2000-01-17 |
| title | THE NMR STRUCTURE OF DNA DODECAMER DETERMINED IN AQUEOUS DILUTE LIQUID CRYSTALLINE PHASE |
| keywords | B-DNA, DOUBLE HELIX, DIPOLAR COUPLING, DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.57 Å |
| rg_electron | 13.39 Å |
| i0 | 56140400.00 |
| molecular_weight | 36565.0 kDa |
| excluded_volume | 35351 ų |
| envelope_volume | 17720 ų |
| shell_volume | 10849 ų |
| envelope_diameter | 46.5 Å |
| shell_rg | 19.51 Å |
| envelope_rg | 14.74 Å |
| shape_rg | 13.27 Å |
| total_rg | 13.87 Å |
| total_atoms | 3790 |
| n_residues | 120 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.1 Å |
| rg_real | 13.63 Å |
| rg_real_error | 0.44 Å |
| i0_real | 5.6140e+07 |
| i0_real_error | 6.0540e+05 |
| rg_reciprocal | 13.63 Å |
| i0_reciprocal | 56140000.0000 |
| total_estimate | 0.8670 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.0 Å |
| skewness | 0.424 |
| kurtosis | -0.395 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 371100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.845; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.782; Smooth: 0.951 |
