1duh
CRYSTAL STRUCTURE OF THE CONSERVED DOMAIN IV OF E. COLI 4.5S RNA

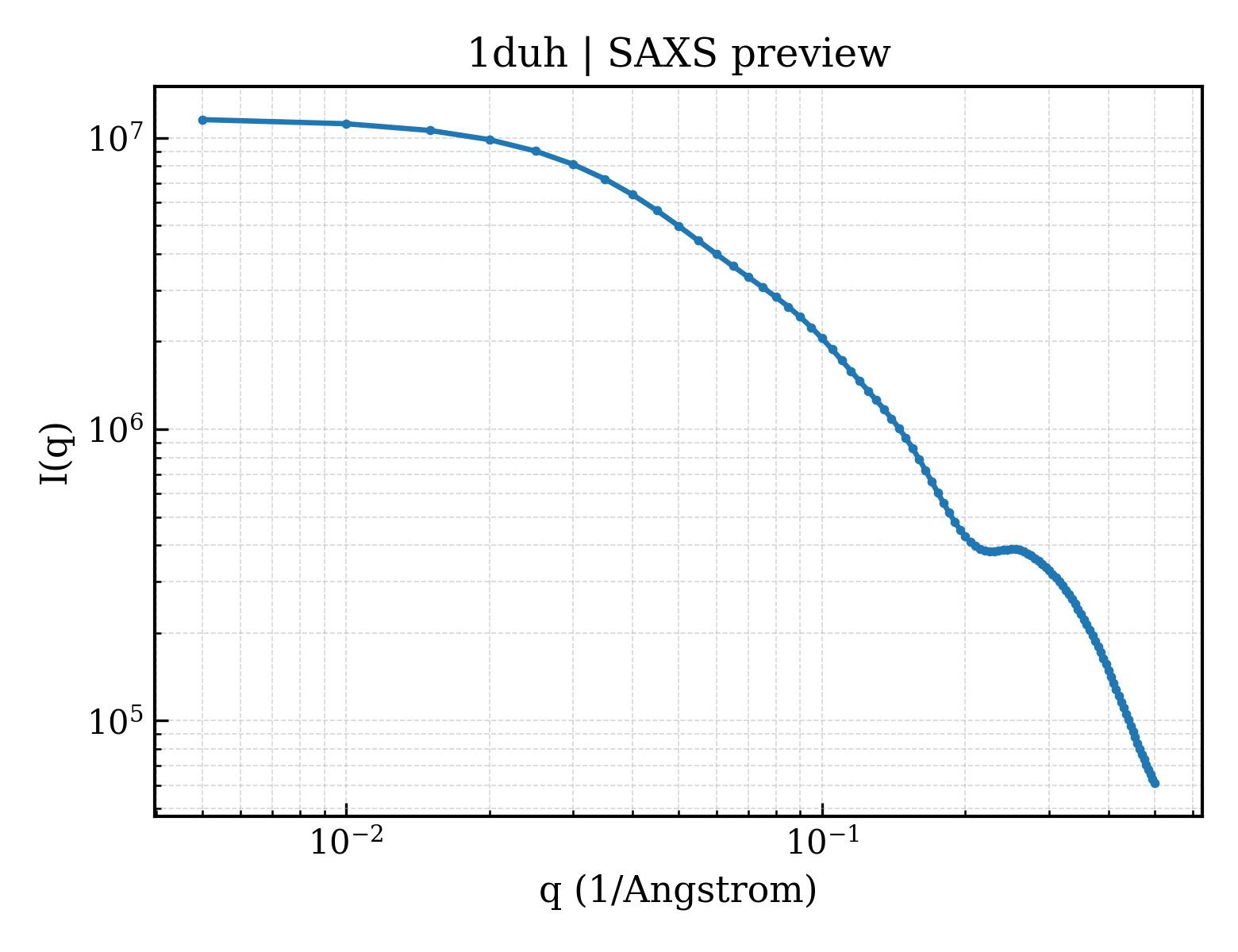

SAXS Profile

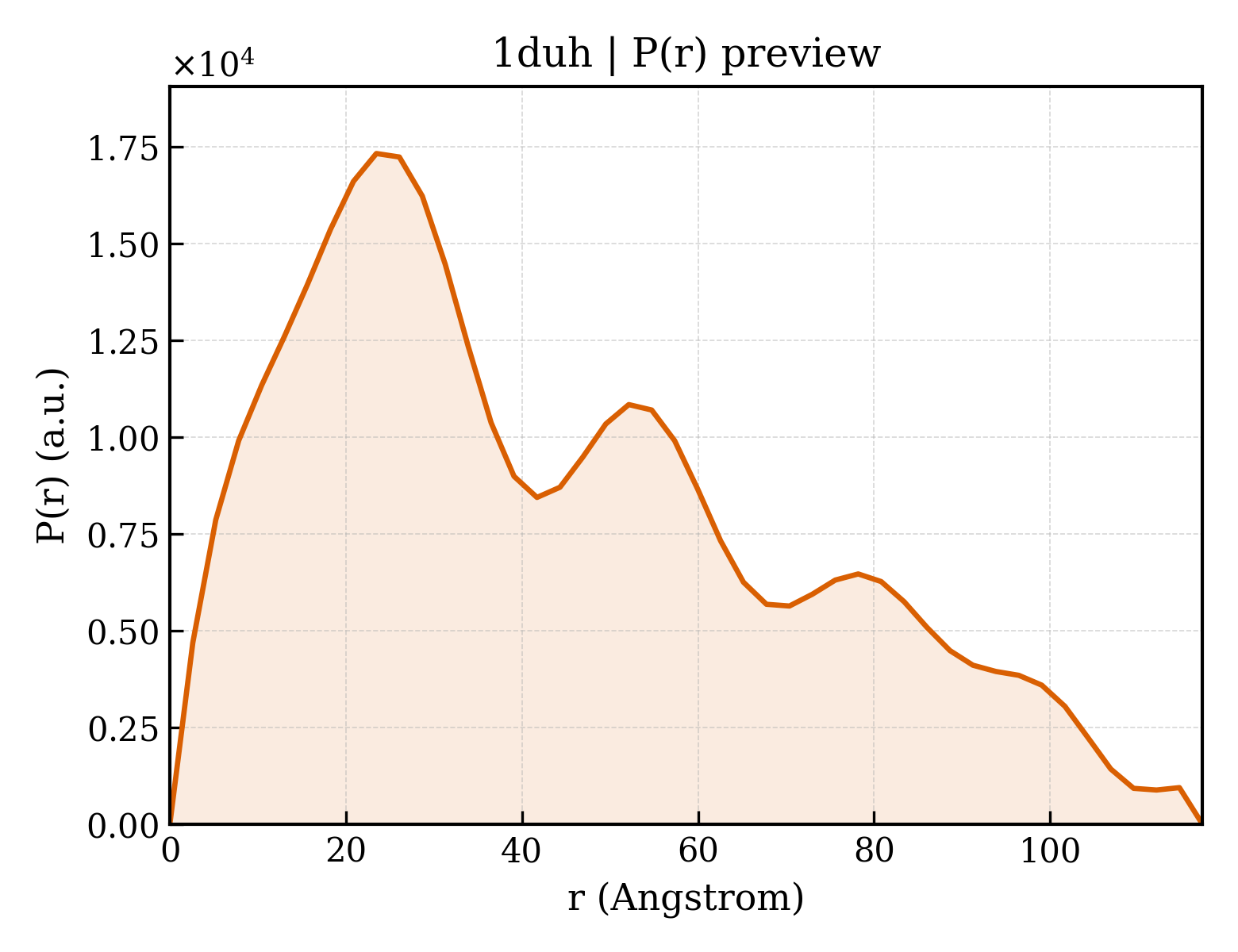

P(r) Distribution
1. Structure Basics
| entry_id | 1duh |
| deposition_date | 2000-01-17 |
| title | CRYSTAL STRUCTURE OF THE CONSERVED DOMAIN IV OF E. COLI 4.5S RNA |
| keywords | ;4.5S RNA, DOMAIN IV, HELIX 8, SIGNAL RECOGNITION PARTICLE, SRP, FFH, SRP54, ELONGATION FACTOR G, EF-G, 23S RNA, NON-CANONICAL BASE PAIRS, MISMATCH, RNA ;; RNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.26 Å |
| rg_electron | 36.18 Å |
| i0 | 11677600.00 |
| molecular_weight | 15082.0 kDa |
| excluded_volume | 13829 ų |
| envelope_volume | 32795 ų |
| shell_volume | 9882 ų |
| envelope_diameter | 121.1 Å |
| shell_rg | 32.03 Å |
| envelope_rg | 35.51 Å |
| shape_rg | 35.83 Å |
| total_rg | 36.36 Å |
| total_atoms | 982 |
| n_residues | 44 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 117.3 Å |
| rg_real | 36.12 Å |
| rg_real_error | 1.49 Å |
| i0_real | 1.1680e+07 |
| i0_real_error | 2.3350e+05 |
| rg_reciprocal | 35.59 Å |
| i0_reciprocal | 11670000.0000 |
| total_estimate | 0.5855 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 4 |
| r_peak_primary | 23.5 Å |
| skewness | 0.579 |
| kurtosis | -0.617 |
| angular_range | — – 0.2250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 347100.0000 |
| n_real_points | 46 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.122; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.084; Smooth: 0.159 |
