1dxt

HIGH-RESOLUTION X-RAY STUDY OF DEOXY RECOMBINANT HUMAN HEMOGLOBINS SYNTHESIZED FROM BETA-GLOBINS HAVING MUTATED AMINO TERMINI

Method: X-RAY DIFFRACTION D_max: 69.9 Å Quality: EXCELLENT

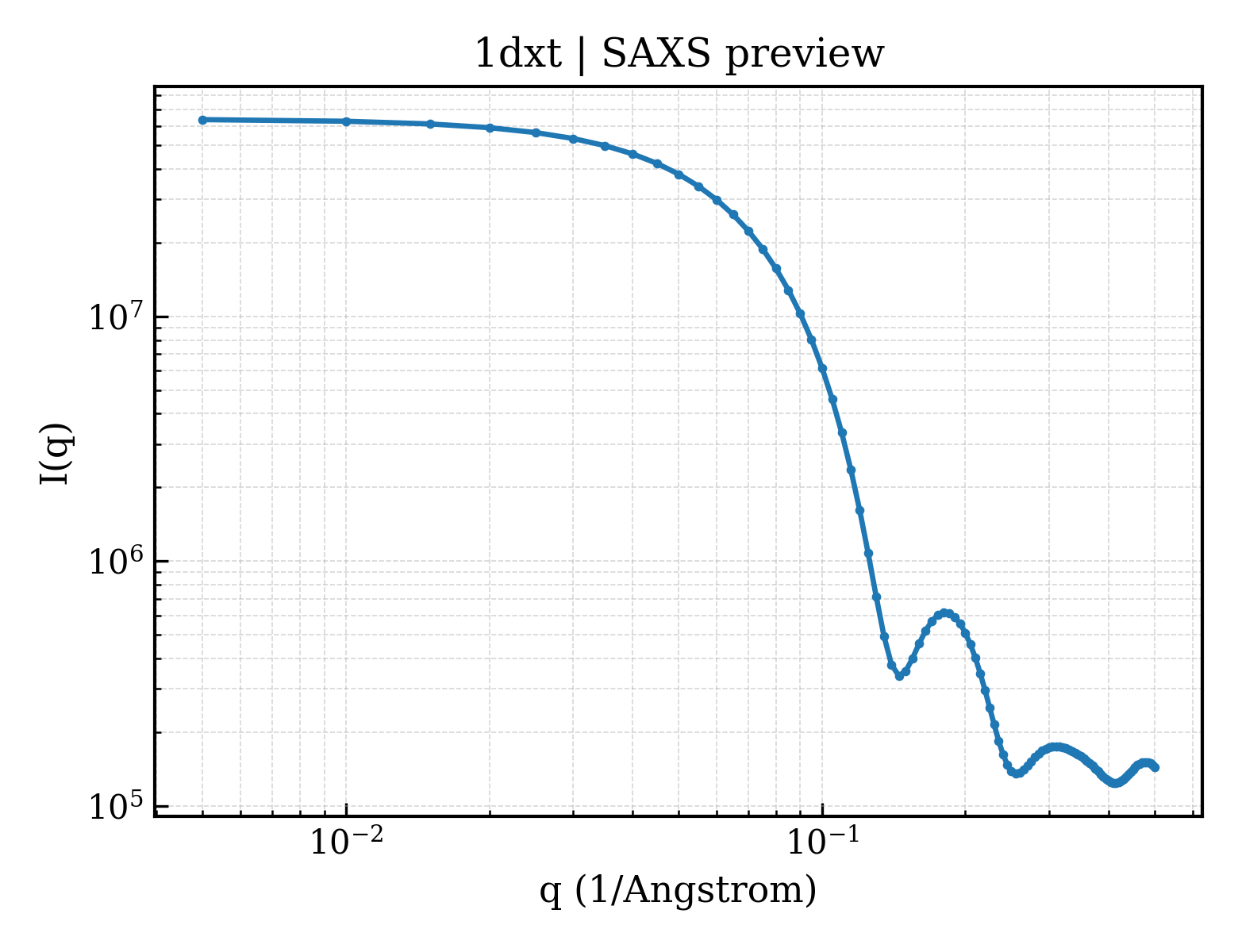

SAXS Profile

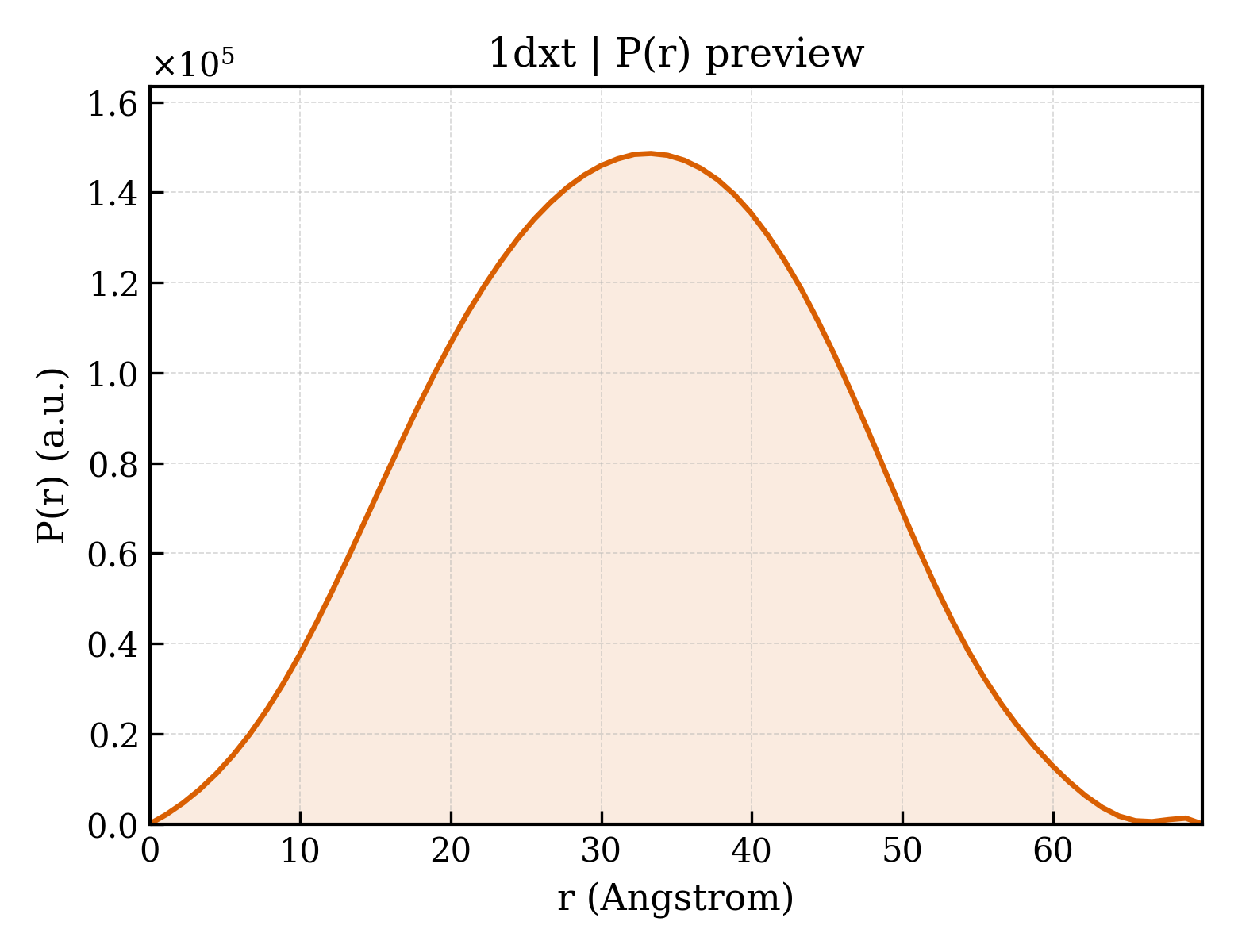

P(r) Distribution

▼

1. Structure Basics

entry_id	1dxt
deposition_date	1992-05-06
title	HIGH-RESOLUTION X-RAY STUDY OF DEOXY RECOMBINANT HUMAN HEMOGLOBINS SYNTHESIZED FROM BETA-GLOBINS HAVING MUTATED AMINO TERMINI
keywords	OXYGEN TRANSPORT; OXYGEN TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.78 Å
rg_electron	23.49 Å
i0	63909700.00
molecular_weight	64718.0 kDa
excluded_volume	81878 Å³
envelope_volume	96672 Å³
shell_volume	33002 Å³
envelope_diameter	72.4 Å
shell_rg	31.50 Å
envelope_rg	23.18 Å
shape_rg	23.48 Å
total_rg	24.40 Å
total_atoms	4572
n_residues	576
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	69.9 Å
rg_real	24.52 Å
rg_real_error	0.25 Å
i0_real	6.3910e+07
i0_real_error	7.6970e+05
rg_reciprocal	24.58 Å
i0_reciprocal	63910000.0000
total_estimate	0.9092
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	33.3 Å
skewness	0.006
kurtosis	-0.566
angular_range	— – 0.3200 Å⁻¹
current_alpha	0.0000
highest_alpha	15160000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.973; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.928

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	HEMOGLOBIN (DEOXY) (ALPHA CHAIN)
formula_weight	15150.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	4799

VLSPADKTNVKAAWGKVGAHAGEYGAEALERMFLSFPTTKTYFPHFDLSHGSAQVKGHGKKVADALTNAVAHVDDMPNALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHLPAEFTPAVHASLDKFLASVSTVLTSKYR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	HEMOGLOBIN (DEOXY) (BETA CHAIN)
formula_weight	16021.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

MVHLTPEEKSAVTALWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSTPDAVMGNPKVKAHGKKVLGAFSDGLAHLDNLKGTFATLSELHCDKLHVDPENFRLLGNVLVCVLAHHFGKEFTPPVQAAYQKVVAGVANALAHKYH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 3 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	227

▶

6. Citations (2)

▶

length_a	63.200 Å
length_b	83.600 Å
length_c	53.800 Å
angle_alpha	90.00 °
angle_beta	99.30 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.700 Å
resolution_low	6.000 Å
r_factor	0.1600
r_work	—
r_free	—

fit	/app/data/saxs_computation/dx/1dxt/1dxt.fit
pddf	/app/data/pr_computation/dx/1dxt/1dxt.pr.out
profile	/app/data/saxs_computation/dx/1dxt/1dxt.dat
