1e0m
PROTOTYPE WW domain
SAXS Profile

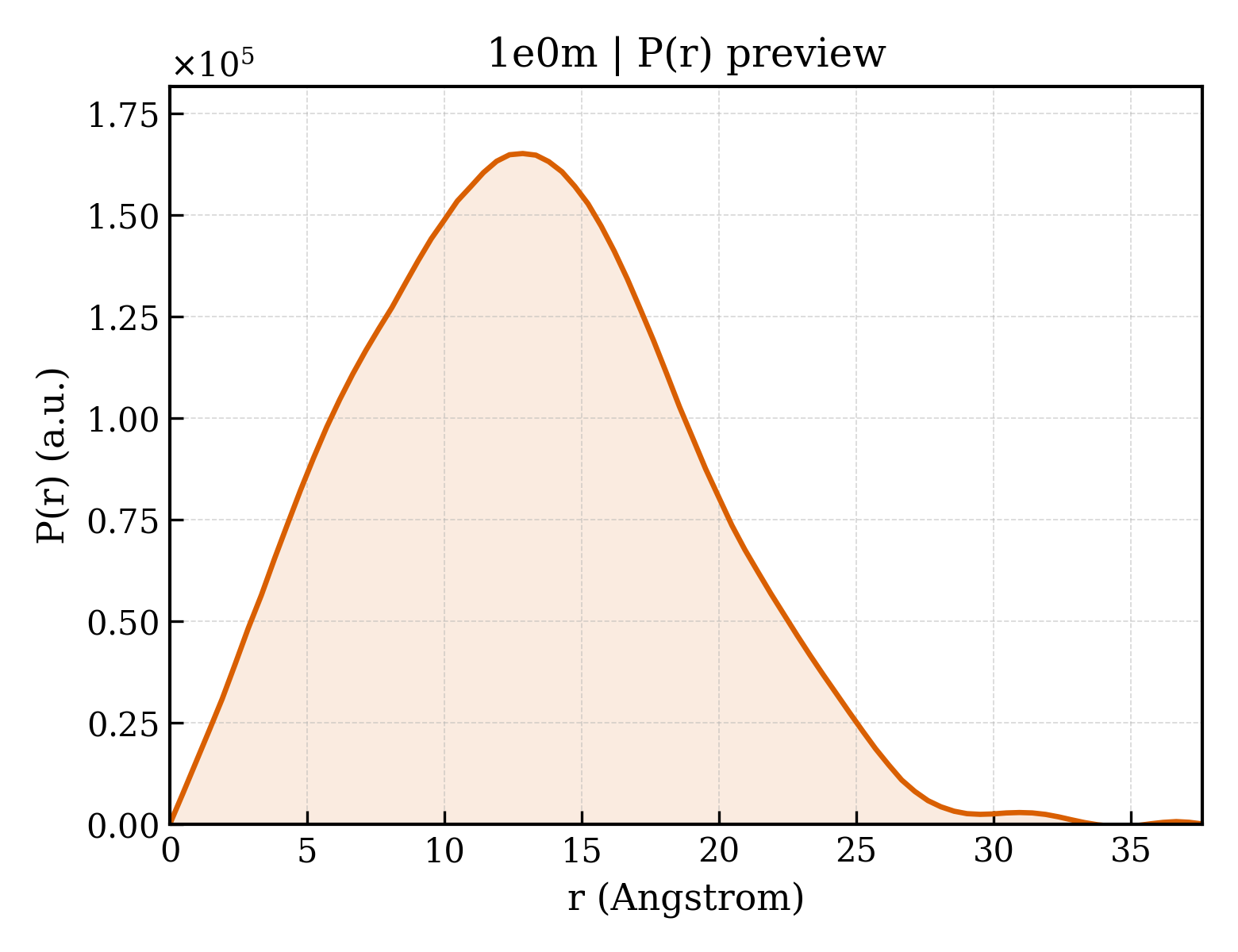

P(r) Distribution
1. Structure Basics
| entry_id | 1e0m |
| deposition_date | 2000-04-01 |
| title | PROTOTYPE WW domain |
| keywords | SH3 PROTOTYPE, WWPROTOTYPE, PROTEIN DESIGN, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.05 Å |
| rg_electron | 9.80 Å |
| i0 | 31638800.00 |
| molecular_weight | 43538.0 kDa |
| excluded_volume | 53107 ų |
| envelope_volume | 9196 ų |
| shell_volume | 7434 ų |
| envelope_diameter | 39.5 Å |
| shell_rg | 16.17 Å |
| envelope_rg | 11.74 Å |
| shape_rg | 9.69 Å |
| total_rg | 10.47 Å |
| total_atoms | 5860 |
| n_residues | 370 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.6 Å |
| rg_real | 10.05 Å |
| rg_real_error | 0.53 Å |
| i0_real | 3.1640e+07 |
| i0_real_error | 3.8760e+05 |
| rg_reciprocal | 10.05 Å |
| i0_reciprocal | 31640000.0000 |
| total_estimate | 0.8418 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 12.8 Å |
| skewness | 0.238 |
| kurtosis | -0.340 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 18860.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.724; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.800; Smooth: 0.970 |
