1e0n
YJQ8WW domain from Saccharomyces cerevisae

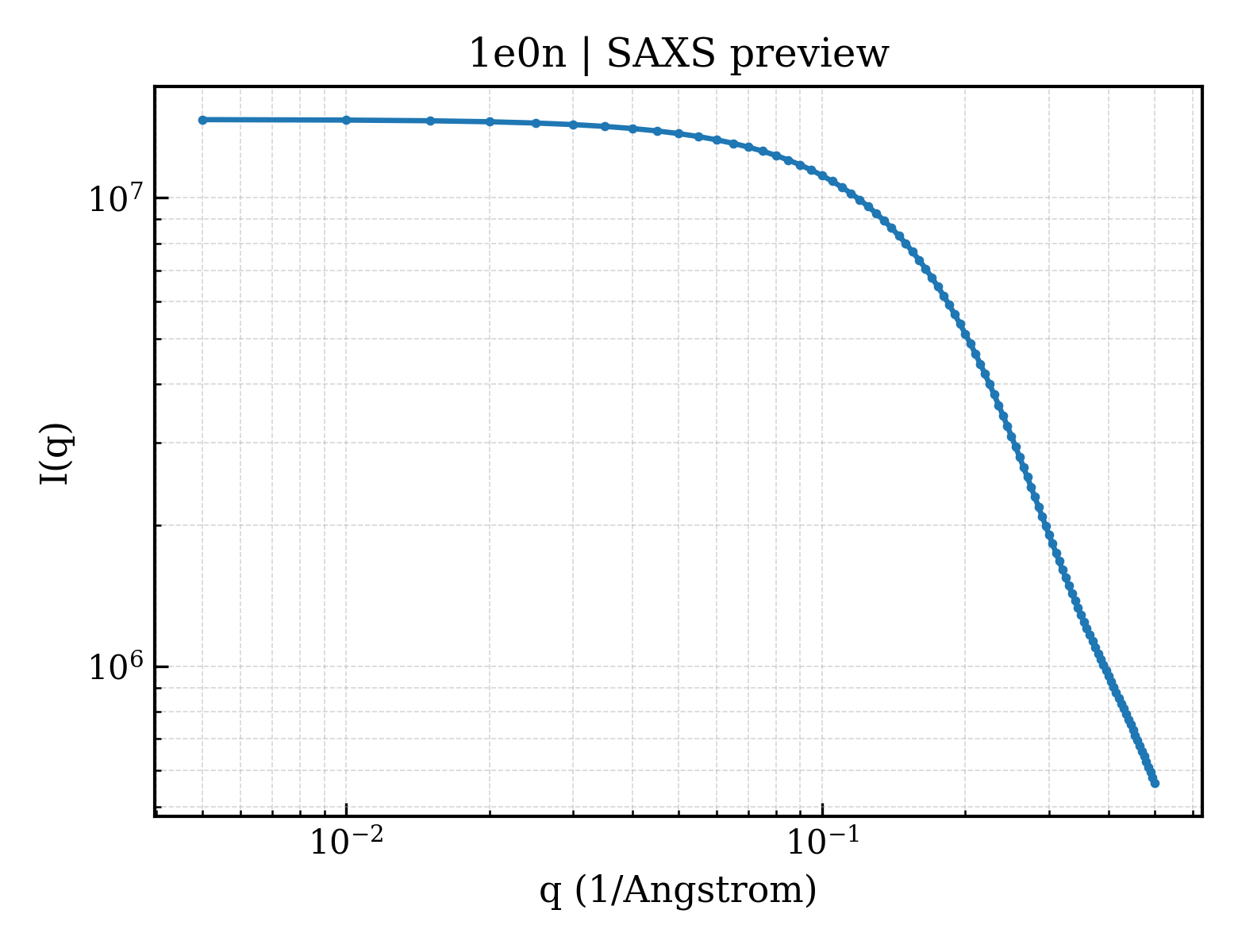

SAXS Profile

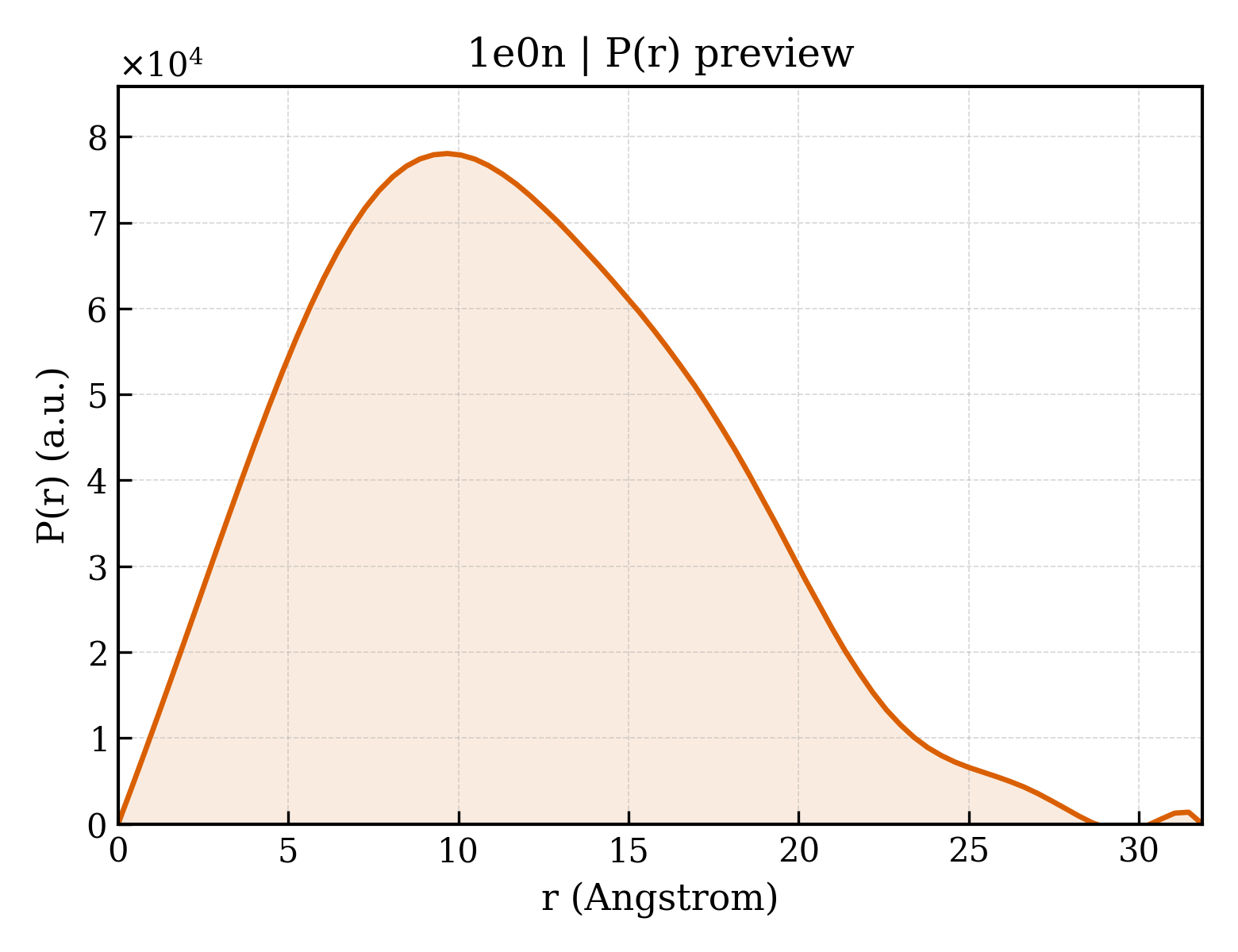

P(r) Distribution
1. Structure Basics
| entry_id | 1e0n |
| deposition_date | 2000-04-01 |
| title | YJQ8WW domain from Saccharomyces cerevisae |
| keywords | YJQ8WW DOMAIN, WW DOMAIN, SACCHAROMYCES CEREVISAE, YJQ8 PROTEIN; YJQ8WW DOMAIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.08 Å |
| rg_electron | 8.96 Å |
| i0 | 14700300.00 |
| molecular_weight | 32347.0 kDa |
| excluded_volume | 40760 ų |
| envelope_volume | 6926 ų |
| shell_volume | 6358 ų |
| envelope_diameter | 32.1 Å |
| shell_rg | 14.79 Å |
| envelope_rg | 10.31 Å |
| shape_rg | 8.91 Å |
| total_rg | 9.53 Å |
| total_atoms | 2310 |
| n_residues | 270 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.9 Å |
| rg_real | 9.13 Å |
| rg_real_error | 0.39 Å |
| i0_real | 1.4700e+07 |
| i0_real_error | 1.7390e+05 |
| rg_reciprocal | 9.12 Å |
| i0_reciprocal | 14700000.0000 |
| total_estimate | 0.7948 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.7 Å |
| skewness | 0.343 |
| kurtosis | -0.392 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6105.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.872; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.712; Smooth: 0.000 |
