1ebs
;STRUCTURE OF RNA (5'-GGUGGGCGCAGCUUCGGCUGCGGUACCAC-3'), NMR, 5 STRUCTURES ;
SAXS Profile

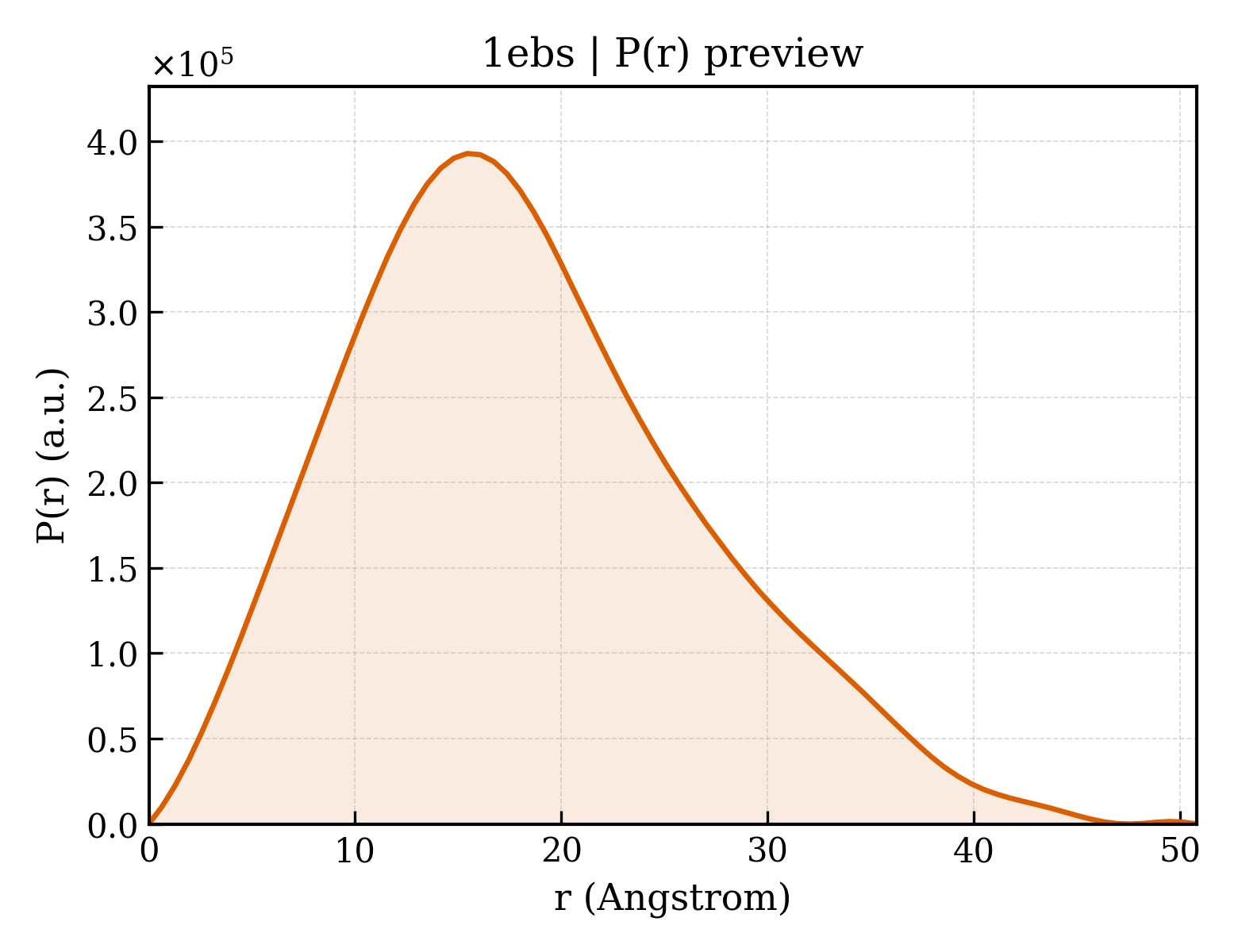

P(r) Distribution
1. Structure Basics
| entry_id | 1ebs |
| deposition_date | 1997-03-20 |
| title | ;STRUCTURE OF RNA (5'-GGUGGGCGCAGCUUCGGCUGCGGUACCAC-3'), NMR, 5 STRUCTURES ; |
| keywords | RIBONUCLEIC ACID, RNA; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.12 Å |
| rg_electron | 14.11 Å |
| i0 | 99436000.00 |
| molecular_weight | 46864.0 kDa |
| excluded_volume | 43760 ų |
| envelope_volume | 18672 ų |
| shell_volume | 11103 ų |
| envelope_diameter | 53.5 Å |
| shell_rg | 20.00 Å |
| envelope_rg | 15.45 Å |
| shape_rg | 14.00 Å |
| total_rg | 14.49 Å |
| total_atoms | 4675 |
| n_residues | 145 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.8 Å |
| rg_real | 14.20 Å |
| rg_real_error | 0.44 Å |
| i0_real | 9.9440e+07 |
| i0_real_error | 1.1740e+06 |
| rg_reciprocal | 14.20 Å |
| i0_reciprocal | 99440000.0000 |
| total_estimate | 0.8357 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.4 Å |
| skewness | 0.488 |
| kurtosis | -0.138 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 261000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.694; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.791; Smooth: 0.987 |
