1ehn

CRYSTAL STRUCTURE OF CHITINASE A MUTANT E315Q COMPLEXED WITH OCTA-N-ACETYLCHITOOCTAOSE (NAG)8.

Method: X-RAY DIFFRACTION D_max: 101.8 Å Quality: GOOD

SAXS Profile

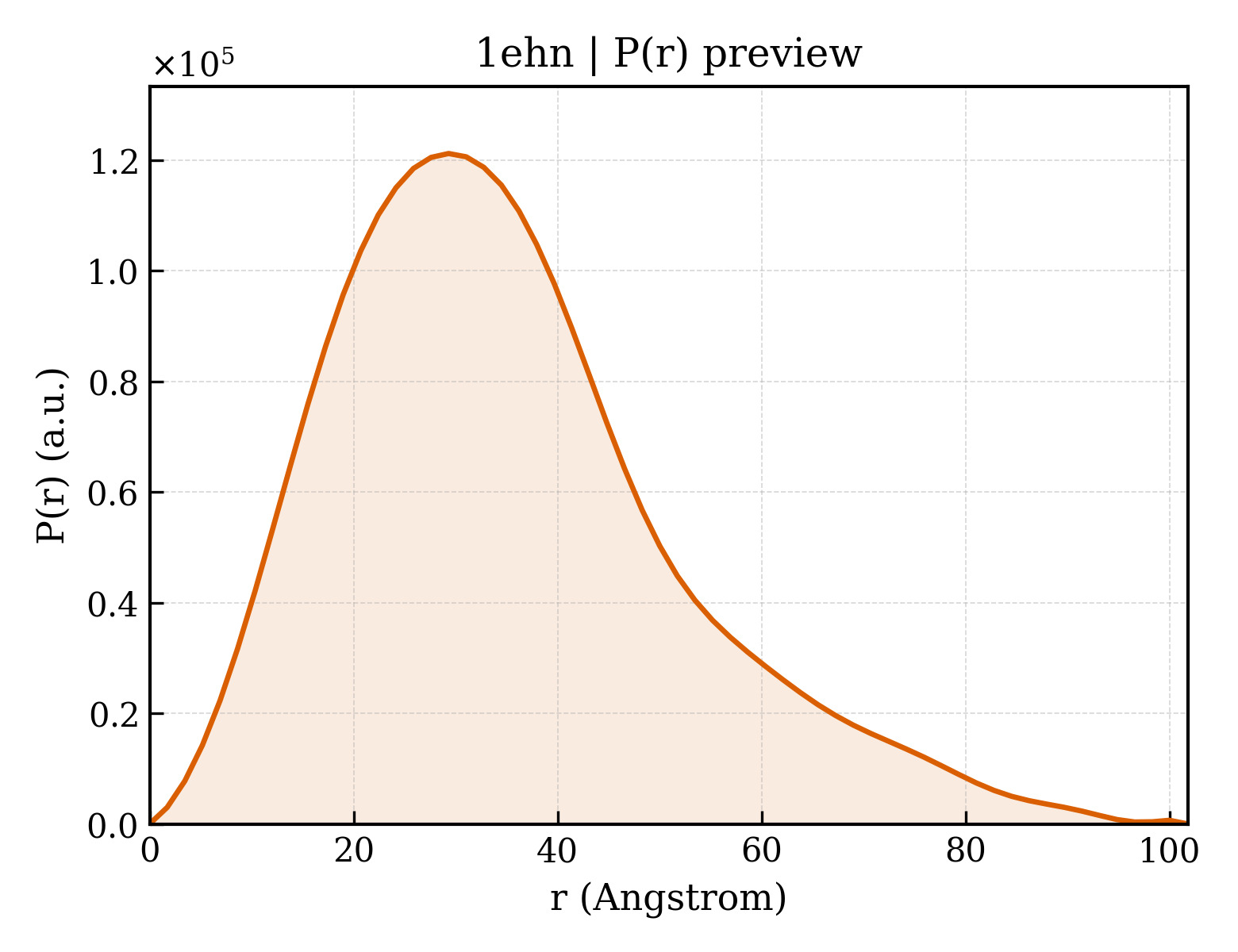

P(r) Distribution

▼

1. Structure Basics

entry_id	1ehn
deposition_date	2000-02-22
title	CRYSTAL STRUCTURE OF CHITINASE A MUTANT E315Q COMPLEXED WITH OCTA-N-ACETYLCHITOOCTAOSE (NAG)8.
keywords	TIM BARREL, PROTEIN-OLIGOSACCHARIDE COMPLEX, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.03 Å
rg_electron	26.39 Å
i0	58620300.00
molecular_weight	60229.0 kDa
excluded_volume	75320 Å³
envelope_volume	86921 Å³
shell_volume	29180 Å³
envelope_diameter	106.9 Å
shell_rg	31.78 Å
envelope_rg	27.03 Å
shape_rg	26.38 Å
total_rg	26.94 Å
total_atoms	4250
n_residues	540
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	101.8 Å
rg_real	27.35 Å
rg_real_error	1.07 Å
i0_real	5.8620e+07
i0_real_error	1.0350e+06
rg_reciprocal	27.25 Å
i0_reciprocal	58620000.0000
total_estimate	0.7710
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.3 Å
skewness	0.752
kurtosis	0.423
angular_range	— – 0.2950 Å⁻¹
current_alpha	0.0000
highest_alpha	16330000.0000
n_real_points	60
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.478; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.629; Smooth: 0.955

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	CHITINASE A
formula_weight	58638.6 kDa
ec_number	3.2.1.14
mutation	E315Q
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5109

AAPGKPTIAWGNTKFAIVEVDQAATAYNNLVKVKNAADVSVSWNLWNGDTGTTAKVLLNGKEAWSGPSTGSSGTANFKVNKGGRYQMQVALCNADGCTASDATEIVVADTDGSHLAPLKEPLLEKNKPYKQNSGKVVGSYFVEWGVYGRNFTVDKIPAQNLTHLLYGFIPICGGNGINDSLKEIEGSFQALQRSCQGREDFKVSIHDPFAALQKAQKGVTAWDDPYKGNFGQLMALKQAHPDLKILPSIGGWTLSDPFFFMGDKVKRDRFVGSVKEFLQTWKFFDGVDIDWQFPGGKGANPNLGSPQDGETYVLLMKELRAMLDQLSVETGRKYELTSAISAGKDKIDKVAYNVAQNSMDHIFLMSYDFYGAFDLKNLGHQTALNAPAWKPDTAYTTVNGVNALLAQGVKPGKIVVGTAMYGRGWTGVNGYQNNIPFTGTATGPVKGTWENGIVDYRQIAGQFMSGEWQYTYDATAEAPYVFKPSTGDLITFDDARSVQAKGKYVLDKQLGGLFSWEIDADNGDILNSMNASLGNSAGVQ

Source

organism	Serratia marcescens
ncbi_taxonomy_id	615
host_organism	Escherichia coli

Entity 2 branched

description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1643.6 kDa
src_method	man
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	806

▶

6. Citations (3)

▶

length_a	200.440 Å
length_b	131.617 Å
length_c	59.344 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.900 Å
resolution_low	10.000 Å
r_factor	0.1750
r_work	0.1730
r_free	0.2170

fit	/app/data/saxs_computation/eh/1ehn/1ehn.fit
pddf	/app/data/pr_computation/eh/1ehn/1ehn.pr.out
profile	/app/data/saxs_computation/eh/1ehn/1ehn.dat
