1eht
THEOPHYLLINE-BINDING RNA IN COMPLEX WITH THEOPHYLLINE, NMR, 10 STRUCTURES

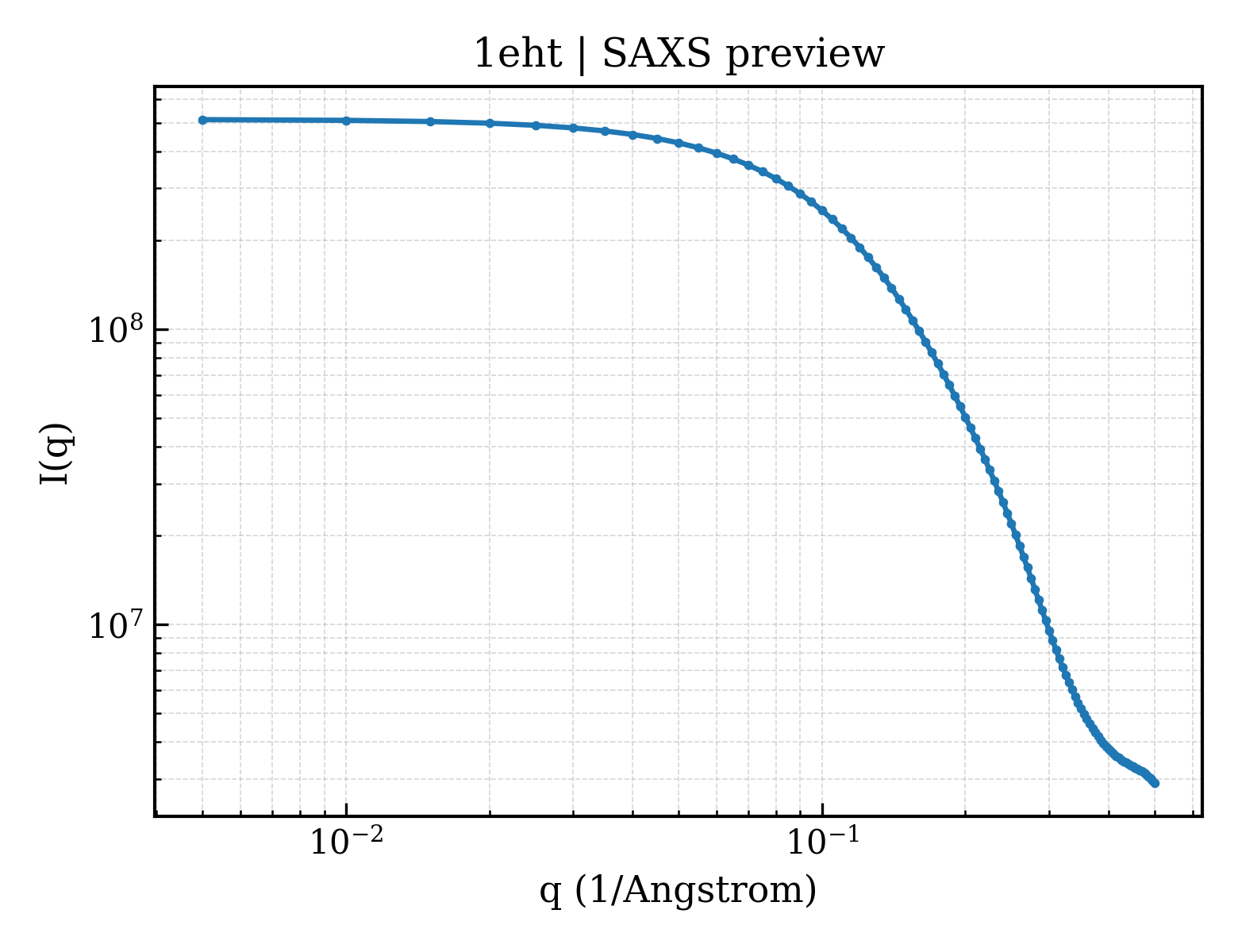

SAXS Profile

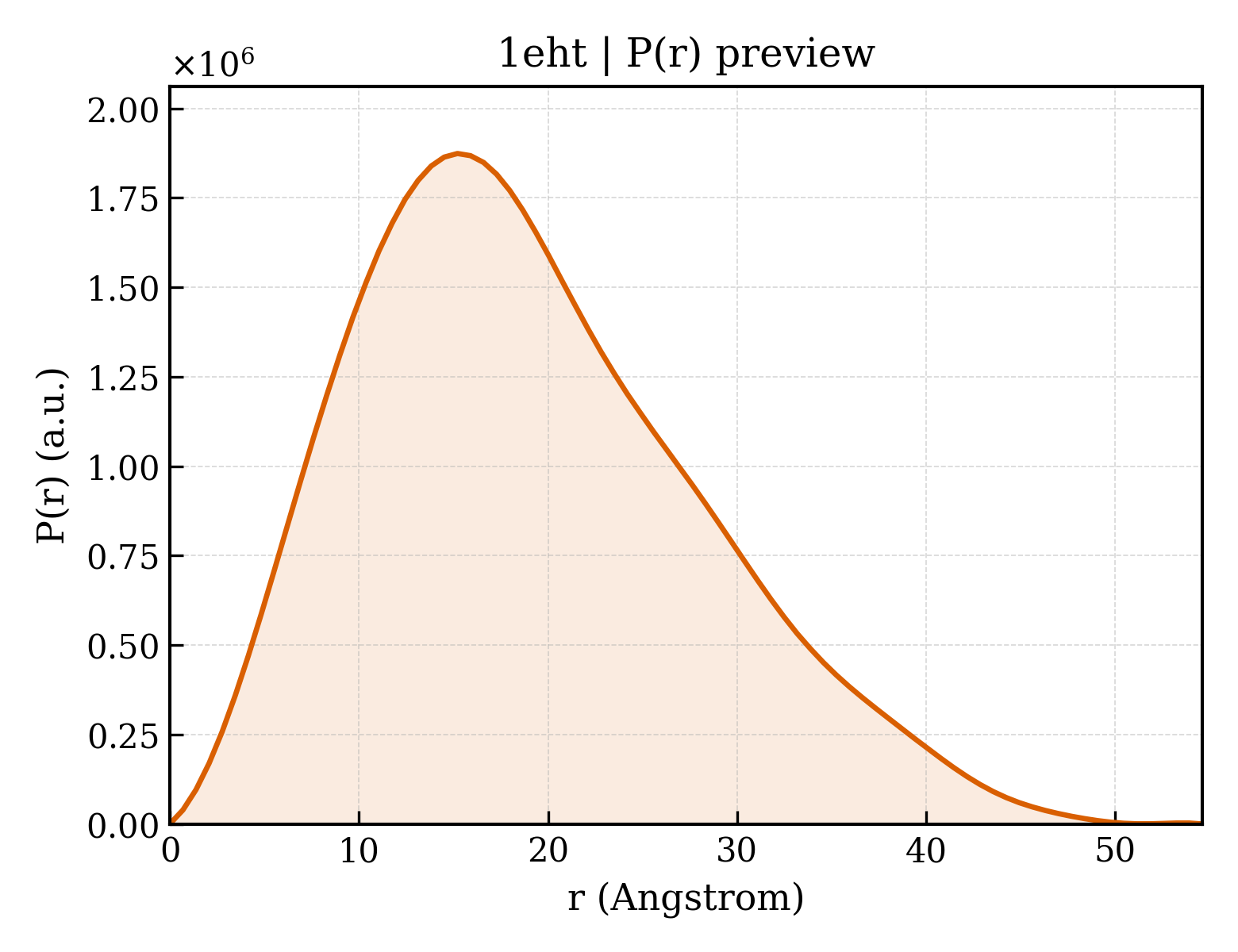

P(r) Distribution
1. Structure Basics
| entry_id | 1eht |
| deposition_date | 1997-03-20 |
| title | THEOPHYLLINE-BINDING RNA IN COMPLEX WITH THEOPHYLLINE, NMR, 10 STRUCTURES |
| keywords | RIBONUCLEIC ACID, RNA; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.77 Å |
| rg_electron | 14.76 Å |
| i0 | 513424000.00 |
| molecular_weight | 108330.0 kDa |
| excluded_volume | 101330 ų |
| envelope_volume | 26158 ų |
| shell_volume | 13545 ų |
| envelope_diameter | 57.6 Å |
| shell_rg | 22.03 Å |
| envelope_rg | 17.43 Å |
| shape_rg | 14.68 Å |
| total_rg | 15.04 Å |
| total_atoms | 10860 |
| n_residues | 330 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.6 Å |
| rg_real | 14.88 Å |
| rg_real_error | 0.48 Å |
| i0_real | 5.1340e+08 |
| i0_real_error | 6.1700e+06 |
| rg_reciprocal | 14.87 Å |
| i0_reciprocal | 513400000.0000 |
| total_estimate | 0.8080 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.2 Å |
| skewness | 0.525 |
| kurtosis | -0.179 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 592900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.643; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.573; Smooth: 0.997 |
