1ehv
A NEW CRYSTAL STRUCTURE FOR THE DODECAMER C-G-C-G-A-A-T-T-C-G-C-G: SYMMETRY EFFECTS ON SEQUENCE-DEPENDENT DNA STRUCTURE

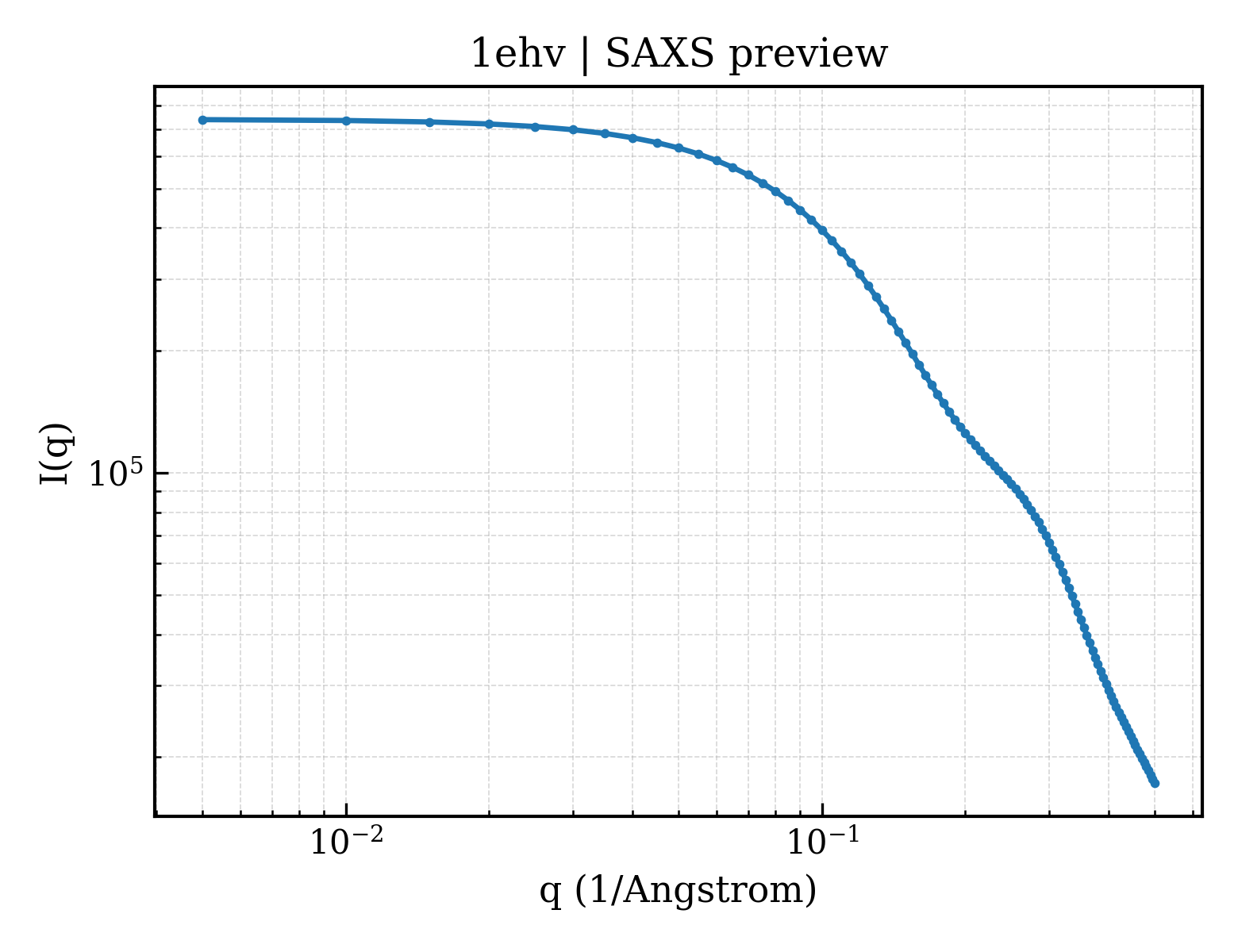

SAXS Profile

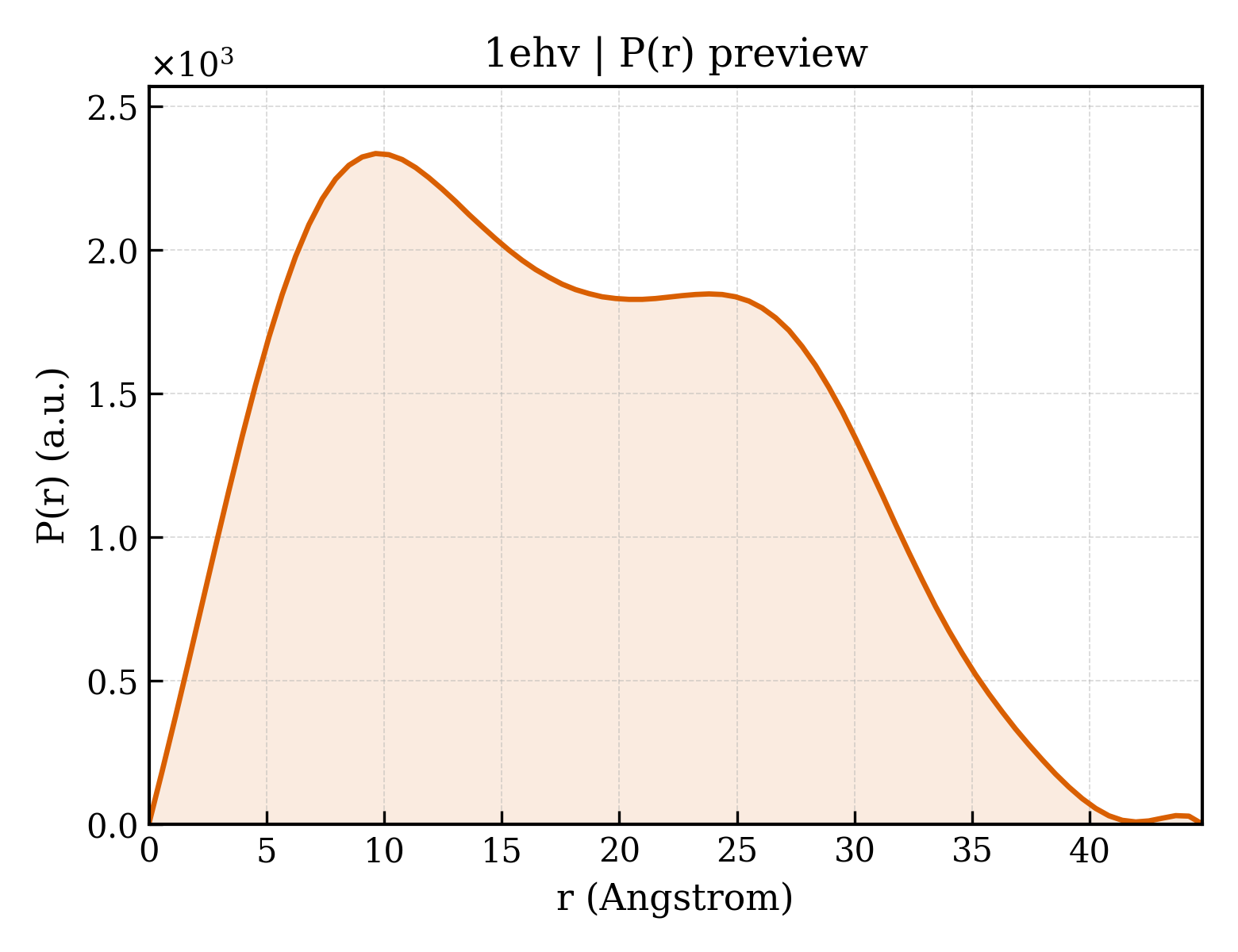

P(r) Distribution
1. Structure Basics
| entry_id | 1ehv |
| deposition_date | 2000-02-23 |
| title | A NEW CRYSTAL STRUCTURE FOR THE DODECAMER C-G-C-G-A-A-T-T-C-G-C-G: SYMMETRY EFFECTS ON SEQUENCE-DEPENDENT DNA STRUCTURE |
| keywords | DICKERSON DODECAMER, CRYSTAL PACKING, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.88 Å |
| rg_electron | 13.42 Å |
| i0 | 740385.00 |
| molecular_weight | 3656.0 kDa |
| excluded_volume | 3535 ų |
| envelope_volume | 5549 ų |
| shell_volume | 4144 ų |
| envelope_diameter | 43.5 Å |
| shell_rg | 16.80 Å |
| envelope_rg | 13.24 Å |
| shape_rg | 13.33 Å |
| total_rg | 14.15 Å |
| total_atoms | 243 |
| n_residues | 12 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.8 Å |
| rg_real | 13.99 Å |
| rg_real_error | 0.28 Å |
| i0_real | 7.4040e+05 |
| i0_real_error | 7.1000e+03 |
| rg_reciprocal | 13.99 Å |
| i0_reciprocal | 740400.0000 |
| total_estimate | 0.8328 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 9.6 Å |
| skewness | 0.239 |
| kurtosis | -0.890 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 22350.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.834; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.426; Smooth: 0.896 |
