1ehz
The crystal structure of yeast phenylalanine tRNA at 1.93 A resolution

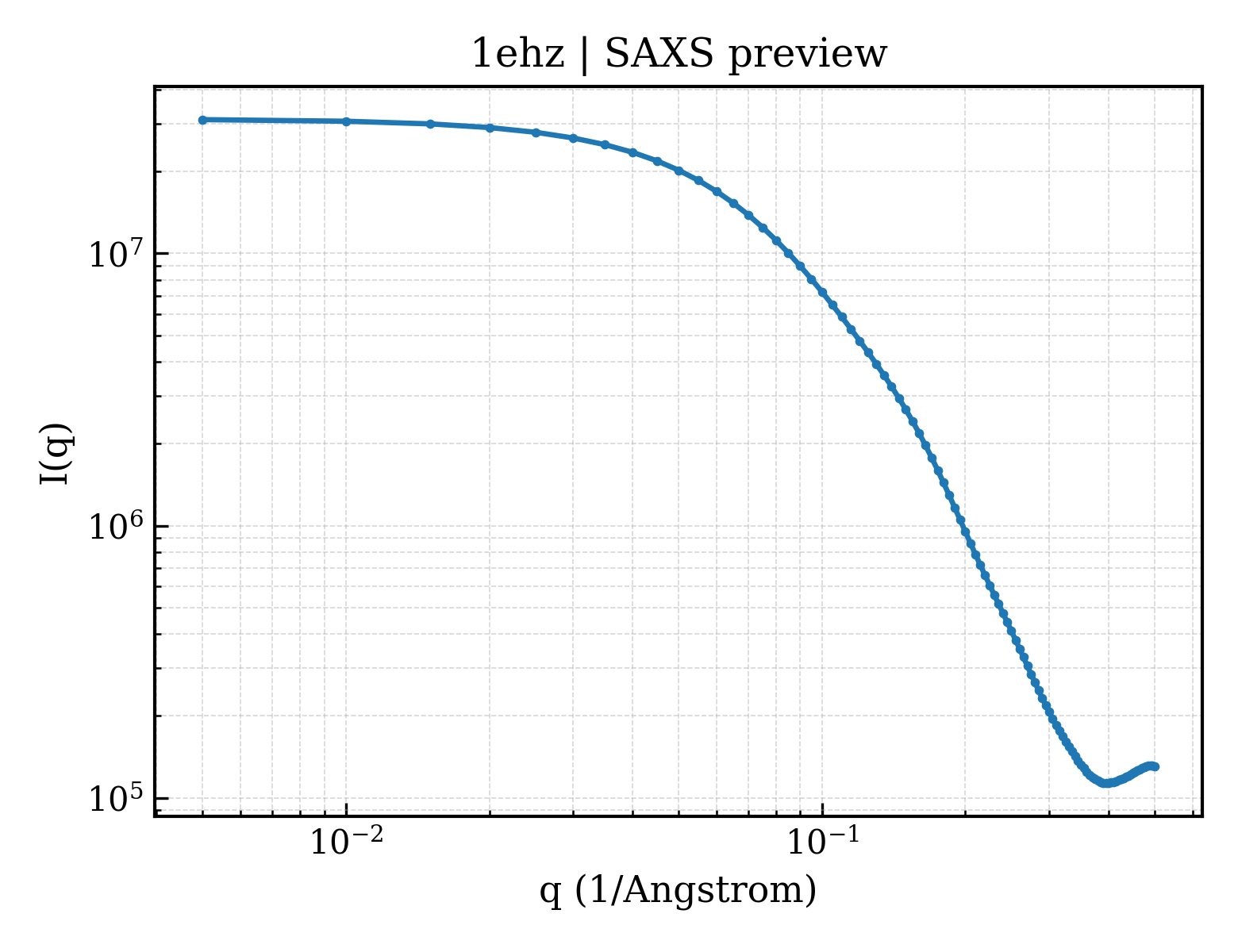

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ehz |
| deposition_date | 2000-02-23 |
| title | The crystal structure of yeast phenylalanine tRNA at 1.93 A resolution |
| keywords | tRNA, yeast, phenylalanine, RNA; RNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.95 Å |
| rg_electron | 23.05 Å |
| i0 | 31159200.00 |
| molecular_weight | 25339.0 kDa |
| excluded_volume | 23811 ų |
| envelope_volume | 35652 ų |
| shell_volume | 14990 ų |
| envelope_diameter | 87.0 Å |
| shell_rg | 26.48 Å |
| envelope_rg | 23.44 Å |
| shape_rg | 23.03 Å |
| total_rg | 23.34 Å |
| total_atoms | 1661 |
| n_residues | 62 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 84.4 Å |
| rg_real | 23.20 Å |
| rg_real_error | 0.97 Å |
| i0_real | 3.1160e+07 |
| i0_real_error | 5.0710e+05 |
| rg_reciprocal | 23.14 Å |
| i0_reciprocal | 31160000.0000 |
| total_estimate | 0.7913 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.5 Å |
| skewness | 0.552 |
| kurtosis | -0.294 |
| angular_range | — – 0.3450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1847000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.624; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.419; Smooth: 0.992 |
