1ei2
;STRUCTURAL BASIS FOR RECOGNITION OF THE RNA MAJOR GROOVE IN THE TAU EXON 10 SPLICING REGULATORY ELEMENT BY AMINOGLYCOSIDE ANTIBIOTICS ;

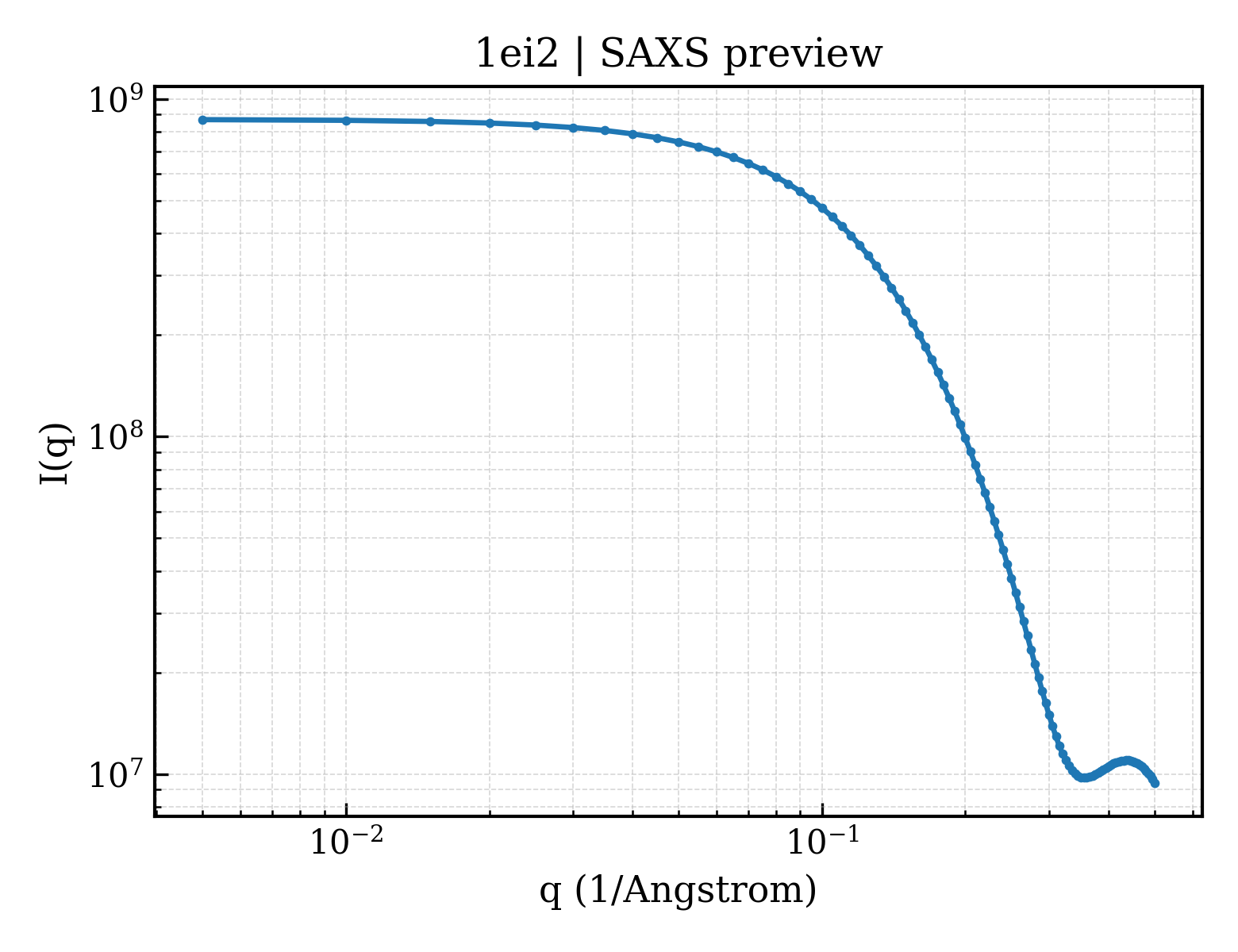

SAXS Profile

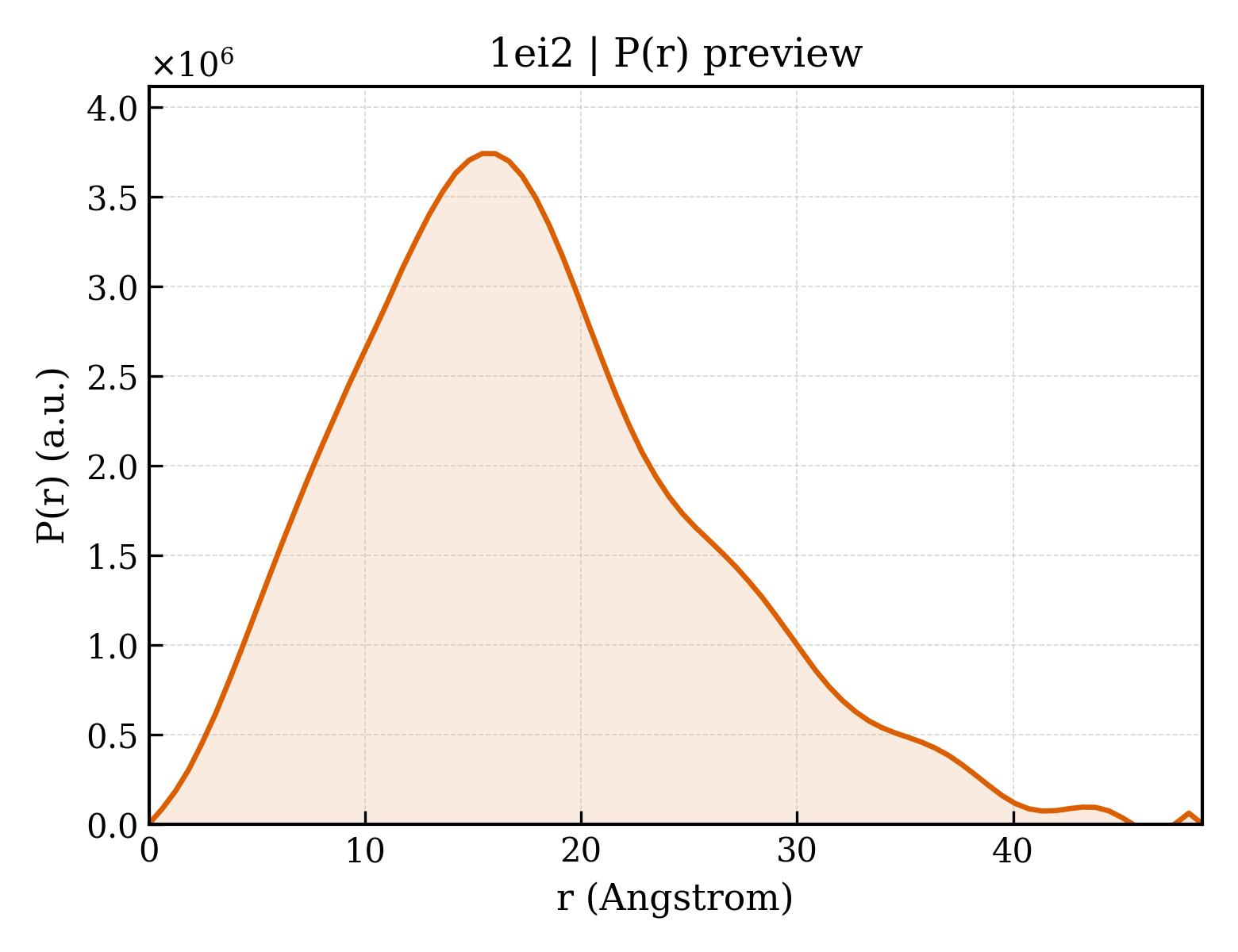

P(r) Distribution
1. Structure Basics
| entry_id | 1ei2 |
| deposition_date | 2000-02-23 |
| title | ;STRUCTURAL BASIS FOR RECOGNITION OF THE RNA MAJOR GROOVE IN THE TAU EXON 10 SPLICING REGULATORY ELEMENT BY AMINOGLYCOSIDE ANTIBIOTICS ; |
| keywords | RNA, tau, frontotemporal dementia FTDP-17, intronic mutations, aminoglycoside, RNA major groove recognition; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.54 Å |
| rg_electron | 13.48 Å |
| i0 | 871114000.00 |
| molecular_weight | 146400.0 kDa |
| excluded_volume | 140260 ų |
| envelope_volume | 21591 ų |
| shell_volume | 12352 ų |
| envelope_diameter | 55.5 Å |
| shell_rg | 20.52 Å |
| envelope_rg | 15.82 Å |
| shape_rg | 13.39 Å |
| total_rg | 13.71 Å |
| total_atoms | 15079 |
| n_residues | 425 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.8 Å |
| rg_real | 13.62 Å |
| rg_real_error | 0.48 Å |
| i0_real | 8.7110e+08 |
| i0_real_error | 1.1410e+07 |
| rg_reciprocal | 13.61 Å |
| i0_reciprocal | 871100000.0000 |
| total_estimate | 0.7378 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 15.4 Å |
| skewness | 0.533 |
| kurtosis | 0.016 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 240000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.587; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.834; Smooth: 0.000 |
