1elh
NMR ANALYSIS OF HELIX I FROM THE 5S RNA OF ESCHERICHIA COLI

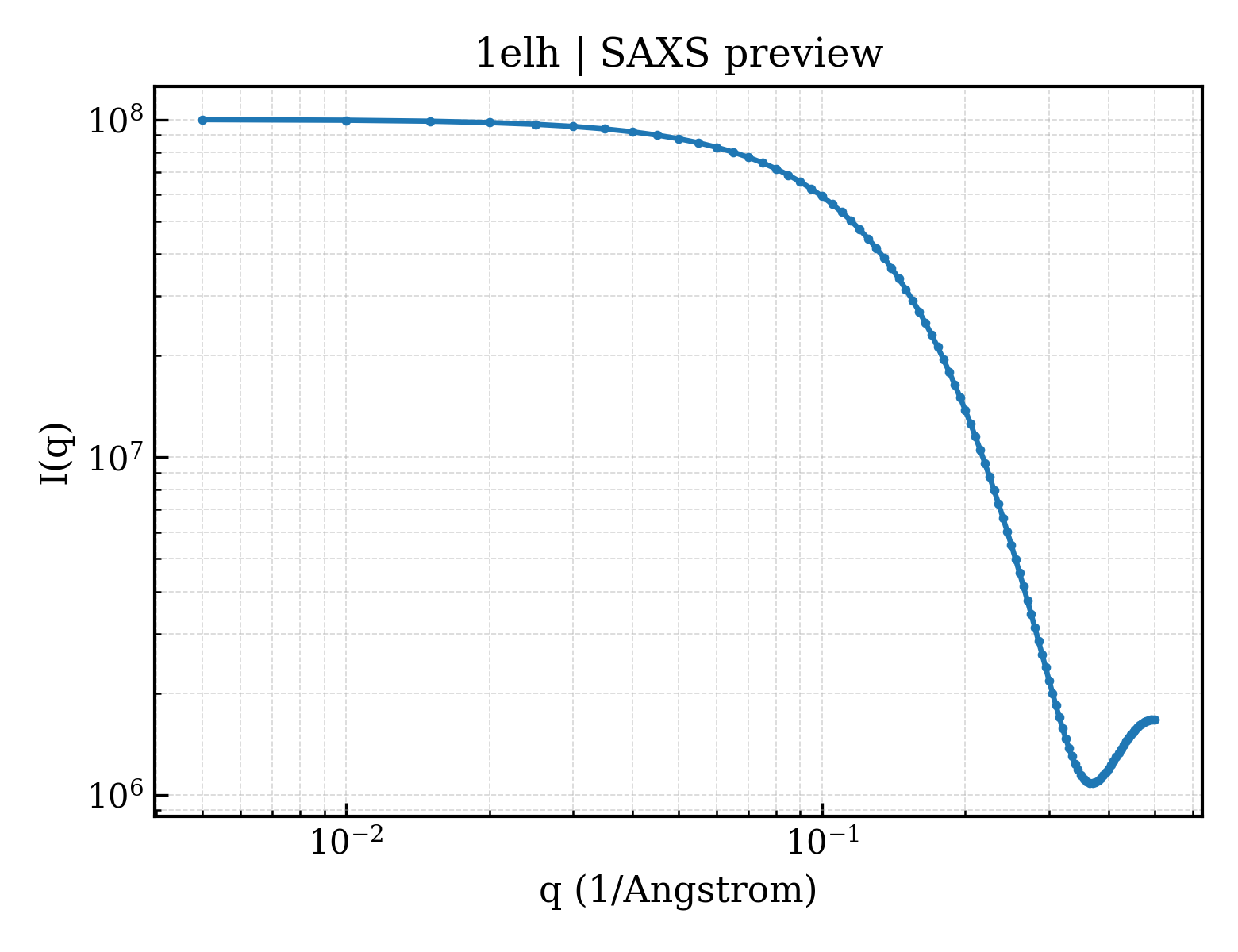

SAXS Profile

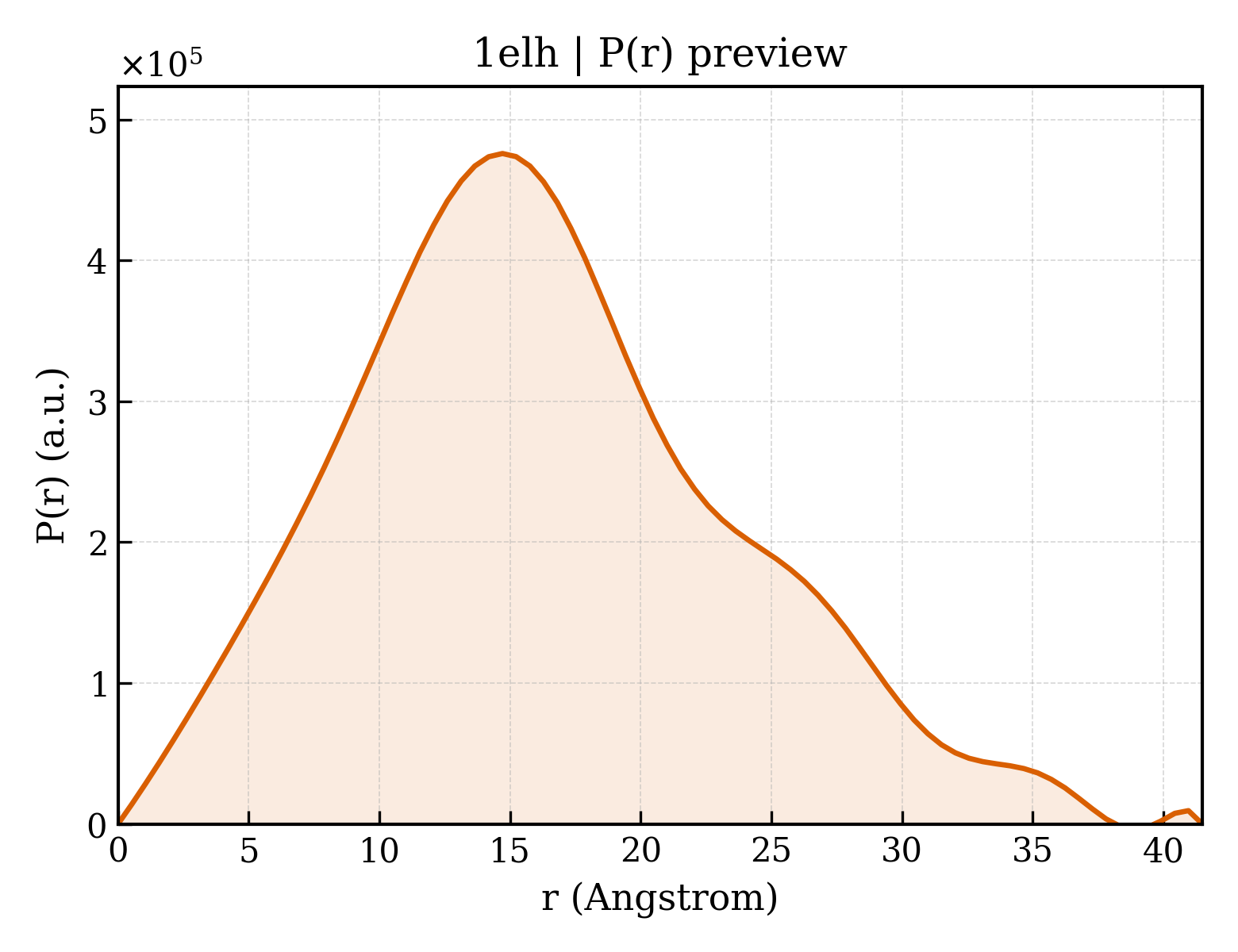

P(r) Distribution
1. Structure Basics
| entry_id | 1elh |
| deposition_date | 1993-06-23 |
| title | NMR ANALYSIS OF HELIX I FROM THE 5S RNA OF ESCHERICHIA COLI |
| keywords | RNA, 5S RIBOSOMAL RNA; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.56 Å |
| rg_electron | 12.57 Å |
| i0 | 100129000.00 |
| molecular_weight | 47688.0 kDa |
| excluded_volume | 44879 ų |
| envelope_volume | 13876 ų |
| shell_volume | 9482 ų |
| envelope_diameter | 44.9 Å |
| shell_rg | 18.05 Å |
| envelope_rg | 13.57 Å |
| shape_rg | 12.48 Å |
| total_rg | 12.89 Å |
| total_atoms | 4800 |
| n_residues | 150 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.5 Å |
| rg_real | 12.58 Å |
| rg_real_error | 0.29 Å |
| i0_real | 1.0010e+08 |
| i0_real_error | 1.1770e+06 |
| rg_reciprocal | 12.58 Å |
| i0_reciprocal | 100100000.0000 |
| total_estimate | 0.6106 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 14.7 Å |
| skewness | 0.412 |
| kurtosis | -0.149 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 166800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.727; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.984; Smooth: 0.000 |
