FAB ANTIBODY FRAGMENT OF AN C60 ANTIFULLERENE ANTIBODY

entry_id	1emt
deposition_date	2000-03-17
title	FAB ANTIBODY FRAGMENT OF AN C60 ANTIFULLERENE ANTIBODY
keywords	anti-fullerene antibody, nanotubes, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

rg_guinier	25.04 Å
rg_electron	23.98 Å
i0	36516500.00
molecular_weight	45962.0 kDa
excluded_volume	57144 ų
envelope_volume	69846 ų
shell_volume	24518 ų
envelope_diameter	80.4 Å
shell_rg	30.72 Å
envelope_rg	23.66 Å
shape_rg	23.96 Å
total_rg	24.80 Å
total_atoms	3233
n_residues	422
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	77.7 Å
rg_real	25.01 Å
rg_real_error	0.56 Å
i0_real	3.6520e+07
i0_real_error	5.7270e+05
rg_reciprocal	25.02 Å
i0_reciprocal	36520000.0000
total_estimate	0.9096
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	29.6 Å
skewness	0.262
kurtosis	-0.519
angular_range	— – 0.3150 Å−1
current_alpha	0.0000
highest_alpha	6695000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.935

Unit Cell

length_a	57.900 Å
length_b	65.745 Å
length_c	65.562 Å
angle_alpha	90.00 °
angle_beta	112.45 °
angle_gamma	90.00 °
z_pdb	2

Symmetry

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

Refinement

resolution	2.250 Å
resolution_low	60.000 Å
r_factor	—
r_work	0.1800
r_free	0.2400

Diffraction

temperature

100.0 K

Files (7)

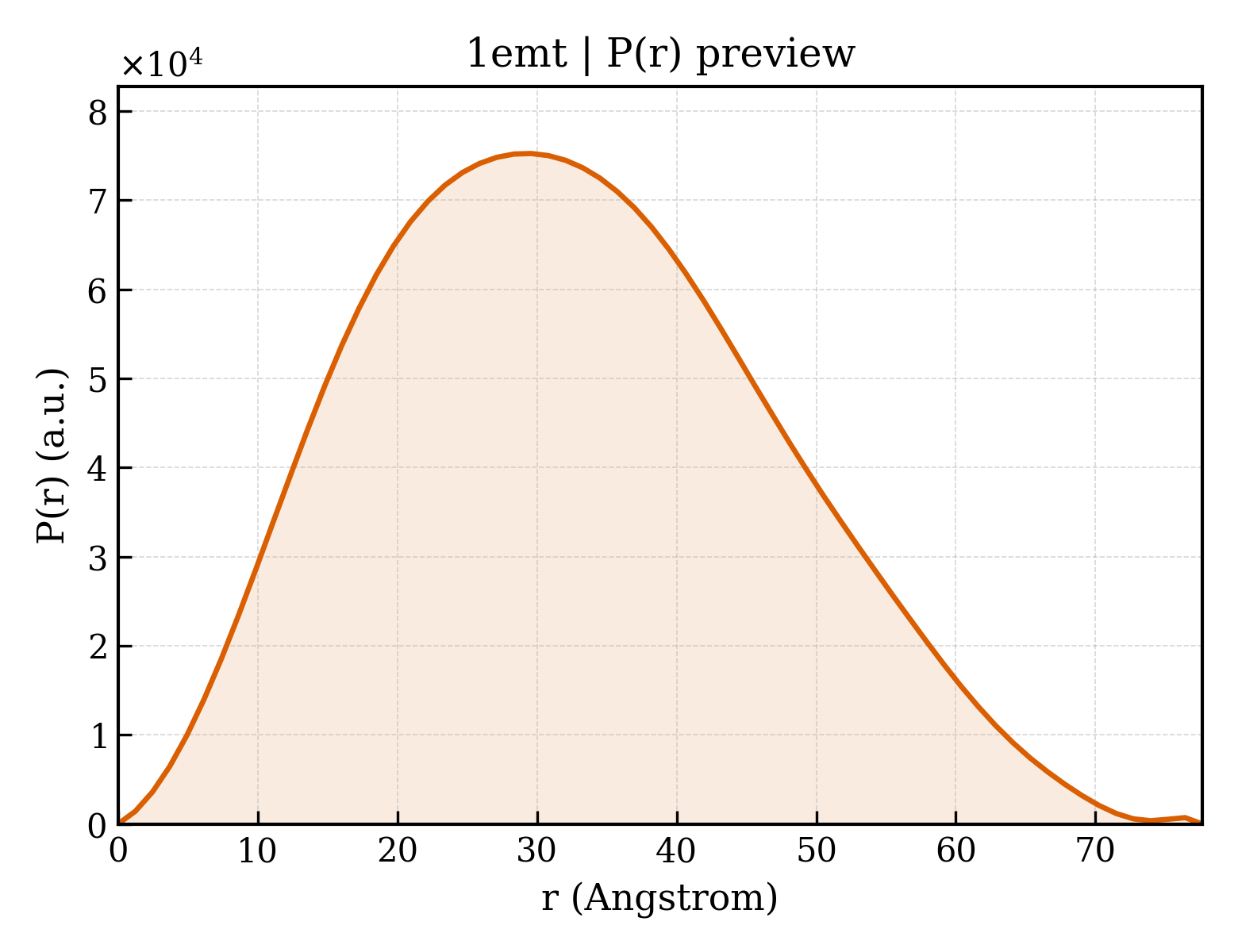

• pr_distribution /app/data/pr_computation/em/1emt/pr_distribution.json
• pr_output /app/data/pr_computation/em/1emt/1emt.pr.out
• pr_plot /app/data/visualization/pr_computation/em/1emt/1emt_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/em/1emt/1emt.dat
• saxs_fit /app/data/saxs_computation/em/1emt/1emt.fit
• saxs_log /app/data/saxs_computation/em/1emt/1emt.log
• saxs_plot /app/data/visualization/saxs_computation/em/1emt/1emt_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/em/1emt/1emt.fit
pddf	/app/data/pr_computation/em/1emt/1emt.pr.out
profile	/app/data/saxs_computation/em/1emt/1emt.dat
