1eu2
DIMERIC SOLUTION STRUCTURE OF THE CYCLIC OCTAMER CD(TGCTCGCT)

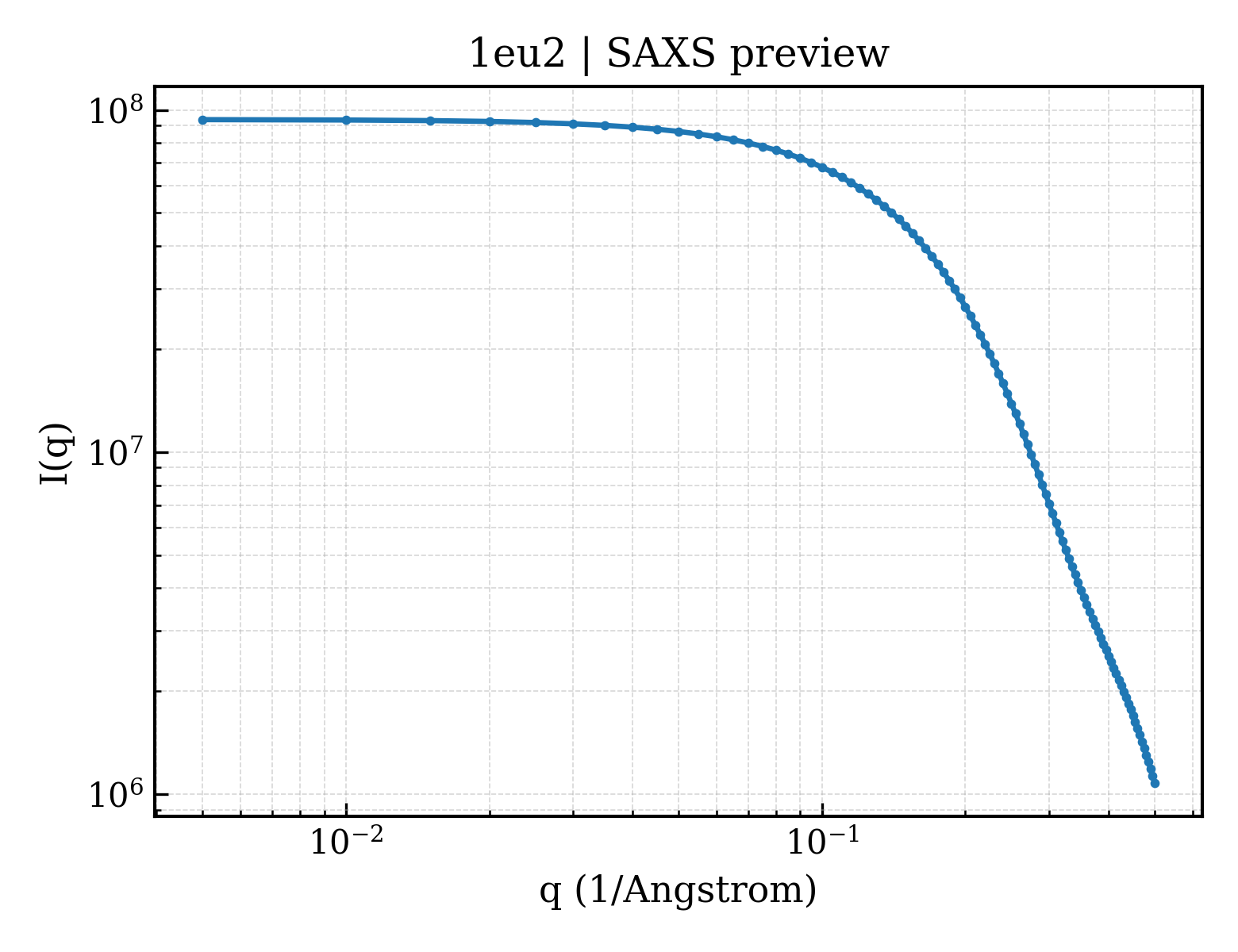

SAXS Profile

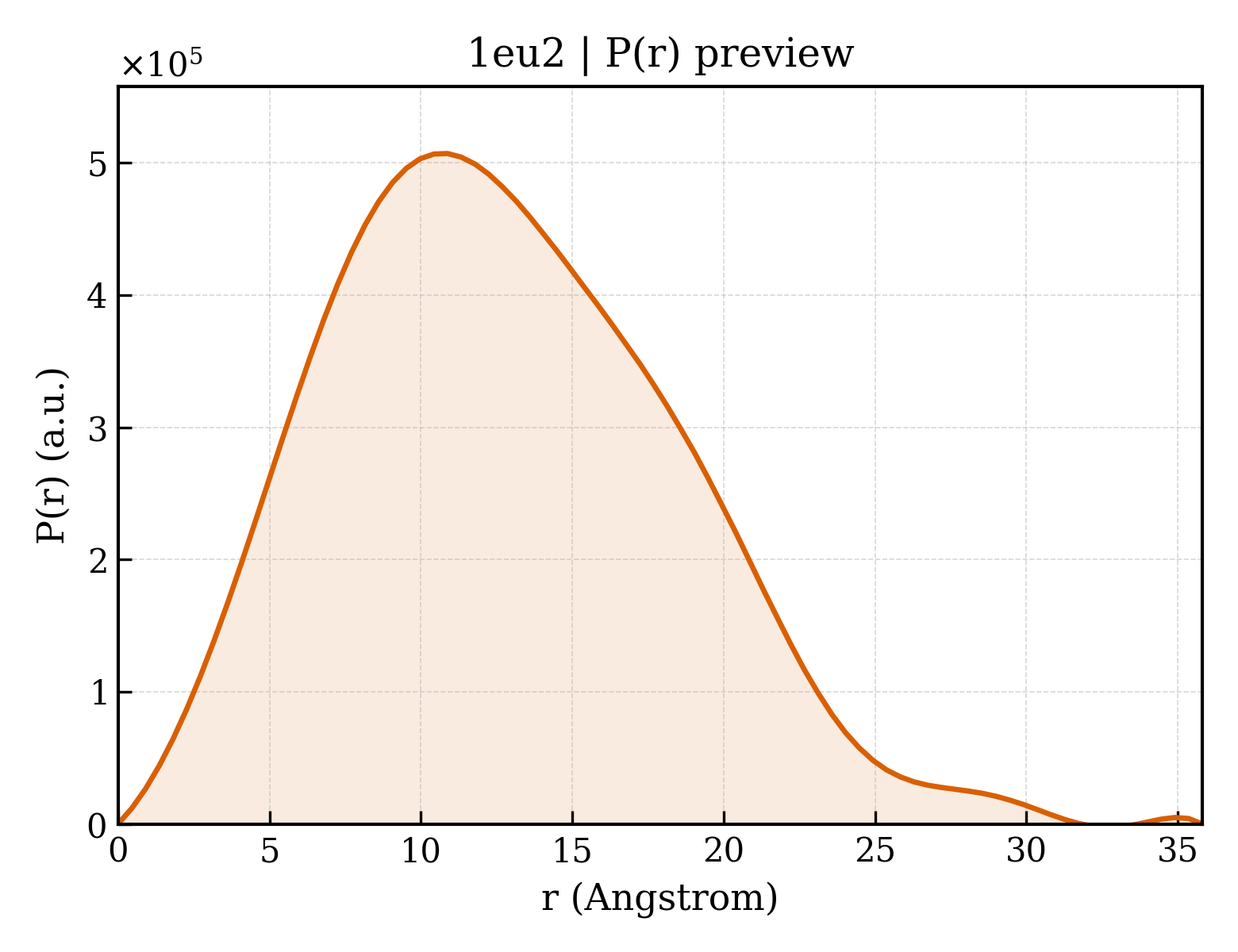

P(r) Distribution
1. Structure Basics
| entry_id | 1eu2 |
| deposition_date | 2000-04-13 |
| title | DIMERIC SOLUTION STRUCTURE OF THE CYCLIC OCTAMER CD(TGCTCGCT) |
| keywords | QUADRUPLEX, FOUR-STRANDED DNA, UNUSUAL DNA, BI-LOOP, DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.81 Å |
| rg_electron | 9.65 Å |
| i0 | 93740700.00 |
| molecular_weight | 48932.0 kDa |
| excluded_volume | 47855 ų |
| envelope_volume | 8596 ų |
| shell_volume | 6921 ų |
| envelope_diameter | 38.9 Å |
| shell_rg | 16.26 Å |
| envelope_rg | 12.12 Å |
| shape_rg | 9.57 Å |
| total_rg | 9.99 Å |
| total_atoms | 5040 |
| n_residues | 160 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.8 Å |
| rg_real | 9.83 Å |
| rg_real_error | 0.43 Å |
| i0_real | 9.3740e+07 |
| i0_real_error | 9.9950e+05 |
| rg_reciprocal | 9.83 Å |
| i0_reciprocal | 93740000.0000 |
| total_estimate | 0.8314 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 10.9 Å |
| skewness | 0.387 |
| kurtosis | -0.161 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 45240.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.708; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.789; Smooth: 0.891 |
