1evn
NMR OBSERVATION OF A-TETRAD

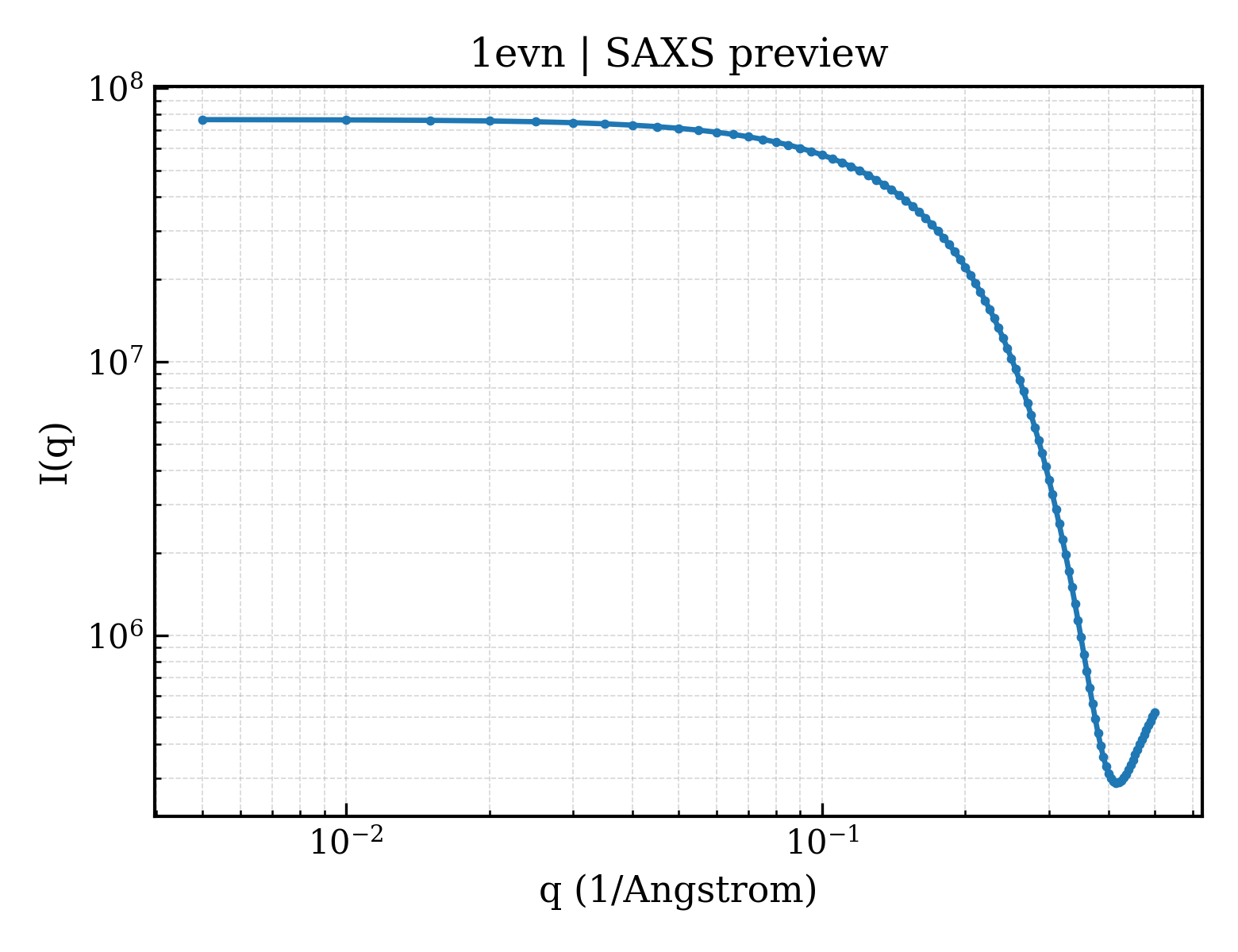

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1evn |
| deposition_date | 2000-04-20 |
| title | NMR OBSERVATION OF A-TETRAD |
| keywords | A-tetrad, Human telomere, G-quadruplex, DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.45 Å |
| rg_electron | 9.37 Å |
| i0 | 76594300.00 |
| molecular_weight | 43290.0 kDa |
| excluded_volume | 41758 ų |
| envelope_volume | 7254 ų |
| shell_volume | 6722 ų |
| envelope_diameter | 29.4 Å |
| shell_rg | 14.60 Å |
| envelope_rg | 9.84 Å |
| shape_rg | 9.12 Å |
| total_rg | 9.92 Å |
| total_atoms | 4536 |
| n_residues | 140 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.5 Å |
| rg_real | 9.38 Å |
| rg_real_error | 0.22 Å |
| i0_real | 7.6590e+07 |
| i0_real_error | 6.9530e+05 |
| rg_reciprocal | 9.38 Å |
| i0_reciprocal | 76590000.0000 |
| total_estimate | 0.8857 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.6 Å |
| skewness | 0.147 |
| kurtosis | -0.344 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 579500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.852; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.967 |
