1ew1
RECA PROTEIN-BOUND SINGLE-STRANDED DNA

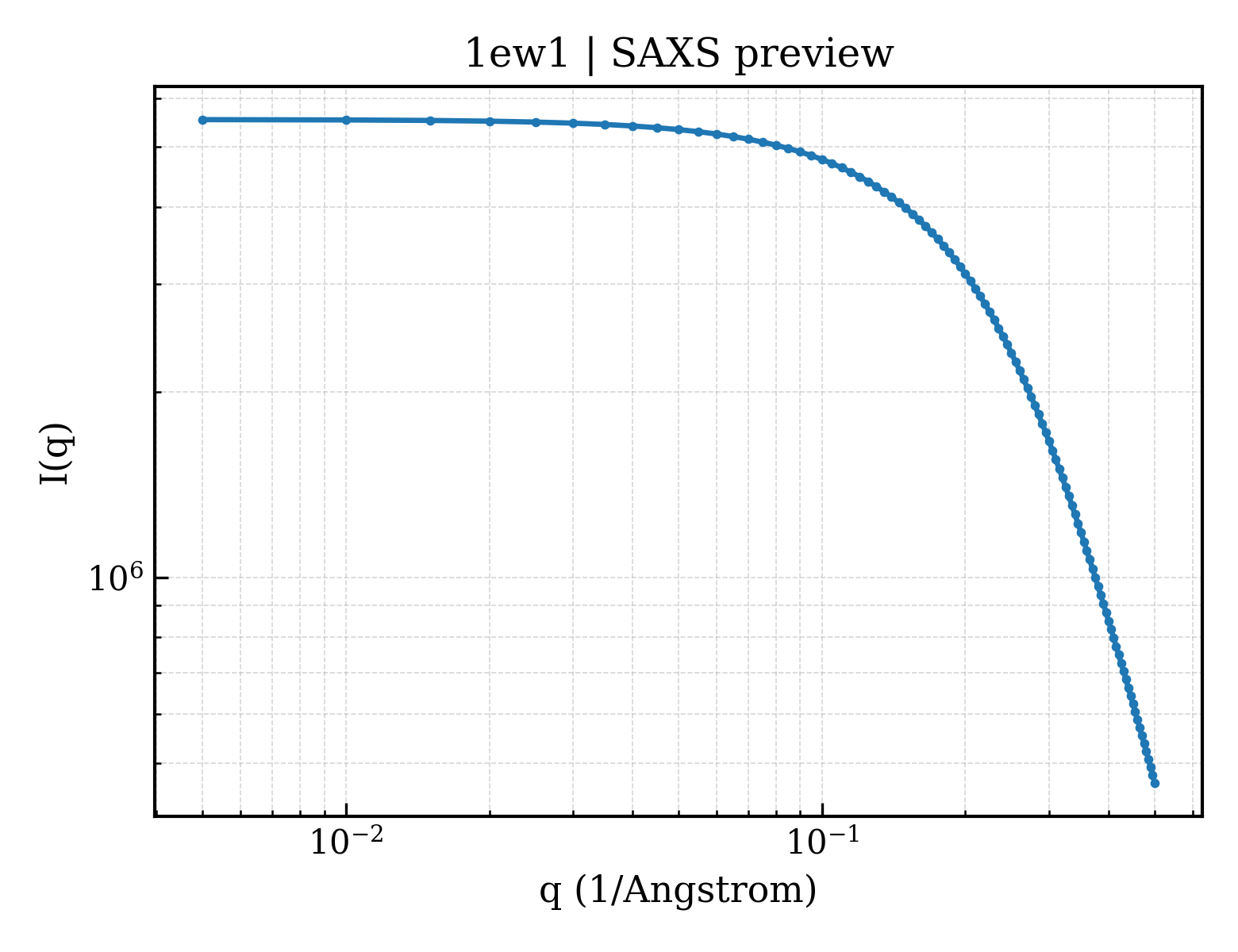

SAXS Profile

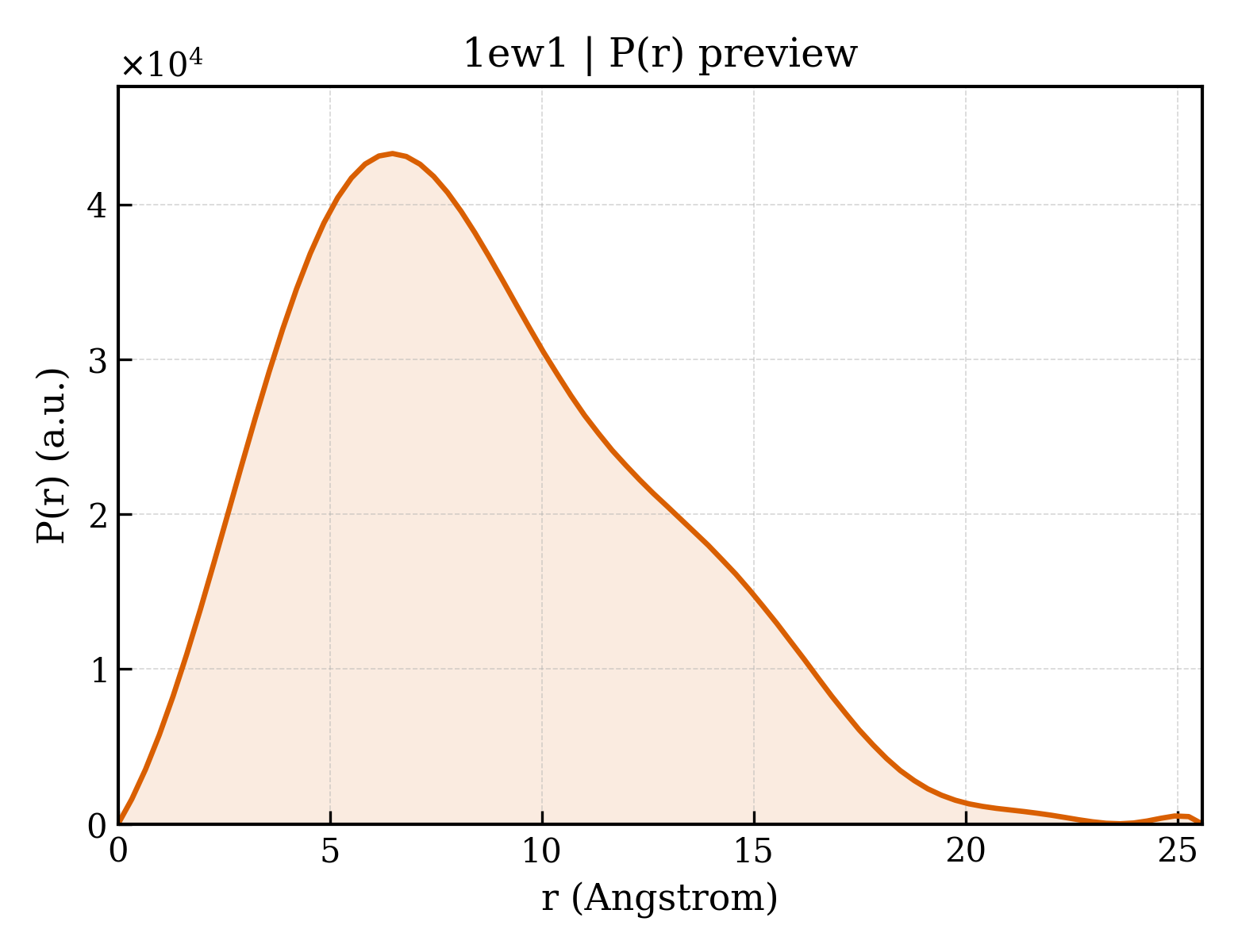

P(r) Distribution
1. Structure Basics
| entry_id | 1ew1 |
| deposition_date | 2000-04-21 |
| title | RECA PROTEIN-BOUND SINGLE-STRANDED DNA |
| keywords | DEOXYRIBOSE-BASE STACKING, SINGLE-STRANDED DNA, DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.64 Å |
| rg_electron | 6.72 Å |
| i0 | 5541800.00 |
| molecular_weight | 11758.0 kDa |
| excluded_volume | 11654 ų |
| envelope_volume | 2842 ų |
| shell_volume | 3714 ų |
| envelope_diameter | 26.6 Å |
| shell_rg | 11.75 Å |
| envelope_rg | 8.05 Å |
| shape_rg | 6.74 Å |
| total_rg | 7.07 Å |
| total_atoms | 1260 |
| n_residues | 40 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 25.6 Å |
| rg_real | 6.72 Å |
| rg_real_error | 0.39 Å |
| i0_real | 5.5420e+06 |
| i0_real_error | 4.9610e+04 |
| rg_reciprocal | 6.72 Å |
| i0_reciprocal | 5542000.0000 |
| total_estimate | 0.7612 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 6.5 Å |
| skewness | 0.547 |
| kurtosis | -0.129 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1020.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.568; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.311; Smooth: 0.885 |
