1exl
;STRUCTURE OF AN 11-MER DNA DUPLEX CONTAINING THE CARBOCYCLIC NUCLEOTIDE ANALOG: 2'-DEOXYARISTEROMYCIN ;
SAXS Profile

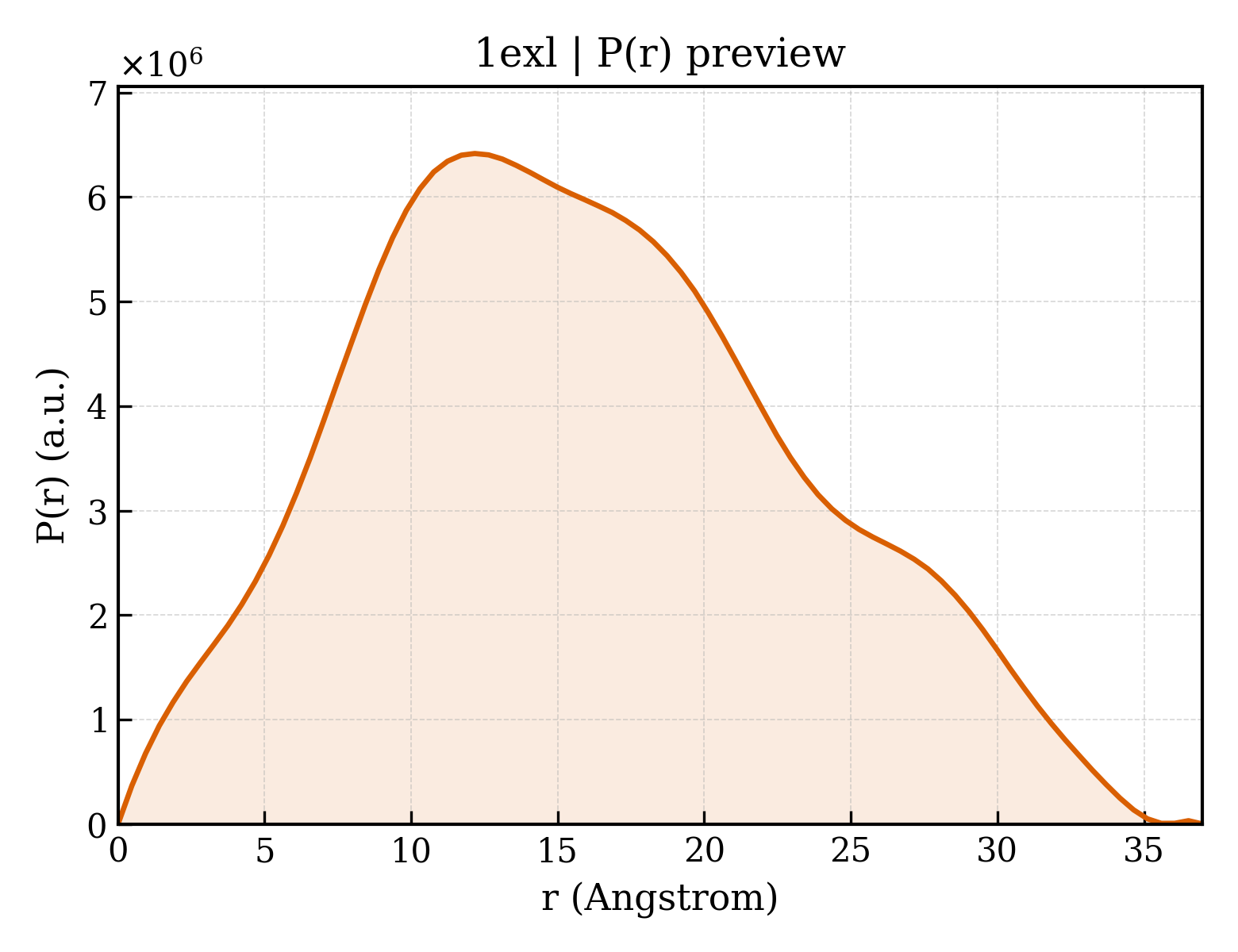

P(r) Distribution
1. Structure Basics
| entry_id | 1exl |
| deposition_date | 2000-05-03 |
| title | ;STRUCTURE OF AN 11-MER DNA DUPLEX CONTAINING THE CARBOCYCLIC NUCLEOTIDE ANALOG: 2'-DEOXYARISTEROMYCIN ; |
| keywords | ;DNA, modified nucleotides, 2'-deoxyaristeromycin ;; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.33 Å |
| rg_electron | 12.38 Å |
| i0 | 1540010000.00 |
| molecular_weight | 200690.0 kDa |
| excluded_volume | 195570 ų |
| envelope_volume | 10640 ų |
| shell_volume | 7679 ų |
| envelope_diameter | 42.4 Å |
| shell_rg | 17.20 Å |
| envelope_rg | 12.97 Å |
| shape_rg | 12.22 Å |
| total_rg | 12.66 Å |
| total_atoms | 20940 |
| n_residues | 630 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.0 Å |
| rg_real | 12.35 Å |
| rg_real_error | 0.28 Å |
| i0_real | 1.5400e+09 |
| i0_real_error | 1.6360e+07 |
| rg_reciprocal | 12.35 Å |
| i0_reciprocal | 1540000000.0000 |
| total_estimate | 0.8950 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.2 Å |
| skewness | 0.264 |
| kurtosis | -0.579 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 55910.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.967; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.771 |
