1f2x
STRUCTURE OF THE SINGLE-DOMAIN CAMELID ANTIBODY CAB-CA05
SAXS Profile

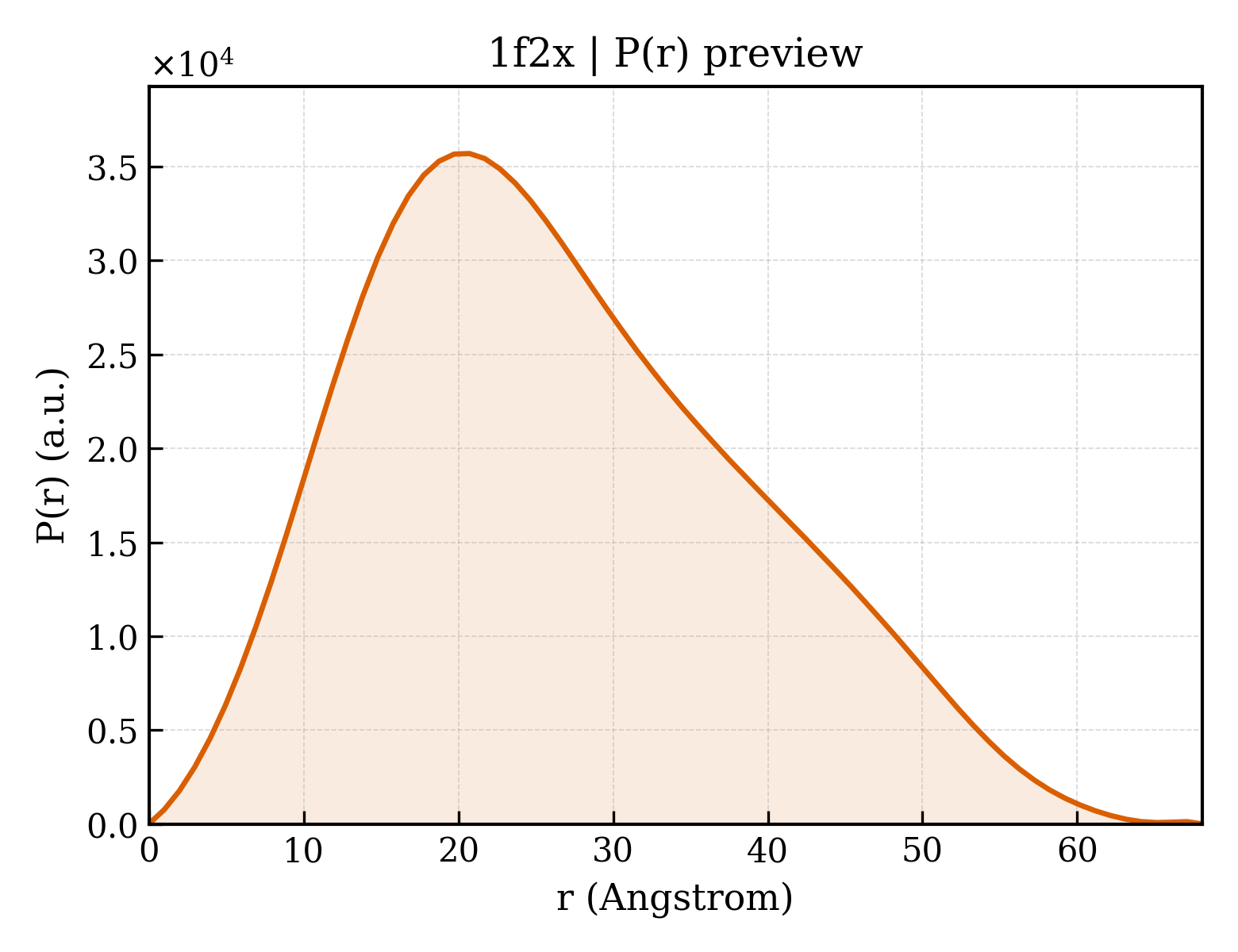

P(r) Distribution
1. Structure Basics
| entry_id | 1f2x |
| deposition_date | 2000-05-30 |
| title | STRUCTURE OF THE SINGLE-DOMAIN CAMELID ANTIBODY CAB-CA05 |
| keywords | immunoglobulin fold, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.61 Å |
| rg_electron | 20.05 Å |
| i0 | 13593800.00 |
| molecular_weight | 26604.0 kDa |
| excluded_volume | 32769 ų |
| envelope_volume | 38160 ų |
| shell_volume | 16747 ų |
| envelope_diameter | 66.6 Å |
| shell_rg | 25.11 Å |
| envelope_rg | 20.13 Å |
| shape_rg | 20.07 Å |
| total_rg | 20.69 Å |
| total_atoms | 1868 |
| n_residues | 252 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 68.1 Å |
| rg_real | 20.68 Å |
| rg_real_error | 0.48 Å |
| i0_real | 1.3590e+07 |
| i0_real_error | 1.9140e+05 |
| rg_reciprocal | 20.67 Å |
| i0_reciprocal | 13590000.0000 |
| total_estimate | 0.8759 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.7 Å |
| skewness | 0.424 |
| kurtosis | -0.458 |
| angular_range | — – 0.3850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5516000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.826; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.912; Smooth: 0.991 |
