SAXSdb — 1f4w

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1f4w
沉积日期 deposition_date	2000-06-10
结构标题 title	CRYSTAL STRUCTURE OF AN ANTI-CARBOHYDRATE ANTIBODY DIRECTED AGAINST VIBRIO CHOLERAE O1 IN COMPLEX WITH ANTIGEN
关键词 keywords	anti-carbohydrate antibody, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.67 Å
回转半径 Rg (电子) rg_electron	23.68 Å
零角强度 I(0) i0	34367300.00
分子量 molecular_weight	44805.0 kDa
排除体积 excluded_volume	55801 Å³
包络体积 envelope_volume	68697 Å³
水化壳体积 shell_volume	24376 Å³
包络直径 envelope_diameter	74.9 Å
壳层 Rg shell_rg	30.58 Å
包络 Rg envelope_rg	23.36 Å
形状 Rg shape_rg	23.67 Å
总 Rg total_rg	24.52 Å
总原子数 total_atoms	3154
残基数 n_residues	426
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	74.2 Å
Rg (实空间) rg_real	24.60 Å
Rg 误差 (实空间) rg_real_error	0.47 Å
I(0) (实空间) i0_real	3.4370e+07
I(0) 误差 (实空间) i0_real_error	4.5520e+05
Rg (倒空间) rg_reciprocal	24.62 Å
I(0) (倒空间) i0_reciprocal	34370000.0000
解质量估计 total_estimate	0.9149
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.1 Å
偏度 Skewness skewness	0.215
峰度 Kurtosis kurtosis	-0.593
角度范围 angular_range	— – 0.3200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6641000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.983; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.950

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	ANTIBODY S-20-4, FAB FRAGMENT, LIGHT CHAIN
分子量 formula_weight	22513.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	3205

QAVVTQESALTTSPGETVTLTCRSSTGTVTTSNYANWVQEKPDHLFTGLIGATNNRAAGVPVRFSGSLIGGKAALTITGAQTEDEAIYFCALWYSGHWVFGGGTKLTVLGQPKSSPSVTLFPPSSEELETNKATLVCTITDFYPGVVTVDWKVDGTPVTQGMETTNPSKQSNNKYMASSYLTLTARAWERHSSYSCQVTHEGHTVEKSLS

Entity 2 polymer

描述 description	ANTIBODY S-20-4, FAB FRAGMENT, HEAVY CHAIN
分子量 formula_weight	23274.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

EVQLEESGGGLVTPGGSLRLSCAASGYVFSTYDMSWVRQTPEKRLEWVAFISSGGGRTSYPDTVKGRFTISRDDAKNTLYLQMSSLQSEDTAMYYCTRHFYAVLDYWGRGTTLTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVP

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	51

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1f4wh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1f4wh2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1f4wl1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1f4wl2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

结构域编号 domain_id	1f4wH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1f4wH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1f4wL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1f4wL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	45.670 Å
晶胞边长 b length_b	113.320 Å
晶胞边长 c length_c	46.210 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	100.69 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	—
R_work r_work	0.1970
R_free r_free	0.2610

fit	/app/data/saxs_computation/f4/1f4w/1f4w.fit
pddf	/app/data/pr_computation/f4/1f4w/1f4w.pr.out
profile	/app/data/saxs_computation/f4/1f4w/1f4w.dat

CRYSTAL STRUCTURE OF AN ANTI-CARBOHYDRATE ANTIBODY DIRECTED AGAINST VIBRIO CHOLERAE O1 IN COMPLEX WITH ANTIGEN

SAXS 散射曲线 SAXS Profile

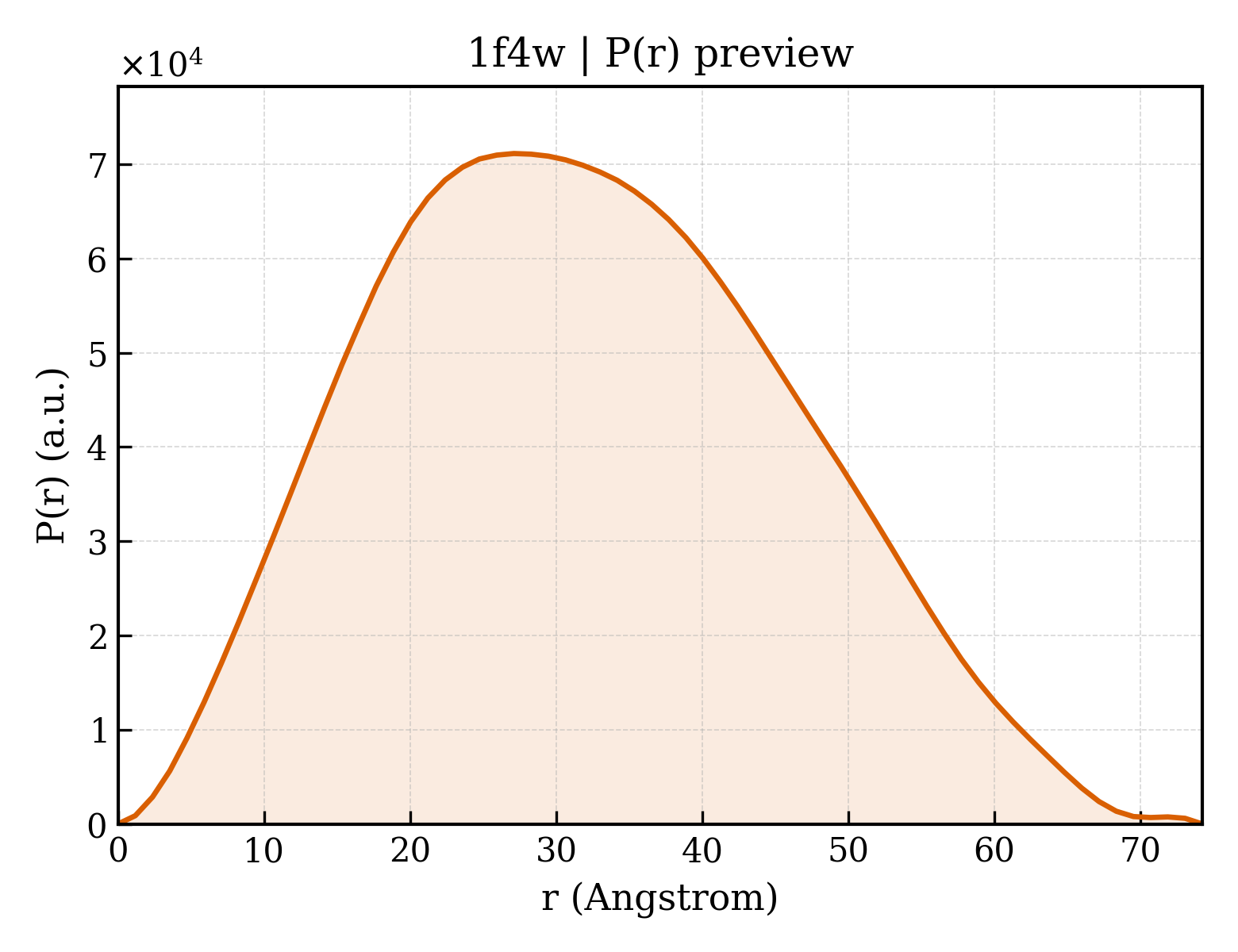

P(r) 距离分布 P(r) Distribution
