1f53
NMR STRUCTURE OF KILLER TOXIN-LIKE PROTEIN SKLP

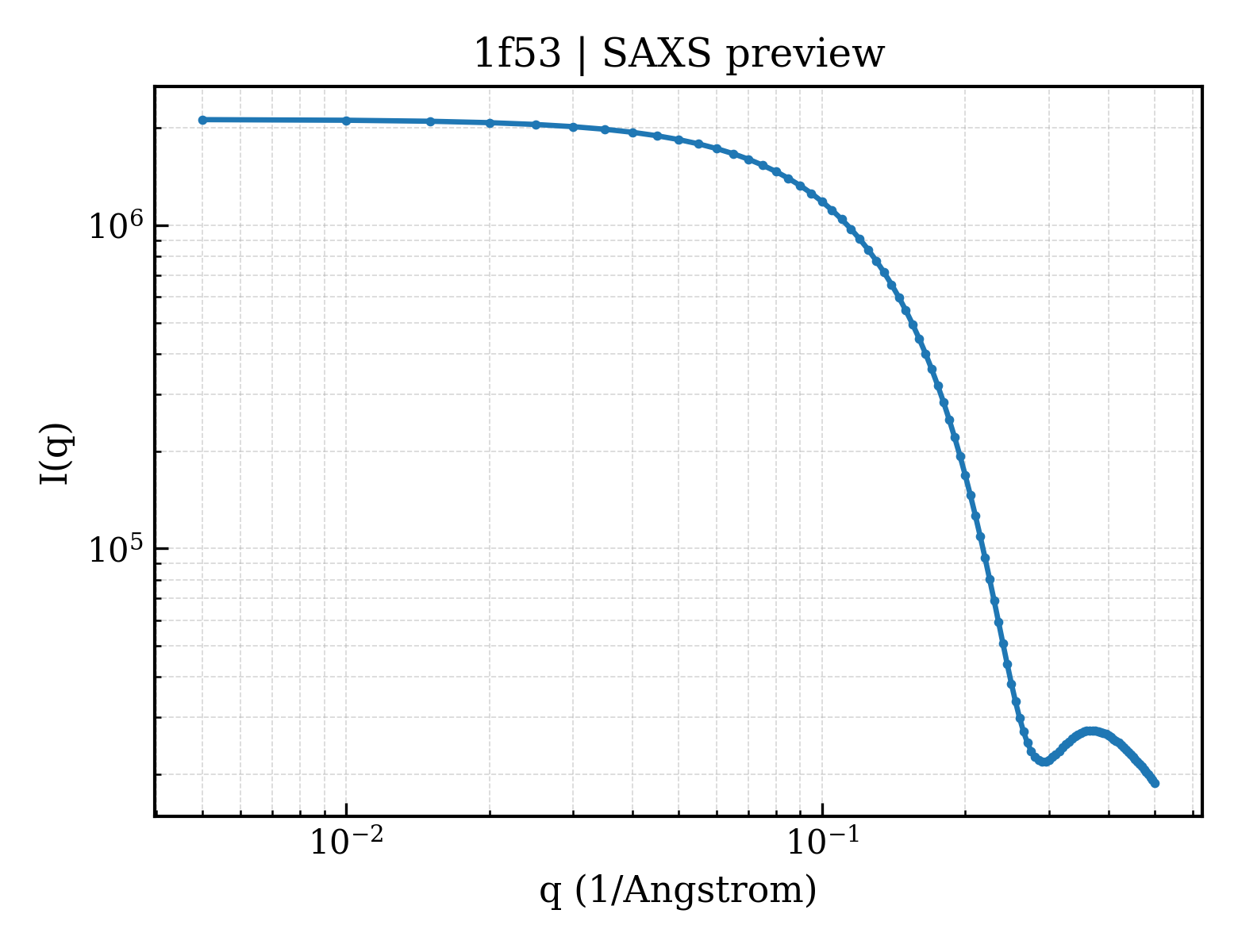

SAXS Profile

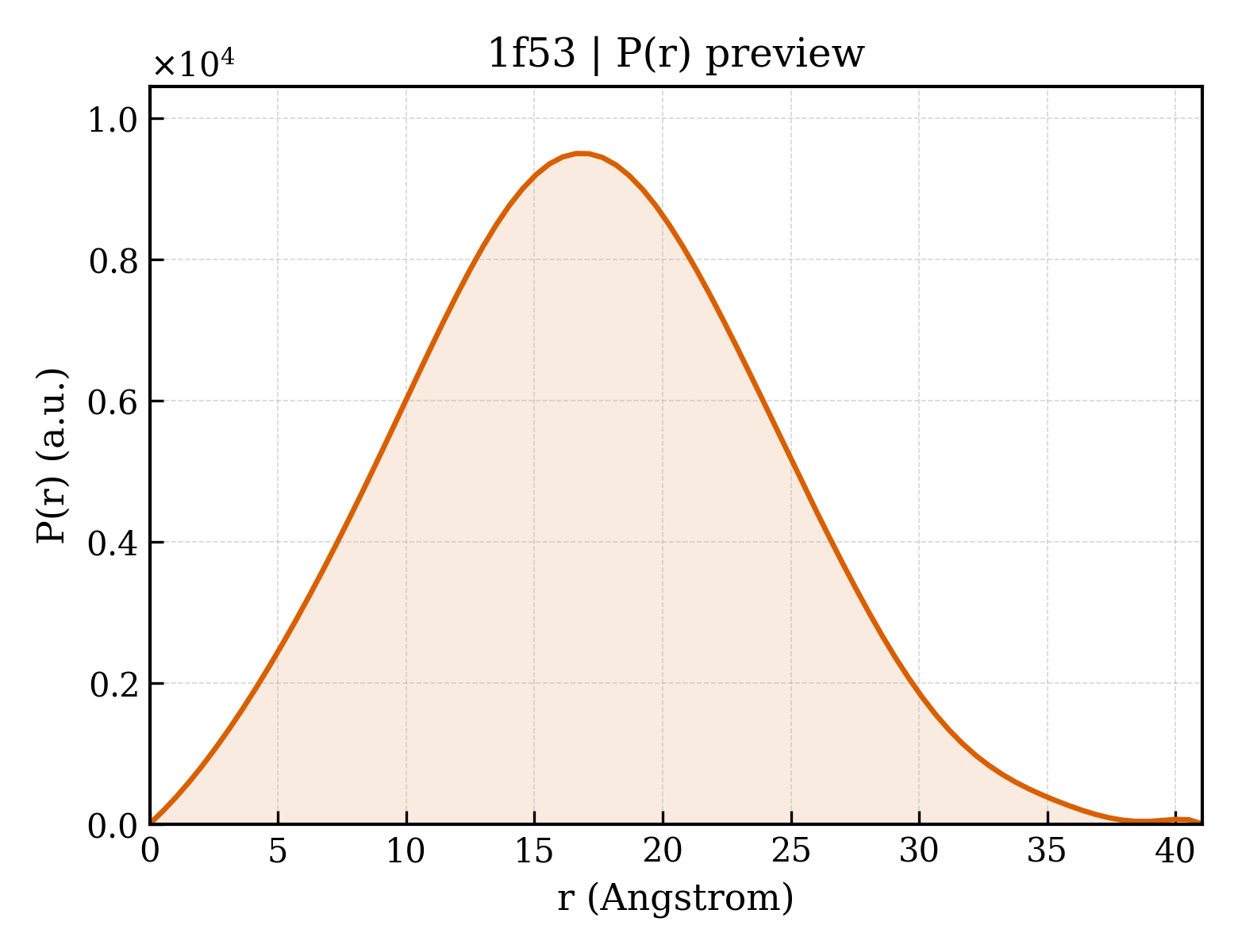

P(r) Distribution
1. Structure Basics
| entry_id | 1f53 |
| deposition_date | 2000-06-12 |
| title | NMR STRUCTURE OF KILLER TOXIN-LIKE PROTEIN SKLP |
| keywords | killer toxin-like protein, SKLP, crystallin family, TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.17 Å |
| rg_electron | 11.54 Å |
| i0 | 2124630.00 |
| molecular_weight | 9605.0 kDa |
| excluded_volume | 11795 ų |
| envelope_volume | 12280 ų |
| shell_volume | 9118 ų |
| envelope_diameter | 38.8 Å |
| shell_rg | 17.16 Å |
| envelope_rg | 12.05 Å |
| shape_rg | 11.53 Å |
| total_rg | 12.87 Å |
| total_atoms | 1312 |
| n_residues | 84 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.0 Å |
| rg_real | 13.08 Å |
| rg_real_error | 0.22 Å |
| i0_real | 2.1250e+06 |
| i0_real_error | 2.3890e+04 |
| rg_reciprocal | 13.09 Å |
| i0_reciprocal | 2125000.0000 |
| total_estimate | 0.8976 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | 0.132 |
| kurtosis | -0.342 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 298300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.986 |
