SAXSdb — 1f7p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

POL POLYPROTEIN

Feline immunodeficiency virus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 711–846 Chain B； UniProt 711–846 Chain C； UniProt 711–846	Fragment：DUTPASE	UDP URIDINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；1.0M Sodium citrate pH 6.5. The crystals were soaked in 10 mM dUDP for 17 hrs, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1F7P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B11 STRUCTURE OF FELINE IMMUNODEFICIENCY VIRUS PROTEASE COMPLEXED WITH TL-3-093 Deposited 1998-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 42–154（113 aa）	Not recorded	SO4 SULFATE ION × 4 3TL benzyl [(1S,4S,7S,8R,9R,10S,13S,16S)-7,10-dibenzyl-8,9-dihydroxy-1,16-dimethyl-4,13-bis(1-methylethyl)-2,5,12,15,18-pentaoxo-20-phenyl-19-oxa-3,6,11,14,17-pentaazaicos-1-yl]carbamate × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；SAMPLE: 3.4MG/ML FIVPR IN 25MM IMIDAZOL BUFFER AT PH 7.0 WITH 1MM EDTA AND 10MM DTT. WELL SOLUTION: 1.6M AMMONIUM SULFATE IN SODIUM ACETATE BUFFER AT PH 4.5 MIXING SAMPLE AND WELL SOLLUTION 1:1, pH 5.0	Resolution 1.90 Å R-free 0.251
1DUT FIV DUTP PYROPHOSPHATASE Deposited 1996-09-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 711–843（133 aa）	Not recorded	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.249
1DUT FIV DUTP PYROPHOSPHATASE Deposited 1996-09-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 711–843（133 aa）	Not recorded	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.249
1F7D CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS Deposited 2000-06-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50mM Sodium cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.40 Å R-free 0.218
1F7D CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS Deposited 2000-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50mM Sodium cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.40 Å R-free 0.218
1F7D CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS Deposited 2000-06-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50mM Sodium cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.40 Å R-free 0.218
1F7K CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 6 UMP 2'-DEOXYURIDINE 5'-MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50 mM cacodylate and the crystals were soaked in 5 mM dUMP overnight, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
1F7K CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 1 UMP 2'-DEOXYURIDINE 5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50 mM cacodylate and the crystals were soaked in 5 mM dUMP overnight, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
1F7K CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 3 UMP 2'-DEOXYURIDINE 5'-MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50 mM cacodylate and the crystals were soaked in 5 mM dUMP overnight, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
1F7N CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 6 UMP 2'-DEOXYURIDINE 5'-MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50 mM Cacodylate. The crystals were soaked in 10 mM dUTP for 24 hrs, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
1F7N CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 1 UMP 2'-DEOXYURIDINE 5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50 mM Cacodylate. The crystals were soaked in 10 mM dUTP for 24 hrs, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
1F7N CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 3 UMP 2'-DEOXYURIDINE 5'-MONOPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；13% MPEG 5K, 50 mM Cacodylate. The crystals were soaked in 10 mM dUTP for 24 hrs, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
1F7O CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 711–846（136 aa） Fragment：DUTPASE Chain B 711–846（136 aa） Fragment：DUTPASE Chain C 711–846（136 aa） Fragment：DUTPASE	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；1.0M Sodium citrate pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å R-free 0.286
1F7Q CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 711–846（136 aa） Fragment：DUTPASE Chain B 711–846（136 aa） Fragment：DUTPASE Chain C 711–846（136 aa） Fragment：DUTPASE	Not recorded	DUT DEOXYURIDINE-5'-TRIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；1.0M Sodium citrate pH 6.5. The crystals were soaked in 10 mM dUDP for 24 hrs, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.26 Å
1F7R CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS. Deposited 2000-06-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 711–846（136 aa） Fragment：DUTPASE	Not recorded	MG MAGNESIUM ION × 3 UDP URIDINE-5'-DIPHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；1.25 M sodium citrate. The protein solution was incubated with 25 mM dUDP prior to crystallization experiments., pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.50 Å
1FIV STRUCTURE OF AN INHIBITOR COMPLEX OF PROTEINASE FROM FELINE IMMUNODEFICIENCY VIRUS Deposited 1995-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 42–154（113 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
2FIV Crystal structure of feline immunodeficiency virus protease complexed with a substrate Deposited 1997-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 39–154（116 aa） Chain B 39–154（116 aa）	Mutation：D30N Mutation：D30N	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 2.0 MOLAR AMMONIUM SULFATE, 0.1 M SODIUM ACETATE PH=5.6.	Resolution 2.00 Å
2HAH The structure of FIV 12S protease in complex with TL-3 Deposited 2006-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 39–154（116 aa） Fragment：residues 39-154	Mutation：I37V, N55M, M56I, I57G, V59I, G62F, K63I, L97T, I98P, Q99V, P100N, L101I	3TL benzyl [(1S,4S,7S,8R,9R,10S,13S,16S)-7,10-dibenzyl-8,9-dihydroxy-1,16-dimethyl-4,13-bis(1-methylethyl)-2,5,12,15,18-pentaoxo-20-phenyl-19-oxa-3,6,11,14,17-pentaazaicos-1-yl]carbamate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；281.16 K；100mM Hepes, 2.5M LiCl2, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 281.16K	Resolution 1.70 Å R-free 0.233
3FIV CRYSTAL STRUCTURE OF FELINE IMMUNODEFICIENCY VIRUS PROTEASE COMPLEXED WITH A SUBSTRATE Deposited 1997-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 39–154（116 aa） Chain B 39–154（116 aa）	Mutation：D30N Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：D30N Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 2.0 M AMMONIUM SULFATE, 0.1 M SODIUM ACETATE, PH=5.6. PROTEIN CONCENTRATION, 5.0 MG/ML. CRYSTALLIZATION METHOD: HANGING DROP VAPOR DIFFUSION	Resolution 1.85 Å
3OGP Crystal Structure of 6s-98S FIV Protease with Darunavir bound Deposited 2010-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 39–154（116 aa） Fragment：UNP residues 39-154 Chain B 39–154（116 aa） Fragment：UNP residues 39-154	Mutation：I37V, N55M, V59I, I98S, Q99V, P100N Mutation：I37V, N55M, V59I, I98S, Q99V, P100N	017 (3R,3AS,6AR)-HEXAHYDROFURO[2,3-B]FURAN-3-YL(1S,2R)-3-[[(4-AMINOPHENYL)SULFONYL](ISOBUTYL)AMINO]-1-BENZYL-2-HYDROXYPROPYLCARBAMATE × 2 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.229
3OGQ Crystal Structure of 6s-98S FIV Protease with Lopinavir bound Deposited 2010-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 39–154（116 aa） Fragment：UNP residues 39-154 Chain B 39–154（116 aa） Fragment：UNP residues 39-154	Mutation：I37V, N55M, V59I, I98S, Q99V, P100N Mutation：I37V, N55M, V59I, I98S, Q99V, P100N	AB1 N-{1-BENZYL-4-[2-(2,6-DIMETHYL-PHENOXY)-ACETYLAMINO]-3-HYDROXY-5-PHENYL-PENTYL}-3-METHYL-2-(2-OXO-TETRAHYDRO-PYRIMIDIN-1-YL)-BUTYRAMIDE × 1 DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.279
4FIV FIV PROTEASE COMPLEXED WITH AN INHIBITOR LP-130 Deposited 1998-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 42–154（113 aa）	Not recorded	LP1 4-[2-(2-ACETYLAMINO-3-NAPHTALEN-1-YL-PROPIONYLAMINO)-4-METHYL-PENTANOYLAMINO]-3-HYDROXY-6-METHYL-HEPTANOIC ACID [1-(1-CARBAMOYL-2-NAPHTHALEN-1-YL-ETHYLCARBAMOYL)-PROPYL]-AMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；pH 7.2	Resolution 1.80 Å
4MQ3 The 1.1 Angstrom Structure of Catalytic Core Domain of FIV Integrase Deposited 2013-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 904–1031（128 aa） Fragment：Catalytic Core Domain	Mutation：F1030K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；0.2M Trimethylamine N-oxide, 0.1M Tris pH 8.5, 20% PEG MME 2000, VAPOR DIFFUSION, temperature 293K X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；293 K；0.2M Ammonium acetate, 0.1M Bis-Tris pH 5.5, 25% PEG 3350, VAPOR DIFFUSION, temperature 293K	Resolution 1.08 Å R-free 0.176
4PA1 Crystal Structure of Catalytic Core domain of FIV Integrase Deposited 2014-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 904–1052（149 aa） Fragment：catalytic domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；30% PEG 4000, 200 mM MgCl2, 100 mM TrisHCl pH 8.5	Resolution 1.84 Å R-free 0.222
4PA1 Crystal Structure of Catalytic Core domain of FIV Integrase Deposited 2014-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 904–1052（149 aa） Fragment：catalytic domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；30% PEG 4000, 200 mM MgCl2, 100 mM TrisHCl pH 8.5	Resolution 1.84 Å R-free 0.222
4PA1 Crystal Structure of Catalytic Core domain of FIV Integrase Deposited 2014-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 904–1052（149 aa） Fragment：catalytic domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；30% PEG 4000, 200 mM MgCl2, 100 mM TrisHCl pH 8.5	Resolution 1.84 Å R-free 0.222
5FIV STRUCTURAL STUDIES OF HIV AND FIV PROTEASES COMPLEXED WITH AN EFFICIENT INHIBITOR OF FIV PR Deposited 1998-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 42–154（113 aa）	Not recorded	3TL benzyl [(1S,4S,7S,8R,9R,10S,13S,16S)-7,10-dibenzyl-8,9-dihydroxy-1,16-dimethyl-4,13-bis(1-methylethyl)-2,5,12,15,18-pentaoxo-20-phenyl-19-oxa-3,6,11,14,17-pentaazaicos-1-yl]carbamate × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；SAMPLE: 3.4MG/ML V59I IN 25MM IMIDAZOL BUFFER AT PH 7.0 WITH 1MM EDTA AND 10MM DTT. WELL SOLUTION: 1.6M AMMONIUM SULFATE IN SODIUM ACETATE BUFFER AT PH 4.5 MIXING SAMPLE AND WELL SOLLUTION 1:1, pH 5.0	Resolution 1.90 Å R-free 0.240
6FIV STRUCTURAL STUDIES OF HIV AND FIV PROTEASES COMPLEXED WITH AN EFFICIENT INHIBITOR OF FIV PR Deposited 1998-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 42–154（113 aa）	Not recorded	SO4 SULFATE ION × 2 3TL benzyl [(1S,4S,7S,8R,9R,10S,13S,16S)-7,10-dibenzyl-8,9-dihydroxy-1,16-dimethyl-4,13-bis(1-methylethyl)-2,5,12,15,18-pentaoxo-20-phenyl-19-oxa-3,6,11,14,17-pentaazaicos-1-yl]carbamate × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；SAMPLE: 3.4MG/ML Q99V IN 25MM IMIDAZOL BUFFER AT PH 7.0 WITH 1MM EDTA AND 10MM DTT. WELL SOLUTION: 1.6M AMMONIUM SULFATE IN SODIUM ACETATE BUFFER AT PH 4.5 MIXING SAMPLE AND WELL SOLLUTION 1:1, pH 5.0	Resolution 1.90 Å R-free 0.266

19 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	POL_FIVPE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 711–846 Author chain B； PDBConstruct 1–136； UniProt 711–846 Author chain C； PDBConstruct 1–136； UniProt 711–846

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f7p
Deposition date deposition_date	2000-06-27
Structure title title	CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS.
Keywords keywords	Eight stranded beta barrel protein, Viral protein, hydrolase; Viral protein, hydrolase
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.96 Å
Radius of gyration Rg (electron density) rg_electron	19.66 Å
Forward intensity I(0) i0	23206300.00
Molecular weight molecular_weight	38361.0 kDa
Excluded volume excluded_volume	48905 Å³
Envelope volume envelope_volume	56460 Å³
Hydration-shell volume shell_volume	23396 Å³
Envelope diameter envelope_diameter	61.1 Å
Shell Rg shell_rg	26.71 Å
Envelope Rg envelope_rg	19.75 Å
Shape Rg shape_rg	19.64 Å
Total Rg total_rg	20.70 Å
Total atoms total_atoms	2681
Residues n_residues	347
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.4 Å
Rg (real space) rg_real	20.77 Å
Rg uncertainty (real space) rg_real_error	0.29 Å
I(0) (real space) i0_real	2.3210e+07
I(0) uncertainty (real space) i0_real_error	2.7430e+05
Rg (reciprocal space) rg_reciprocal	20.81 Å
I(0) (reciprocal space) i0_reciprocal	23210000.0000
Solution quality estimate total_estimate	0.7461
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.6 Å
Skewness Skewness skewness	-0.015
Kurtosis Kurtosis kurtosis	-0.590
Angular range angular_range	— – 0.3800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4730000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.949; Stabil: 1.000; Sysdev: 0.301; Positv: 1.000; Valcen: 0.971; Smooth: 0.975

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	POL POLYPROTEIN
Molecular weight formula_weight	14730.2 kDa
EC 编号 ec_number	3.6.1.23
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	2777

MIIEGDGILDKRSEDAGYDLLAAKEIHLLPGEVKVIPTGVKLMLPKGYWGLIIGKSSIGSKGLDVLGGVIDEGYRGEIGVIMINVSRKSITLMERQKIAQLIILPCKHEVLEQGKVVMDSERGDNGYGSTGVFSSW

来源 Source

来源生物 organism	Feline immunodeficiency virus
NCBI Class编号 ncbi_taxonomy_id	11673
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 non-polymer

Description description	URIDINE-5'-DIPHOSPHATE
Molecular weight formula_weight	404.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	96

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1f7pa_
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.4 — dUTPase-like
Family Family family	b.85.4.1 — dUTPase-like

Domain ID domain_id	d1f7pb_
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.4 — dUTPase-like
Family Family family	b.85.4.1 — dUTPase-like

Domain ID domain_id	d1f7pc_
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.4 — dUTPase-like
Family Family family	b.85.4.1 — dUTPase-like

CATH v4.4 (3 domains)

Domain ID domain_id	1f7pA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	40 — Deoxyuridine 5'-Triphosphate Nucleotidohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Deoxyuridine triphosphatase (dUTPase)

Domain ID domain_id	1f7pB00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	40 — Deoxyuridine 5'-Triphosphate Nucleotidohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Deoxyuridine triphosphatase (dUTPase)

Domain ID domain_id	1f7pC00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	40 — Deoxyuridine 5'-Triphosphate Nucleotidohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Deoxyuridine triphosphatase (dUTPase)

▶

8. Citations (2)

▶

Unit-cell length a length_a	68.770 Å
Unit-cell length b length_b	72.000 Å
Unit-cell length c length_c	77.280 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2210
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/f7/1f7p/1f7p.fit
pddf	/app/data/pr_computation/f7/1f7p/1f7p.pr.out
profile	/app/data/saxs_computation/f7/1f7p/1f7p.dat

CRYSTAL STRUCTURES OF FELINE IMMUNODEFICIENCY VIRUS DUTP PYROPHOSPHATASE AND ITS NUCLEOTIDE COMPLEXES IN THREE CRYSTAL FORMS.

1. Protein Identity and Related Structures Protein Identity & Related Structures

POL POLYPROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

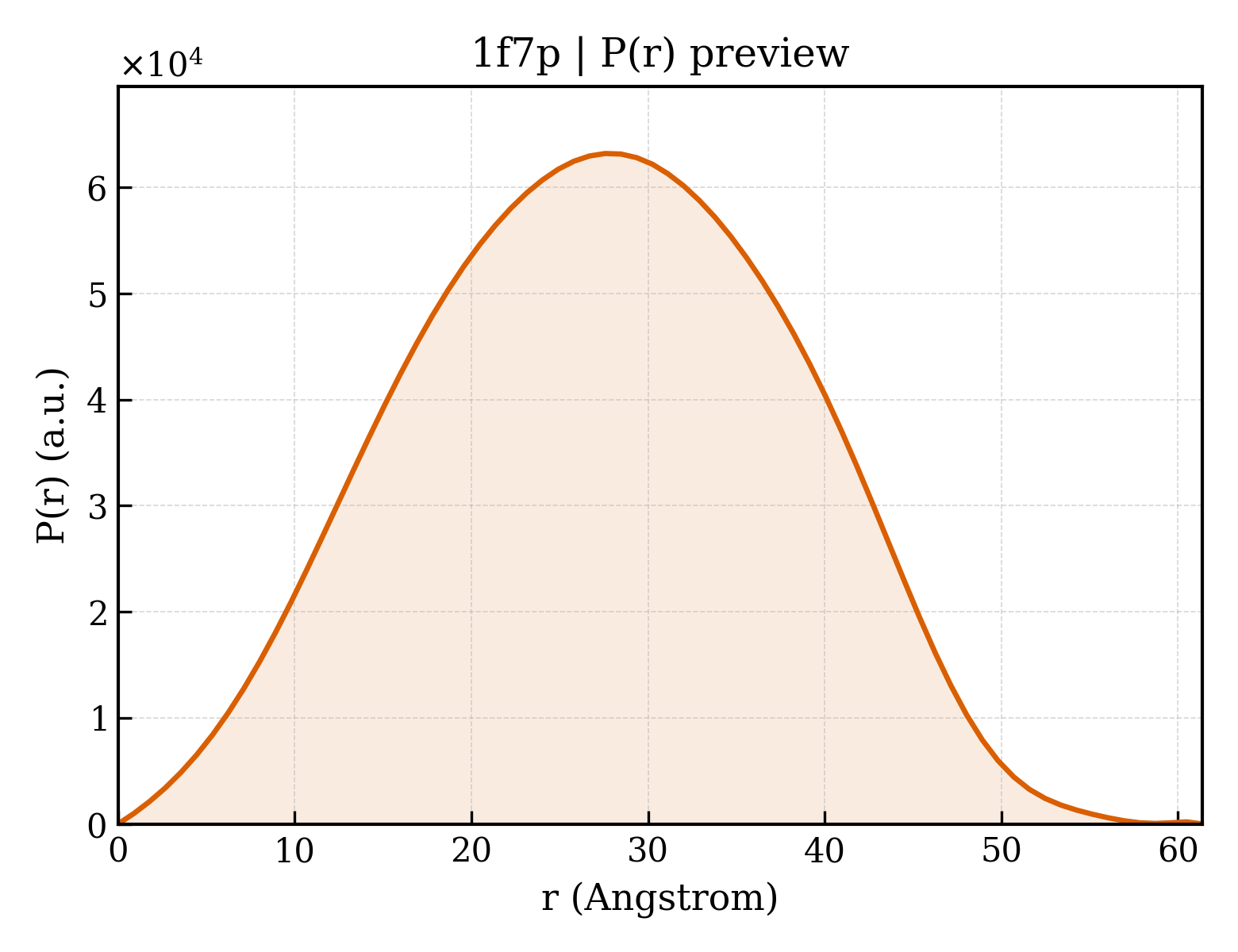

P(r) Distance Distribution P(r) Distribution
