1ffz

LARGE RIBOSOMAL SUBUNIT COMPLEXED WITH R(CC)-DA-PUROMYCIN

Method: X-RAY DIFFRACTION D_max: 158.0 Å Quality: GOOD

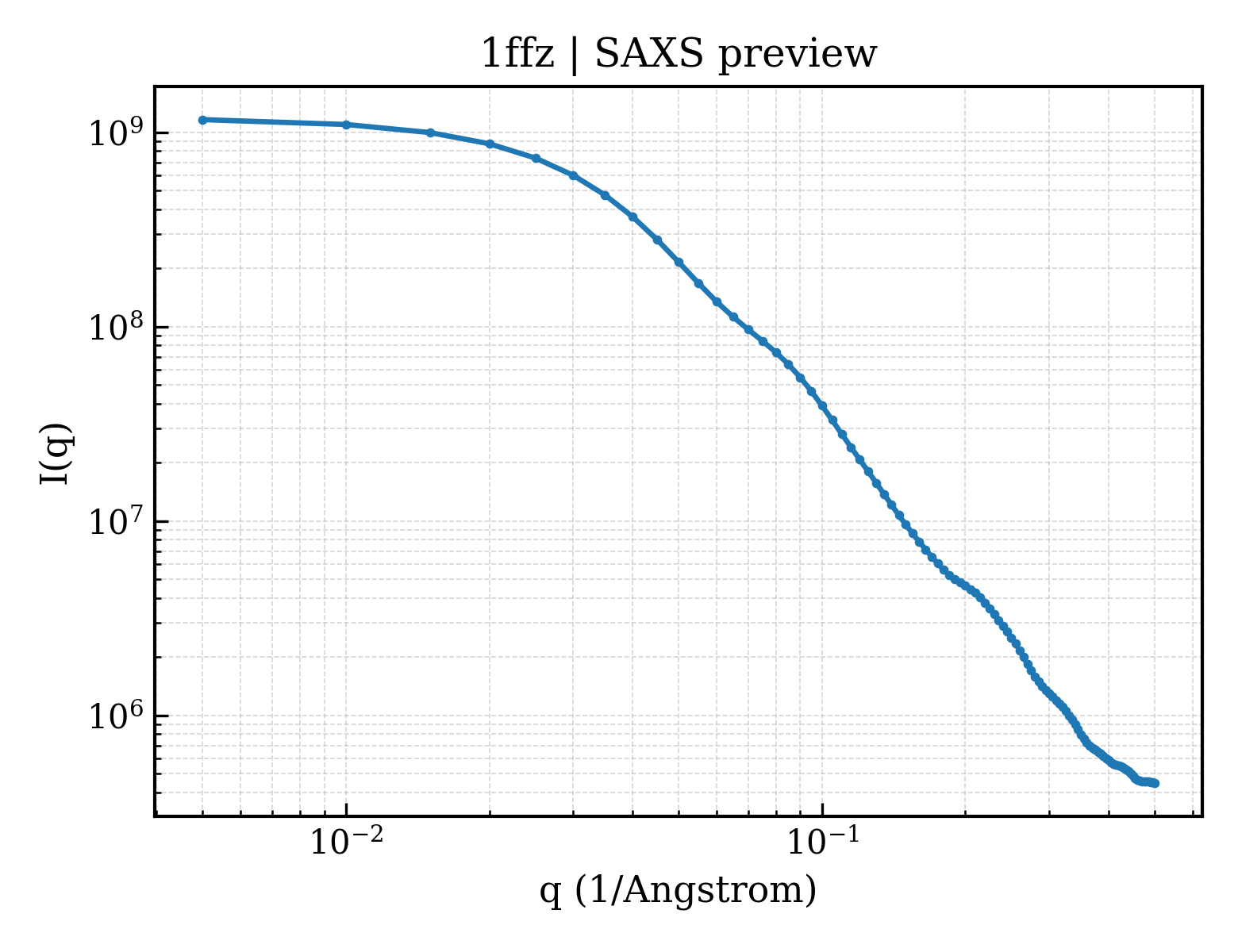

SAXS 散射曲线 SAXS Profile

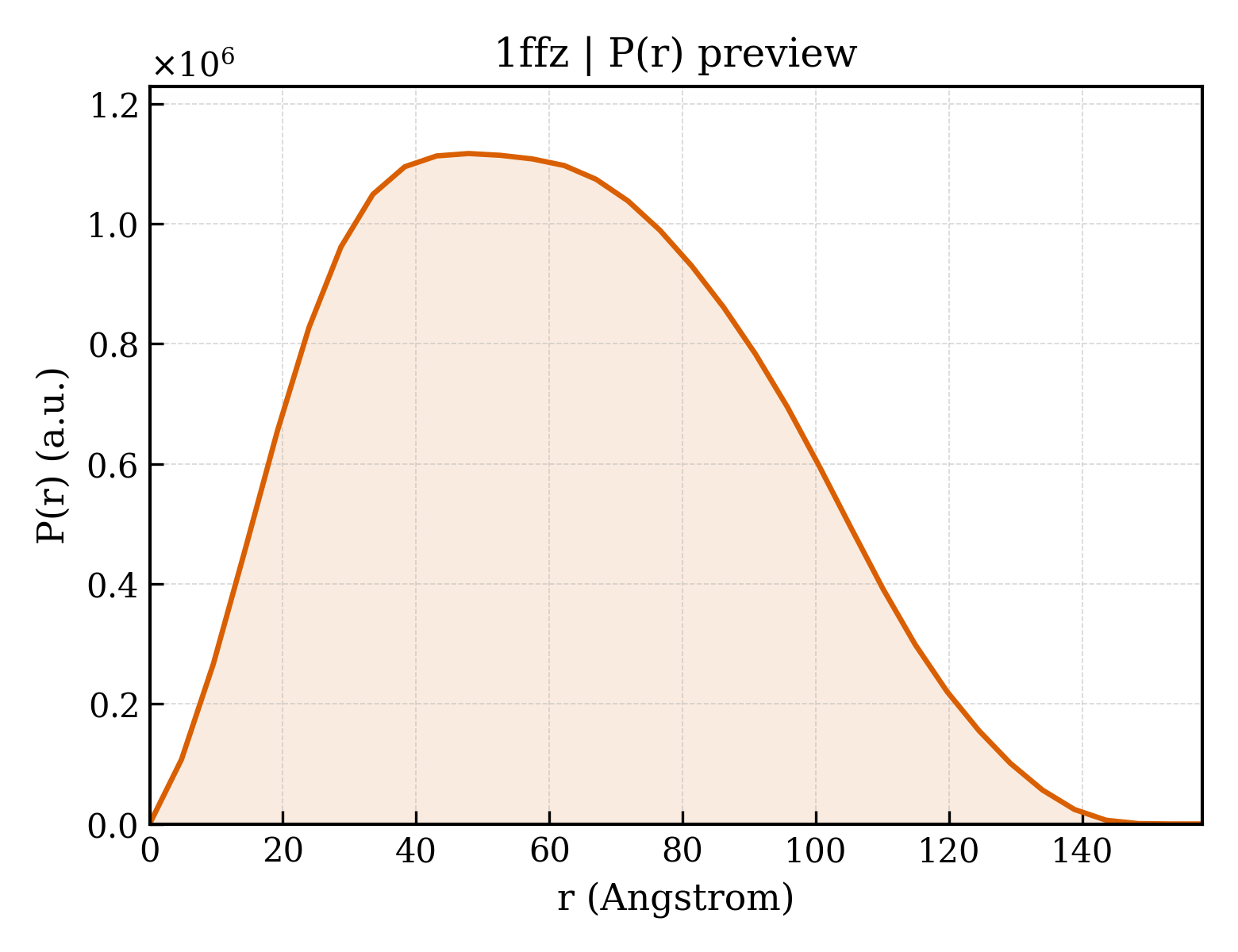

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ffz
沉积日期 deposition_date	2000-07-26
结构标题 title	LARGE RIBOSOMAL SUBUNIT COMPLEXED WITH R(CC)-DA-PUROMYCIN
关键词 keywords	ribosome assembly, RNA-RNA complex, Ribozyme, ribosomal RNA, ribosome; RIBOSOME
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.82 Å
回转半径 Rg (电子) rg_electron	47.96 Å
零角强度 I(0) i0	1183840000.00
分子量 molecular_weight	162560.0 kDa
排除体积 excluded_volume	151480 Å³
包络体积 envelope_volume	279860 Å³
水化壳体积 shell_volume	51651 Å³
包络直径 envelope_diameter	155.9 Å
壳层 Rg shell_rg	47.48 Å
包络 Rg envelope_rg	47.48 Å
形状 Rg shape_rg	47.94 Å
总 Rg total_rg	47.98 Å
总原子数 total_atoms	10725
残基数 n_residues	499
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	158.0 Å
Rg (实空间) rg_real	47.94 Å
Rg 误差 (实空间) rg_real_error	1.75 Å
I(0) (实空间) i0_real	1.1840e+09
I(0) 误差 (实空间) i0_real_error	2.3290e+07
Rg (倒空间) rg_reciprocal	47.82 Å
I(0) (倒空间) i0_reciprocal	1184000000.0000
解质量估计 total_estimate	0.8770
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	47.9 Å
偏度 Skewness skewness	0.247
峰度 Kurtosis kurtosis	-0.686
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24760000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.635

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	23S RIBOSOMAL RNA
分子量 formula_weight	194851.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	10725

UUCCAGUGCGGAGUCUGGAGACACCCAGGGGGAAGCGAAGACCCUAUGGAGCUUUACUGCAGGCUGUCGCUGAGACGUGGUCGCCGAUGUGCAGCAUAGGUAGGAGACACUACACAGGUACCCGCGCUAGCGGGCCACCGAGUCAACAGUGAAAUACUACCCGUCGGUGACUGCGACUCUCACUCCGGGAGGAGGACACCGAUAGCCGGGCAGUUUGACUGGGGCGGUACGCGCUCGAAAAGAUAUCGAGCGCGCCCUAUGGCUAUCUCAGCCGGGACAGAGACCCGGCGAAGAGUGCAAGAGCAAAAGAUAGCUUGACAGUGUUCUUCCCAACGAGGAACGCUGACGCGAAAGCGUGGUCUAGCGAACCAAUUAGCCUGCUUGAUGCGGGCAAUUGAUGACAGAAAAGCUACCCUAGGGAUAACAGAGUCGUCACUCGCAAGAGCACAUAUCGACCGAGUGGCUUGCUACCUCGAUGUCGGUUCCCUCCAUCCUGCCCGUGCAGAAGCGGGCAAGGGUGAGGUUGUUCGCCUAUUAAAGGAGGUCGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUCGGCUGCUAUCUACUGGGUGUGUA

Entity 2 polymer

描述 description	R(PCPC)-D(PA)-R(P*(PU))
分子量 formula_weight	1412.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide/polyribonucleotide hybrid
链编号 strand_id	B

CCAA

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	212.000 Å
晶胞边长 b length_b	300.000 Å
晶胞边长 c length_c	574.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	70.000 Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/ff/1ffz/1ffz.fit
pddf	/app/data/pr_computation/ff/1ffz/1ffz.pr.out
profile	/app/data/saxs_computation/ff/1ffz/1ffz.dat
