1fg0

LARGE RIBOSOMAL SUBUNIT COMPLEXED WITH A 13 BP MINIHELIX-PUROMYCIN COMPOUND

Method: X-RAY DIFFRACTION D_max: 162.6 Å Quality: GOOD

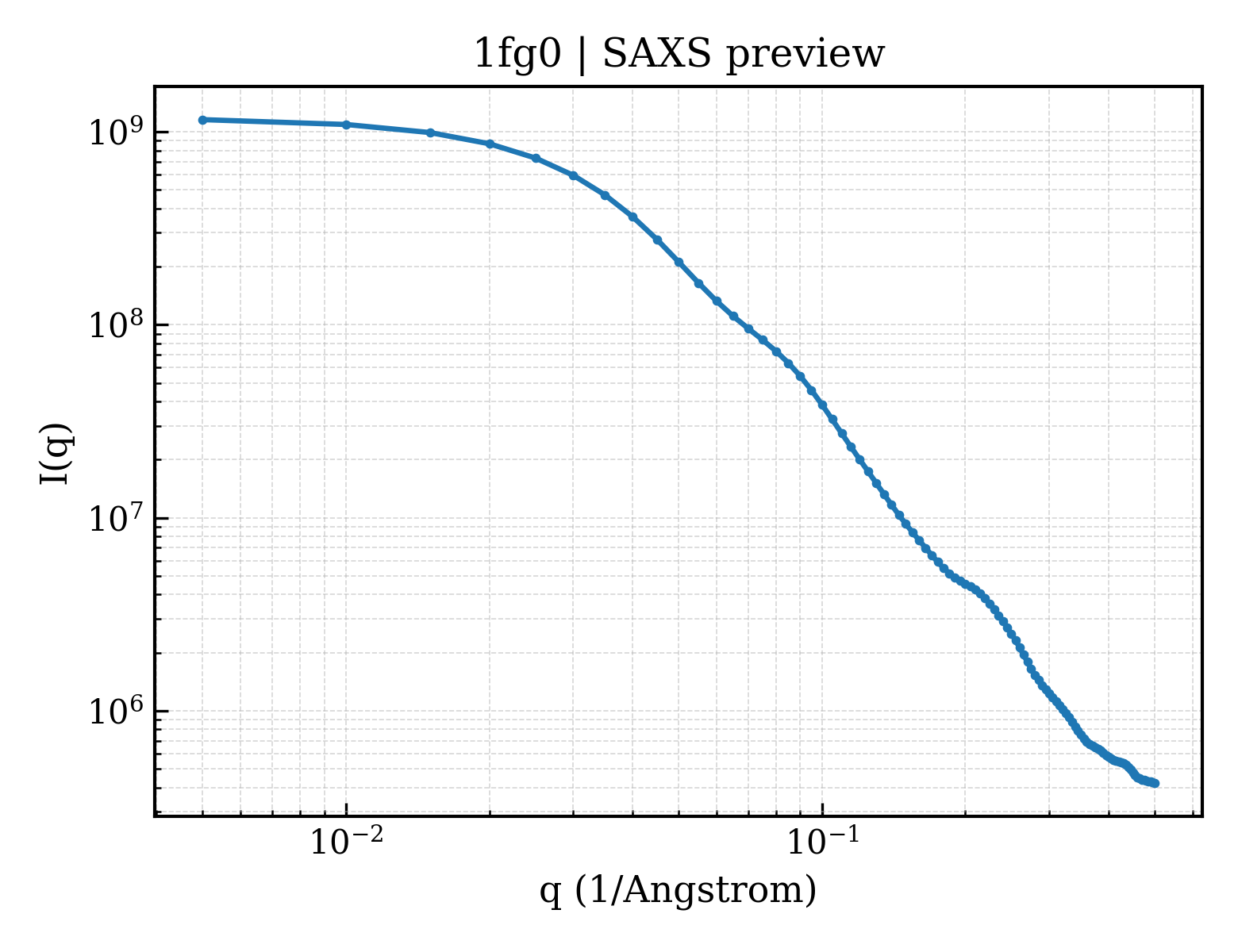

SAXS 散射曲线 SAXS Profile

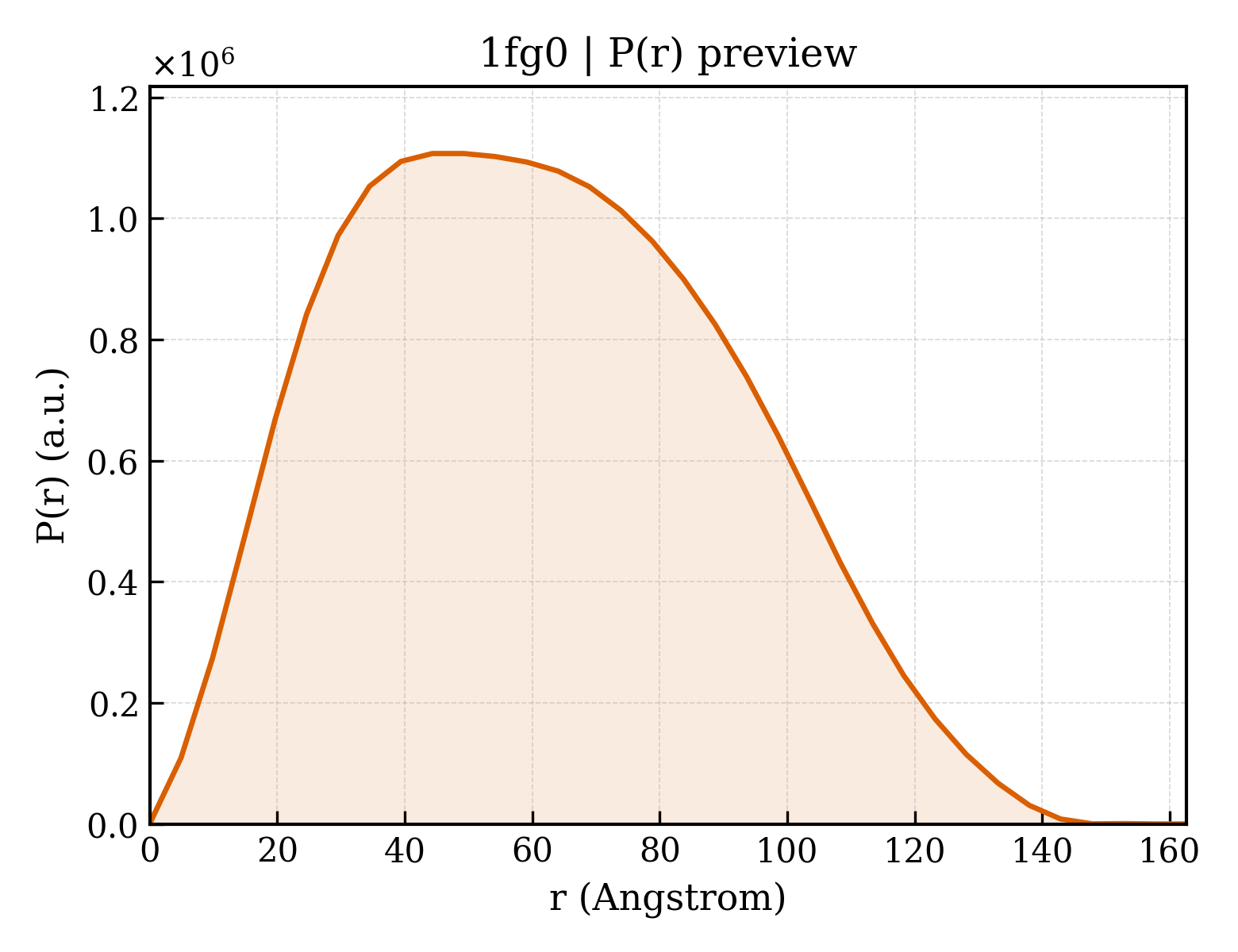

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fg0
沉积日期 deposition_date	2000-07-26
结构标题 title	LARGE RIBOSOMAL SUBUNIT COMPLEXED WITH A 13 BP MINIHELIX-PUROMYCIN COMPOUND
关键词 keywords	ribosome assembly, RNA-RNA, ribozyme, A-site, ribosome; RIBOSOME
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.98 Å
回转半径 Rg (电子) rg_electron	48.10 Å
零角强度 I(0) i0	1179090000.00
分子量 molecular_weight	162240.0 kDa
排除体积 excluded_volume	151180 Å³
包络体积 envelope_volume	282590 Å³
水化壳体积 shell_volume	52009 Å³
包络直径 envelope_diameter	155.1 Å
壳层 Rg shell_rg	47.77 Å
包络 Rg envelope_rg	47.54 Å
形状 Rg shape_rg	48.07 Å
总 Rg total_rg	48.13 Å
总原子数 total_atoms	10704
残基数 n_residues	498
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	162.6 Å
Rg (实空间) rg_real	48.09 Å
Rg 误差 (实空间) rg_real_error	1.89 Å
I(0) (实空间) i0_real	1.1790e+09
I(0) 误差 (实空间) i0_real_error	2.5310e+07
Rg (倒空间) rg_reciprocal	47.98 Å
I(0) (倒空间) i0_reciprocal	1179000000.0000
解质量估计 total_estimate	0.8886
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	152.8 Å
偏度 Skewness skewness	0.244
峰度 Kurtosis kurtosis	-0.692
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	26570000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.950; Smooth: 0.889

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	23S RIBOSOMAL RNA
分子量 formula_weight	194851.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	10704

UUCCAGUGCGGAGUCUGGAGACACCCAGGGGGAAGCGAAGACCCUAUGGAGCUUUACUGCAGGCUGUCGCUGAGACGUGGUCGCCGAUGUGCAGCAUAGGUAGGAGACACUACACAGGUACCCGCGCUAGCGGGCCACCGAGUCAACAGUGAAAUACUACCCGUCGGUGACUGCGACUCUCACUCCGGGAGGAGGACACCGAUAGCCGGGCAGUUUGACUGGGGCGGUACGCGCUCGAAAAGAUAUCGAGCGCGCCCUAUGGCUAUCUCAGCCGGGACAGAGACCCGGCGAAGAGUGCAAGAGCAAAAGAUAGCUUGACAGUGUUCUUCCCAACGAGGAACGCUGACGCGAAAGCGUGGUCUAGCGAACCAAUUAGCCUGCUUGAUGCGGGCAAUUGAUGACAGAAAAGCUACCCUAGGGAUAACAGAGUCGUCACUCGCAAGAGCACAUAUCGACCGAGUGGCUUGCUACCUCGAUGUCGGUUCCCUCCAUCCUGCCCGUGCAGAAGCGGGCAAGGGUGAGGUUGUUCGCCUAUUAAAGGAGGUCGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUCGGCUGCUAUCUACUGGGUGUGUA

Entity 2 polymer

描述 description	5'-R(CCGGCGGGCUGGUUCAAACCGGCCCGCCGGACC)-3'-5'-R(P-PUROMYCIN)-3'
分子量 formula_weight	11138.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

CCGGCGGGCUGGUUCAAACCGGCCCGCCGGACCA

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	212.000 Å
晶胞边长 b length_b	300.000 Å
晶胞边长 c length_c	574.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	70.000 Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/fg/1fg0/1fg0.fit
pddf	/app/data/pr_computation/fg/1fg0/1fg0.pr.out
profile	/app/data/saxs_computation/fg/1fg0/1fg0.dat
