1fl3

CRYSTAL STRUCTURE OF THE BLUE FLUORESCENT ANTIBODY (19G2) IN COMPLEX WITH STILBENE HAPTEN AT 277K

Method: X-RAY DIFFRACTION D_max: 138.6 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fl3
沉积日期 deposition_date	2000-08-11
结构标题 title	CRYSTAL STRUCTURE OF THE BLUE FLUORESCENT ANTIBODY (19G2) IN COMPLEX WITH STILBENE HAPTEN AT 277K
关键词 keywords	immunoglobulin fold, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.38 Å
回转半径 Rg (电子) rg_electron	51.30 Å
零角强度 I(0) i0	122470000.00
分子量 molecular_weight	91114.0 kDa
排除体积 excluded_volume	113620 Å³
包络体积 envelope_volume	191260 Å³
水化壳体积 shell_volume	31326 Å³
包络直径 envelope_diameter	146.1 Å
壳层 Rg shell_rg	57.50 Å
包络 Rg envelope_rg	46.91 Å
形状 Rg shape_rg	51.29 Å
总 Rg total_rg	51.56 Å
总原子数 total_atoms	6410
残基数 n_residues	844
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

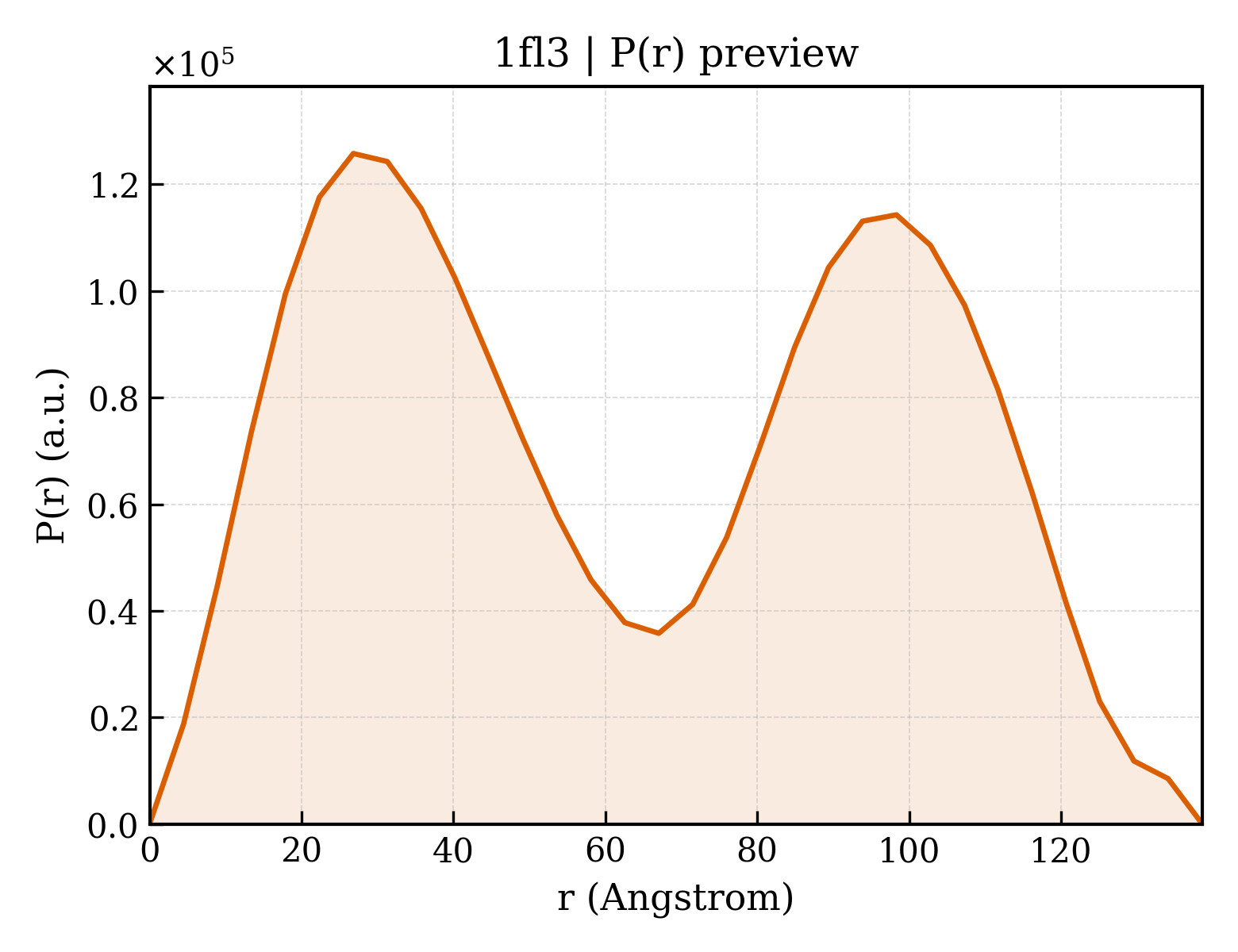

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	138.6 Å
Rg (实空间) rg_real	51.60 Å
Rg 误差 (实空间) rg_real_error	1.12 Å
I(0) (实空间) i0_real	1.2250e+08
I(0) 误差 (实空间) i0_real_error	1.9690e+06
Rg (倒空间) rg_reciprocal	51.15 Å
I(0) (倒空间) i0_reciprocal	122400000.0000
解质量估计 total_estimate	0.6031
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	26.8 Å
偏度 Skewness skewness	0.077
峰度 Kurtosis kurtosis	-1.388
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3701000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.205; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.222; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	BLUE FLUORESCENT ANTIBODY (19G2)-HEAVY CHAIN
分子量 formula_weight	21957.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,A
原子数 atom_count	6633

AALLESGGGLVKPGGSLKLSCTASGITFSRYIMSWVRQIPEKRLEWVASISSGGITYYPDSVAGRFTISRDNVRNILYLQMSSLRSEDTALYYCARGQGRPYWGQGTSVTVSAAKTTPPSVYPAAPGCGDTTGSSVTLGCLVKGYFPEPVTVTWNSGGSSVHTFPALLQSGLYTMSSSVTVPSSTWPSTVTCSVAHPASSTTVDKKLE

Entity 2 polymer

描述 description	BLUE FLUORESCENT ANTIBODY (19G2)-LIGHT CHAIN
分子量 formula_weight	23323.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,B

AALTQSPVSNPVTLGTSASISCRSTKSLLHSNGITYLYWYLQKPGQSPQLLIYQMSNLASGVPNRFSSSGSGTDFTLRINTVEAEDVGVYYCAQNLELPPTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNGYTCEATHKTSTSPIVKSFN

Entity 3 non-polymer

描述 description	4-(4-STYRYL-PHENYLCARBAMOYL)-BUTYRIC ACID
分子量 formula_weight	309.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	223

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1fl3a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1fl3a2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1fl3b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1fl3b2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1fl3h1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1fl3h2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1fl3l1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1fl3l2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (8 domains)

结构域编号 domain_id	1fl3A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1fl3A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1fl3B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1fl3B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1fl3H01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1fl3H02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1fl3L01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1fl3L02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	196.930 Å
晶胞边长 b length_b	62.069 Å
晶胞边长 c length_c	93.539 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	117.54 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.450 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1000
R_work r_work	0.2310
R_free r_free	0.2620

fit	/app/data/saxs_computation/fl/1fl3/1fl3.fit
pddf	/app/data/pr_computation/fl/1fl3/1fl3.pr.out
profile	/app/data/saxs_computation/fl/1fl3/1fl3.dat
