SAXSdb — 1fpz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYCLIN-DEPENDENT KINASE INHIBITOR 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–212	Mutation：C140S	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；PEG 8000, ammonium sulphate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.253
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–212	Mutation：C140S	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；PEG 8000, ammonium sulphate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.253
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–212	Mutation：C140S	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；PEG 8000, ammonium sulphate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.253
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 1–212	Mutation：C140S	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；PEG 8000, ammonium sulphate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.253
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 1–212	Mutation：C140S	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；PEG 8000, ammonium sulphate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.253
6	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain F； UniProt 1–212	Mutation：C140S	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；PEG 8000, ammonium sulphate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1FPZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FQ1 CRYSTAL STRUCTURE OF KINASE ASSOCIATED PHOSPHATASE (KAP) IN COMPLEX WITH PHOSPHO-CDK2 Deposited 2000-09-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa）	Mutation：C140S	MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000,KCl, Mgacetate,Na cacodylate , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.00 Å R-free 0.313

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CDKN3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–212； UniProt 1–212 Author chain B； PDBConstruct 1–212； UniProt 1–212 Author chain C； PDBConstruct 1–212； UniProt 1–212 Author chain D； PDBConstruct 1–212； UniProt 1–212 Author chain E； PDBConstruct 1–212； UniProt 1–212 Author chain F； PDBConstruct 1–212； UniProt 1–212

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fpz
Deposition date deposition_date	2000-09-01
Structure title title	CRYSTAL STRUCTURE ANALYSIS OF KINASE ASSOCIATED PHOSPHATASE (KAP) WITH A SUBSTITUTION OF THE CATALYTIC SITE CYSTEINE (CYS140) TO A SERINE
Keywords keywords	alpha-beta sandwich, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	52.26 Å
Radius of gyration Rg (electron density) rg_electron	51.56 Å
Forward intensity I(0) i0	213916000.00
Molecular weight molecular_weight	119740.0 kDa
Excluded volume excluded_volume	149230 Å³
Envelope volume envelope_volume	256820 Å³
Hydration-shell volume shell_volume	41575 Å³
Envelope diameter envelope_diameter	140.3 Å
Shell Rg shell_rg	58.74 Å
Envelope Rg envelope_rg	46.96 Å
Shape Rg shape_rg	51.56 Å
Total Rg total_rg	51.82 Å
Total atoms total_atoms	8370
Residues n_residues	1062
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	140.0 Å
Rg (real space) rg_real	51.89 Å
Rg uncertainty (real space) rg_real_error	1.03 Å
I(0) (real space) i0_real	2.1390e+08
I(0) uncertainty (real space) i0_real_error	3.8530e+06
Rg (reciprocal space) rg_reciprocal	52.54 Å
I(0) (reciprocal space) i0_reciprocal	214100000.0000
Solution quality estimate total_estimate	0.6786
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	79.3 Å
Skewness Skewness skewness	-0.476
Kurtosis Kurtosis kurtosis	-0.674
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5163000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.279; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.924; Smooth: 0.057

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CYCLIN-DEPENDENT KINASE INHIBITOR 3
Molecular weight formula_weight	23819.1 kDa
EC 编号 ec_number	3.1.3.48
Mutation mutation	C140S
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	9060

MKPPSSIQTSEFDSSDEEPIEDEQTPIHISWLSLSRVNCSQFLGLCALPGCKFKDVRRNVQKDTEELKSCGIQDIFVFCTRGELSKYRVPNLLDLYQQCGIITHHHPIADGGTPDIASCCEIMEELTTCLKNYRKTLIHSYGGLGRSCLVAACLLLYLSDTISPEQAIDSLRDLRGSGAIQTIKQYNYLHEFRDKLAAHLSSRDSQSRSVSR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	690

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1fpza_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.1 — Dual specificity phosphatase-like

Domain ID domain_id	d1fpzb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.1 — Dual specificity phosphatase-like

Domain ID domain_id	d1fpzc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.1 — Dual specificity phosphatase-like

Domain ID domain_id	d1fpzd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.1 — Dual specificity phosphatase-like

Domain ID domain_id	d1fpze_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.1 — Dual specificity phosphatase-like

Domain ID domain_id	d1fpzf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.1 — Dual specificity phosphatase-like

CATH v4.4 (6 domains)

Domain ID domain_id	1fpzA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

Domain ID domain_id	1fpzB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

Domain ID domain_id	1fpzC00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

Domain ID domain_id	1fpzD00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

Domain ID domain_id	1fpzE00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

Domain ID domain_id	1fpzF00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

▶

8. Citations (3)

▶

Unit-cell length a length_a	131.930 Å
Unit-cell length b length_b	131.930 Å
Unit-cell length c length_c	140.240 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2020
R_free r_free	0.2530

fit	/app/data/saxs_computation/fp/1fpz/1fpz.fit
pddf	/app/data/pr_computation/fp/1fpz/1fpz.pr.out
profile	/app/data/saxs_computation/fp/1fpz/1fpz.dat

CRYSTAL STRUCTURE ANALYSIS OF KINASE ASSOCIATED PHOSPHATASE (KAP) WITH A SUBSTITUTION OF THE CATALYTIC SITE CYSTEINE (CYS140) TO A SERINE

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYCLIN-DEPENDENT KINASE INHIBITOR 3

State in the Current Structure

Other States of the Same Protein in the Database

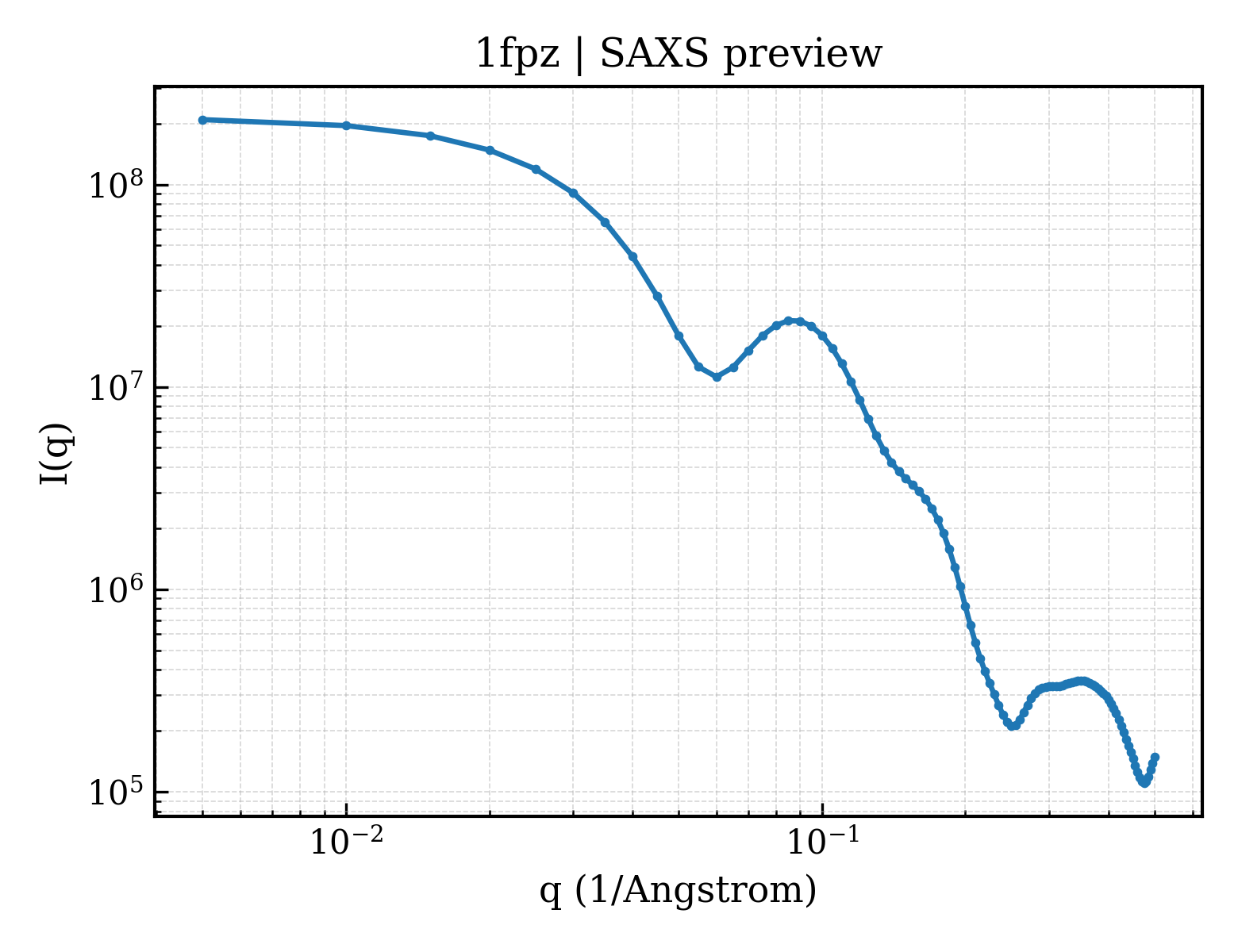

SAXS scattering curve SAXS Profile

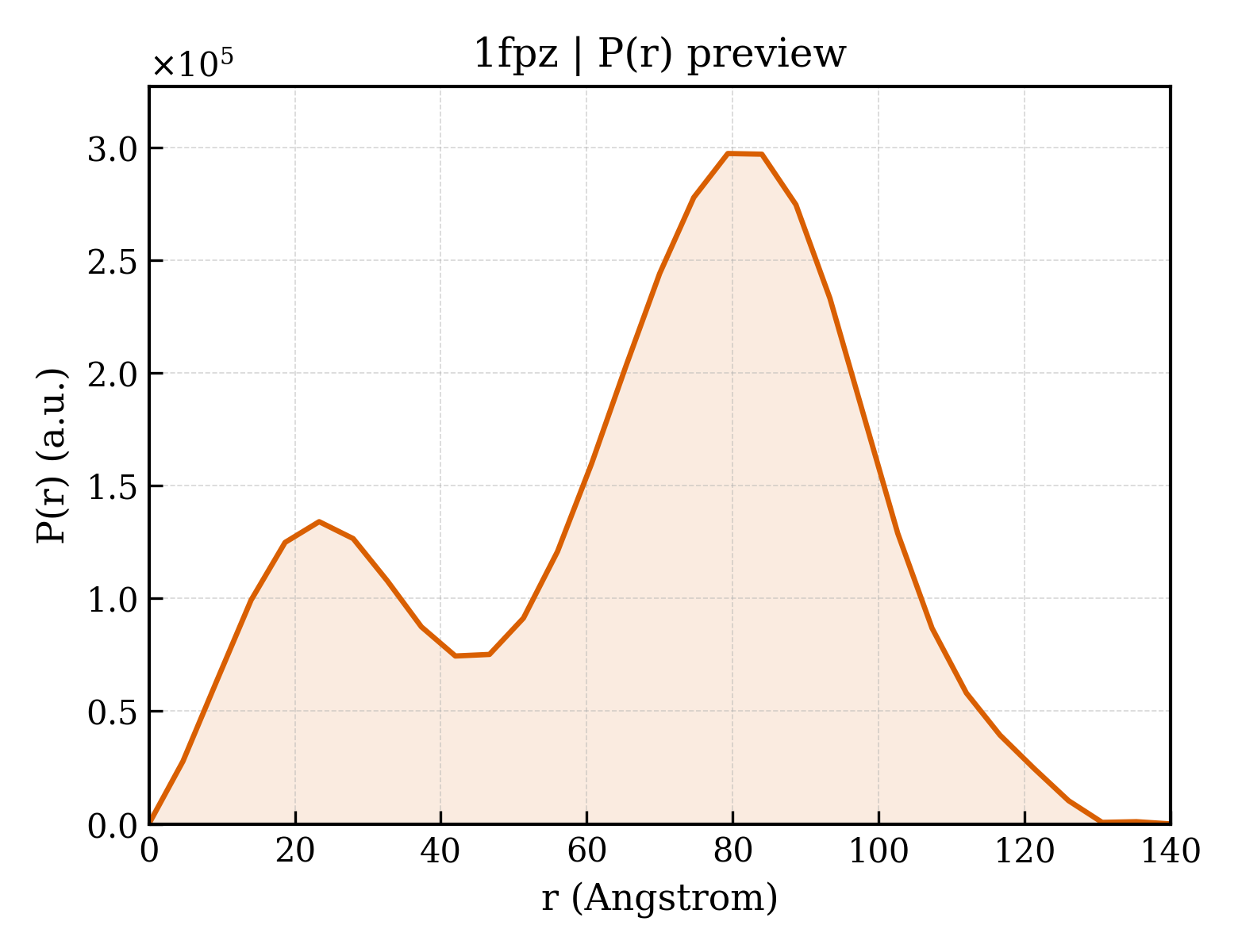

P(r) Distance Distribution P(r) Distribution
