1frg

;CRYSTAL STRUCTURE, SEQUENCE, AND EPITOPE MAPPING OF A PEPTIDE COMPLEX OF AN ANTI-INFLUENZA HA PEPTIDE ANTIBODY FAB 26(SLASH)9: FINE-TUNING ANTIBODY SPECIFICITY ;

Method: X-RAY DIFFRACTION D_max: 83.7 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

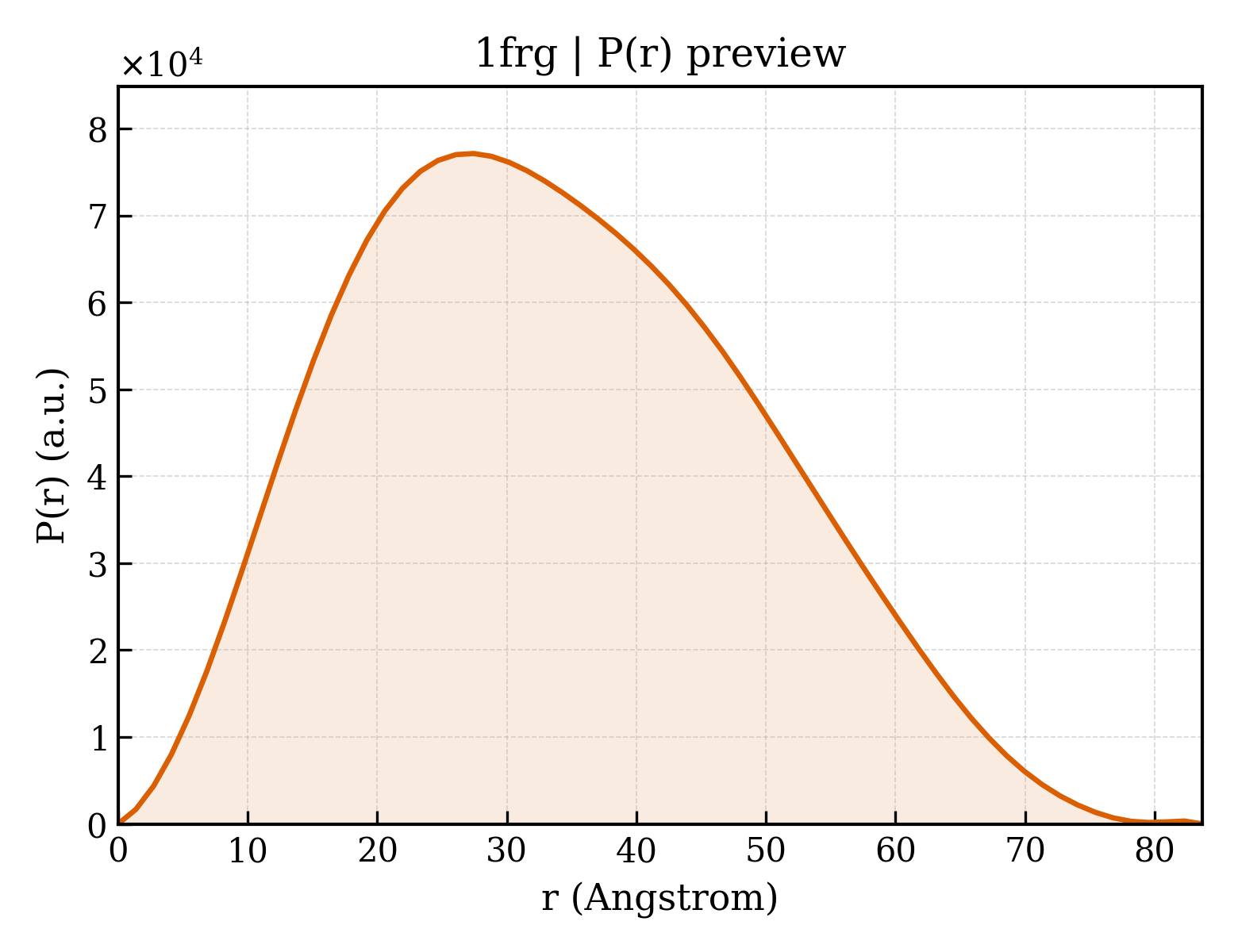

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1frg
沉积日期 deposition_date	1994-01-17
结构标题 title	;CRYSTAL STRUCTURE, SEQUENCE, AND EPITOPE MAPPING OF A PEPTIDE COMPLEX OF AN ANTI-INFLUENZA HA PEPTIDE ANTIBODY FAB 26(SLASH)9: FINE-TUNING ANTIBODY SPECIFICITY ;
关键词 keywords	IMMUNOGLOBULIN/VIRUS HEMAGGLUTININ, Viral protein-Immune system COMPLEX; Viral protein/Immune system
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.18 Å
回转半径 Rg (电子) rg_electron	25.20 Å
零角强度 I(0) i0	40240500.00
分子量 molecular_weight	48659.0 kDa
排除体积 excluded_volume	60617 Å³
包络体积 envelope_volume	74747 Å³
水化壳体积 shell_volume	24964 Å³
包络直径 envelope_diameter	89.3 Å
壳层 Rg shell_rg	32.23 Å
包络 Rg envelope_rg	24.87 Å
形状 Rg shape_rg	25.18 Å
总 Rg total_rg	26.03 Å
总原子数 total_atoms	3426
残基数 n_residues	445
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	83.7 Å
Rg (实空间) rg_real	26.19 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	4.0240e+07
I(0) 误差 (实空间) i0_real_error	5.2500e+05
Rg (倒空间) rg_reciprocal	26.19 Å
I(0) (倒空间) i0_reciprocal	40240000.0000
解质量估计 total_estimate	0.9066
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.4 Å
偏度 Skewness skewness	0.277
峰度 Kurtosis kurtosis	-0.586
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7349000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.984

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	IGG2A 26/9 FAB (LIGHT CHAIN)
分子量 formula_weight	24028.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	3427

DIVMTQSPSSLTVTAGEKVTMSCKSSQSLFNSGKRKNFLTWYHQKPGQPPKLLIYWASTRESGVPDRFSGSGSGTDFTLTITSVQAEDLAIYYCQNDYSHPLTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090

Entity 2 polymer

描述 description	IGG2A 26/9 FAB (HEAVY CHAIN)
分子量 formula_weight	23756.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

EVLLVESGGDLVKPGGFLKLSCAASGFTFSSFGMSWVRHTPDKRLEWVATISNGGGYTYYQDSVKGRFTISRDNAKNTLFLEMTSLKSEDAGLYYCARRERYDEKGFAYWGRGTLVTVSAAKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEPR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090

Entity 3 polymer

描述 description	INFLUENZA HEMAGGLUTININ HA1 (STRAIN X47) (RESIDUES 101 - 108)
分子量 formula_weight	903.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

XDVPDYASLX

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1frgh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1frgh2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1frgl1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1frgl2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

结构域编号 domain_id	1frgH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1frgH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1frgL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1frgL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	66.600 Å
晶胞边长 b length_b	115.100 Å
晶胞边长 c length_c	73.300 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	0.1900
R_work r_work	0.1900
R_free r_free	—

fit	/app/data/saxs_computation/fr/1frg/1frg.fit
pddf	/app/data/pr_computation/fr/1frg/1frg.pr.out
profile	/app/data/saxs_computation/fr/1frg/1frg.dat
