SAXSdb — 1g3l

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1g3l
沉积日期 deposition_date	2000-10-24
结构标题 title	;THE STRUCTURAL BASIS OF THE CATALYTIC MECHANISM AND REGULATION OF GLUCOSE-1-PHOSPHATE THYMIDYLYLTRANSFERASE (RMLA). TDP-L-RHAMNOSE COMPLEX. ;
关键词 keywords	L-RHAMNOSE, NUCLEOTIDYLTRANSFERASE, PYROPHOSPHORYLASE, THYMIDYLYLTRANSFERASE, ALLOSTERY, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.15 Å
回转半径 Rg (电子) rg_electron	30.91 Å
零角强度 I(0) i0	280474000.00
分子量 molecular_weight	134270.0 kDa
排除体积 excluded_volume	167990 Å³
包络体积 envelope_volume	201060 Å³
水化壳体积 shell_volume	51131 Å³
包络直径 envelope_diameter	99.9 Å
壳层 Rg shell_rg	40.21 Å
包络 Rg envelope_rg	30.95 Å
形状 Rg shape_rg	30.90 Å
总 Rg total_rg	31.70 Å
总原子数 total_atoms	9453
残基数 n_residues	1169
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	97.4 Å
Rg (实空间) rg_real	31.90 Å
Rg 误差 (实空间) rg_real_error	0.42 Å
I(0) (实空间) i0_real	2.8050e+08
I(0) 误差 (实空间) i0_real_error	3.4880e+06
Rg (倒空间) rg_reciprocal	32.01 Å
I(0) (倒空间) i0_reciprocal	280500000.0000
解质量估计 total_estimate	0.9047
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.7 Å
偏度 Skewness skewness	0.081
峰度 Kurtosis kurtosis	-0.575
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	144000000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.959

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	GLUCOSE-1-PHOSPHATE THYMIDYLYLTRANSFERASE
分子量 formula_weight	32488.8 kDa
EC 编号 ec_number	2.7.7.24
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	9453

MKRKGIILAGGSGTRLHPATLAISKQLLPVYDKPMIYYPLSTLMLAGIREILIISTPQDTPRFQQLLGDGSNWGLDLQYAVQPSPDGLAQAFLIGESFIGNDLSALVLGDNLYYGHDFHELLGSASQRQTGASVFAYHVLDPERYGVVEFDQGGKAISLEEKPLEPKSNYAVTGLYFYDQQVVDIARDLKPSPRGELEITDVNRAYLERGQLSVEIMGRGYAWLDTGTHDSLLEAGQFIATLENRQGLKVACPEEIAYRQKWIDAAQLEKLAAPLAKNGYGQYLKRLLTETVY

来源 Source

来源生物 organism	Pseudomonas aeruginosa
NCBI 分类编号 ncbi_taxonomy_id	287
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 3 non-polymer

描述 description	2'-DEOXY-THYMIDINE-BETA-L-RHAMNOSE
分子量 formula_weight	548.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1g3la_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

结构域编号 domain_id	d1g3lb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

结构域编号 domain_id	d1g3lc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

结构域编号 domain_id	d1g3ld_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
超家族 Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
家族 Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

CATH v4.4 (4 domains)

结构域编号 domain_id	1g3lA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1g3lB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1g3lC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

结构域编号 domain_id	1g3lD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	71.087 Å
晶胞边长 b length_b	138.557 Å
晶胞边长 c length_c	139.676 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	100.000 Å
R 因子 r_factor	0.2050
R_work r_work	0.2040
R_free r_free	0.2300

fit	/app/data/saxs_computation/g3/1g3l/1g3l.fit
pddf	/app/data/pr_computation/g3/1g3l/1g3l.pr.out
profile	/app/data/saxs_computation/g3/1g3l/1g3l.dat

;THE STRUCTURAL BASIS OF THE CATALYTIC MECHANISM AND REGULATION OF GLUCOSE-1-PHOSPHATE THYMIDYLYLTRANSFERASE (RMLA). TDP-L-RHAMNOSE COMPLEX. ;

SAXS 散射曲线 SAXS Profile

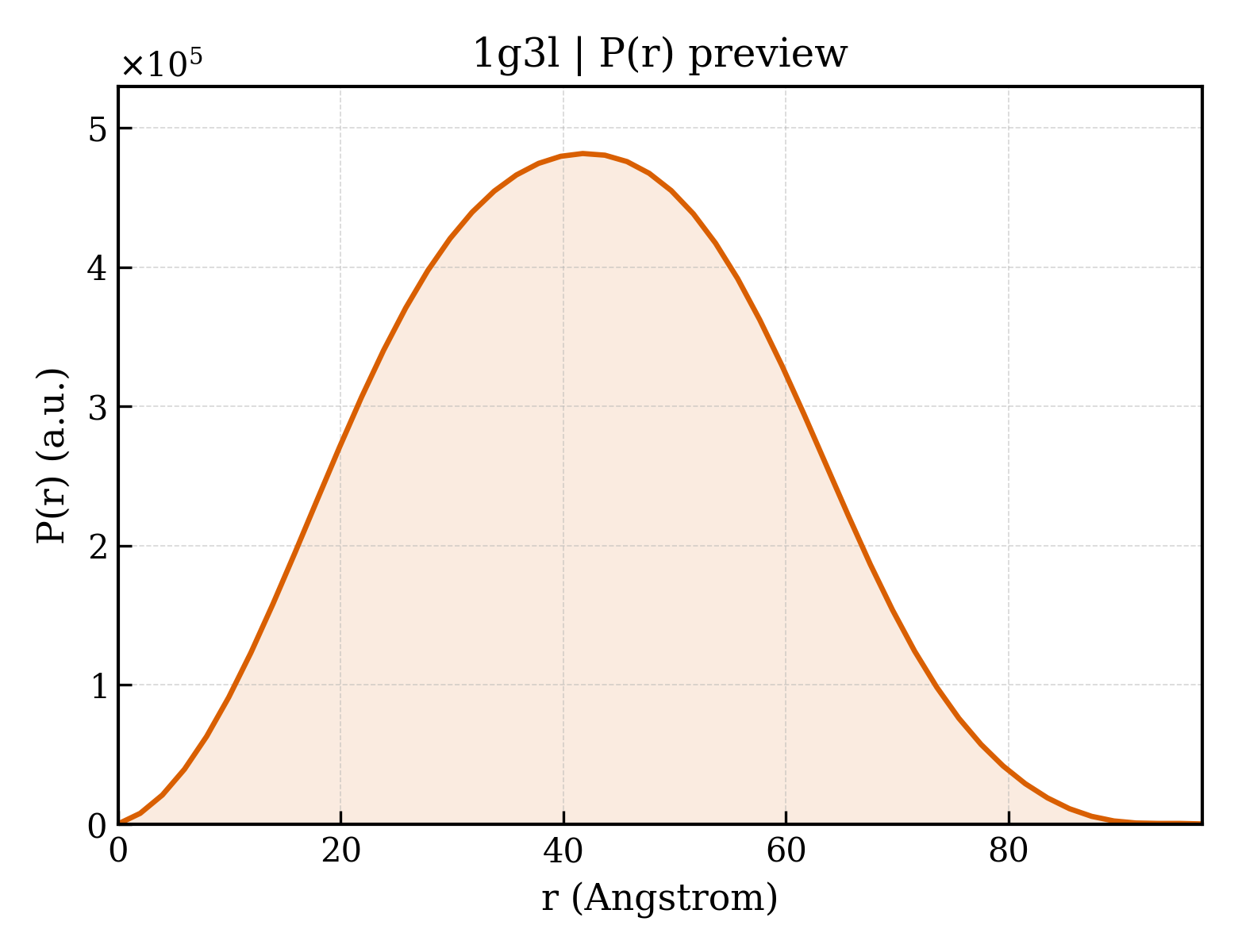

P(r) 距离分布 P(r) Distribution
