SAXSdb — 1guk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTATHIONE S-TRANSFERASE A4-4

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–222 Chain B； UniProt 1–222	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.1；CRYSTALLIZATION BY HANGING DROP VAPOR DIFFUSION RESERVOIR: 9% PEG 8000, 0.1 M TRIS/HCL PH 8.1, 5% MPD PROTEIN: 10 MG/ML DISSOLVED IN H20 DROP: 5 + 5 MICROLITER, vapor diffusion - hanging drop	Resolution 2.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1GUK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B48 CRYSTAL STRUCTURE OF MGSTA4-4 IN COMPLEX WITH GSH CONJUGATE OF 4-HYDROXYNONENAL IN ONE SUBUNIT AND GSH IN THE OTHER: EVIDENCE OF SIGNALING ACROSS DIMER INTERFACE IN MGSTA4-4 Deposited 1999-01-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–222（221 aa） Chain B 2–222（221 aa）	Not recorded	HAG 4-S-GLUTATHIONYL-5-PENTYL-TETRAHYDRO-FURAN-2-OL × 1 GSH Glutathione × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；CRYSTALS WERE GROWN IN HANGING DROPS WHICH INITIALLY CONSISTED OF 0.11 MM PROTEIN IN 0.047 M HEPES BUFFER (PH 7.5) CONTAINING 1.82 MM GLUTATHIONE, 10.91 MM HNA-SG (GSH CONJUGATE OF 4-HYDROXYNONENAL), 9.1% ETHANOL, 4.5% ISOPROPANOL, AND 6.5% PEG MONOMETHYL ETHER 5K (PH 7.5). THE DROPS WERE EQUILIBRATED AT 293 K AGAINST WELL SOLUTION CONTAINING 10% ISOPROPANOL AND 12% PEG MONOMETHYL ETHER 5K IN 80 MM HEPES BUFFER (PH 7.5).	Resolution 2.60 Å R-free 0.317

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GSTA4_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–222； UniProt 1–222 Author chain B； PDBConstruct 1–222； UniProt 1–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1guk
Deposition date deposition_date	1997-12-11
Structure title title	CRYSTAL STRUCTURE OF MURINE ALPHA-CLASS GSTA4-4
Keywords keywords	GLUTATHIONE S-TRANSFERASE, GST, OXIDATIVE STRESS, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.79 Å
Radius of gyration Rg (electron density) rg_electron	21.62 Å
Forward intensity I(0) i0	35429500.00
Molecular weight molecular_weight	48794.0 kDa
Excluded volume excluded_volume	62265 Å³
Envelope volume envelope_volume	73926 Å³
Hydration-shell volume shell_volume	27459 Å³
Envelope diameter envelope_diameter	67.7 Å
Shell Rg shell_rg	29.23 Å
Envelope Rg envelope_rg	21.58 Å
Shape Rg shape_rg	21.63 Å
Total Rg total_rg	22.53 Å
Total atoms total_atoms	3438
Residues n_residues	424
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

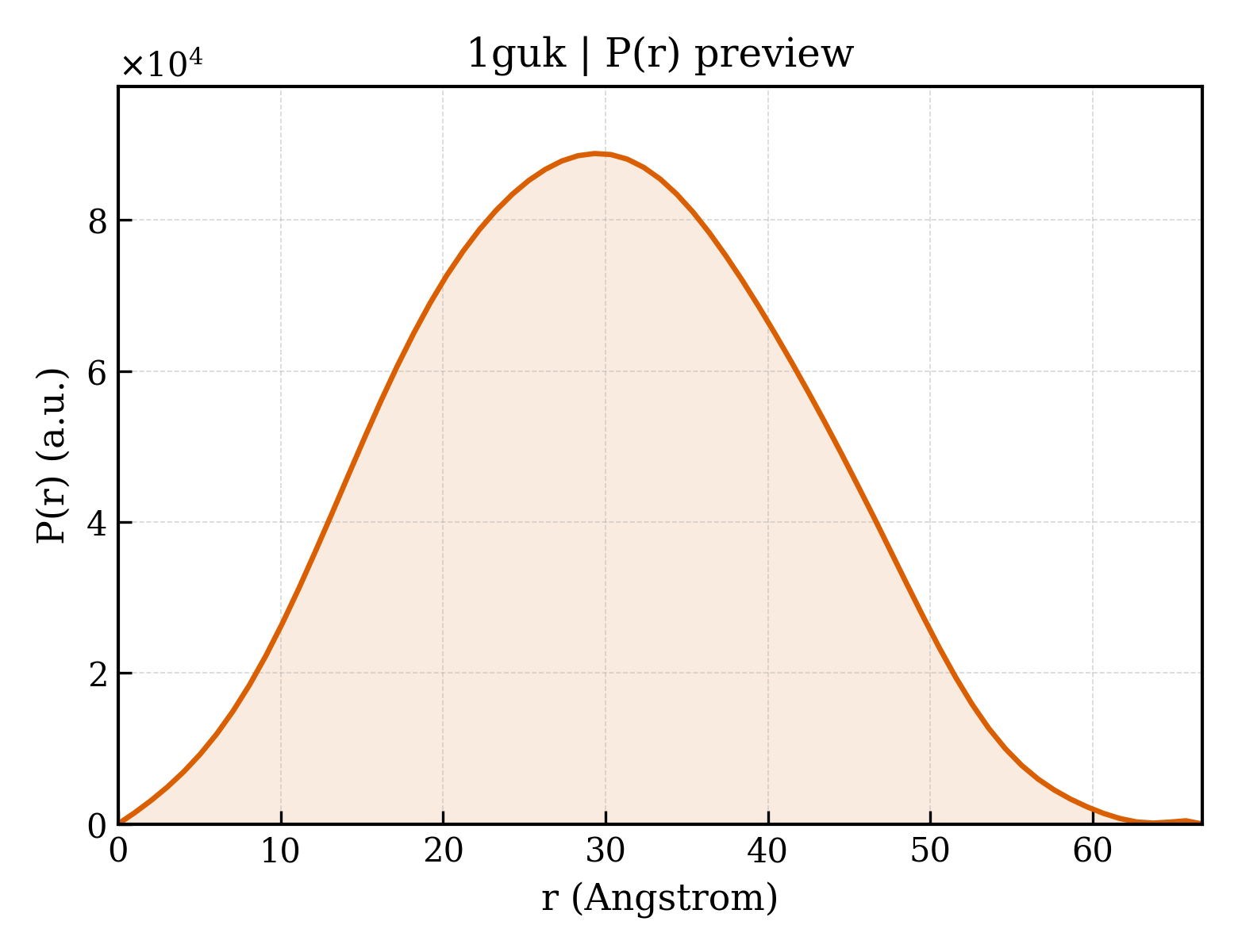

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	66.7 Å
Rg (real space) rg_real	22.62 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	3.5430e+07
I(0) uncertainty (real space) i0_real_error	4.2050e+05
Rg (reciprocal space) rg_reciprocal	22.66 Å
I(0) (reciprocal space) i0_reciprocal	35430000.0000
Solution quality estimate total_estimate	0.7078
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.3 Å
Skewness Skewness skewness	0.062
Kurtosis Kurtosis kurtosis	-0.550
Angular range angular_range	— – 0.3500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9475000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 0.130; Positv: 1.000; Valcen: 0.976; Smooth: 0.954

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1guka1
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d1guka2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.5 — Glutathione S-transferase (GST), N-terminal domain

Domain ID domain_id	d1gukb1
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d1gukb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.5 — Glutathione S-transferase (GST), N-terminal domain

CATH v4.4 (4 domains)

Domain ID domain_id	1gukA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1gukA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1gukB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1gukB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	114.300 Å
Unit-cell length b length_b	95.900 Å
Unit-cell length c length_c	50.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2340
R_work r_work	0.2340
R_free r_free	—

Description description	GLUTATHIONE S-TRANSFERASE A4-4
Molecular weight formula_weight	25607.9 kDa
EC 编号 ec_number	2.5.1.18
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3438

CRYSTAL STRUCTURE OF MURINE ALPHA-CLASS GSTA4-4

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTATHIONE S-TRANSFERASE A4-4

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/gu/1guk/1guk.fit
pddf	/app/data/pr_computation/gu/1guk/1guk.pr.out
profile	/app/data/saxs_computation/gu/1guk/1guk.dat
