SAXSdb — 1h8o

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1h8o
沉积日期 deposition_date	2001-02-14
结构标题 title	Three-dimensional structure of anti-ampicillin single chain Fv fragment.
关键词 keywords	ANTIBODY, FV FRAGMENT, ANTI-AMPICILLIN; ANTIBODY
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.38 Å
回转半径 Rg (电子) rg_electron	27.09 Å
零角强度 I(0) i0	39887300.00
分子量 molecular_weight	48358.0 kDa
排除体积 excluded_volume	60204 Å³
包络体积 envelope_volume	76870 Å³
水化壳体积 shell_volume	25282 Å³
包络直径 envelope_diameter	97.7 Å
壳层 Rg shell_rg	32.31 Å
包络 Rg envelope_rg	26.87 Å
形状 Rg shape_rg	27.09 Å
总 Rg total_rg	27.67 Å
总原子数 total_atoms	3410
残基数 n_residues	440
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	93.1 Å
Rg (实空间) rg_real	27.59 Å
Rg 误差 (实空间) rg_real_error	0.74 Å
I(0) (实空间) i0_real	3.9890e+07
I(0) 误差 (实空间) i0_real_error	6.0450e+05
Rg (倒空间) rg_reciprocal	27.52 Å
I(0) (倒空间) i0_reciprocal	39890000.0000
解质量估计 total_estimate	0.8540
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.3 Å
偏度 Skewness skewness	0.517
峰度 Kurtosis kurtosis	-0.297
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6834000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.773; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.890; Smooth: 0.888

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	MUTANT AL2 6E7P9G
分子量 formula_weight	27006.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	3520

DYKDIVLTQSHKFMSTSVGDRVSITCKASQDVGTAVAWYQQKPGQSPKLLIYWASTRHTGVPDRFTGSGSGTDFTLTISNVQSEDLADYFCQQYSSYPLTFGAGTKLELKRGGGGSGGGGSGGGGSGGGGSQVQLQEPGGELVRPGASVKLSCKASGYTFTSYWINWVKQRPGQGLEWIGNIYPSDSYTNYNQKFKDKATLTVDKSSSTAYMQLSSLTSEDSAVYFCARWGYWGQGTLVTVSAASGAHHHHH

来源 Source

来源生物 organism	MUS MUSCULUS
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	ESCHERICHIA COLI K-12

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	110

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1h8oa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1h8oa2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1h8ob1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1h8ob2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

CATH v4.4 (4 domains)

结构域编号 domain_id	1h8oA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1h8oA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1h8oB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1h8oB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	59.690 Å
晶胞边长 b length_b	89.850 Å
晶胞边长 c length_c	97.260 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.750 Å
最低分辨率 resolution_low	11.940 Å
R 因子 r_factor	0.1780
R_work r_work	0.1780
R_free r_free	0.2580

fit	/app/data/saxs_computation/h8/1h8o/1h8o.fit
pddf	/app/data/pr_computation/h8/1h8o/1h8o.pr.out
profile	/app/data/saxs_computation/h8/1h8o/1h8o.dat

Three-dimensional structure of anti-ampicillin single chain Fv fragment.

SAXS 散射曲线 SAXS Profile

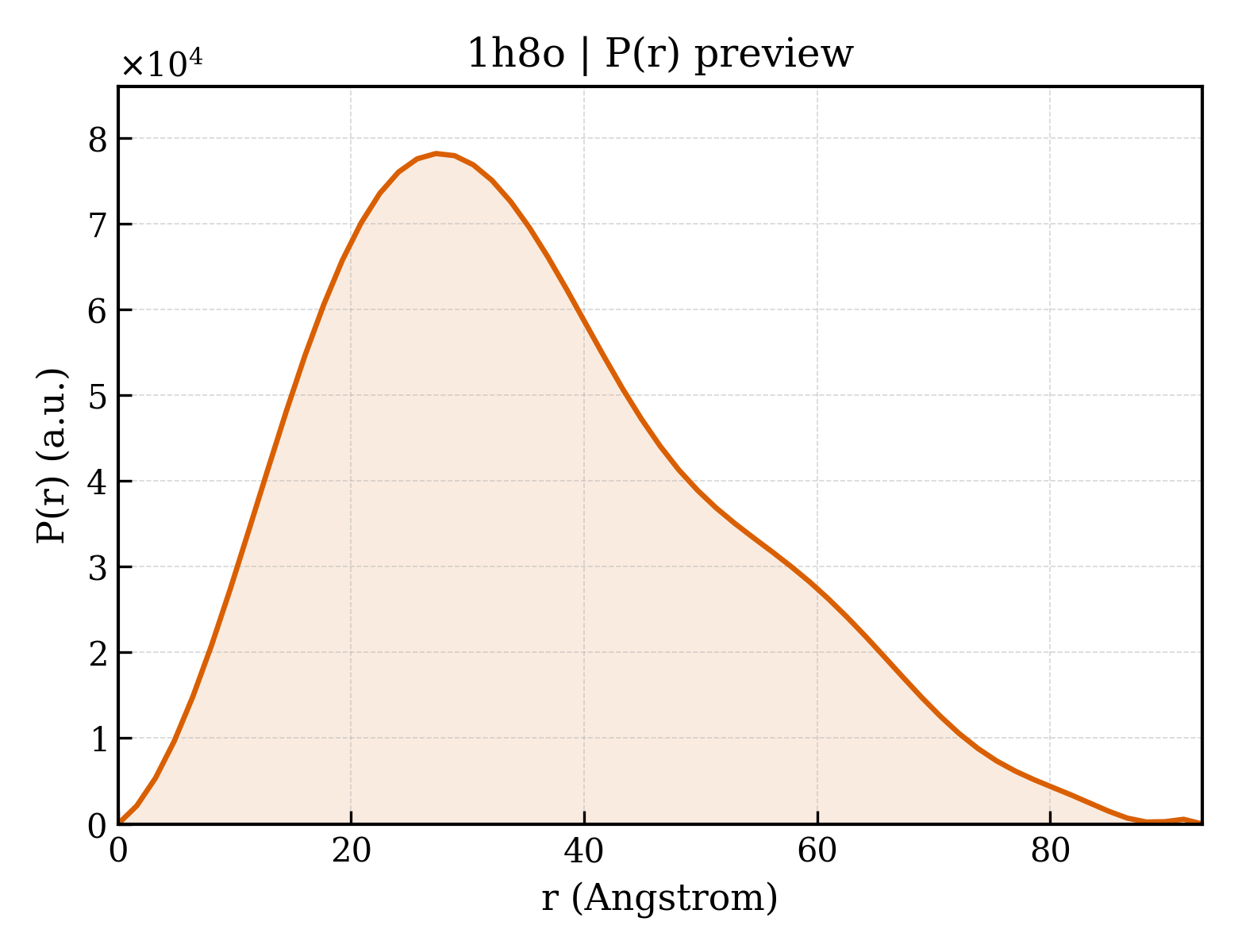

P(r) 距离分布 P(r) Distribution
