1ha5

Structural features of a zinc-binding site in the superantigen streptococcal pyrogenic exotoxin A (SpeA1): implications for MHC class II recognition.

Method: X-RAY DIFFRACTION D_max: 96.4 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

STREPTOCOCCAL PYOGENIC EXOTOXIN A1

STREPTOCOCCUS PYOGENES

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 33–250	Fragment：RESIDUES 33-250	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.50	Resolution 2.82 Å R-free 0.283
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 33–250	Fragment：RESIDUES 33-250	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.50	Resolution 2.82 Å R-free 0.283
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 33–250	Fragment：RESIDUES 33-250	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.50	Resolution 2.82 Å R-free 0.283
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 33–250	Fragment：RESIDUES 33-250	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.50	Resolution 2.82 Å R-free 0.283

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HA5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1L0X TCR beta chain complexed with streptococcal superantigen SpeA Deposited 2002-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 31–251（221 aa）	Mutation：C90S	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；15% PEG8000, 0.2M MgCl2, 0.1M Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.278
1L0X TCR beta chain complexed with streptococcal superantigen SpeA Deposited 2002-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 31–251（221 aa）	Mutation：C90S	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；15% PEG8000, 0.2M MgCl2, 0.1M Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.278
1L0Y T cell receptor beta chain complexed with superantigen SpeA soaked with zinc Deposited 2002-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 31–251（221 aa）	Mutation：C90S	ZN ZINC ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG8K, MgCl, Tris, pH 8., VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.262
1L0Y T cell receptor beta chain complexed with superantigen SpeA soaked with zinc Deposited 2002-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 31–251（221 aa）	Mutation：C90S	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG8K, MgCl, Tris, pH 8., VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.262
1UUP Crystal Structure of A Dimeric Form of Streptococcal Pyrogenic Exotoxin A (SpeA1). Deposited 2004-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–251（221 aa） Fragment：RESIDUES 31-251 Chain D 31–251（221 aa） Fragment：RESIDUES 31-251	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.60 Å R-free 0.282
1UUP Crystal Structure of A Dimeric Form of Streptococcal Pyrogenic Exotoxin A (SpeA1). Deposited 2004-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 31–251（221 aa） Fragment：RESIDUES 31-251 Chain C 31–251（221 aa） Fragment：RESIDUES 31-251	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.60 Å R-free 0.282

3 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPEA_STRPY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–218； UniProt 33–250 Author chain B； PDBConstruct 1–218； UniProt 33–250 Author chain C； PDBConstruct 1–218； UniProt 33–250 Author chain D； PDBConstruct 1–218； UniProt 33–250

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ha5
Deposition date deposition_date	2001-03-28
Structure title title	Structural features of a zinc-binding site in the superantigen streptococcal pyrogenic exotoxin A (SpeA1): implications for MHC class II recognition.
Keywords keywords	TOXIN, MOLECULAR RECOGNITION, SUPERANTIGEN, EXOTOXIN, ZINC BINDING; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.61 Å
Radius of gyration Rg (electron density) rg_electron	29.96 Å
Forward intensity I(0) i0	152968000.00
Molecular weight molecular_weight	99872.0 kDa
Excluded volume excluded_volume	125390 Å³
Envelope volume envelope_volume	151440 Å³
Hydration-shell volume shell_volume	41702 Å³
Envelope diameter envelope_diameter	97.8 Å
Shell Rg shell_rg	37.70 Å
Envelope Rg envelope_rg	29.86 Å
Shape Rg shape_rg	29.93 Å
Total Rg total_rg	30.72 Å
Total atoms total_atoms	7038
Residues n_residues	872
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

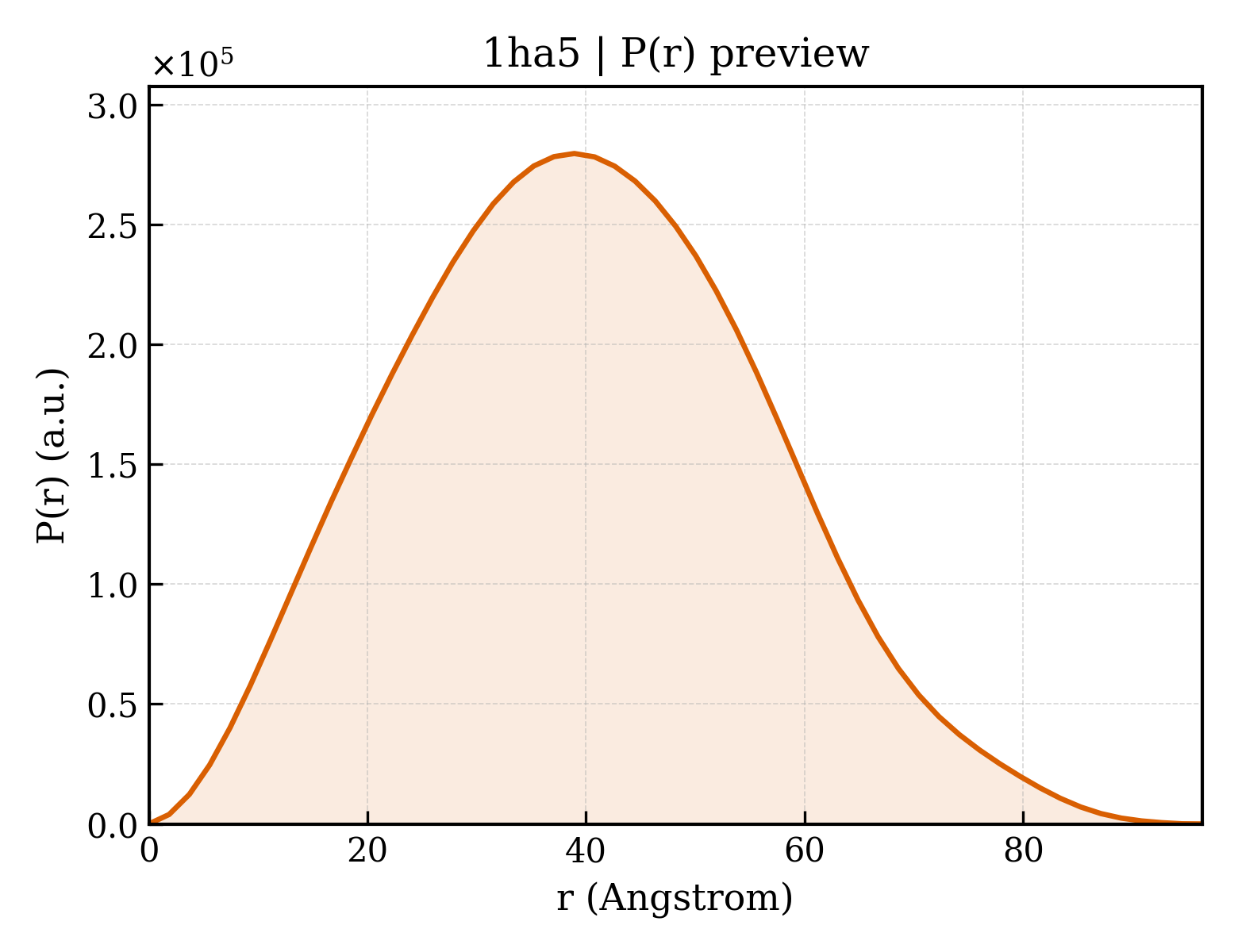

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.4 Å
Rg (real space) rg_real	30.46 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	1.5300e+08
I(0) uncertainty (real space) i0_real_error	1.7500e+06
Rg (reciprocal space) rg_reciprocal	30.53 Å
I(0) (reciprocal space) i0_reciprocal	153000000.0000
Solution quality estimate total_estimate	0.7084
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	38.9 Å
Skewness Skewness skewness	0.187
Kurtosis Kurtosis kurtosis	-0.405
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	23280000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 0.193; Positv: 1.000; Valcen: 0.995; Smooth: 0.902

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	STREPTOCOCCAL PYOGENIC EXOTOXIN A1
Molecular weight formula_weight	25376.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7180

DPDPSQLHRSSLVKNLQNIYFLYEGDPVTHENVKSVDQLLSHDLIYNVSGPNYDKLKTELKNQEMATLFKDKNVDIYGVEYYHLCYLCENAERSACIYGGVTNHAGNHLEIPKKIVVKVSIDGIQSLSFDIETNKKMVTAQELDYKVRKYLTDNKQLYTNGPSKYETGYIKFIPKNKESFWFDFFPEPEFTQSKYLMIYKDNETLDSNTSQIEVYLTT

来源 Source

来源生物 organism	STREPTOCOCCUS PYOGENES
NCBI Class编号 ncbi_taxonomy_id	1314
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ha5a1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1ha5a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1ha5b1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1ha5b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1ha5c1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1ha5c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1ha5d1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1ha5d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	1ha5A01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1ha5A02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1ha5B01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1ha5B02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1ha5C01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1ha5C02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1ha5D01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1ha5D02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	126.946 Å
Unit-cell length b length_b	101.320 Å
Unit-cell length c length_c	82.019 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.820 Å
Low-resolution limit resolution_low	39.600 Å
R factor r_factor	0.2140
R_work r_work	0.2140
R_free r_free	0.2834
