1hc7

Prolyl-tRNA synthetase from Thermus thermophilus

Method: X-RAY DIFFRACTION D_max: 160.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

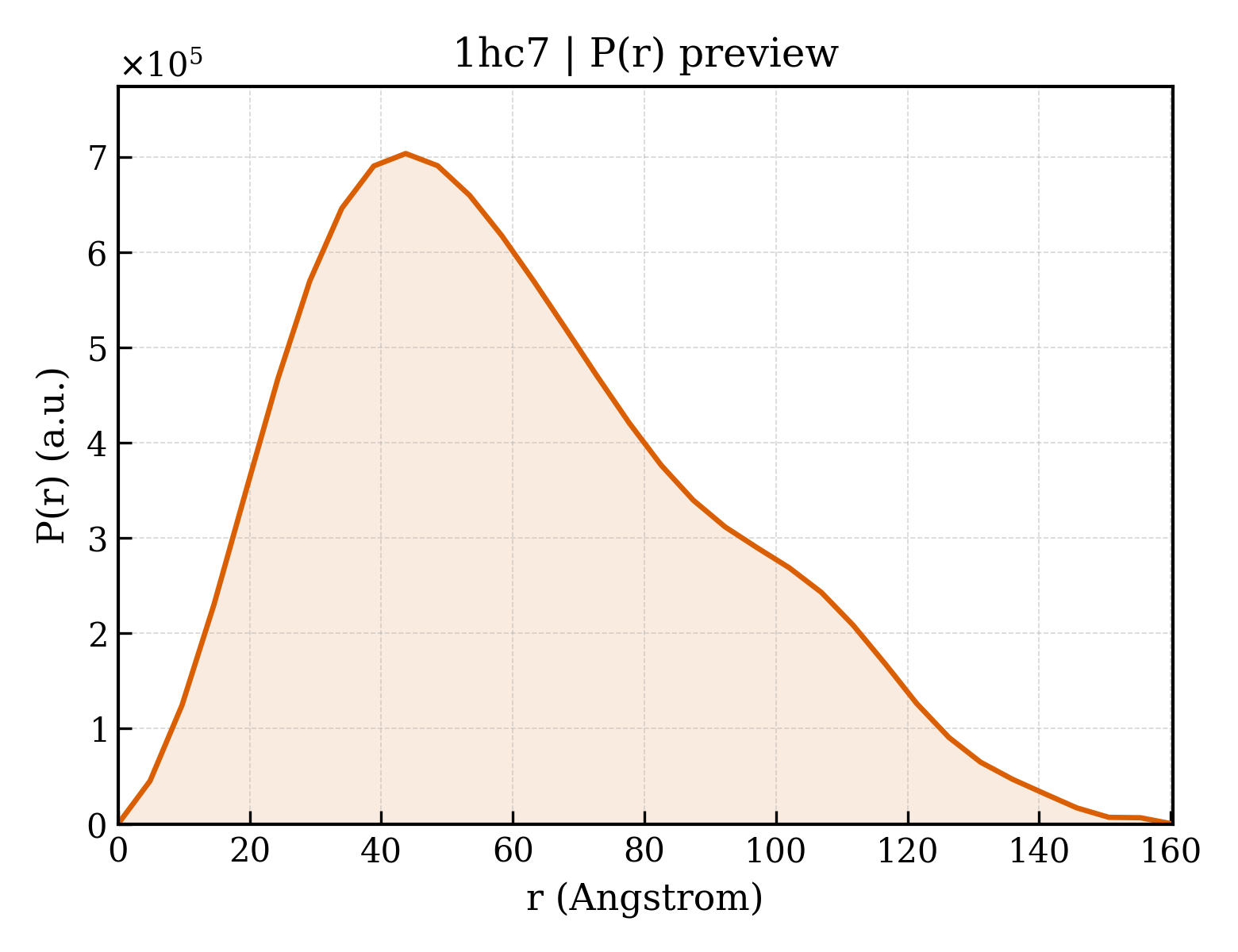

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1hc7
沉积日期 deposition_date	2001-04-26
结构标题 title	Prolyl-tRNA synthetase from Thermus thermophilus
关键词 keywords	AMINOACYL-TRNA SYNTHETASE, ATP + L-PROLINE + TRNA(PRO) AMP + PPI + L-PROLYL-TRNA(PRO), CLASS II AMINOACYL-TRNA SYNTHETASE; AMINOACYL-TRNA SYNTHETASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.16 Å
回转半径 Rg (电子) rg_electron	47.27 Å
零角强度 I(0) i0	632984000.00
分子量 molecular_weight	210770.0 kDa
排除体积 excluded_volume	264680 Å³
包络体积 envelope_volume	354850 Å³
水化壳体积 shell_volume	64838 Å³
包络直径 envelope_diameter	172.4 Å
壳层 Rg shell_rg	48.59 Å
包络 Rg envelope_rg	46.98 Å
形状 Rg shape_rg	47.23 Å
总 Rg total_rg	47.47 Å
总原子数 total_atoms	14894
残基数 n_residues	1856
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	160.3 Å
Rg (实空间) rg_real	47.61 Å
Rg 误差 (实空间) rg_real_error	1.78 Å
I(0) (实空间) i0_real	6.3300e+08
I(0) 误差 (实空间) i0_real_error	1.0820e+07
Rg (倒空间) rg_reciprocal	47.17 Å
I(0) (倒空间) i0_reciprocal	632600000.0000
解质量估计 total_estimate	0.8260
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.7 Å
偏度 Skewness skewness	0.524
峰度 Kurtosis kurtosis	-0.371
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	96340000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.764; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.509

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	PROLYL-TRNA SYNTHETASE
分子量 formula_weight	54563.0 kDa
EC 编号 ec_number	6.1.1.15
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	15730

MAKEKGLTPQSQDFSEWYLEVIQKAELADYGPVRGTIVVRPYGYAIWENIQQVLDRMFKETGHQNAYFPLFIPMSFLRKEAEHVEGFSPELAVVTHAGGEELEEPLAVRPTSETVIGYMWSKWIRSWRDLPQLLNQWGNVVRWEMRTRPFLRTSEFLWQEGHTAHATREEAEEEVRRMLSIYARLAREYAAIPVIEGLKTEKEKFAGAVYTTTIEALMKDGKALQAGTSHYLGENFARAFDIKFQDRDLQVKYVHTTSWGLSWRFIGAIIMTHGDDRGLVLPPRLAPIQVVIVPIYKDESRERVLEAAQGLRQALLAQGLRVHLDDRDQHTPGYKFHEWELKGVPFRVELGPKDLEGGQAVLASRLGGKETLPLAALPEALPGKLDAFHEELYRRALAFREDHTRKVDTYEAFKEAVQEGFALAFHCGDKACERLIQEETTATTRCVPFEAEPEEGFCVRCGRPSAYGKRVVFAKAY

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	738

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1hc7a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
家族 Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

结构域编号 domain_id	d1hc7a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

结构域编号 domain_id	d1hc7a3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.68 — IF3-like
超家族 Superfamily superfamily	d.68.5 — C-terminal domain of ProRS
家族 Family family	d.68.5.1 — C-terminal domain of ProRS

结构域编号 domain_id	d1hc7b1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
家族 Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

结构域编号 domain_id	d1hc7b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

结构域编号 domain_id	d1hc7b3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.68 — IF3-like
超家族 Superfamily superfamily	d.68.5 — C-terminal domain of ProRS
家族 Family family	d.68.5.1 — C-terminal domain of ProRS

结构域编号 domain_id	d1hc7c1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
家族 Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

结构域编号 domain_id	d1hc7c2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

结构域编号 domain_id	d1hc7c3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.68 — IF3-like
超家族 Superfamily superfamily	d.68.5 — C-terminal domain of ProRS
家族 Family family	d.68.5.1 — C-terminal domain of ProRS

结构域编号 domain_id	d1hc7d1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.51 — Anticodon-binding domain-like
超家族 Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
家族 Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

结构域编号 domain_id	d1hc7d2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

结构域编号 domain_id	d1hc7d3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.68 — IF3-like
超家族 Superfamily superfamily	d.68.5 — C-terminal domain of ProRS
家族 Family family	d.68.5.1 — C-terminal domain of ProRS

CATH v4.4 (12 domains)

结构域编号 domain_id	1hc7A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1hc7A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	800 — Anticodon-binding domain

结构域编号 domain_id	1hc7A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	110 — Translation Initiation Factor IF3
同源超家族 H-superfamily homologous superfamily	30 — C-terminal domain of ProRS

结构域编号 domain_id	1hc7B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1hc7B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	800 — Anticodon-binding domain

结构域编号 domain_id	1hc7B03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	110 — Translation Initiation Factor IF3
同源超家族 H-superfamily homologous superfamily	30 — C-terminal domain of ProRS

结构域编号 domain_id	1hc7C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1hc7C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	800 — Anticodon-binding domain

结构域编号 domain_id	1hc7C03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	110 — Translation Initiation Factor IF3
同源超家族 H-superfamily homologous superfamily	30 — C-terminal domain of ProRS

结构域编号 domain_id	1hc7D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1hc7D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	800 — Anticodon-binding domain

结构域编号 domain_id	1hc7D03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	110 — Translation Initiation Factor IF3
同源超家族 H-superfamily homologous superfamily	30 — C-terminal domain of ProRS

▶

7. 引用文献 (5)

▶

晶胞边长 a length_a	132.300 Å
晶胞边长 b length_b	191.100 Å
晶胞边长 c length_c	125.100 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.430 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2060
R_work r_work	0.2060
R_free r_free	0.2340

fit	/app/data/saxs_computation/hc/1hc7/1hc7.fit
pddf	/app/data/pr_computation/hc/1hc7/1hc7.pr.out
profile	/app/data/saxs_computation/hc/1hc7/1hc7.dat
