SAXSdb — 1hff

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VIRAL MACROPHAGE INFLAMMATORY PROTEIN-II

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 24–33	Fragment：RESIDUES 1-10	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 5；281 K；Ionic strength (raw mmCIF value) 20MM SODIUM ACETATE；Pressure 1 NMR sample composition：20MM SODIUM ACETATE, 1-2MM PEPTIDE, 1MM SODIUM AZIDE, 1MM DSS	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HFF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CM9 CRYSTAL STRUCTURE OF VIRAL MACROPHAGE INFLAMMATORY PROTEIN-II Deposited 1999-05-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–94（74 aa） Chain B 21–94（74 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.10 Å R-free 0.275
1HFG NMR solution structure of vMIP-II 1-71 from Kaposi's sarcoma-associated herpesvirus (minimized average structure). Deposited 2000-12-01	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–94（71 aa） Fragment：RESIDUES 1-71	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；303 K；Pressure 1	Resolution not provided
1HFN NMR solution structures of vMIP-II 1-71 from Kaposi's sarcoma-associated herpesvirus. Deposited 2000-12-07	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–94（71 aa） Fragment：RESIDUES 1-71	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；303 K；Pressure 1 NMR sample composition 1MM DSS, 1MM NAN3, 20MM SODIUM ACETATE	Resolution not provided
1HHV SOLUTION STRUCTURE OF VIRUS CHEMOKINE VMIP-II Deposited 1998-12-06	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–94（74 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.25；308 K；Ionic strength (raw mmCIF value) 50 mM NMR sample composition 90% H2O/10% D2O	Resolution not provided
1VMP STRUCTURE OF THE ANTI-HIV CHEMOKINE VMIP-II Deposited 1999-03-25	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–94（71 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.4；298 K；Ionic strength (raw mmCIF value) 0.01；Pressure 1	Resolution not provided
2FHT Crystal Structure of Viral Macrophage Inflammatory Protein-II Deposited 2005-12-27	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.1 M sodium citrate, 11% (w/v) PEG 4000, 11%(w/v) 2-propanol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.331
2FJ2 Crystal Structure of Viral Macrophage Inflammatory Protein-II Deposited 2005-12-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–94（71 aa） Chain B 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；298 K；100mM Sodium Citrate, 11% PEG 4000, 11% 2-propanol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 5.60	Resolution 2.30 Å R-free 0.301
2FJ2 Crystal Structure of Viral Macrophage Inflammatory Protein-II Deposited 2005-12-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 24–94（71 aa） Chain D 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；298 K；100mM Sodium Citrate, 11% PEG 4000, 11% 2-propanol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K, pH 5.60	Resolution 2.30 Å R-free 0.301
4RWS Crystal structure of CXCR4 and viral chemokine antagonist vMIP-II complex (PSI Community Target) Deposited 2014-12-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 24–94（71 aa）	Mutation：W5C	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5.5；293 K；100 mM sodium citrate pH 5.5, 28% PEG 400, 120 mM ammonium phosphate dibasic, 2-6% polypropylene P400, Lipidic cubic phase, temperature 293K	Resolution 3.10 Å R-free 0.274

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VMI2_KSHV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–10； UniProt 24–33

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hff
Deposition date deposition_date	2000-12-01
Structure title title	NMR solution structures of the vMIP-II 1-10 peptide from Kaposi's sarcoma-associated herpesvirus.
Keywords keywords	CHEMOKINE, CXCR4, ANATAGONIST, VMIP-II; CHEMOKINE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	7.34 Å
Radius of gyration Rg (electron density) rg_electron	8.22 Å
Forward intensity I(0) i0	65369300.00
Molecular weight molecular_weight	64202.0 kDa
Excluded volume excluded_volume	79032 Å³
Envelope volume envelope_volume	9027 Å³
Hydration-shell volume shell_volume	7121 Å³
Envelope diameter envelope_diameter	36.6 Å
Shell Rg shell_rg	16.38 Å
Envelope Rg envelope_rg	12.05 Å
Shape Rg shape_rg	8.08 Å
Total Rg total_rg	8.99 Å
Total atoms total_atoms	8965
Residues n_residues	550
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	20.0 Å
Rg (real space) rg_real	7.03 Å
Rg uncertainty (real space) rg_real_error	0.03 Å
I(0) (real space) i0_real	6.2880e+07
I(0) uncertainty (real space) i0_real_error	3.4800e+05
Rg (reciprocal space) rg_reciprocal	7.46 Å
I(0) (reciprocal space) i0_reciprocal	65370000.0000
Solution quality estimate total_estimate	0.6604
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	6.8 Å
Skewness Skewness skewness	0.268
Kurtosis Kurtosis kurtosis	-0.783
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	7.9860
Highest regularization parameter α highest_alpha	755.6000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.969; Sysdev: 0.000; Positv: 1.000; Valcen: 0.679; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1hffa_
Class class	j — Peptides
Fold Fold fold	j.73 — VMIP-II fragment
Superfamily Superfamily superfamily	j.73.1 — VMIP-II fragment
Family Family family	j.73.1.1 — VMIP-II fragment

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	VIRAL MACROPHAGE INFLAMMATORY PROTEIN-II
Molecular weight formula_weight	1169.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8965

fit	/app/data/saxs_computation/hf/1hff/1hff.fit
pddf	/app/data/pr_computation/hf/1hff/1hff.pr.out
profile	/app/data/saxs_computation/hf/1hff/1hff.dat

NMR solution structures of the vMIP-II 1-10 peptide from Kaposi's sarcoma-associated herpesvirus.

1. Protein Identity and Related Structures Protein Identity & Related Structures

VIRAL MACROPHAGE INFLAMMATORY PROTEIN-II

State in the Current Structure

Other States of the Same Protein in the Database

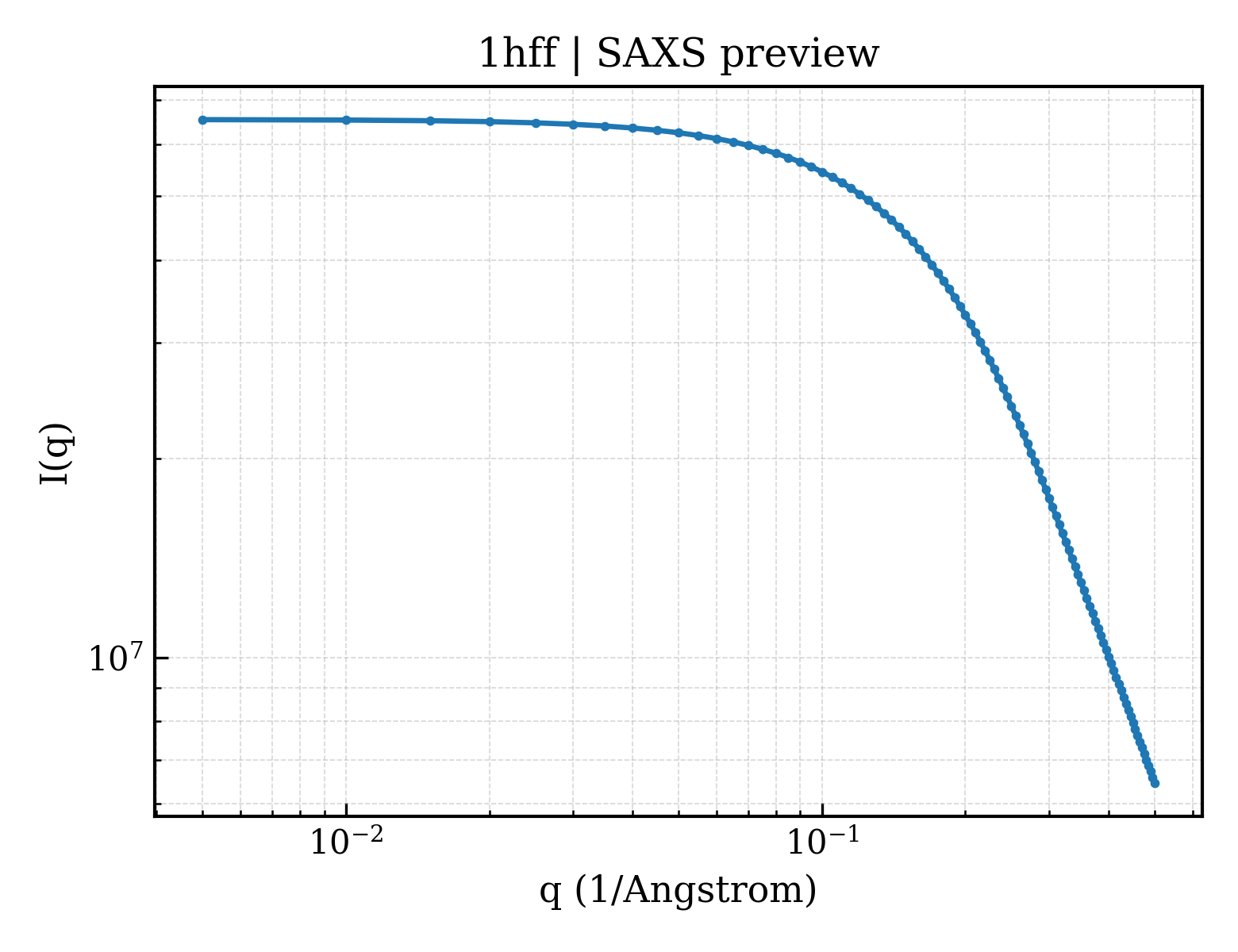

SAXS scattering curve SAXS Profile

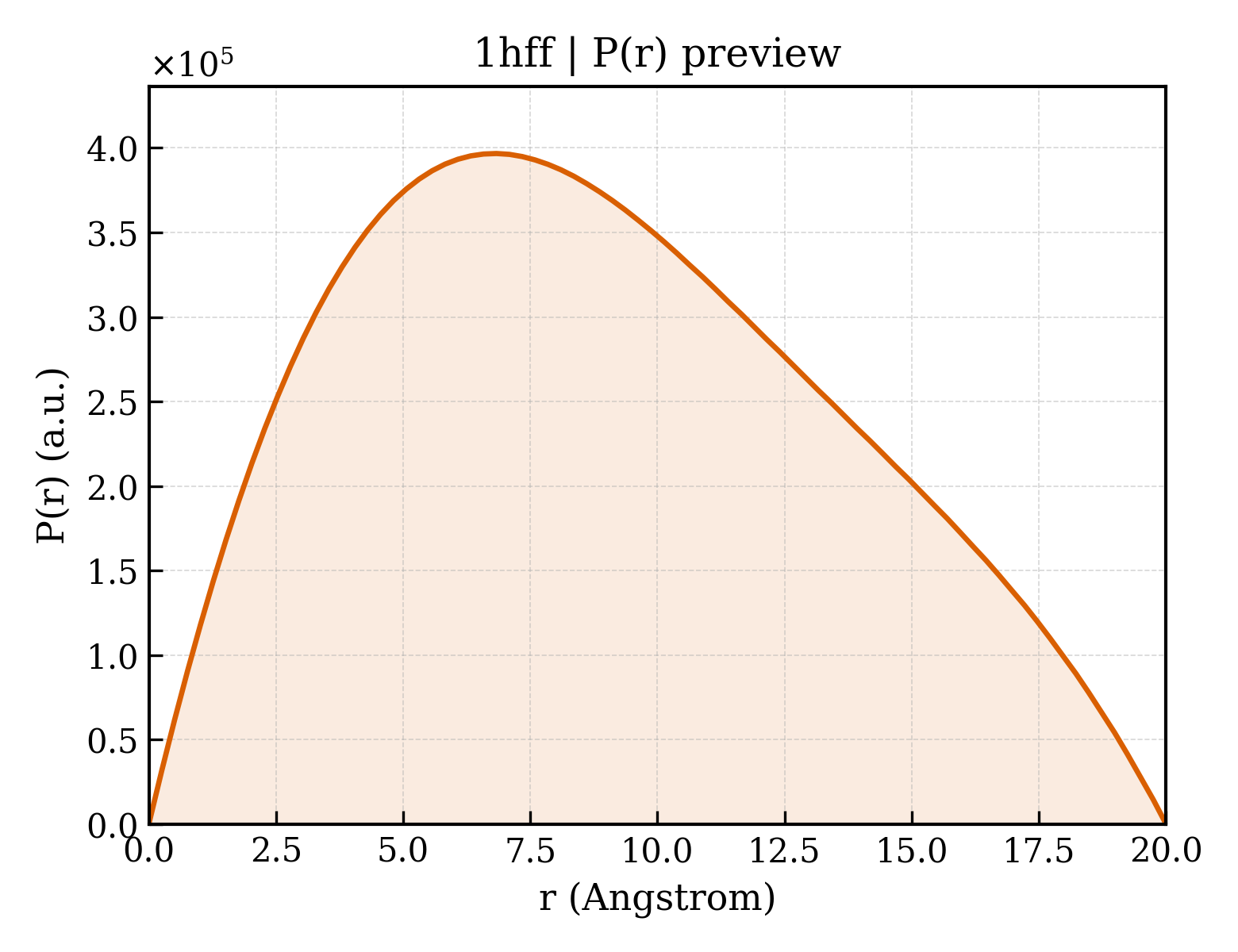

P(r) Distance Distribution P(r) Distribution
