SAXSdb — 1hfu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LACCASE 1

COPRINUS CINEREUS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 2 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 19–521	Not recorded	alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CU COPPER (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；PROTEIN WAS AT 30MG/ML IN 100MM ACETATE BUFFER PH 5.5. CRYSTALS GROW FROM 20-30% PEG 8000	Resolution 1.68 Å R-free 0.207

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HFU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A65 TYPE-2 CU-DEPLETED LACCASE FROM COPRINUS CINEREUS Deposited 1998-03-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–522（504 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PYE TETRAHYDROPYRAN × 1 CU COPPER (II) ION × 3 O OXYGEN ATOM × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.5	Resolution 2.23 Å R-free 0.220

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9Y780
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–503； UniProt 19–521

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hfu
Deposition date deposition_date	2000-12-08
Structure title title	TYPE-2 CU-DEPLETED LACCASE FROM COPRINUS CINEREUS at 1.68 A resolution
Keywords keywords	OXIDOREDUCTASE, LACCASE, BLUE MULTI-COPPER OXIDASE, TYPE-2 COPPER DEPLETED, GLYCOPROTEIN; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.78 Å
Radius of gyration Rg (electron density) rg_electron	21.65 Å
Forward intensity I(0) i0	52441200.00
Molecular weight molecular_weight	55047.0 kDa
Excluded volume excluded_volume	68145 Å³
Envelope volume envelope_volume	77379 Å³
Hydration-shell volume shell_volume	28533 Å³
Envelope diameter envelope_diameter	73.0 Å
Shell Rg shell_rg	29.61 Å
Envelope Rg envelope_rg	21.94 Å
Shape Rg shape_rg	21.64 Å
Total Rg total_rg	22.54 Å
Total atoms total_atoms	3880
Residues n_residues	500
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.6 Å
Rg (real space) rg_real	22.64 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	5.2440e+07
I(0) uncertainty (real space) i0_real_error	6.7000e+05
Rg (reciprocal space) rg_reciprocal	22.67 Å
I(0) (reciprocal space) i0_reciprocal	52440000.0000
Solution quality estimate total_estimate	0.8190
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.8 Å
Skewness Skewness skewness	0.160
Kurtosis Kurtosis kurtosis	-0.426
Angular range angular_range	— – 0.3500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11650000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	LACCASE 1
Molecular weight formula_weight	54409.3 kDa
EC 编号 ec_number	1.10.3.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4358

AIVNSVDTMTLTNANVSPDGFTRAGILVNGVHGPLIRGGKNDNFELNVVNDLDNPTMLRPTSIHWHGLFQRGTNWADGADGVNQCPISPGHAFLYKFTPAGHAGTFWYHSHFGTQYCDGLRGPMVIYDDNDPHAALYDEDDENTIITLADWYHIPAPSIQGAAQPDATLINGKGRYVGGPAAELSIVNVEQGKKYRMRLISLSCDPNWQFSIDGHELTIIEVDGELTEPHTVDRLQIFTGQRYSFVLDANQPVDNYWIRAQPNKGRNGLAGTFANGVNSAILRYAGAANADPTTSANPNPAQLNEADLHALIDPAAPGIPTPGAADVNLRFQLGFSGGRFTINGTAYESPSVPTLLQIMSGAQSANDLLPAGSVYELPRNQVVELVVPAGVLGGPHPFHLHGHAFSVVRSAGSSTYNFVNPVKRDVVSLGVTGDEVTIRFVTDNPGPWFFHCHIEFHLMNGLAIVFAEDMANTVDANNPPVEWAQLCEIYDDLPPEATSIQTV

来源 Source

来源生物 organism	COPRINUS CINEREUS
通用名 common_name	INKY CAP FUNGUS
NCBI Class编号 ncbi_taxonomy_id	5346
宿主生物 host_organism	ASPERGILLUS ORYZAE

Entity 2 Entity 2 branched

Description description	alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	461

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1hfua1
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.3 — Multidomain cupredoxins

Domain ID domain_id	d1hfua2
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.3 — Multidomain cupredoxins

Domain ID domain_id	d1hfua3
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.3 — Multidomain cupredoxins

Domain ID domain_id	d1hfua4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	1hfuA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	1hfuA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	1hfuA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

8. Citations (3)

▶

Unit-cell length a length_a	45.120 Å
Unit-cell length b length_b	84.560 Å
Unit-cell length c length_c	139.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.680 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.1840
R_free r_free	0.2075

fit	/app/data/saxs_computation/hf/1hfu/1hfu.fit
pddf	/app/data/pr_computation/hf/1hfu/1hfu.pr.out
profile	/app/data/saxs_computation/hf/1hfu/1hfu.dat

TYPE-2 CU-DEPLETED LACCASE FROM COPRINUS CINEREUS at 1.68 A resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

LACCASE 1

State in the Current Structure

Other States of the Same Protein in the Database

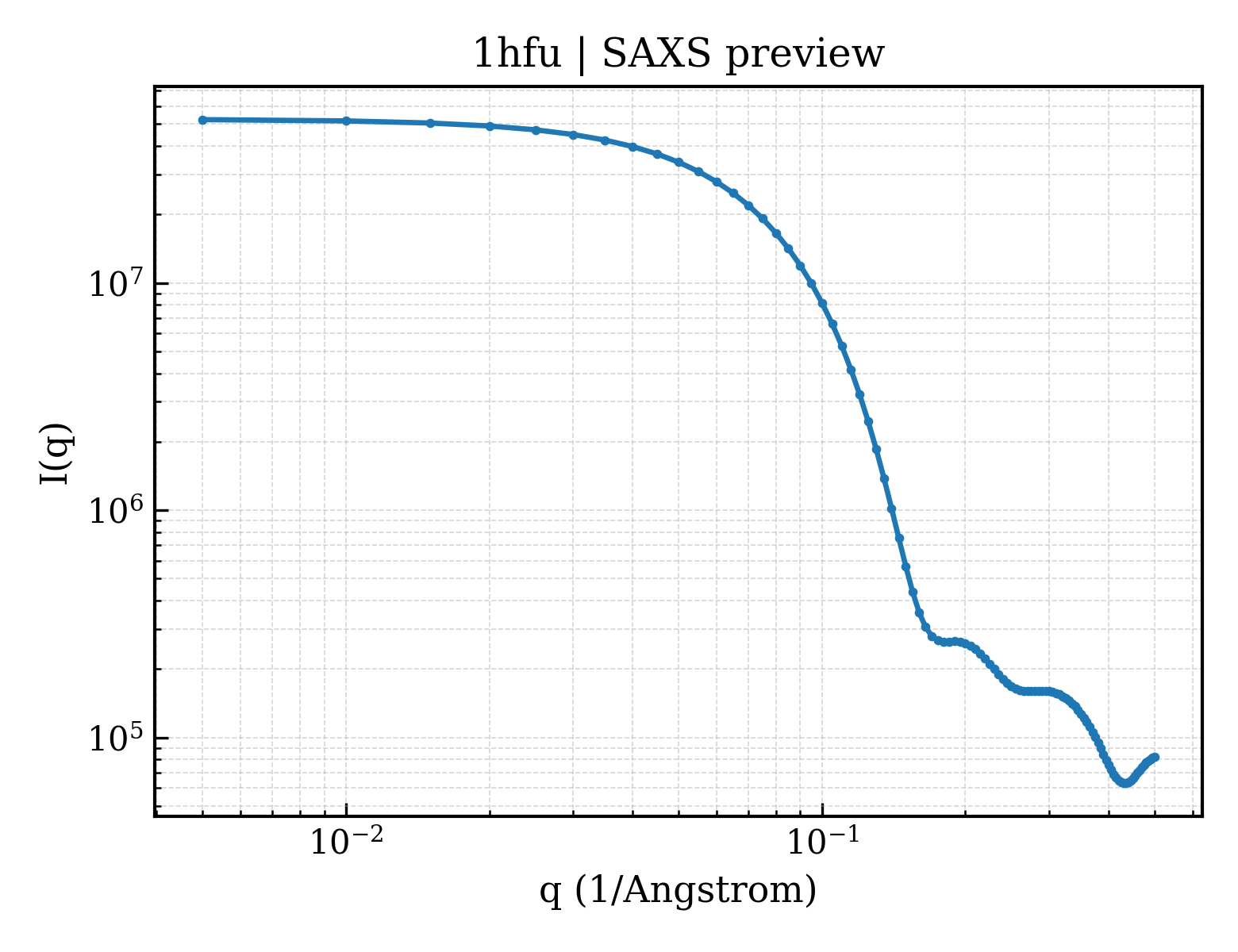

SAXS scattering curve SAXS Profile

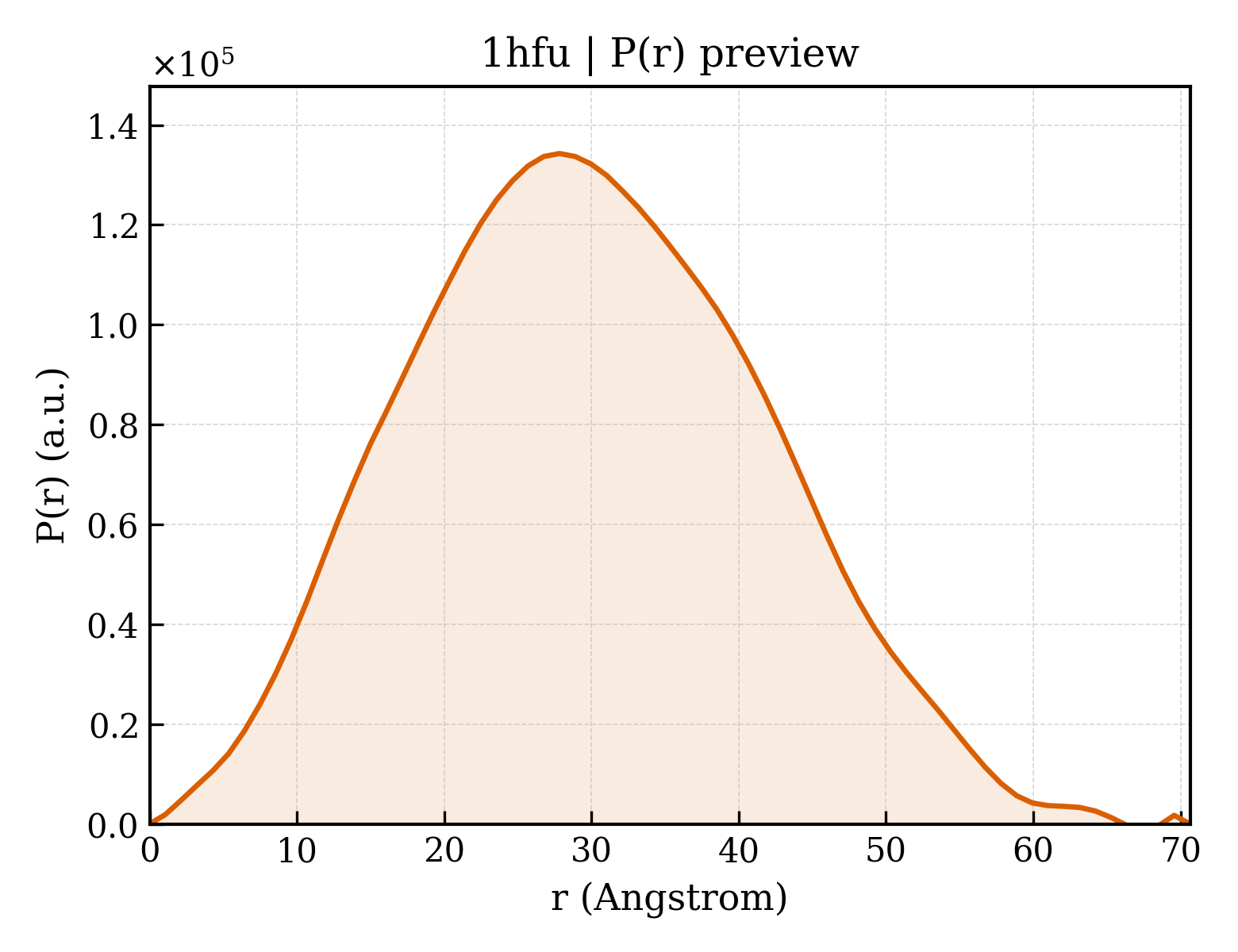

P(r) Distance Distribution P(r) Distribution
