SAXSdb — 1hqj

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1hqj
沉积日期 deposition_date	2000-12-18
结构标题 title	CRYSTAL STRUCTURE OF A DE NOVO DESIGNED TRIMERIC COILED-COIL PEPTIDE
关键词 keywords	coiled coil, de novo design, alpha-helix, trimer, DE NOVO PROTEIN; DE NOVO PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	19.70 Å
回转半径 Rg (电子) rg_electron	18.85 Å
零角强度 I(0) i0	16192700.00
分子量 molecular_weight	25529.0 kDa
排除体积 excluded_volume	29372 Å³
包络体积 envelope_volume	35631 Å³
水化壳体积 shell_volume	16304 Å³
包络直径 envelope_diameter	67.4 Å
壳层 Rg shell_rg	24.29 Å
包络 Rg envelope_rg	18.98 Å
形状 Rg shape_rg	18.77 Å
总 Rg total_rg	19.68 Å
总原子数 total_atoms	1663
残基数 n_residues	168
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	67.7 Å
Rg (实空间) rg_real	19.70 Å
Rg 误差 (实空间) rg_real_error	0.57 Å
I(0) (实空间) i0_real	1.6190e+07
I(0) 误差 (实空间) i0_real_error	2.1890e+05
Rg (倒空间) rg_reciprocal	19.70 Å
I(0) (倒空间) i0_reciprocal	16190000.0000
解质量估计 total_estimate	0.8681
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	65.7 Å
偏度 Skewness skewness	0.339
峰度 Kurtosis kurtosis	-0.289
角度范围 angular_range	— – 0.4050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2825000.0000
实空间数据点数 n_real_points	72
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.794; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.918; Smooth: 0.984

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	ZJU-GLU-LEU-GLU-ALA-ARG-ILE-ARG-GLU-LEU-GLU-ALA-ARG-ILE-LYS-NH2
分子量 formula_weight	2031.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	1870

DELERRIRELEARIK

Entity 2 non-polymer

描述 description	LEAD (II) ION
分子量 formula_weight	207.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	9

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	147

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1hqja_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjb_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjc_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjd_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqje_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjf_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjg_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjh_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqji_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjj_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjk_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

结构域编号 domain_id	d1hqjl_
类 Class class	k — Designed proteins
折叠类型 Fold fold	k.40 — Designed trimeric coiled-coil
超家族 Superfamily superfamily	k.40.1 — Designed trimeric coiled-coil
家族 Family family	k.40.1.1 — Designed trimeric coiled-coil

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	44.334 Å
晶胞边长 b length_b	44.874 Å
晶胞边长 c length_c	81.043 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.200 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	0.2230

fit	/app/data/saxs_computation/hq/1hqj/1hqj.fit
pddf	/app/data/pr_computation/hq/1hqj/1hqj.pr.out
profile	/app/data/saxs_computation/hq/1hqj/1hqj.dat

CRYSTAL STRUCTURE OF A DE NOVO DESIGNED TRIMERIC COILED-COIL PEPTIDE

SAXS 散射曲线 SAXS Profile

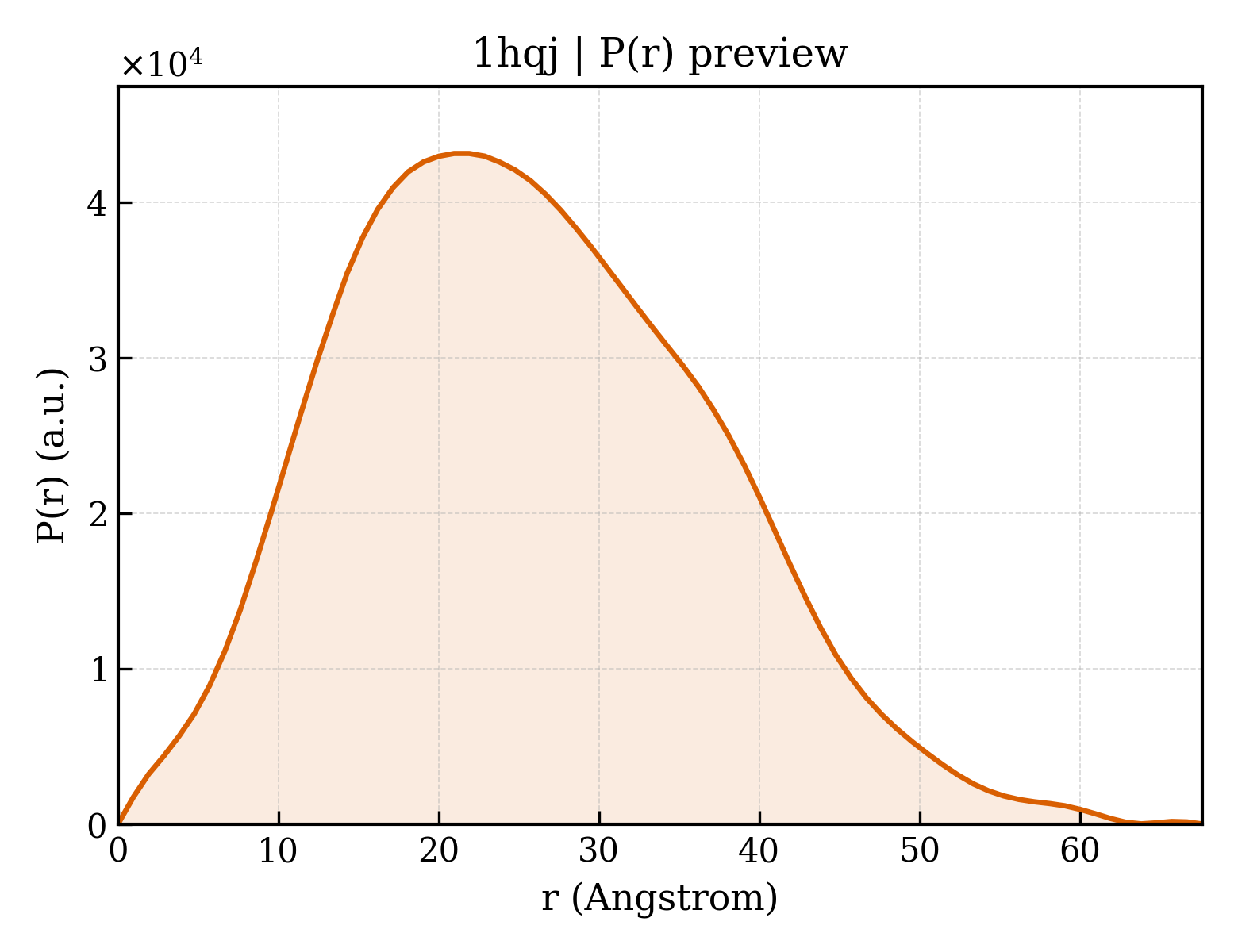

P(r) 距离分布 P(r) Distribution
