SAXSdb — 1hv4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOGLOBIN ALPHA-A CHAIN

OrganismNot specified

UniProt P01990

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–141 Chain C； UniProt 1–141	Not recorded	HEMOGLOBIN BETA CHAIN × 2 （P02118） HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；PEG 6000, potassium phosphate , pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.243
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 1–141 Chain G； UniProt 1–141	Not recorded	HEMOGLOBIN BETA CHAIN × 2 （P02118） HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；PEG 6000, potassium phosphate , pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HV4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A4F BAR-HEADED GOOSE HEMOGLOBIN (OXY FORM) Deposited 1998-01-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 OXY OXYGEN MOLECULE × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1C40 BAR-HEADED GOOSE HEMOGLOBIN (AQUOMET FORM) Deposited 1999-08-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–141（141 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；pH 6.80	Resolution 2.30 Å R-free 0.247

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HBA_ANSIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–141； UniProt 1–141 Author chain C； PDBConstruct 1–141； UniProt 1–141 Author chain E； PDBConstruct 1–141； UniProt 1–141 Author chain G； PDBConstruct 1–141； UniProt 1–141

HEMOGLOBIN BETA CHAIN

OrganismNot specified

UniProt P02118

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–146 Chain D； UniProt 1–146	Not recorded	HEMOGLOBIN ALPHA-A CHAIN × 2 （P01990） HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；PEG 6000, potassium phosphate , pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.243
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain F； UniProt 1–146 Chain H； UniProt 1–146	Not recorded	HEMOGLOBIN ALPHA-A CHAIN × 2 （P01990） HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；PEG 6000, potassium phosphate , pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HV4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A4F BAR-HEADED GOOSE HEMOGLOBIN (OXY FORM) Deposited 1998-01-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–146（146 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 OXY OXYGEN MOLECULE × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1C40 BAR-HEADED GOOSE HEMOGLOBIN (AQUOMET FORM) Deposited 1999-08-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–146（146 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；pH 6.80	Resolution 2.30 Å R-free 0.247

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HBB_ANSIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–146； UniProt 1–146 Author chain D； PDBConstruct 1–146； UniProt 1–146 Author chain F； PDBConstruct 1–146； UniProt 1–146 Author chain H； PDBConstruct 1–146； UniProt 1–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hv4
Deposition date deposition_date	2001-01-07
Structure title title	CRYSTAL STRUCTURE ANALYSIS OF BAR-HEAD GOOSE HEMOGLOBIN (DEOXY FORM)
Keywords keywords	ALLOSTERIC MECHANISM, OXYGEN TRANSPORT, HEME, RESPIRATORY PROTEIN, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.40 Å
Radius of gyration Rg (electron density) rg_electron	39.46 Å
Forward intensity I(0) i0	238239000.00
Molecular weight molecular_weight	131460.0 kDa
Excluded volume excluded_volume	166790 Å³
Envelope volume envelope_volume	209340 Å³
Hydration-shell volume shell_volume	45863 Å³
Envelope diameter envelope_diameter	131.3 Å
Shell Rg shell_rg	42.99 Å
Envelope Rg envelope_rg	39.00 Å
Shape Rg shape_rg	39.45 Å
Total Rg total_rg	39.72 Å
Total atoms total_atoms	9288
Residues n_residues	1148
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

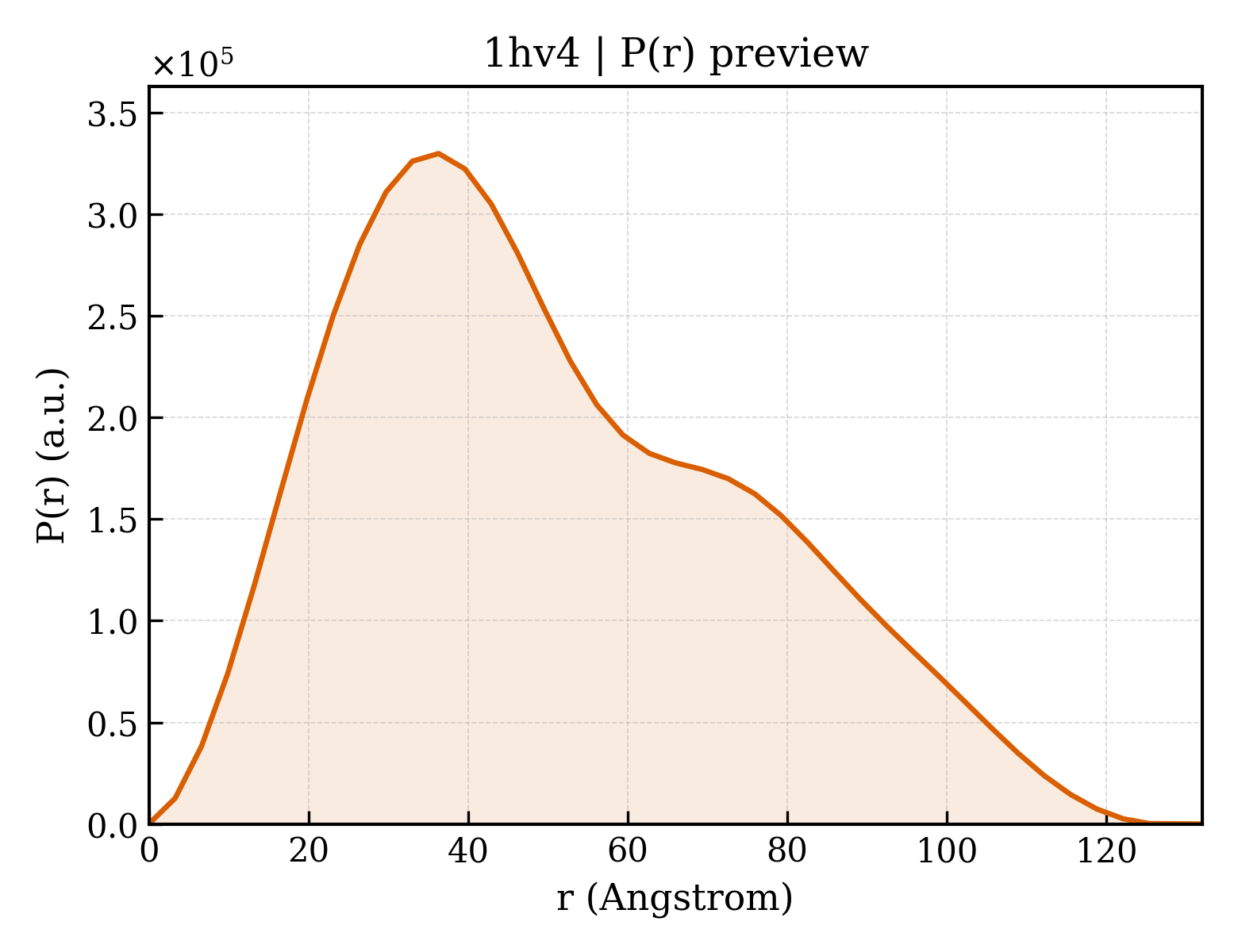

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	132.0 Å
Rg (real space) rg_real	39.79 Å
Rg uncertainty (real space) rg_real_error	1.04 Å
I(0) (real space) i0_real	2.3820e+08
I(0) uncertainty (real space) i0_real_error	4.1180e+06
Rg (reciprocal space) rg_reciprocal	39.56 Å
I(0) (reciprocal space) i0_reciprocal	238200000.0000
Solution quality estimate total_estimate	0.8020
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	36.3 Å
Skewness Skewness skewness	0.489
Kurtosis Kurtosis kurtosis	-0.555
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	97100000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.670; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.591

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HEMOGLOBIN ALPHA-A CHAIN
Molecular weight formula_weight	15361.7 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	9288

VLSAADKTNVKGVFSKISGHAEEYGAETLERMFTAYPQTKTYFPHFDLQHGSAQIKAHGKKVVAALVEAVNHIDDIAGALSKLSDLHAQKLRVDPVNFKFLGHCFLVVVAIHHPSALTAEVHASLDKFLCAVGTVLTAKYR

Entity 2 Entity 2 polymer

Description description	HEMOGLOBIN BETA CHAIN
Molecular weight formula_weight	16313.9 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

VHWSAEEKQLITGLWGKVNVADCGAEALARLLIVYPWTQRFFSSFGNLSSPTAILGNPMVRAHGKKVLTSFGDAVKNLDNIKNTFAQLSELHCDKLHVDPENFRLLGDILIIVLAAHFAKEFTPDCQAAWQKLVRVVAHALARKYH

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	8

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1hv4a_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hv4b_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hv4c_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hv4d_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hv4e_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hv4f_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hv4g_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1hv4h_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

CATH v4.4 (8 domains)

Domain ID domain_id	1hv4A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hv4B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hv4C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hv4D00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hv4E00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hv4F00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hv4G00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1hv4H00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

▶

8. Citations (1)

▶

Unit-cell length a length_a	70.660 Å
Unit-cell length b length_b	94.100 Å
Unit-cell length c length_c	59.230 Å
Unit-cell angle α angle_alpha	71.55 °
Unit-cell angle β angle_beta	65.10 °
Unit-cell angle γ angle_gamma	83.10 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	36.890 Å
R factor r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2430

fit	/app/data/saxs_computation/hv/1hv4/1hv4.fit
pddf	/app/data/pr_computation/hv/1hv4/1hv4.pr.out
profile	/app/data/saxs_computation/hv/1hv4/1hv4.dat
