1jro

Crystal Structure of Xanthine Dehydrogenase from Rhodobacter capsulatus

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

No usable UniProt protein identity is available for this entry.

The relationship tables retain this entry's assembly and composition data, but cross-PDB links for the same protein cannot be established reliably without a unified protein identity.

Assembly Composition of the Current Entry

Assembly	Physical composition	Protein state	蛋白 / DNA / RNA / 其他Polymer	Data consistency
1	Protein heterocomplex	Heteromer	4 / 0 / 0 / 0	Consistent with protein count
2	Protein heterocomplex	Heteromer	4 / 0 / 0 / 0	Consistent with protein count

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jro
Deposition date deposition_date	2001-08-14
Structure title title	Crystal Structure of Xanthine Dehydrogenase from Rhodobacter capsulatus
Keywords keywords	Partial Beta-Barrel; xdh; xo, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jro__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

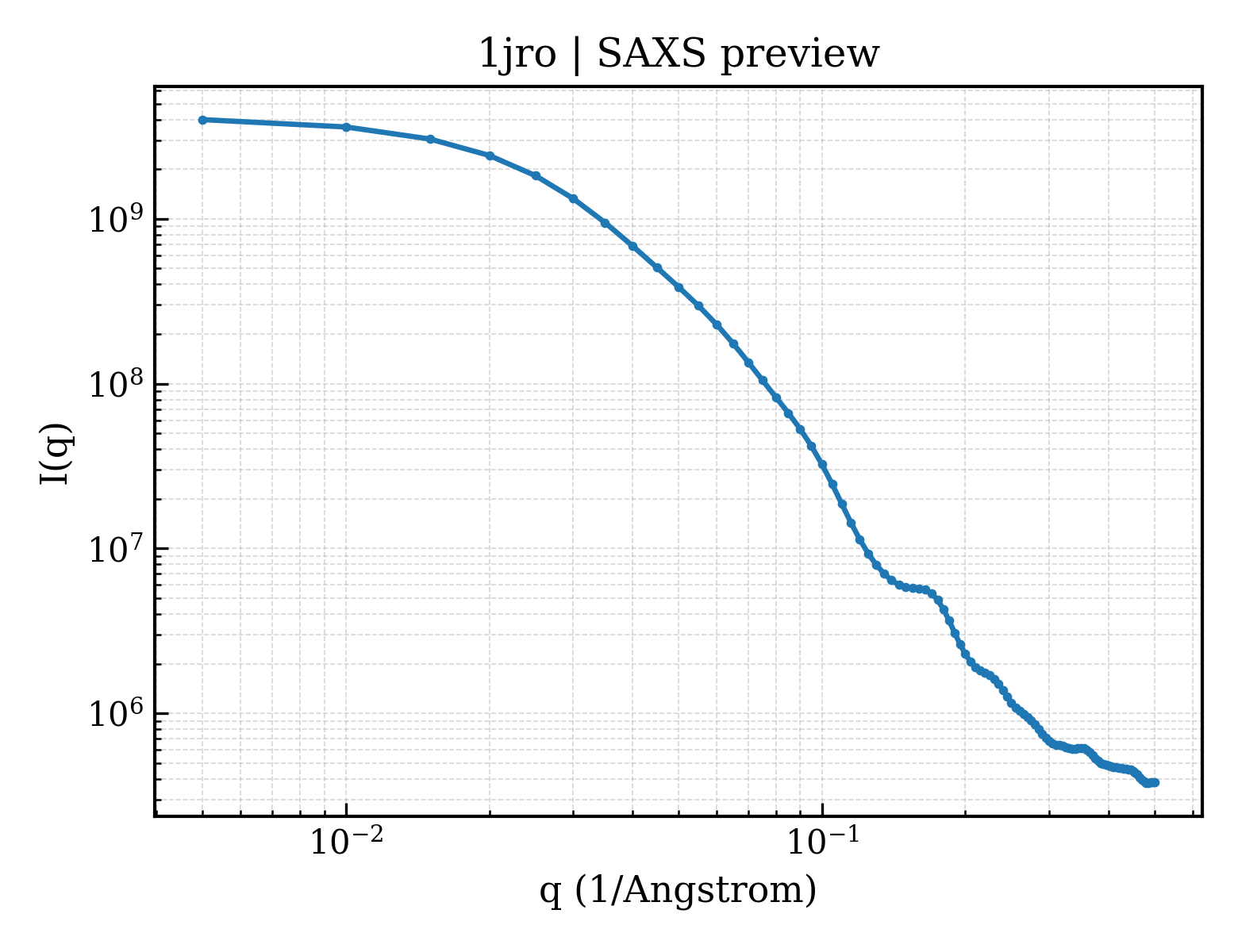

1jro__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

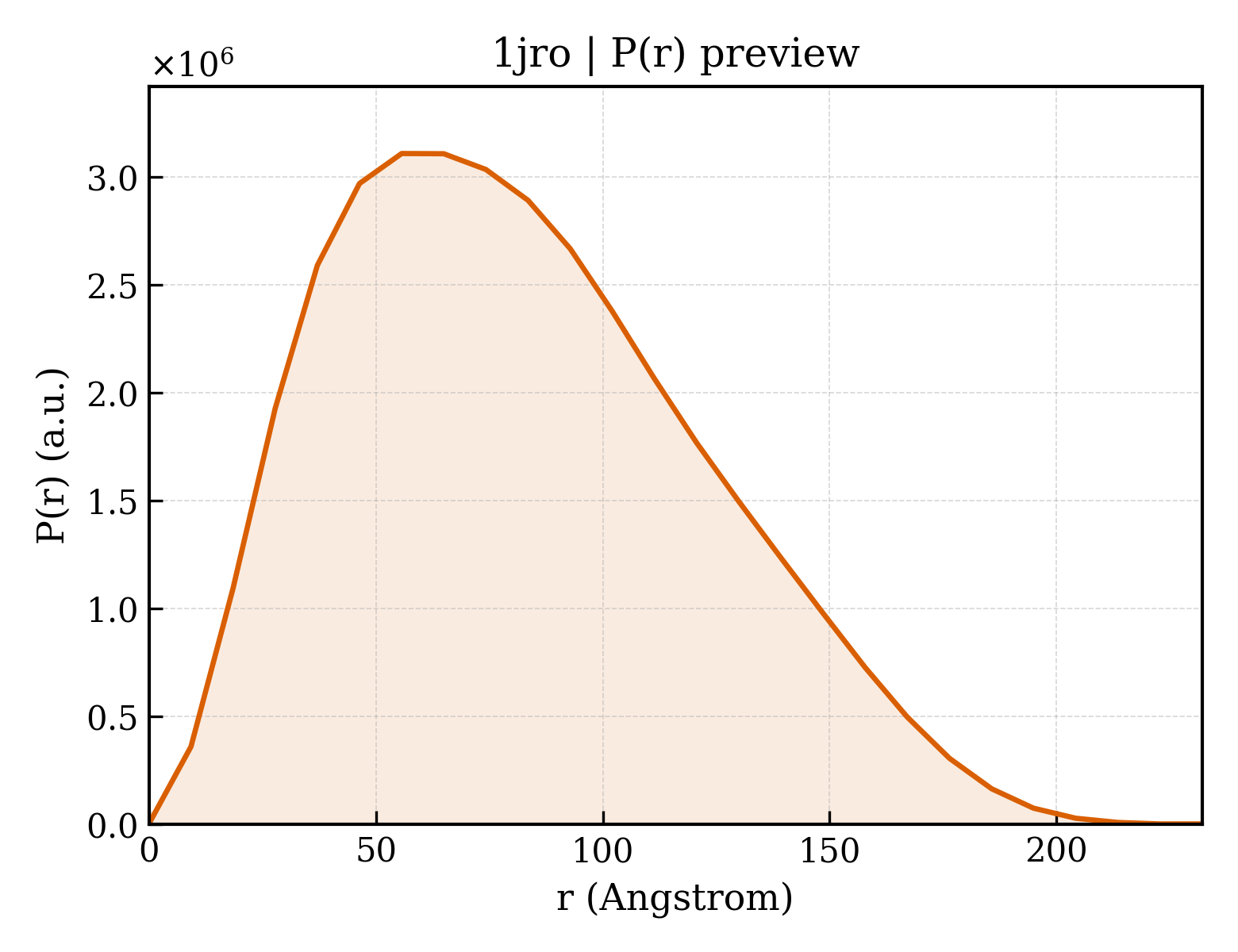

1jro__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.11 Å
Rg (electron density)	44.21 Å
Total Rg	44.26 Å
Atom count	18354
Residues	2420
Excluded volume	324210 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jro__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jro__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	xanthine dehydrogenase, chain A
Molecular weight formula_weight	49347.5 kDa
EC 编号 ec_number	1.1.1.204
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	36831

MEIAFLLNGETRRVRIEDPTQSLLELLRAEGLTGTKEGCNEGDCGACTVMIRDAAGSRAVNACLMMLPQIAGKALRTIEGIAAPDGRLHPVQQAMIDHHGSQCGFCTPGFIVSMAAAHDRDRKDYDDLLAGNLCRCTGYAPILRAAEAAAGEPPADWLQADAAFTLAQLSSGVRGQTAPAFLPETSDALADWYLAHPEATLIAGGTDVSLWVTKALRDLPEVAFLSHCKDLAQIRETPDGYGIGAGVTIAALRAFAEGPHPALAGLLRRFASEQVRQVATIGGNIANGSPIGDGPPALIAMGASLTLRRGQERRRMPLEDFFLEYRKQDRRPGEFVESVTLPKSAPGLRCYKLSKRFDQDISAVCGCLNLTLKGSKIETARIAFGGMAGVPKRAAAFEAALIGQDFREDTIAAALPLLAQDFTPLSDMRASAAYRMNAAQAMALRYVRELSGEAVAVLEVMP

Source Source

Source organism organism	Rhodobacter capsulatus
NCBI taxonomy ID ncbi_taxonomy_id	1061
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	xanthine dehydrogenase, chain B
Molecular weight formula_weight	82978.0 kDa
EC 编号 ec_number	1.1.1.204
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

MSVGKPLPHDSARAHVTGQARYLDDLPCPANTLHLAFGLSTEASAAITGLDLEPVRESPGVIAVFTAADLPHDNDASPAPSPEPVLATGEVHFVGQPIFLVAATSHRAARIAARKARITYAPRPAILTLDQALAADSRFEGGPVIWARGDVETALAGAAHLAEGCFEIGGQEHFYLEGQAALALPAEGGVVIHCSSQHPSEIQHKVAHALGLAFHDVRVEMRRMGGGFGGKESQGNHLAIACAVAARATGRPCKMRYDRDDDMVITGKRHDFRIRYRIGADASGKLLGADFVHLARCGWSADLSLPVCDRAMLHADGSYFVPALRIESHRLRTNTQSNTAFRGFGGPQGALGMERAIEHLARGMGRDPAELRALNFYDPPERGGLSAPPSPPEPIATKKTQTTHYGQEVADCVLGELVTRLQKSANFTTRRAEIAAWNSTNRTLARGIALSPVKFGISFTLTHLNQAGALVQIYTDGSVALNHGGTEMGQGLHAKMVQVAAAVLGIDPVQVRITATDTSKVPNTSATAASSGADMNGMAVKDACETLRGRLAGFVAAREGCAARDVIFDAGQVQASGKSWRFAEIVAAAYMARISLSATGFYATPKLSWDRLRGQGRPFLYFAYGAAITEVVIDRLTGENRILRTDILHDAGASLNPALDIGQIEGAYVQGAGWLTTEELVWDHCGRLMTHAPSTYKIPAFSDRPRIFNVALWDQPNREETIFRSKAVGEPPFLLGISAFLALHDACAACGPHWPDLQAPATPEAVLAAVRRAEGRA

Source Source

Source organism organism	Rhodobacter capsulatus
NCBI taxonomy ID ncbi_taxonomy_id	1061
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	PHOSPHONIC ACIDMONO-(2-AMINO-5,6-DIMERCAPTO-4-OXO-3,7,8A,9,10,10A-HEXAHYDRO-4H-8-OXA-1,3,9,10-TETRAAZA-ANTHRACEN-7-YLMETHYL)ESTER
Molecular weight formula_weight	395.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	DIOXOTHIOMOLYBDENUM(VI) ION
Molecular weight formula_weight	161.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	123

▼

6. Fold Classification (SCOP + CATH) 64 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d1jroa1
Class class	a — All alpha proteins
Fold Fold fold	a.56 — CO dehydrogenase ISP C-domain like
Superfamily Superfamily superfamily	a.56.1 — CO dehydrogenase ISP C-domain like
Family Family family	a.56.1.1 — CO dehydrogenase ISP C-domain like

Domain ID domain_id	d1jroa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins

Domain ID domain_id	d1jroa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like
Family Family family	d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like

Domain ID domain_id	d1jroa4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.145 — FAD-binding/transporter-associated domain-like
Superfamily Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
Family Family family	d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like

Domain ID domain_id	d1jrob1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.1 — CO dehydrogenase molybdoprotein N-domain-like
Family Family family	d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like

Domain ID domain_id	d1jrob2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.133 — Molybdenum cofactor-binding domain
Superfamily Superfamily superfamily	d.133.1 — Molybdenum cofactor-binding domain
Family Family family	d.133.1.1 — Molybdenum cofactor-binding domain

Domain ID domain_id	d1jroc1
Class class	a — All alpha proteins
Fold Fold fold	a.56 — CO dehydrogenase ISP C-domain like
Superfamily Superfamily superfamily	a.56.1 — CO dehydrogenase ISP C-domain like
Family Family family	a.56.1.1 — CO dehydrogenase ISP C-domain like

Domain ID domain_id	d1jroc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins

Domain ID domain_id	d1jroc3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like
Family Family family	d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like

Domain ID domain_id	d1jroc4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.145 — FAD-binding/transporter-associated domain-like
Superfamily Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
Family Family family	d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like

Domain ID domain_id	d1jrod1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.1 — CO dehydrogenase molybdoprotein N-domain-like
Family Family family	d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like

Domain ID domain_id	d1jrod2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.133 — Molybdenum cofactor-binding domain
Superfamily Superfamily superfamily	d.133.1 — Molybdenum cofactor-binding domain
Family Family family	d.133.1.1 — Molybdenum cofactor-binding domain

Domain ID domain_id	d1jroe1
Class class	a — All alpha proteins
Fold Fold fold	a.56 — CO dehydrogenase ISP C-domain like
Superfamily Superfamily superfamily	a.56.1 — CO dehydrogenase ISP C-domain like
Family Family family	a.56.1.1 — CO dehydrogenase ISP C-domain like

Domain ID domain_id	d1jroe2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins

Domain ID domain_id	d1jroe3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like
Family Family family	d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like

Domain ID domain_id	d1jroe4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.145 — FAD-binding/transporter-associated domain-like
Superfamily Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
Family Family family	d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like

Domain ID domain_id	d1jrof1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.1 — CO dehydrogenase molybdoprotein N-domain-like
Family Family family	d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like

Domain ID domain_id	d1jrof2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.133 — Molybdenum cofactor-binding domain
Superfamily Superfamily superfamily	d.133.1 — Molybdenum cofactor-binding domain
Family Family family	d.133.1.1 — Molybdenum cofactor-binding domain

Domain ID domain_id	d1jrog1
Class class	a — All alpha proteins
Fold Fold fold	a.56 — CO dehydrogenase ISP C-domain like
Superfamily Superfamily superfamily	a.56.1 — CO dehydrogenase ISP C-domain like
Family Family family	a.56.1.1 — CO dehydrogenase ISP C-domain like

Domain ID domain_id	d1jrog2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins

Domain ID domain_id	d1jrog3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like
Family Family family	d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like

Domain ID domain_id	d1jrog4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.145 — FAD-binding/transporter-associated domain-like
Superfamily Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
Family Family family	d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like

Domain ID domain_id	d1jroh1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.1 — CO dehydrogenase molybdoprotein N-domain-like
Family Family family	d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like

Domain ID domain_id	d1jroh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.133 — Molybdenum cofactor-binding domain
Superfamily Superfamily superfamily	d.133.1 — Molybdenum cofactor-binding domain
Family Family family	d.133.1.1 — Molybdenum cofactor-binding domain

CATH v4.4 (40 domains)

Domain ID domain_id	1jroA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	1jroA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	120 — [2Fe-2S]-binding domain

Domain ID domain_id	1jroA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

Domain ID domain_id	1jroA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1jroA05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	50 — CO dehydrogenase flavoprotein, C-terminal domain

Domain ID domain_id	1jroB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead

Domain ID domain_id	1jroB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroB04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroB05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroC01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	1jroC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	120 — [2Fe-2S]-binding domain

Domain ID domain_id	1jroC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

Domain ID domain_id	1jroC04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1jroC05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	50 — CO dehydrogenase flavoprotein, C-terminal domain

Domain ID domain_id	1jroD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead

Domain ID domain_id	1jroD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroD03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroD04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroD05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroE01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	1jroE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	120 — [2Fe-2S]-binding domain

Domain ID domain_id	1jroE03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

Domain ID domain_id	1jroE04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1jroE05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	50 — CO dehydrogenase flavoprotein, C-terminal domain

Domain ID domain_id	1jroF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead

Domain ID domain_id	1jroF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroF03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroF04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroF05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroG01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	1jroG02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	120 — [2Fe-2S]-binding domain

Domain ID domain_id	1jroG03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

Domain ID domain_id	1jroG04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1jroG05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	50 — CO dehydrogenase flavoprotein, C-terminal domain

Domain ID domain_id	1jroH01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead

Domain ID domain_id	1jroH02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroH03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroH04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

Domain ID domain_id	1jroH05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	365 — Aldehyde Oxidoreductase; domain 4
Homologous superfamily homologous superfamily	10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain

▶

Unit-cell length a length_a	92.875 Å
Unit-cell length b length_b	141.053 Å
Unit-cell length c length_c	158.113 Å
Unit-cell angle α angle_alpha	109.53 °
Unit-cell angle β angle_beta	105.83 °
Unit-cell angle γ angle_gamma	101.33 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2150
R_work r_work	0.2131
R_free r_free	0.2515

Crystal Structure of Xanthine Dehydrogenase from Rhodobacter capsulatus

1. Protein Identity and Related Structures Protein Identity & Related Structures

Assembly Composition of the Current Entry

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1jro__assembly_1__model_1

1jro__assembly_1__model_1 | I(q)

1jro__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 water

6. Fold Classification (SCOP + CATH) 64 domains

SCOP 2.08 (24 domains)

CATH v4.4 (40 domains)

7. Citations (1)
