1jrp
Crystal Structure of Xanthine Dehydrogenase inhibited by alloxanthine from Rhodobacter capsulatus
SAXS 散射曲线 SAXS Profile

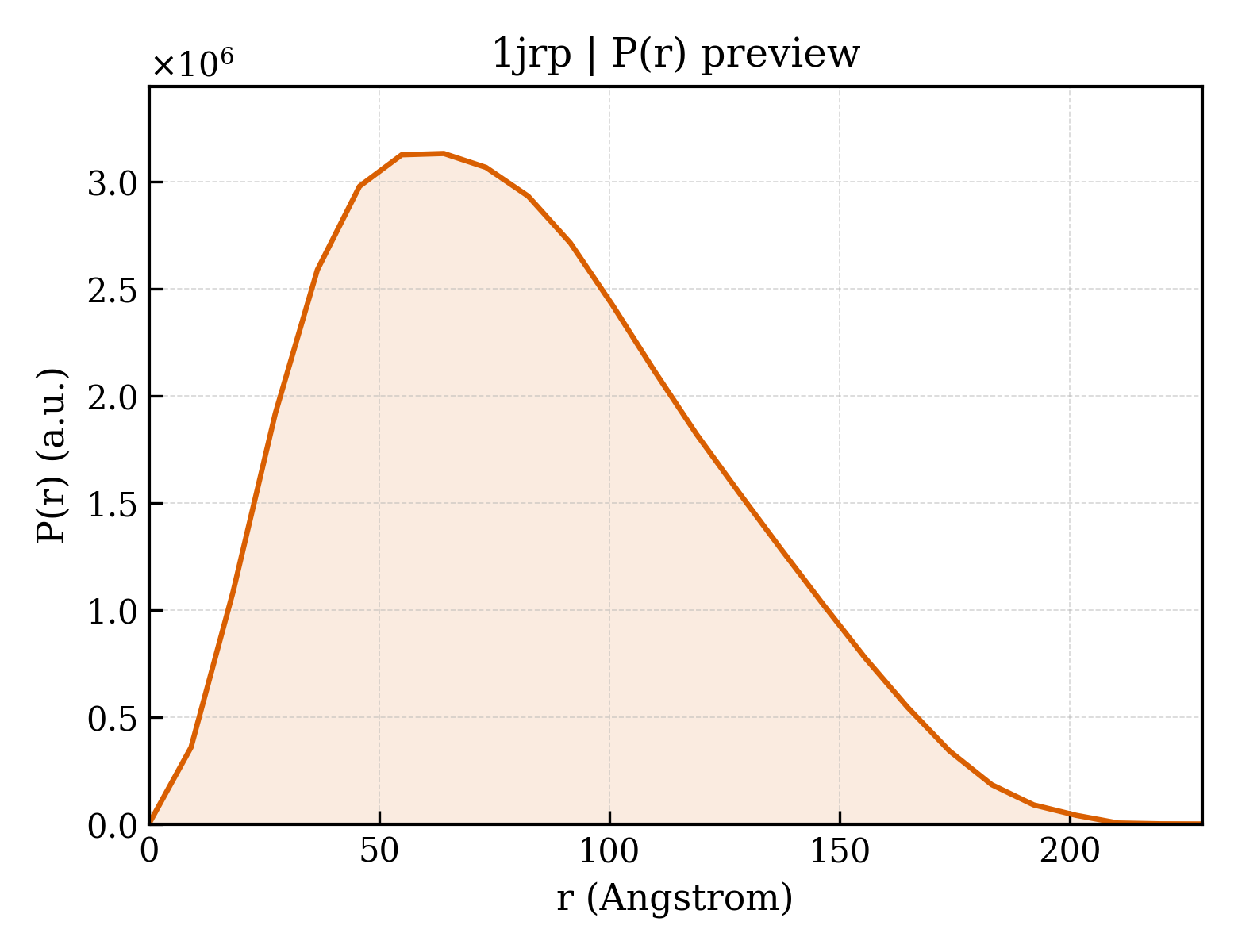

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1jrp |
| 沉积日期 deposition_date | 2001-08-14 |
| 结构标题 title | Crystal Structure of Xanthine Dehydrogenase inhibited by alloxanthine from Rhodobacter capsulatus |
| 关键词 keywords | Partial Beta-Barrel; xdh; xo, OXIDOREDUCTASE; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 63.51 Å |
| 回转半径 Rg (电子) rg_electron | 64.11 Å |
| 零角强度 I(0) i0 | 4148910000.00 |
| 分子量 molecular_weight | 524580.0 kDa |
| 排除体积 excluded_volume | 648900 ų |
| 包络体积 envelope_volume | 864630 ų |
| 水化壳体积 shell_volume | 114850 ų |
| 包络直径 envelope_diameter | 225.9 Å |
| 壳层 Rg shell_rg | 62.62 Å |
| 包络 Rg envelope_rg | 63.26 Å |
| 形状 Rg shape_rg | 64.13 Å |
| 总 Rg total_rg | 64.02 Å |
| 总原子数 total_atoms | 36748 |
| 残基数 n_residues | 4840 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 228.7 Å |
| Rg (实空间) rg_real | 63.96 Å |
| Rg 误差 (实空间) rg_real_error | 3.07 Å |
| I(0) (实空间) i0_real | 4.1490e+09 |
| I(0) 误差 (实空间) i0_real_error | 8.9370e+07 |
| Rg (倒空间) rg_reciprocal | 63.07 Å |
| I(0) (倒空间) i0_reciprocal | 4142000000.0000 |
| 解质量估计 total_estimate | 0.8402 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 64.0 Å |
| 偏度 Skewness skewness | 0.437 |
| 峰度 Kurtosis kurtosis | -0.445 |
| 角度范围 angular_range | — – 0.1250 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 387700000.0000 |
| 实空间数据点数 n_real_points | 26 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.753; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.699 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (8)
6. 折叠分类 (SCOP + CATH) 62 domains
SCOP 2.08 (24 domains)
| 结构域编号 domain_id | d1jrpa1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.56 — CO dehydrogenase ISP C-domain like |
| 超家族 Superfamily superfamily | a.56.1 — CO dehydrogenase ISP C-domain like |
| 家族 Family family | a.56.1.1 — CO dehydrogenase ISP C-domain like |
| 结构域编号 domain_id | d1jrpa2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.15 — beta-Grasp (ubiquitin-like) |
| 超家族 Superfamily superfamily | d.15.4 — 2Fe-2S ferredoxin-like |
| 家族 Family family | d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins |
| 结构域编号 domain_id | d1jrpa3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.87 — CO dehydrogenase flavoprotein C-domain-like |
| 超家族 Superfamily superfamily | d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 家族 Family family | d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 结构域编号 domain_id | d1jrpa4 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.145 — FAD-binding/transporter-associated domain-like |
| 超家族 Superfamily superfamily | d.145.1 — FAD-binding/transporter-associated domain-like |
| 家族 Family family | d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like |
| 结构域编号 domain_id | d1jrpb1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.41 — alpha/beta-Hammerhead |
| 超家族 Superfamily superfamily | d.41.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 家族 Family family | d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 结构域编号 domain_id | d1jrpb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.133 — Molybdenum cofactor-binding domain |
| 超家族 Superfamily superfamily | d.133.1 — Molybdenum cofactor-binding domain |
| 家族 Family family | d.133.1.1 — Molybdenum cofactor-binding domain |
| 结构域编号 domain_id | d1jrpc1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.56 — CO dehydrogenase ISP C-domain like |
| 超家族 Superfamily superfamily | a.56.1 — CO dehydrogenase ISP C-domain like |
| 家族 Family family | a.56.1.1 — CO dehydrogenase ISP C-domain like |
| 结构域编号 domain_id | d1jrpc2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.15 — beta-Grasp (ubiquitin-like) |
| 超家族 Superfamily superfamily | d.15.4 — 2Fe-2S ferredoxin-like |
| 家族 Family family | d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins |
| 结构域编号 domain_id | d1jrpc3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.87 — CO dehydrogenase flavoprotein C-domain-like |
| 超家族 Superfamily superfamily | d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 家族 Family family | d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 结构域编号 domain_id | d1jrpc4 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.145 — FAD-binding/transporter-associated domain-like |
| 超家族 Superfamily superfamily | d.145.1 — FAD-binding/transporter-associated domain-like |
| 家族 Family family | d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like |
| 结构域编号 domain_id | d1jrpd1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.41 — alpha/beta-Hammerhead |
| 超家族 Superfamily superfamily | d.41.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 家族 Family family | d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 结构域编号 domain_id | d1jrpd2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.133 — Molybdenum cofactor-binding domain |
| 超家族 Superfamily superfamily | d.133.1 — Molybdenum cofactor-binding domain |
| 家族 Family family | d.133.1.1 — Molybdenum cofactor-binding domain |
| 结构域编号 domain_id | d1jrpe1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.56 — CO dehydrogenase ISP C-domain like |
| 超家族 Superfamily superfamily | a.56.1 — CO dehydrogenase ISP C-domain like |
| 家族 Family family | a.56.1.1 — CO dehydrogenase ISP C-domain like |
| 结构域编号 domain_id | d1jrpe2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.15 — beta-Grasp (ubiquitin-like) |
| 超家族 Superfamily superfamily | d.15.4 — 2Fe-2S ferredoxin-like |
| 家族 Family family | d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins |
| 结构域编号 domain_id | d1jrpe3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.87 — CO dehydrogenase flavoprotein C-domain-like |
| 超家族 Superfamily superfamily | d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 家族 Family family | d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 结构域编号 domain_id | d1jrpe4 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.145 — FAD-binding/transporter-associated domain-like |
| 超家族 Superfamily superfamily | d.145.1 — FAD-binding/transporter-associated domain-like |
| 家族 Family family | d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like |
| 结构域编号 domain_id | d1jrpf1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.41 — alpha/beta-Hammerhead |
| 超家族 Superfamily superfamily | d.41.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 家族 Family family | d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 结构域编号 domain_id | d1jrpf2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.133 — Molybdenum cofactor-binding domain |
| 超家族 Superfamily superfamily | d.133.1 — Molybdenum cofactor-binding domain |
| 家族 Family family | d.133.1.1 — Molybdenum cofactor-binding domain |
| 结构域编号 domain_id | d1jrpg1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.56 — CO dehydrogenase ISP C-domain like |
| 超家族 Superfamily superfamily | a.56.1 — CO dehydrogenase ISP C-domain like |
| 家族 Family family | a.56.1.1 — CO dehydrogenase ISP C-domain like |
| 结构域编号 domain_id | d1jrpg2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.15 — beta-Grasp (ubiquitin-like) |
| 超家族 Superfamily superfamily | d.15.4 — 2Fe-2S ferredoxin-like |
| 家族 Family family | d.15.4.2 — 2Fe-2S ferredoxin domains from multidomain proteins |
| 结构域编号 domain_id | d1jrpg3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.87 — CO dehydrogenase flavoprotein C-domain-like |
| 超家族 Superfamily superfamily | d.87.2 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 家族 Family family | d.87.2.1 — CO dehydrogenase flavoprotein C-terminal domain-like |
| 结构域编号 domain_id | d1jrpg4 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.145 — FAD-binding/transporter-associated domain-like |
| 超家族 Superfamily superfamily | d.145.1 — FAD-binding/transporter-associated domain-like |
| 家族 Family family | d.145.1.3 — CO dehydrogenase flavoprotein N-terminal domain-like |
| 结构域编号 domain_id | d1jrph1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.41 — alpha/beta-Hammerhead |
| 超家族 Superfamily superfamily | d.41.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 家族 Family family | d.41.1.1 — CO dehydrogenase molybdoprotein N-domain-like |
| 结构域编号 domain_id | d1jrph2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.133 — Molybdenum cofactor-binding domain |
| 超家族 Superfamily superfamily | d.133.1 — Molybdenum cofactor-binding domain |
| 家族 Family family | d.133.1.1 — Molybdenum cofactor-binding domain |
CATH v4.4 (38 domains)
| 结构域编号 domain_id | 1jrpA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 20 — Ubiquitin-like (UB roll) |
| 同源超家族 H-superfamily homologous superfamily | 30 — Beta-grasp domain |
| 结构域编号 domain_id | 1jrpA02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 150 — DNA polymerase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 120 — [2Fe-2S]-binding domain |
| 结构域编号 domain_id | 1jrpA04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 390 — Enolase-like; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 50 — CO dehydrogenase flavoprotein, C-terminal domain |
| 结构域编号 domain_id | 1jrpB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 1170 — Aldehyde Oxidoreductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead |
| 结构域编号 domain_id | 1jrpB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpB03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpB04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpB05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 20 — Ubiquitin-like (UB roll) |
| 同源超家族 H-superfamily homologous superfamily | 30 — Beta-grasp domain |
| 结构域编号 domain_id | 1jrpC02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 150 — DNA polymerase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 120 — [2Fe-2S]-binding domain |
| 结构域编号 domain_id | 1jrpC03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2 |
| 结构域编号 domain_id | 1jrpC04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 10 — |
| 结构域编号 domain_id | 1jrpC05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 390 — Enolase-like; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 50 — CO dehydrogenase flavoprotein, C-terminal domain |
| 结构域编号 domain_id | 1jrpD01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 1170 — Aldehyde Oxidoreductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead |
| 结构域编号 domain_id | 1jrpD02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpD03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpD04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpD05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpE01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 20 — Ubiquitin-like (UB roll) |
| 同源超家族 H-superfamily homologous superfamily | 30 — Beta-grasp domain |
| 结构域编号 domain_id | 1jrpE02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 150 — DNA polymerase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 120 — [2Fe-2S]-binding domain |
| 结构域编号 domain_id | 1jrpE03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2 |
| 结构域编号 domain_id | 1jrpE04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 10 — |
| 结构域编号 domain_id | 1jrpE05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 390 — Enolase-like; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 50 — CO dehydrogenase flavoprotein, C-terminal domain |
| 结构域编号 domain_id | 1jrpF01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 1170 — Aldehyde Oxidoreductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead |
| 结构域编号 domain_id | 1jrpF02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpF03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpF04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpF05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpG01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 20 — Ubiquitin-like (UB roll) |
| 同源超家族 H-superfamily homologous superfamily | 30 — Beta-grasp domain |
| 结构域编号 domain_id | 1jrpG02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 150 — DNA polymerase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 120 — [2Fe-2S]-binding domain |
| 结构域编号 domain_id | 1jrpG03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2 |
| 结构域编号 domain_id | 1jrpG04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 10 — |
| 结构域编号 domain_id | 1jrpG05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 390 — Enolase-like; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 50 — CO dehydrogenase flavoprotein, C-terminal domain |
| 结构域编号 domain_id | 1jrpH01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 1170 — Aldehyde Oxidoreductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — Aldehyde oxidase/xanthine dehydrogenase, a/b hammerhead |
| 结构域编号 domain_id | 1jrpH02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpH03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpH04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
| 结构域编号 domain_id | 1jrpH05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 365 — Aldehyde Oxidoreductase; domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aldehyde oxidase/xanthine dehydrogenase, molybdopterin binding domain |
