1jy4
B4DIMER: A DE NOVO DESIGNED EIGHT-STRANDED BETA-SHEET ASSEMBLED USING A DISULFIDE BOND

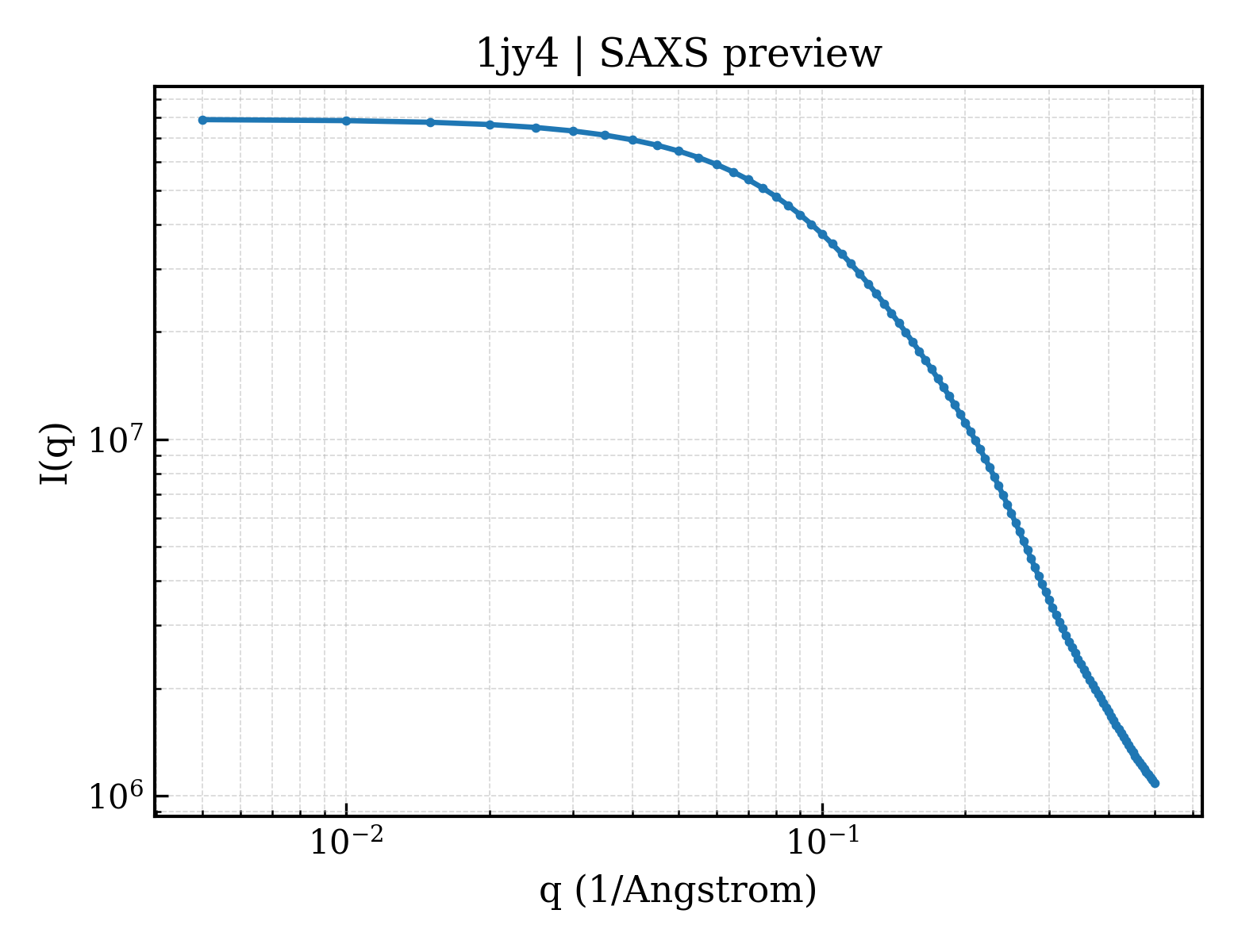

SAXS 散射曲线 SAXS Profile

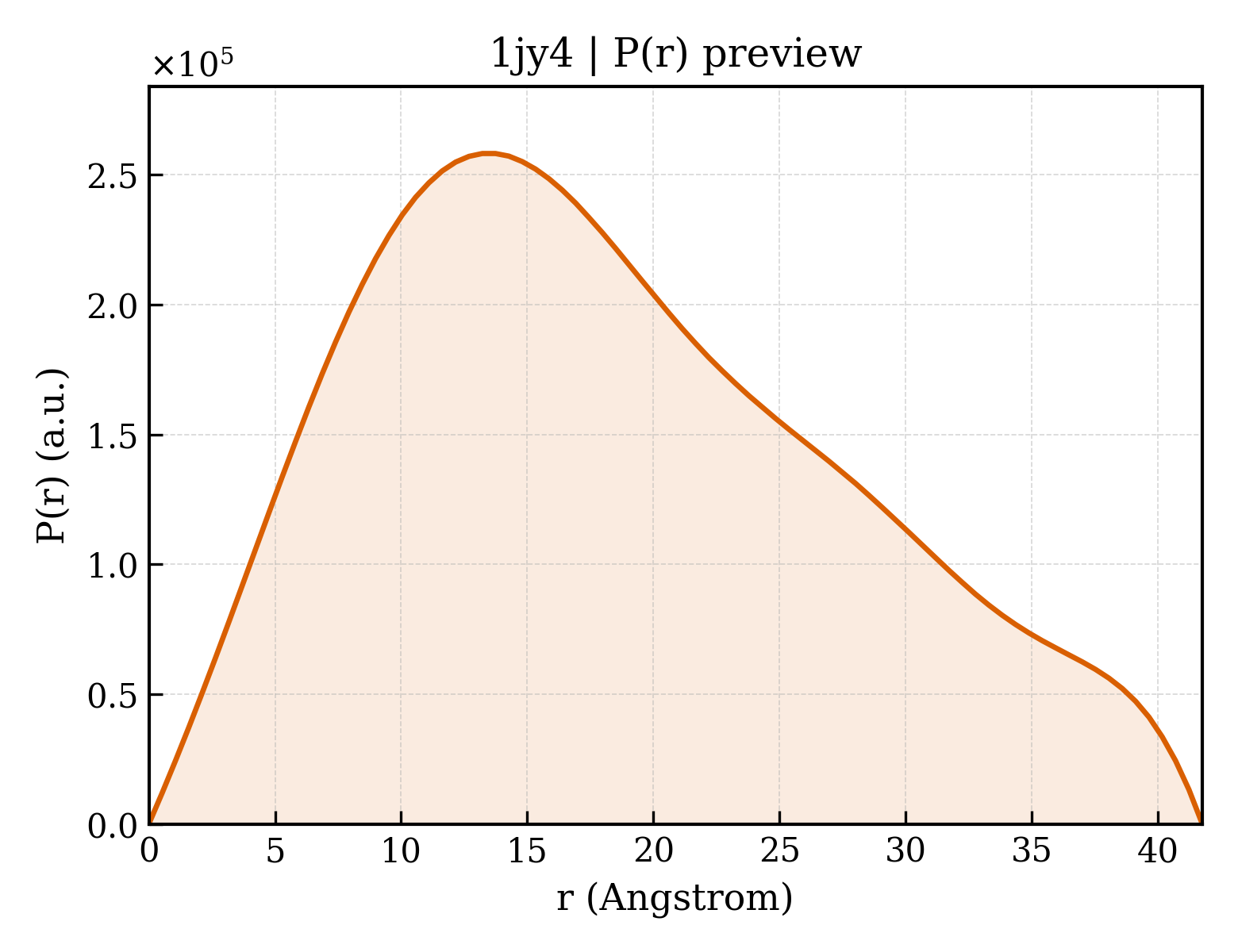

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1jy4 |
| 沉积日期 deposition_date | 2001-09-11 |
| 结构标题 title | B4DIMER: A DE NOVO DESIGNED EIGHT-STRANDED BETA-SHEET ASSEMBLED USING A DISULFIDE BOND |
| 关键词 keywords | eight-stranded beta-sheet, disulfide bond, de novo protein design, DE NOVO PROTEIN; DE NOVO PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 15.59 Å |
| 回转半径 Rg (电子) rg_electron | 15.43 Å |
| 零角强度 I(0) i0 | 79077200.00 |
| 分子量 molecular_weight | 78414.0 kDa |
| 排除体积 excluded_volume | 100150 ų |
| 包络体积 envelope_volume | 22448 ų |
| 水化壳体积 shell_volume | 11576 ų |
| 包络直径 envelope_diameter | 70.1 Å |
| 壳层 Rg shell_rg | 22.67 Å |
| 包络 Rg envelope_rg | 19.23 Å |
| 形状 Rg shape_rg | 15.36 Å |
| 总 Rg total_rg | 16.02 Å |
| 总原子数 total_atoms | 10360 |
| 残基数 n_residues | 640 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 41.8 Å |
| Rg (实空间) rg_real | 14.46 Å |
| Rg 误差 (实空间) rg_real_error | 0.09 Å |
| I(0) (实空间) i0_real | 7.5360e+07 |
| I(0) 误差 (实空间) i0_real_error | 6.1210e+05 |
| Rg (倒空间) rg_reciprocal | 15.89 Å |
| I(0) (倒空间) i0_reciprocal | 79080000.0000 |
| 解质量估计 total_estimate | 0.6664 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 0 |
| 主峰位置 r_peak_primary | — Å |
| 偏度 Skewness skewness | 0.405 |
| 峰度 Kurtosis kurtosis | -0.617 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 3.7580 |
| 最高正则化参数 α highest_alpha | 66510.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.007; Oscil: 0.985; Stabil: 0.985; Sysdev: 0.000; Positv: 1.000; Valcen: 0.761; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 2 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1jy4a_ |
| 类 Class class | k — Designed proteins |
| 折叠类型 Fold fold | k.35 — Beta-sheet designs |
| 超家族 Superfamily superfamily | k.35.1 — Beta-sheet designs |
| 家族 Family family | k.35.1.1 — Beta-sheet designs |
| 结构域编号 domain_id | d1jy4b_ |
| 类 Class class | k — Designed proteins |
| 折叠类型 Fold fold | k.35 — Beta-sheet designs |
| 超家族 Superfamily superfamily | k.35.1 — Beta-sheet designs |
| 家族 Family family | k.35.1.1 — Beta-sheet designs |
