SAXSdb — 1kdd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

No usable UniProt protein identity is available for this entry.

The relationship tables retain this entry's assembly and composition data, but cross-PDB links for the same protein cannot be established reliably without a unified protein identity.

Assembly Composition of the Current Entry

Assembly	Physical composition	Protein state	蛋白 / DNA / RNA / 其他Polymer	Data consistency
1	Protein heterocomplex	Heteromer	2 / 0 / 0 / 0	Consistent with protein count
2	Protein heterocomplex	Heteromer	2 / 0 / 0 / 0	Consistent with protein count
3	Protein heterocomplex	Heteromer	2 / 0 / 0 / 0	Consistent with protein count

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1kdd
Deposition date deposition_date	2001-11-12
Structure title title	X-ray structure of the coiled coil GCN4 ACID BASE HETERODIMER ACID-d12La16I BASE-d12La16L
Keywords keywords	coiled coil heterodimer, DE NOVO PROTEIN; DE NOVO PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1kdd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

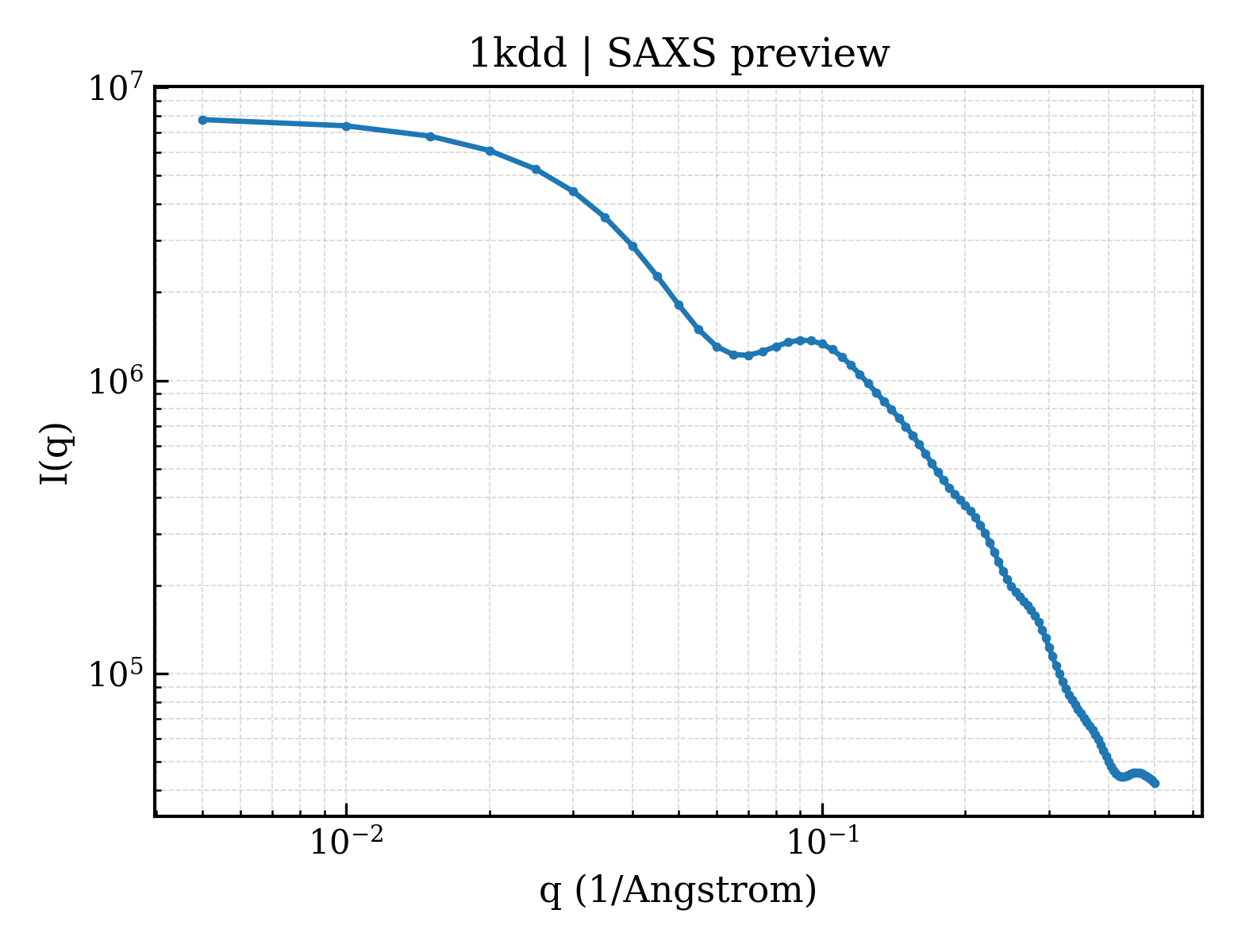

1kdd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

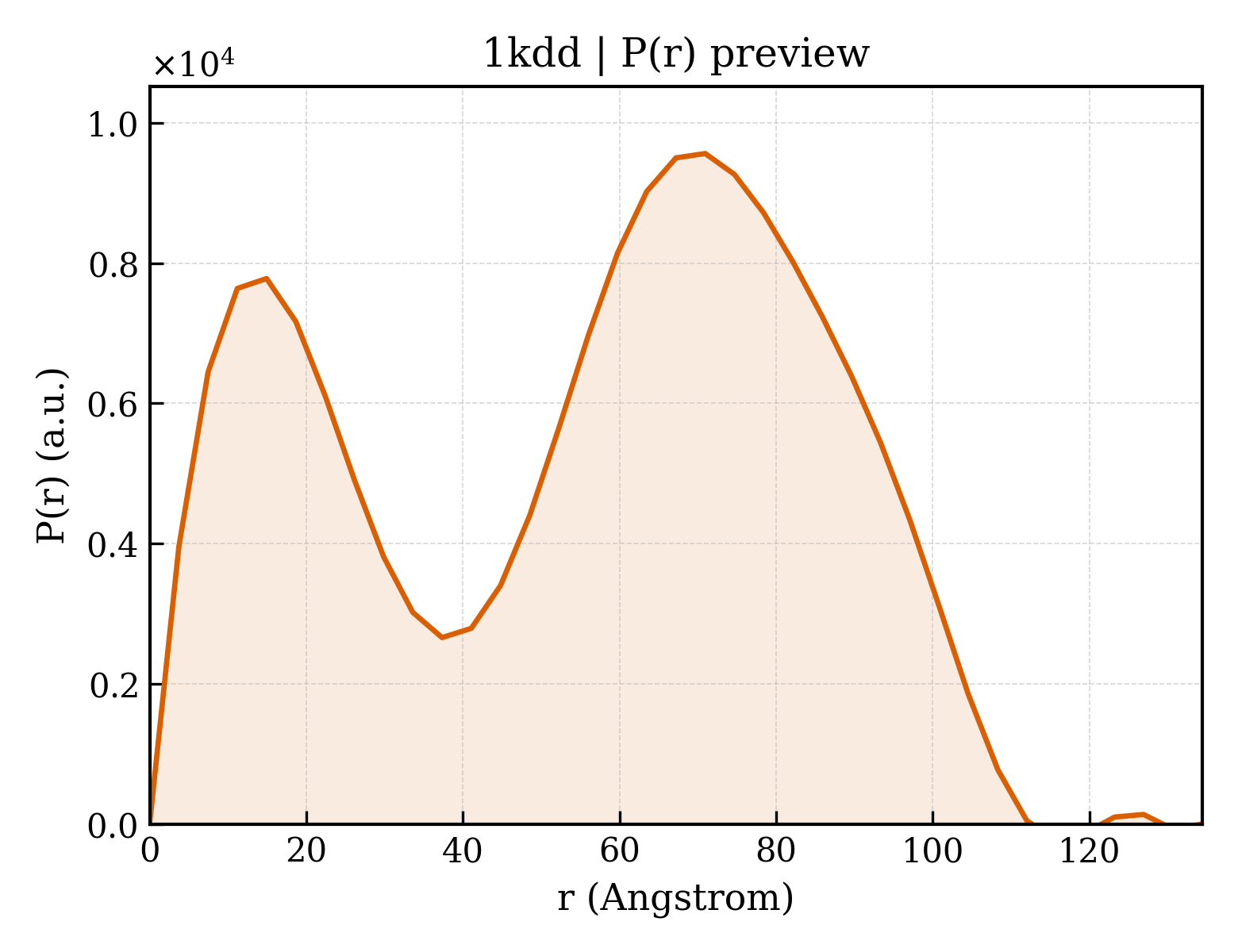

1kdd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.14 Å
Rg (electron density)	15.58 Å
Total Rg	16.51 Å
Atom count	550
Residues	70
Excluded volume	9837 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1kdd__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1kdd__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1kdd__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GCN4 ACID BASE HETERODIMER BASE-d12La16L
Molecular weight formula_weight	4157.1 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,E
Atom count atom_count	1706

XKVKQLKAKVEELKSKLWHLKNKVARLKKKNAECKA

Entity 2 Entity 2 polymer

Description description	GCN4 ACID BASE HETERODIMER ACID-d12La16I
Molecular weight formula_weight	4156.5 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,F

XEVKQLEAEVEELESEIWHLENEVARLEKENAECEA

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	113

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1kdda_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1kddb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1kddc_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1kddd_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1kdde_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1kddf_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

▶

Unit-cell length a length_a	86.278 Å
Unit-cell length b length_b	86.278 Å
Unit-cell length c length_c	78.864 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.140 Å
Low-resolution limit resolution_low	19.910 Å
R factor r_factor	—
R_work r_work	0.2523
R_free r_free	0.3022

X-ray structure of the coiled coil GCN4 ACID BASE HETERODIMER ACID-d12La16I BASE-d12La16L
