1kga
STRUCTURE OF 2-KETO-3-DEOXY-6-PHOSPHOGLUCONATE ALDOLASE AT 2.8 ANGSTROMS RESOLUTION
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1kga |
| 沉积日期 deposition_date | 1978-08-21 |
| 结构标题 title | STRUCTURE OF 2-KETO-3-DEOXY-6-PHOSPHOGLUCONATE ALDOLASE AT 2.8 ANGSTROMS RESOLUTION |
| 关键词 keywords | LYASE (ALDEHYDE), LYASE; LYASE |
| 实验方法 method | X-RAY DIFFRACTION |

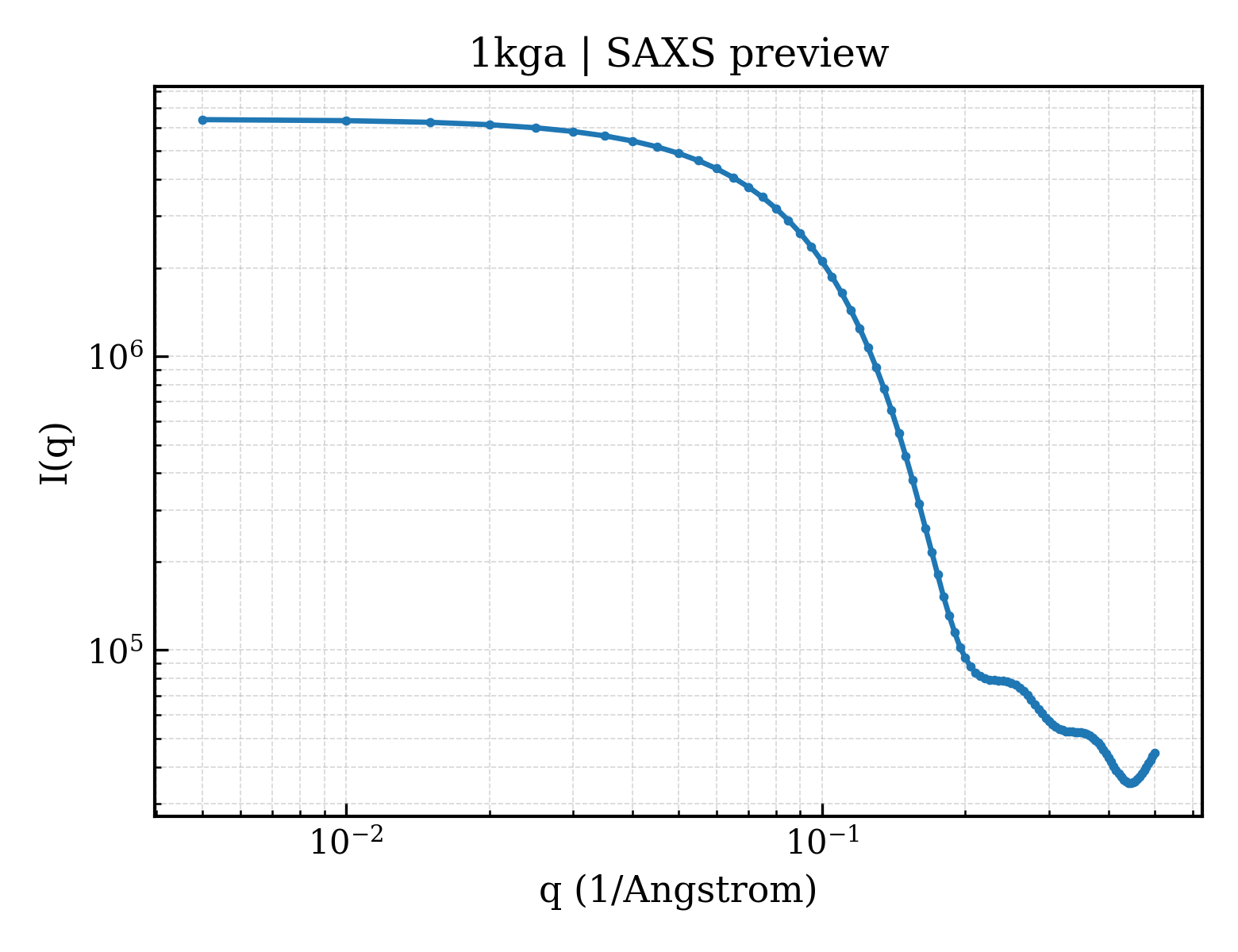

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 17.92 Å |
| 回转半径 Rg (电子) rg_electron | 17.08 Å |
| 零角强度 I(0) i0 | 6408990.00 |
| 分子量 molecular_weight | 19030.0 kDa |
| 排除体积 excluded_volume | 38060 ų |
| 包络体积 envelope_volume | 17844 ų |
| 水化壳体积 shell_volume | 10197 ų |
| 包络直径 envelope_diameter | 51.6 Å |
| 壳层 Rg shell_rg | 20.28 Å |
| 包络 Rg envelope_rg | 15.44 Å |
| 形状 Rg shape_rg | 17.07 Å |
| 总 Rg total_rg | 17.52 Å |
| 总原子数 total_atoms | — |
| 残基数 n_residues | — |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

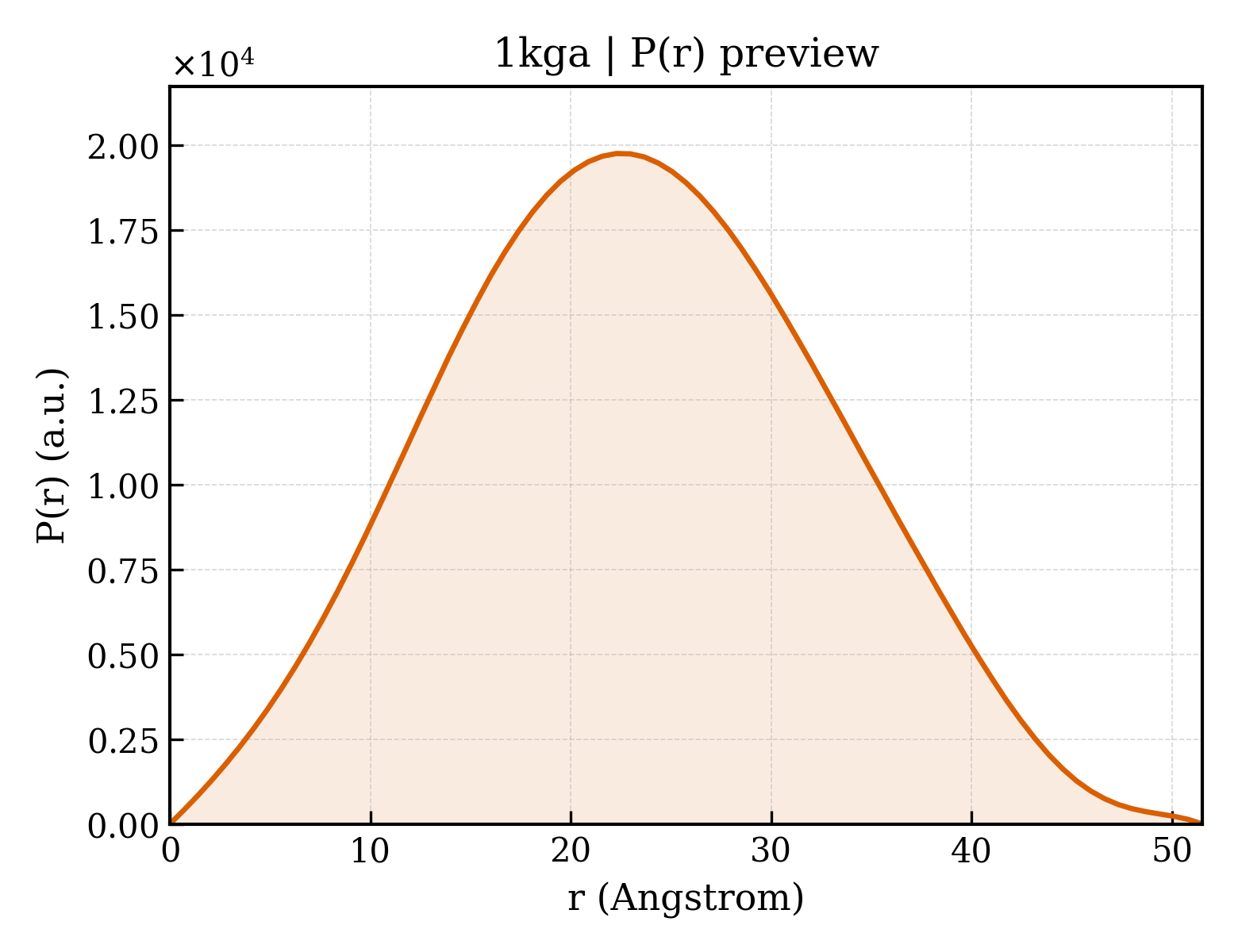

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 51.5 Å |
| Rg (实空间) rg_real | 17.78 Å |
| Rg 误差 (实空间) rg_real_error | 0.07 Å |
| I(0) (实空间) i0_real | 6.2090e+06 |
| I(0) 误差 (实空间) i0_real_error | 4.8890e+04 |
| Rg (倒空间) rg_reciprocal | 17.79 Å |
| I(0) (倒空间) i0_reciprocal | 6409000.0000 |
| 解质量估计 total_estimate | 0.7289 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 22.3 Å |
| 偏度 Skewness skewness | 0.092 |
| 峰度 Kurtosis kurtosis | -0.501 |
| 角度范围 angular_range | — – 0.4450 Å−1 |
| 当前正则化参数 α current_alpha | 9.4140 |
| 最高正则化参数 α highest_alpha | 968100.0000 |
| 实空间数据点数 n_real_points | 75 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.010; Oscil: 0.984; Stabil: 0.940; Sysdev: 0.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.736 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 1 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1kgaa_ |
| 类 Class class | i — Low resolution protein structures |
| 折叠类型 Fold fold | i.12 — Proteins of incorrect, partial and unknown sequence |
| 超家族 Superfamily superfamily | i.12.1 — Proteins of incorrect, partial and unknown sequence |
| 家族 Family family | i.12.1.1 — Proteins of incorrect, partial and unknown sequence |
