SAXSdb — 1lci

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LUCIFERASE

Photinus pyralis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–550	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：microbatch under oil；pH 7.8；283 K；2 MICROLITRE OF LUCIFERASE (20 MG/ML) IN 0.2M AMMONIUM SULFATE, 0.001M EDTA, 0.001M DTT, 10% GLYCEROL, 25% ETHYLENE GLYCOL, 0.025M TRIS-HCL PH7.8 + 2 MICROLITRE 0.5M LITHIUM SULFATE, 26% PEG 8000, 0.1M TRIS-HCL PH7.8 AT 10 DEGREES CELSIUS IN MICROBATCH UNDER OIL. CRYOPROTECTANT SOLUTION: 8% PEG 8000, 10% GLYCEROL, 12.5% ETHYLENE GLYCOL, 0.1M TRIS-HCL PH7.8, microbatch under oil, temperature 283K	Resolution 2.00 Å R-free 0.265

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1LCI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BA3 FIREFLY LUCIFERASE IN COMPLEX WITH BROMOFORM Deposited 1998-04-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	MBR TRIBROMOMETHANE × 2	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 7.8；283 K；2 MICROLITRE OF LUCIFERASE (20 MG/ML) IN 0.2M AMMONIUM SULFATE, 0.001M EDTA, 0.001M DTT, 10% GLYCEROL, 25% ETHYLENE GLYCOL, 0.025M TRIS-HCL PH7.8 + 2 MICROLITRE 0.5M LITHIUM SULFATE, 26% PEG 8000, 0.1M TRIS-HCL PH7.8 AT 10 DEGREES CELSIUS IN MICROBATCH UNDER OIL., microbatch under oil, temperature 283K	Resolution 2.20 Å R-free 0.239
3IEP Firefly luciferase apo structure (P41 form) Deposited 2009-07-23	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；30% PEG 1500, 8% MPD, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 2.10 Å R-free 0.221
3IER Firefly luciferase apo structure (P41 form) with PEG 400 bound Deposited 2009-07-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；25% PEG 400, 20% PEG 3350, 0.1M MgCl2, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 2.05 Å R-free 0.225
3IES Firefly luciferase inhibitor complex Deposited 2009-07-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	M24 5'-O-[(R)-[({3-[5-(2-fluorophenyl)-1,2,4-oxadiazol-3-yl]phenyl}carbonyl)oxy](hydroxy)phosphoryl]adenosine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；30% PEG 1500, 8% MPD, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 2.00 Å R-free 0.218
3RIX 1.7A resolution structure of a firefly luciferase-Aspulvinone J inhibitor complex Deposited 2011-04-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	923 (5Z)-4-hydroxy-3-[(2R)-2-(2-hydroxypropan-2-yl)-2,3-dihydro-1-benzofuran-5-yl]-5-{[(2R)-2-(2-hydroxypropan-2-yl)-2,3-dihydro-1-benzofuran-5-yl]methylidene}furan-2(5H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；25% (v/v) PEG 400, 20% (v/v) PEG 3350, 0.1 M MgCl2, 0.1 M Tris, pH 8.5, vapor diffusion, temperature 277K	Resolution 1.70 Å R-free 0.218
4E5D 2.2A resolution structure of a firefly luciferase-benzothiazole inhibitor complex Deposited 2012-03-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	0NJ 2-(2-fluorophenyl)-6-methoxy-1,3-benzothiazole × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；25% (v/v) PEG 400, 20% (v/v) PEG 3350, 0.1 M MgCl2, 0.1 M Tris, pH 8.5, vapor diffusion, temperature 277K	Resolution 2.20 Å R-free 0.232
4G36 Photinus pyralis luciferase in the adenylate-forming conformation bound to DLSA Deposited 2012-07-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；300 mM Na/K Tartrate, 20% PEG 6000, 100 mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.62 Å R-free 0.238
4G36 Photinus pyralis luciferase in the adenylate-forming conformation bound to DLSA Deposited 2012-07-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–550（550 aa）	Not recorded	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；300 mM Na/K Tartrate, 20% PEG 6000, 100 mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.62 Å R-free 0.238
4G37 Structure of cross-linked firefly luciferase in second catalytic conformation Deposited 2012-07-13	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Mutation：C82S, I108C, T214A, A215L, C216A, I232A, C258S, F295L, E354K, C391S, Y447C	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1 XLX 4,4'-(ethylenediimino)bis[4-oxobutyrate] × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；273 K；30 % PEG 4000, 50 mM NaCl, 50 mM HEPPS, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 2.40 Å R-free 0.259
4G37 Structure of cross-linked firefly luciferase in second catalytic conformation Deposited 2012-07-13	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–550（550 aa）	Mutation：C82S, I108C, T214A, A215L, C216A, I232A, C258S, F295L, E354K, C391S, Y447C	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1 XLX 4,4'-(ethylenediimino)bis[4-oxobutyrate] × 1 SO4 SULFATE ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；273 K；30 % PEG 4000, 50 mM NaCl, 50 mM HEPPS, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 2.40 Å R-free 0.259
5DV9 Crystal structure of the Luciferase Deposited 2015-09-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；Li2SO4, PEG 8000, Tris	Resolution 2.40 Å R-free 0.241
5DWV Crystal structure of the Luciferase complexed with substrate analogue Deposited 2015-09-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	5J4 2-[6-(cyclobuta-1,3-dien-1-ylamino)-1,3-benzothiazol-2-yl]-1,3-thiazol-4-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；Li2SO4, PEG8000, Tris	Resolution 2.30 Å R-free 0.228
5GYZ luciferase AMP/7-cy-L complex Deposited 2016-09-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–438（435 aa） Fragment：UNP residues 4-438	Not recorded	7BV (4S)-2-[6-(azepan-1-yl)-1,3-benzothiazol-2-yl]-4,5-dihydro-1,3-thiazole-4-carboxylic acid × 1 AMP ADENOSINE MONOPHOSPHATE × 1 PEG DI(HYDROXYETHYL)ETHER × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；Sodium malonate, PEG3350	Resolution 2.40 Å R-free 0.227
5GZ2 luciferase complex with 7-cy-L Deposited 2016-09-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–438（436 aa） Fragment：UNP residues 3-438	Not recorded	7BV (4S)-2-[6-(azepan-1-yl)-1,3-benzothiazol-2-yl]-4,5-dihydro-1,3-thiazole-4-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；Sodium malonate , PEG3350	Resolution 2.00 Å R-free 0.239
5KYT Structure of Photinus pyralis Luciferase red light emitting variant Deposited 2016-07-22	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Mutation：S284T	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；23 % PEG 8000, 300 mM Na/K tartrate, 1.00 mM Tris	Resolution 2.00 Å R-free 0.218
5KYT Structure of Photinus pyralis Luciferase red light emitting variant Deposited 2016-07-22	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–550（550 aa）	Mutation：S284T	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；23 % PEG 8000, 300 mM Na/K tartrate, 1.00 mM Tris	Resolution 2.00 Å R-free 0.218
5KYV Structure of Photinus pyralis Luciferase green shifted light emitting variant Deposited 2016-07-22	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Mutation：V241I, G246A, F250S	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1 TLA L(+)-TARTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；23 % PEG 8000, 200 mM Na/K tartrate, 1.00 mM Tris	Resolution 2.50 Å R-free 0.247
5KYV Structure of Photinus pyralis Luciferase green shifted light emitting variant Deposited 2016-07-22	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–550（550 aa）	Mutation：V241I, G246A, F250S	SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；23 % PEG 8000, 200 mM Na/K tartrate, 1.00 mM Tris	Resolution 2.50 Å R-free 0.247
5WYS luciferase with inhibitor 3i Deposited 2017-01-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Not recorded	7V6 5-[(3R)-3-(4-boranylphenyl)-3-oxidanyl-propyl]-2-oxidanyl-benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8；293 K；0.5 M Li2SO4, 15% PEG8000, 0.1 M Tris	Resolution 3.00 Å R-free 0.270
6HPS Near-infrared dual bioluminescence imaging in vivo using infra-luciferin Deposited 2018-09-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–546（543 aa）	Not recorded	GKH [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl ~{N}-[[2-[(~{E})-2-(6-oxidanyl-1,3-benzothiazol-2-yl)ethenyl]-1,3-thiazol-4-yl]carbonyl]sulfamate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；150 mM ammonium sulfate, 50 mM HEPES pH 7.0, 2% PEG 1000	Resolution 3.10 Å R-free 0.333
6HPS Near-infrared dual bioluminescence imaging in vivo using infra-luciferin Deposited 2018-09-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 4–546（543 aa）	Not recorded	GKH [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl ~{N}-[[2-[(~{E})-2-(6-oxidanyl-1,3-benzothiazol-2-yl)ethenyl]-1,3-thiazol-4-yl]carbonyl]sulfamate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；278 K；150 mM ammonium sulfate, 50 mM HEPES pH 7.0, 2% PEG 1000	Resolution 3.10 Å R-free 0.333
6Q2M Crystal structure of Photinus pyralis Luciferase Pps6 mutant in complex with DLSA Deposited 2019-08-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–550（550 aa）	Mutation：T214N, A222C, Y255F, S276T, H332N, E354N	SO4 SULFATE ION × 1 DYD (2S,5S)-hexane-2,5-diol × 2 EDO 1,2-ETHANEDIOL × 16 SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.05M EPPS pH 8.5, 25% PEG4000, 2% 2,5 Hexanediol	Resolution 2.75 Å R-free 0.218
6Q2M Crystal structure of Photinus pyralis Luciferase Pps6 mutant in complex with DLSA Deposited 2019-08-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–550（550 aa）	Mutation：T214N, A222C, Y255F, S276T, H332N, E354N	SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 7 SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.05M EPPS pH 8.5, 25% PEG4000, 2% 2,5 Hexanediol	Resolution 2.75 Å R-free 0.218
6Q2M Crystal structure of Photinus pyralis Luciferase Pps6 mutant in complex with DLSA Deposited 2019-08-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–550（550 aa）	Mutation：T214N, A222C, Y255F, S276T, H332N, E354N	SO4 SULFATE ION × 2 DYD (2S,5S)-hexane-2,5-diol × 2 EDO 1,2-ETHANEDIOL × 16 SLU 5'-O-[N-(DEHYDROLUCIFERYL)-SULFAMOYL] ADENOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.05M EPPS pH 8.5, 25% PEG4000, 2% 2,5 Hexanediol	Resolution 2.75 Å R-free 0.218

17 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LUCI_PHOPY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–550； UniProt 1–550

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lci
Deposition date deposition_date	1996-06-01
Structure title title	FIREFLY LUCIFERASE
Keywords keywords	OXIDOREDUCTASE, MONOOXYGENASE, PHOTOPROTEIN, LUMINESCENCE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.60 Å
Radius of gyration Rg (electron density) rg_electron	24.65 Å
Forward intensity I(0) i0	47798300.00
Molecular weight molecular_weight	56184.0 kDa
Excluded volume excluded_volume	71339 Å³
Envelope volume envelope_volume	85032 Å³
Hydration-shell volume shell_volume	28988 Å³
Envelope diameter envelope_diameter	88.9 Å
Shell Rg shell_rg	31.55 Å
Envelope Rg envelope_rg	24.55 Å
Shape Rg shape_rg	24.65 Å
Total Rg total_rg	25.43 Å
Total atoms total_atoms	3967
Residues n_residues	523
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	85.0 Å
Rg (real space) rg_real	25.54 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	4.7800e+07
I(0) uncertainty (real space) i0_real_error	7.0710e+05
Rg (reciprocal space) rg_reciprocal	25.56 Å
I(0) (reciprocal space) i0_reciprocal	47800000.0000
Solution quality estimate total_estimate	0.6970
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.5 Å
Skewness Skewness skewness	0.271
Kurtosis Kurtosis kurtosis	-0.345
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8544000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.867; Stabil: 1.000; Sysdev: 0.164; Positv: 1.000; Valcen: 0.999; Smooth: 0.964

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	LUCIFERASE
Molecular weight formula_weight	60819.0 kDa
EC 编号 ec_number	1.13.12.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4332

MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDAHIEVNITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAPANDIYNERELLNSMNISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQSMYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHARDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYKIQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGYGLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMSGYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESILLQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVVFVDEVPKGLTGKLDARKIREILIKAKKGGKSKL

来源 Source

来源生物 organism	Photinus pyralis
通用名 common_name	common eastern firefly
NCBI Class编号 ncbi_taxonomy_id	7054
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	365

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1lcia_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.23 — Acetyl-CoA synthetase-like
Superfamily Superfamily superfamily	e.23.1 — Acetyl-CoA synthetase-like
Family Family family	e.23.1.1 — Acetyl-CoA synthetase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1lciA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	980 —

Domain ID domain_id	1lciA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	980 —

Domain ID domain_id	1lciA03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	38 — Luciferase; domain 3
Homologous superfamily homologous superfamily	10 — Luciferase; Domain 3

Domain ID domain_id	1lciA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	30 — ANL, C-terminal domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	119.530 Å
Unit-cell length b length_b	119.530 Å
Unit-cell length c length_c	94.680 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.2650

fit	/app/data/saxs_computation/lc/1lci/1lci.fit
pddf	/app/data/pr_computation/lc/1lci/1lci.pr.out
profile	/app/data/saxs_computation/lc/1lci/1lci.dat

FIREFLY LUCIFERASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

LUCIFERASE

State in the Current Structure

Other States of the Same Protein in the Database

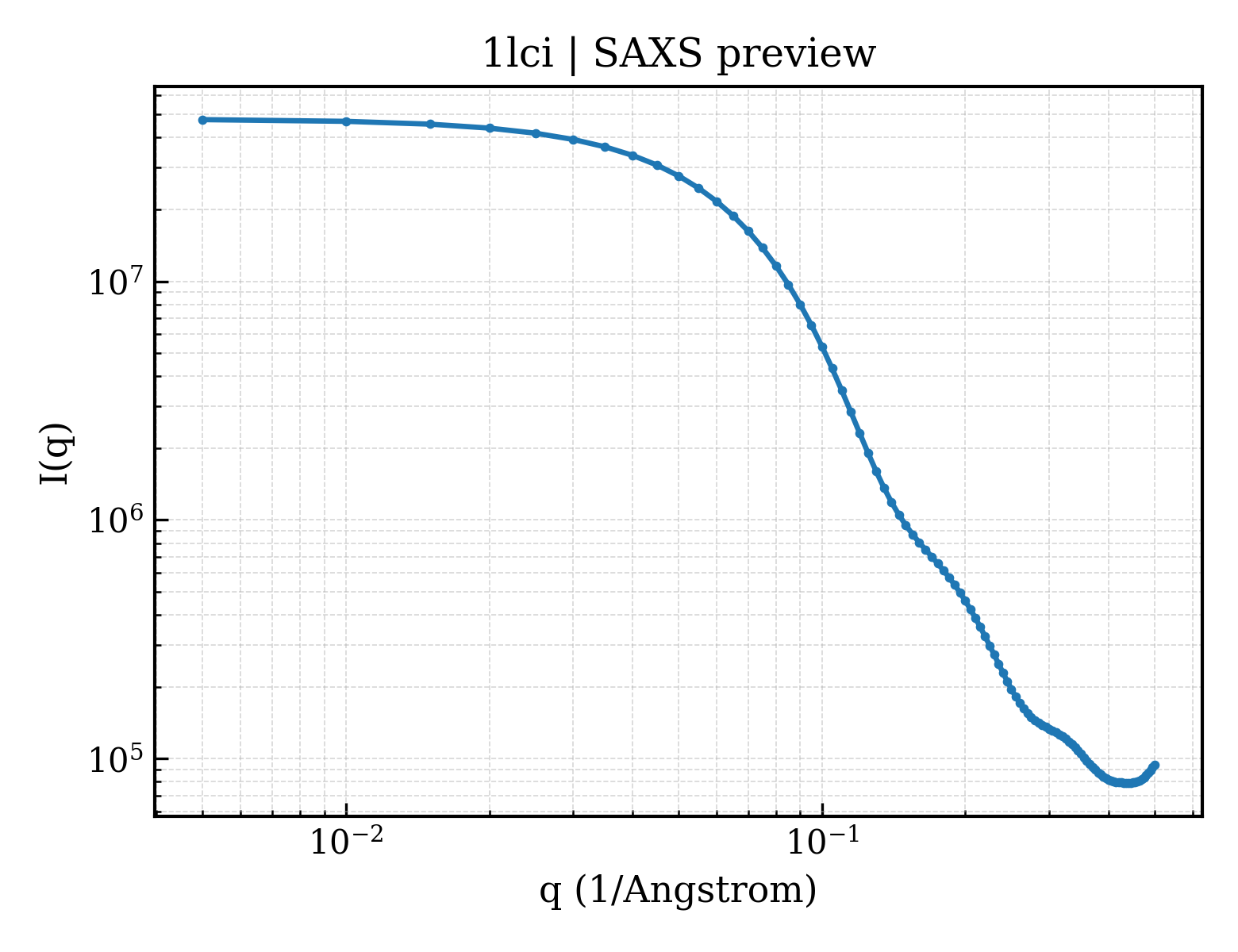

SAXS scattering curve SAXS Profile
