1lof

X-RAY STRUCTURE OF A BIANTENNARY OCTASACCHARIDE-LECTIN COMPLEX AT 2.3 ANGSTROMS RESOLUTION

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LEGUME ISOLECTIN I (ALPHA CHAIN)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 2	LEGUME ISOLECTIN I (BETA CHAIN) × 1 （P12306） LEGUME ISOLECTIN I (BETA CHAIN) × 1 （P12306） ;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose × 1 CALCIUM ION × 2 MANGANESE (II) ION × 2 water × 4	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	LEGUME ISOLECTIN I (BETA CHAIN) × 1 （P12306） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose × 1 CALCIUM ION × 1 MANGANESE (II) ION × 1 water × 2	Consistent with protein count
3	Other combination	Heteromer	Protein 2 其他Polymer 1	LEGUME ISOLECTIN I (BETA CHAIN) × 1 （P12306） ;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 1 MANGANESE (II) ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LECB_LATOC
Isoform	—
PDB entities	1, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–181； UniProt 1–181 Author chain C； PDBConstruct 1–181； UniProt 1–181

LEGUME ISOLECTIN I (BETA CHAIN)

OrganismNot specified

UniProt P12306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 2	LEGUME ISOLECTIN I (ALPHA CHAIN) × 1 （P04122） LEGUME ISOLECTIN I (ALPHA CHAIN) × 1 （P04122） ;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose × 1 CALCIUM ION × 2 MANGANESE (II) ION × 2 water × 4	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	LEGUME ISOLECTIN I (ALPHA CHAIN) × 1 （P04122） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose × 1 CALCIUM ION × 1 MANGANESE (II) ION × 1 water × 2	Consistent with protein count
3	Other combination	Heteromer	Protein 2 其他Polymer 1	LEGUME ISOLECTIN I (ALPHA CHAIN) × 1 （P04122） ;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 1 MANGANESE (II) ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEC1_LATOC
Isoform	—
PDB entities	2, 4
Chains and sequence ranges	Author chain B； PDBConstruct 1–52； UniProt 1–52 Author chain D； PDBConstruct 1–52； UniProt 1–53

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lof
Deposition date deposition_date	1993-01-27
Structure title title	X-RAY STRUCTURE OF A BIANTENNARY OCTASACCHARIDE-LECTIN COMPLEX AT 2.3 ANGSTROMS RESOLUTION
Keywords keywords	LECTIN; LECTIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1lof__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1lof__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

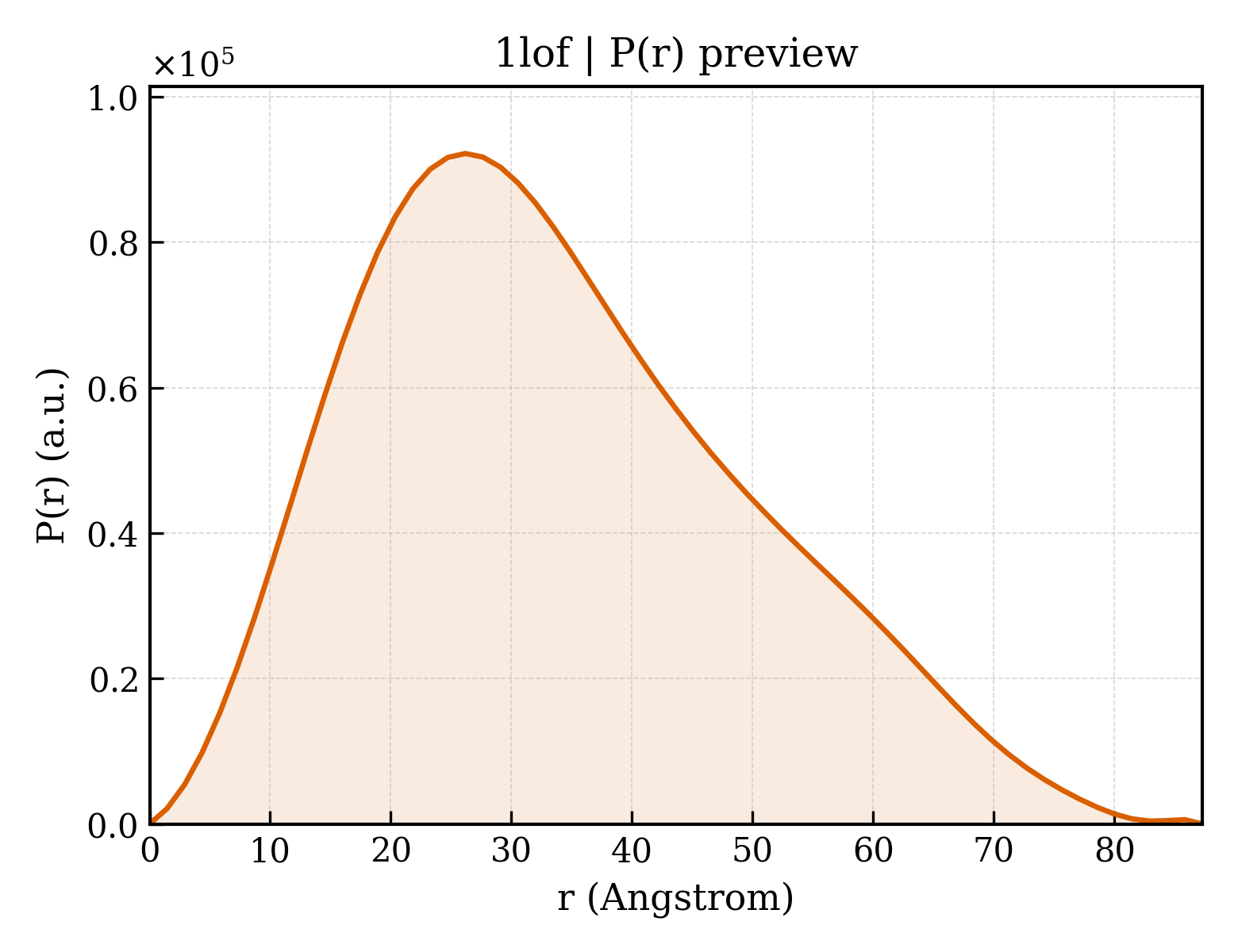

1lof__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.28 Å
Rg (electron density)	25.39 Å
Total Rg	26.27 Å
Atom count	3739
Residues	460
Excluded volume	66259 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1lof__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1lof__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1lof__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	LEGUME ISOLECTIN I (ALPHA CHAIN)
Molecular weight formula_weight	19847.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3969

TETTSFSITKFGPDQQNLIFQGDGYTTKERLTLTKAVRNTVGRALYSSPIHIWDSKTGNVANFVTSFTFVIDAPNSYNVADGFTFFIAPVDTKPQTGGGYLGVFNSKDYDKTSQTVAVEFDTFYNTAWDPSNGDRHIGIDVNSIKSINTKSWALQNGKEANVVIAFNAATNVLTVSLTYPN

Entity 2 Entity 2 polymer

Description description	LEGUME ISOLECTIN I (BETA CHAIN)
Molecular weight formula_weight	5783.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ETSYTLNEVVPLKEFVPEWVRIGFSATTGAEFAAHEVLSWYFHSELAGTSSS

Entity 3 Entity 3 polymer

Description description	LEGUME ISOLECTIN I (ALPHA CHAIN)
Molecular weight formula_weight	19906.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

TETTSFSITKFGPDQQNLIFQGDGYTTKERLTLTKAVRNTVGRALYSSPIHIWDSKTGNVANFVTSFTFVIDAPNSYNVADGFTFFIAPVDTKPQTGGGYLGVFNSKDYDKTSQTVAVEFDTFYNTAWDPSNGDRHIGIDVNSIKSINTKSWKLQNGKEANVVIAFNAATNVLTVSLTYPN

Entity 4 Entity 4 polymer

Description description	LEGUME ISOLECTIN I (BETA CHAIN)
Molecular weight formula_weight	5810.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

ETSYTLNEVVPLKEFVPEWVRIGFSATTGAEFAAHEVLSWYFHSELAGTSSN

Entity 5 Entity 5 branched

Description description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1438.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose
Molecular weight formula_weight	545.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	230

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1lof.1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d1lof.2
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

CATH v4.4 (2 domains)

Domain ID domain_id	1lofA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1lofC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	78.300 Å
Unit-cell length b length_b	75.400 Å
Unit-cell length c length_c	103.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1900
R_work r_work	0.1900
R_free r_free	—
