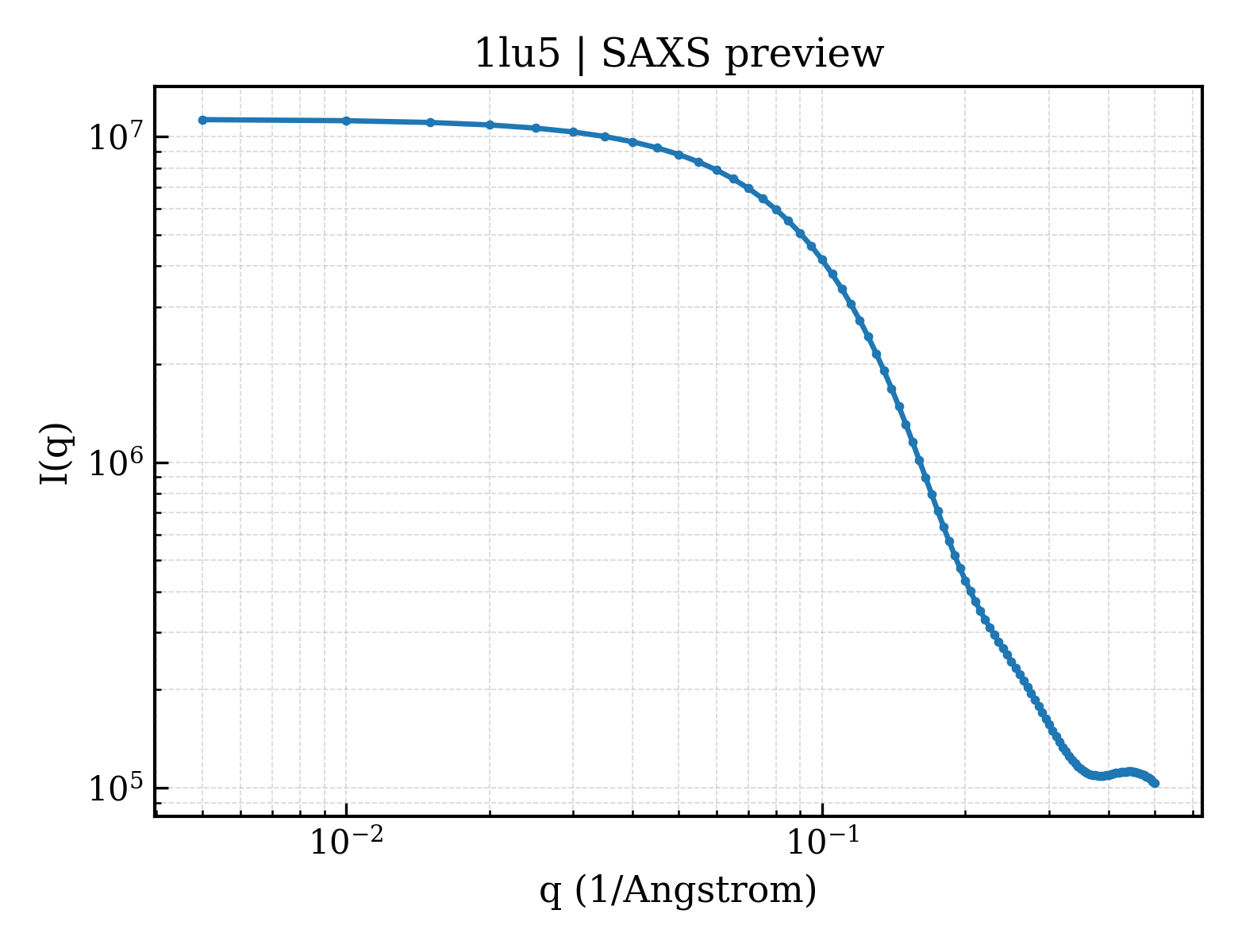

SAXS 散射曲线 SAXS Profile

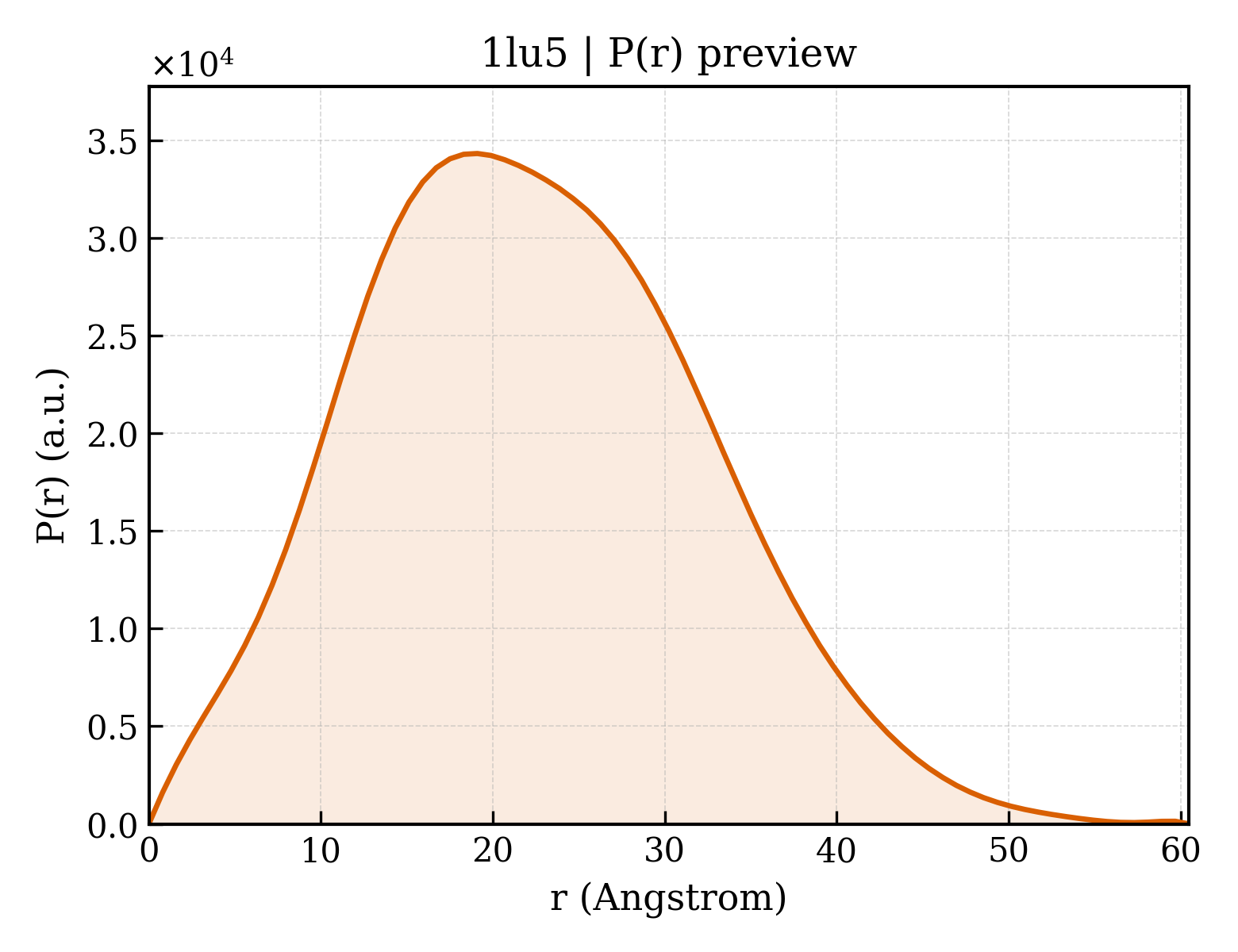

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1lu5 |
| 沉积日期 deposition_date | 2002-05-21 |
| 结构标题 title | 2.4 Angstrom Crystal Structure of the Asymmetric Platinum Complex {Pt(ammine)(cyclohexylamine)}2+ Bound to a Dodecamer DNA Duplex |
| 关键词 keywords | platinum-DNA complex, DNA; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 17.28 Å |
| 回转半径 Rg (电子) rg_electron | 16.91 Å |
| 零角强度 I(0) i0 | 11295000.00 |
| 分子量 molecular_weight | 15249.0 kDa |
| 排除体积 excluded_volume | 14591 ų |
| 包络体积 envelope_volume | 21380 ų |
| 水化壳体积 shell_volume | 11504 ų |
| 包络直径 envelope_diameter | 60.5 Å |
| 壳层 Rg shell_rg | 21.28 Å |
| 包络 Rg envelope_rg | 16.72 Å |
| 形状 Rg shape_rg | 16.93 Å |
| 总 Rg total_rg | 17.38 Å |
| 总原子数 total_atoms | 990 |
| 残基数 n_residues | 48 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 60.5 Å |
| Rg (实空间) rg_real | 17.27 Å |
| Rg 误差 (实空间) rg_real_error | 0.42 Å |
| I(0) (实空间) i0_real | 1.1290e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.3630e+05 |
| Rg (倒空间) rg_reciprocal | 17.27 Å |
| I(0) (倒空间) i0_reciprocal | 11300000.0000 |
| 解质量估计 total_estimate | 0.7099 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 19.1 Å |
| 偏度 Skewness skewness | 0.290 |
| 峰度 Kurtosis kurtosis | -0.266 |
| 角度范围 angular_range | — – 0.4600 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 454600.0000 |
| 实空间数据点数 n_real_points | 77 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.791;
Stabil: 1.000;
Sysdev: 0.307;
Positv: 1.000;
Valcen: 0.939;
Smooth: 0.992
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 31.644 Å |
| 晶胞边长 b length_b | 35.638 Å |
| 晶胞边长 c length_c | 46.556 Å |
| 晶胞夹角 α angle_alpha | 79.53 ° |
| 晶胞夹角 β angle_beta | 83.02 ° |
| 晶胞夹角 γ angle_gamma | 81.36 ° |
| 晶胞分子数 Z z_pdb | 2 |
对称性 Symmetry
| 空间群 space_group | P 1 |
| 空间群编号 int_tables_number | 1 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 2.400 Å |
| 最低分辨率 resolution_low | 50.000 Å |
| R 因子 r_factor | — |
| R_work r_work | — |
| R_free r_free | — |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | 5'-D(*CP*CP*TP*CP*TP*GP*GP*TP*CP*TP*CP*C)-3' |
| 分子量 formula_weight | 3565.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A,C |
| 原子数 atom_count | 1037 |
CCTCTGGTCTCC
Entity 2
polymer
| 描述 description | 5'-D(*GP*GP*AP*GP*AP*CP*CP*AP*GP*AP*GP*G)-3' |
| 分子量 formula_weight | 3761.5 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | B,D |
GGAGACCAGAGG
Entity 3
non-polymer
| 描述 description | CIS-(AMMINE)(CYCLOHEXYLAMINE)PLATINUM(II) COMPLEX |
| 分子量 formula_weight | 311.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
Entity 4
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 47 |
;2.4-A Crystal Structure of the Asymmetric Platinum Complex {Pt(ammine)(cyclohexylamine)}2+ Bound to
a Dodecamer DNA Duplex
;
J.Biol.Chem. (2002)
