SAXSdb — 1mey

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

No usable UniProt protein identity is available for this entry.

The relationship tables retain this entry's assembly and composition data, but cross-PDB links for the same protein cannot be established reliably without a unified protein identity.

Assembly Composition of the Current Entry

Assembly	Physical composition	Protein state	蛋白 / DNA / RNA / 其他Polymer	Data consistency
1	Protein–DNA	Monomer	1 / 2 / 0 / 0	Consistent with all polymers
2	Protein–DNA	Monomer	1 / 2 / 0 / 0	Consistent with all polymers
3	Protein monomer	Monomer	1 / 0 / 0 / 0	Consistent with protein count

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mey
Deposition date deposition_date	1996-09-27
Structure title title	CRYSTAL STRUCTURE OF A DESIGNED ZINC FINGER PROTEIN BOUND TO DNA
Keywords keywords	ZINC FINGER, PROTEIN-DNA INTERACTION, PROTEIN DESIGN, COMPLEX (ZINC FINGER-DNA), TRANSFERASE-DNA COMPLEX; TRANSFERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mey__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

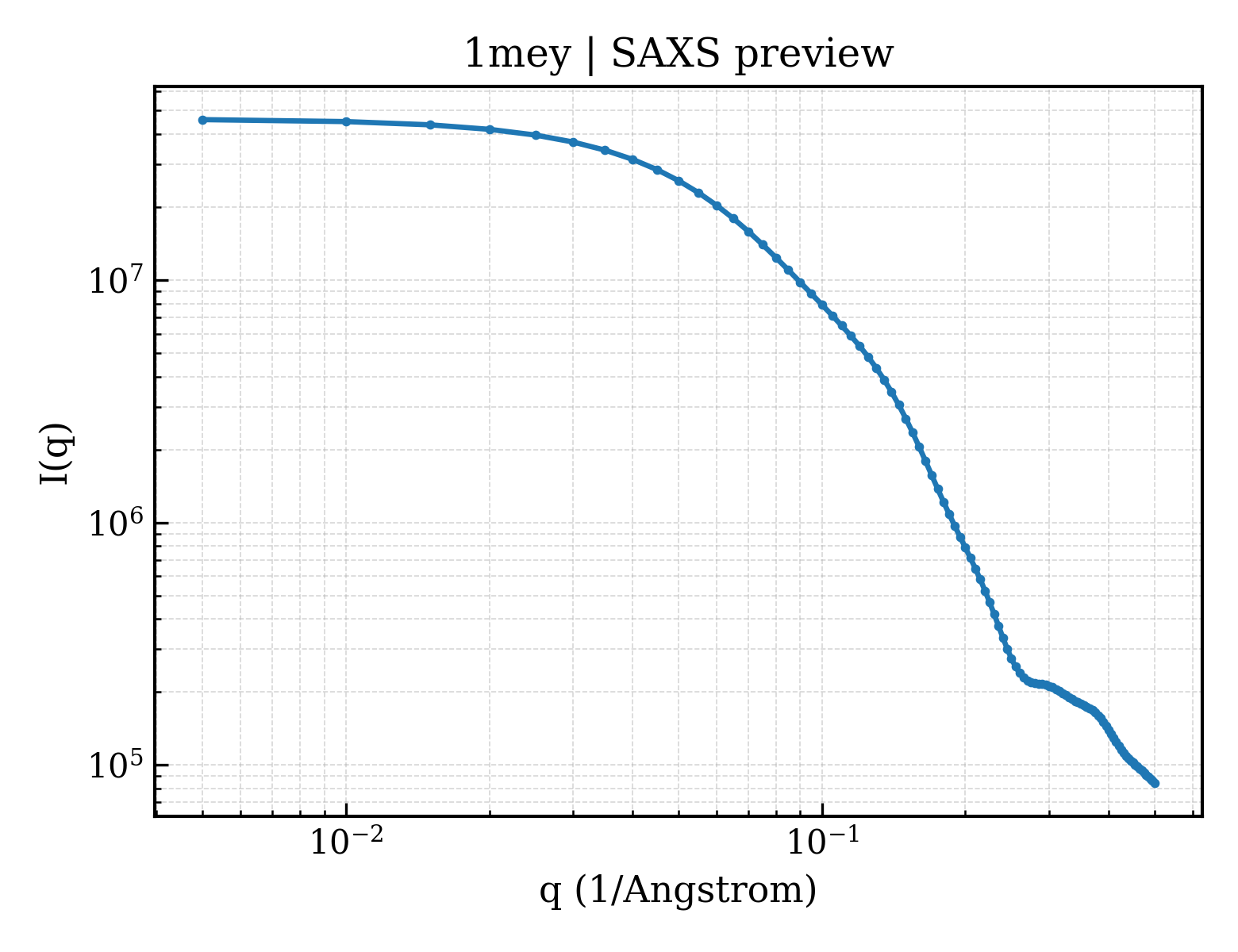

1mey__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

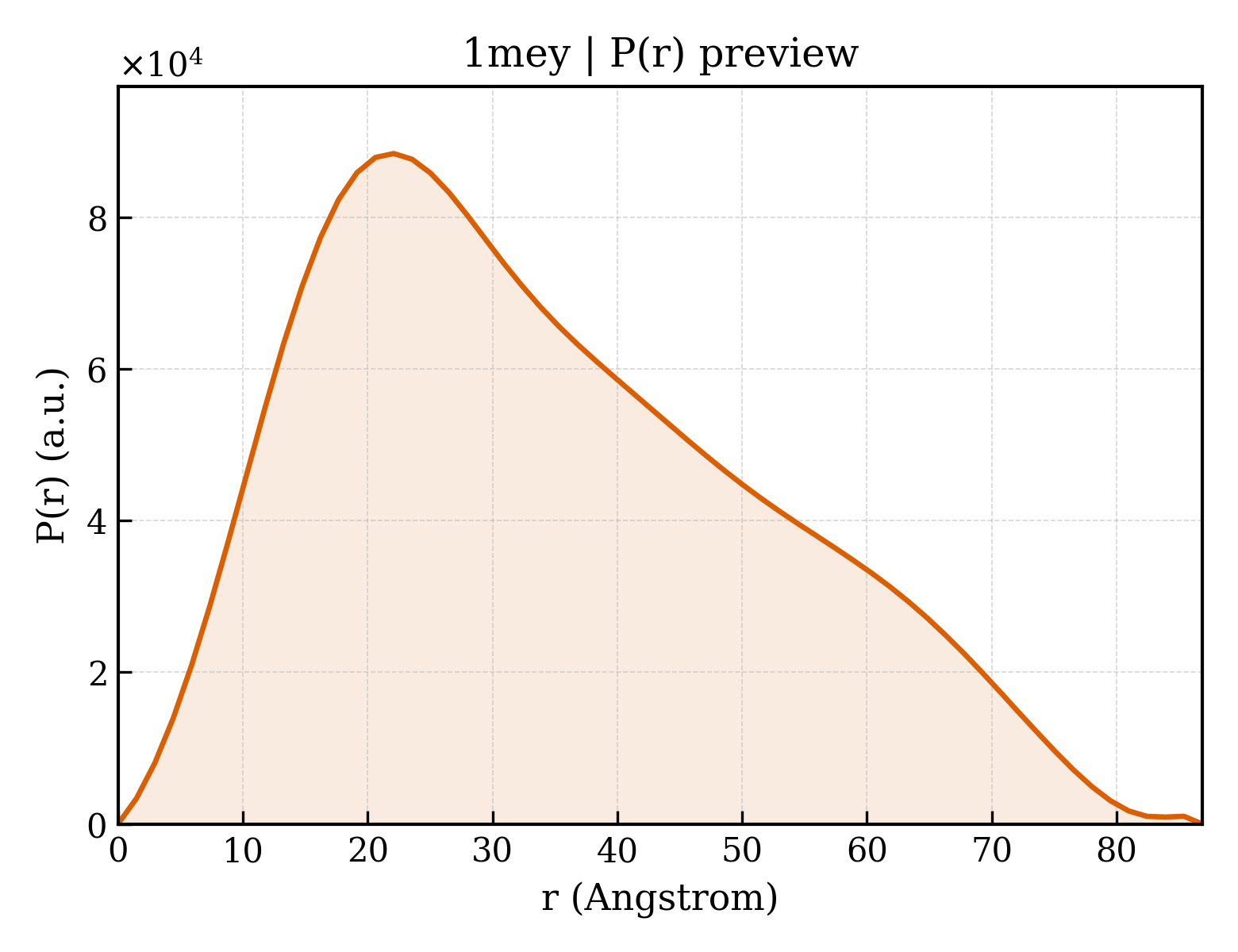

1mey__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.29 Å
Rg (electron density)	15.92 Å
Total Rg	16.72 Å
Atom count	1203
Residues	108
Excluded volume	19428 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mey__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1mey__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1mey__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(APTPGPAPGPGPCPAPGPAPAPCP*T)-3') ;
Molecular weight formula_weight	4024.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	A,D
Atom count atom_count	2773

ATGAGGCAGAACT

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(TPAPGPTPTPCPTPGPCPCPTP(C38)P*A)-3') ;
Molecular weight formula_weight	4043.5 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B,E

TAGTTCTGCCTCA

Entity 3 Entity 3 polymer

Description description	CONSENSUS ZINC FINGER
Molecular weight formula_weight	10147.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,G

MEKPYKCPECGKSFSQSSNLQKHQRTHTGEKPYKCPECGKSFSQSSDLQKHQRTHTGEKPYKCPECGKSFSRSDHLSRHQRTHQNKK

Source Source

Host organism host_organism

Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	132

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1meyc_
Class class	k — Designed proteins
Fold Fold fold	k.12 — Zinc finger design
Superfamily Superfamily superfamily	k.12.1 — Zinc finger design
Family Family family	k.12.1.1 — Zinc finger design

Domain ID domain_id	d1meyf_
Class class	k — Designed proteins
Fold Fold fold	k.12 — Zinc finger design
Superfamily Superfamily superfamily	k.12.1 — Zinc finger design
Family Family family	k.12.1.1 — Zinc finger design

Domain ID domain_id	d1meyg_
Class class	k — Designed proteins
Fold Fold fold	k.12 — Zinc finger design
Superfamily Superfamily superfamily	k.12.1 — Zinc finger design
Family Family family	k.12.1.1 — Zinc finger design

CATH v4.4 (6 domains)

Domain ID domain_id	1meyC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1meyC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1meyC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1meyF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1meyF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1meyF03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

▶

Unit-cell length a length_a	62.070 Å
Unit-cell length b length_b	165.530 Å
Unit-cell length c length_c	46.274 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.3190

CRYSTAL STRUCTURE OF A DESIGNED ZINC FINGER PROTEIN BOUND TO DNA
