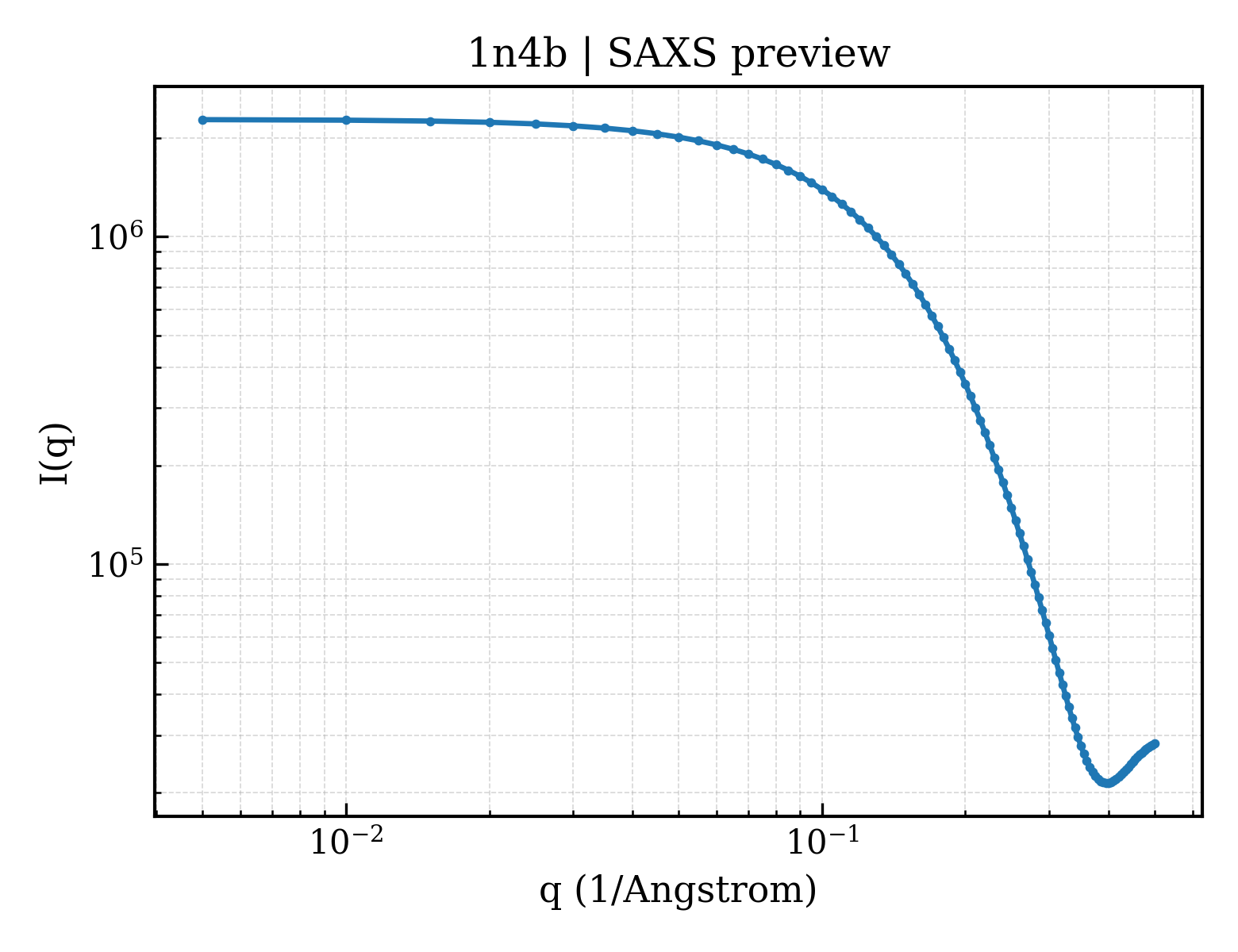

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1n4b |
| 沉积日期 deposition_date | 2002-10-30 |
| 结构标题 title | Solution Structure of the undecamer CGAAAC*TTTCG |
| 关键词 keywords | interstrand cross-link, alkylated DNA, modified cytosine, alkylated cytosine, DNA; DNA |
| 实验方法 method | SOLUTION NMR |
| 回转半径 Rg (Guinier) rg_guinier | 12.17 Å |
| 回转半径 Rg (电子) rg_electron | 11.56 Å |
| 零角强度 I(0) i0 | 2279900.00 |
| 分子量 molecular_weight | 6667.0 kDa |
| 排除体积 excluded_volume | 6536 ų |
| 包络体积 envelope_volume | 8172 ų |
| 水化壳体积 shell_volume | 6740 ų |
| 包络直径 envelope_diameter | 41.7 Å |
| 壳层 Rg shell_rg | 15.74 Å |
| 包络 Rg envelope_rg | 11.93 Å |
| 形状 Rg shape_rg | 11.48 Å |
| 总 Rg total_rg | 12.37 Å |
| 总原子数 total_atoms | 696 |
| 残基数 n_residues | 21 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 42.6 Å |
| Rg (实空间) rg_real | 12.21 Å |
| Rg 误差 (实空间) rg_real_error | 0.29 Å |
| I(0) (实空间) i0_real | 2.2800e+06 |
| I(0) 误差 (实空间) i0_real_error | 2.5990e+04 |
| Rg (倒空间) rg_reciprocal | 12.21 Å |
| I(0) (倒空间) i0_reciprocal | 2280000.0000 |
| 解质量估计 total_estimate | 0.8462 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 13.5 Å |
| 偏度 Skewness skewness | 0.451 |
| 峰度 Kurtosis kurtosis | -0.083 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 219200.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.694;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.923;
Smooth: 0.992
|
Entity 1
polymer
| 描述 description | 5'-D(*CP*GP*AP*AP*AP*CP*TP*TP*TP*CP*G)-3' |
| 分子量 formula_weight | 3333.2 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 696 |
CGAAACTTTCG
Entity 2
polymer
| 描述 description | 5'-D(*CP*GP*AP*AP*AP*D00*TP*TP*TP*CP*G)-3' |
| 分子量 formula_weight | 3361.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | B |
CGAAAXTTTCG
;Solution Structure of a DNA Duplex Containing
Mispair-Aligned N4C-Ethyl-N4C
Interstrand Cross-Linked Cytosines
;
Biochemistry (2002)
Files (7)
- pr_distribution /app/data/pr_computation/n4/1n4b/pr_distribution.json
- pr_output /app/data/pr_computation/n4/1n4b/1n4b.pr.out
- pr_plot /app/data/visualization/pr_computation/n4/1n4b/1n4b_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/n4/1n4b/1n4b.dat
- saxs_fit /app/data/saxs_computation/n4/1n4b/1n4b.fit
- saxs_log /app/data/saxs_computation/n4/1n4b/1n4b.log
- saxs_plot /app/data/visualization/saxs_computation/n4/1n4b/1n4b_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/n4/1n4b/1n4b.fit |
| pddf |
/app/data/pr_computation/n4/1n4b/1n4b.pr.out |
| profile |
/app/data/saxs_computation/n4/1n4b/1n4b.dat |
